KE3-3001054Magnetic Field Transmitter

Outdoor Shields Plus Owner’s Manual www.invisiblefence.com www.invisiblefence.com 2 Congratulations on your purchase of the Outdoor Shields Plus. Please read and review this manual to become familiar with Outdoor Shields Plus components and its operation. It is strongly recommended you review this information before using the product. Outdoor Shields Plus gives you control over the areas a pet or pets have access to outside your home. It is designed to work independently, or to complement your Invisible Fence® Brand 800 digital electronic pet containment system. Table of Contents Components...................................................................................................................... 3 How the Systems Works..................................................................................................... 3 Operating Guide............................................................................................................... 4 Power up the Outdoor Shields Plus transmitter.................................................................. 4 Adjust signal field range..................................................................................................... 4 Verify the signal field range............................................................................................... 4 Selecting either 7K or 10K on the Outdoor Shields Plus transmitter................................. 4 Checking for low battery.................................................................................................... 4 Connect the Wires to the Outdoor Shields Plus transmitter....................................5 Selecting & Changing Multi-Area Shielding......................................................5 Changing the Channel Setting on the Shields ® Transmitter.....................................6 Selecting & Changing the Reaction Rate on the Outdoor Shields Plus........................6 Troubleshooting................................................................................................................ 6 Important Warnings............................................................................................................ 6 Battery Disposal.................................................................................................................. 7 Perchlorate Battery.............................................................................................................. 7 Important Recycling Advice............................................................................................... 7 Compliance................................................................................................................7 & 8 Important Precautions 1. Read and retain manual. Read the entire Owner’s Manual before using your Outdoor Shields Plus. If you have any questions after reading this manual, call your Invisible Fence® Brand Dealer. Dealer Name: _______________________ Dealer Phone: _______________________ 2. Train your pet according to the instructions contained in this manual. Do not become overly confident your pet has become conditioned to the Outdoor Shields Plus system sooner than expected. 3. Adhere to all cautions and warnings contained in any Invisible Fence® Brand manual. 4. Never perform set-up procedures while the Computer Collar® unit is on your pet. 5. All Invisible Fence® Brand products are designed for pet use only. Never attempt to use this product for any purpose not specifically described in this manual. 6. Check the tightness of the Computer Collar® unit on a regular basis. Remove your pet’s Computer Collar® unit each night. This will prevent the possibility of any irritation the collar may cause to your pet’s skin. However, if this is not possible, please check the tightness of the collar each time you feed your pet by removing the collar and then replacing it back on your pet. A condition called Pressure Necrosis, which is a devitalization of the skin due to excessive and prolonged contact against the Contact Points, may occur if the steps above are not followed.8. If you have any questions about any aspect of your Invisible Fence® Brand pet containment system, call your Invisible Fence® Brand Dealer immediately. www.invisiblefence.com 3 7. Do not attempt to service any Invisible Fence® Brand equipment. Refer all service to your authorized Invisible Fence® Brand Dealer only. Unauthorized service or repair will void the warranty. Note: The low battery indicator will begin flashing when it is time to replace the batteries. An Outdoor Shields® Plus transmitter producing less than the maximum setting will get a substantially longer battery life. Components • Outdoor Shields Plus Transmitter • Owner’s Manual How the System Works The Outdoor Shields® Plus Transmitter is disguised as a rock and can be placed in your landscape or in areas you want to shield your pet from. It sends a signal field up to 10 feet in diameter or a 5 foot radius. Your pet wears a Computer Collar® unit that detects areas you have shielded and administrates a correction when your pet enters those areas. The Outdoor Shields® Plus Transmitter has two control buttons and a LCD display. The two buttons control the signal field range and 7K or 10K frequencies. The LCD display shows the signal field range, low battery and either 7K or 10K frequencies. The Outdoor Shields® Plus Transmitter is powered by 4 alkaline D-batteries (not included). Under normal conditions, the batteries will operate the transmitter for up to one year. Check the LCD display every month to see if the Low Battery indicator is displayed. The Outdoor Shields® Plus Transmitter is water-resistant but cannot be submersed in water. Note: A correction is a training term used to describe an action taken to discourage unwanted pet behavior. The Computer Collar® unit applies a correction when your pet enters a shielded area or crosses the boundary of an Invisible Fence® Brand electronic…

Text truncated - open the document above for the full version.

FCC Authorization Letter Radio Systems Corporation 2010-03-01 To whom it may concern: We the undersigned, hereby authorize CTI employees Christy Chen to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CTI employees Christy Chen on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Radio Systems Corporation Sincerely, Signature: 2010-03-01

Ersteller: U. Rodemeier Revision: 04 Erstelldatum: 03.0 8.01 Datum: 11.05.07 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: Feb. 03, 2010 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: KE3-3001054 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information a ccompanying this application as outlined below: •Block Diagram • Operation Description • Circuit Diagram • (XXXXX to be replaced by Schematics, Block Diagram, etc.) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company: Centre Testing International Corporation address : Bldg. C, Hongwei Industrial Park, Block 70, Bao’an District, Shenzhen, Guangdong, China Signature : Job Title and Dept. :EMC Engineer, EMC Lab

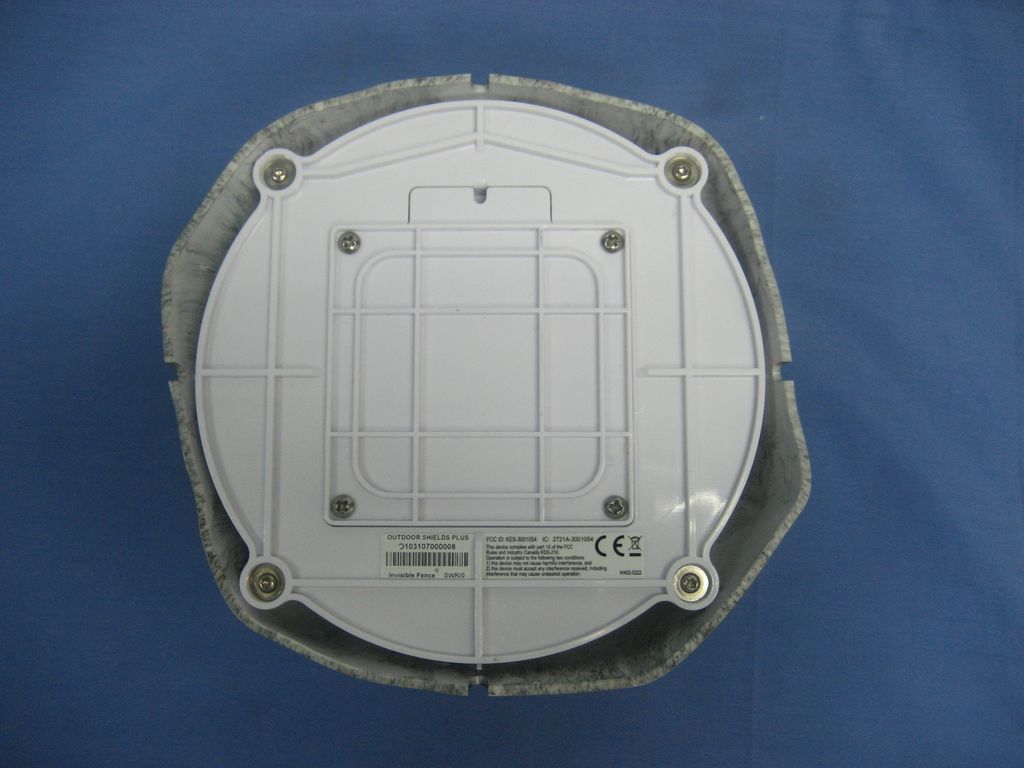

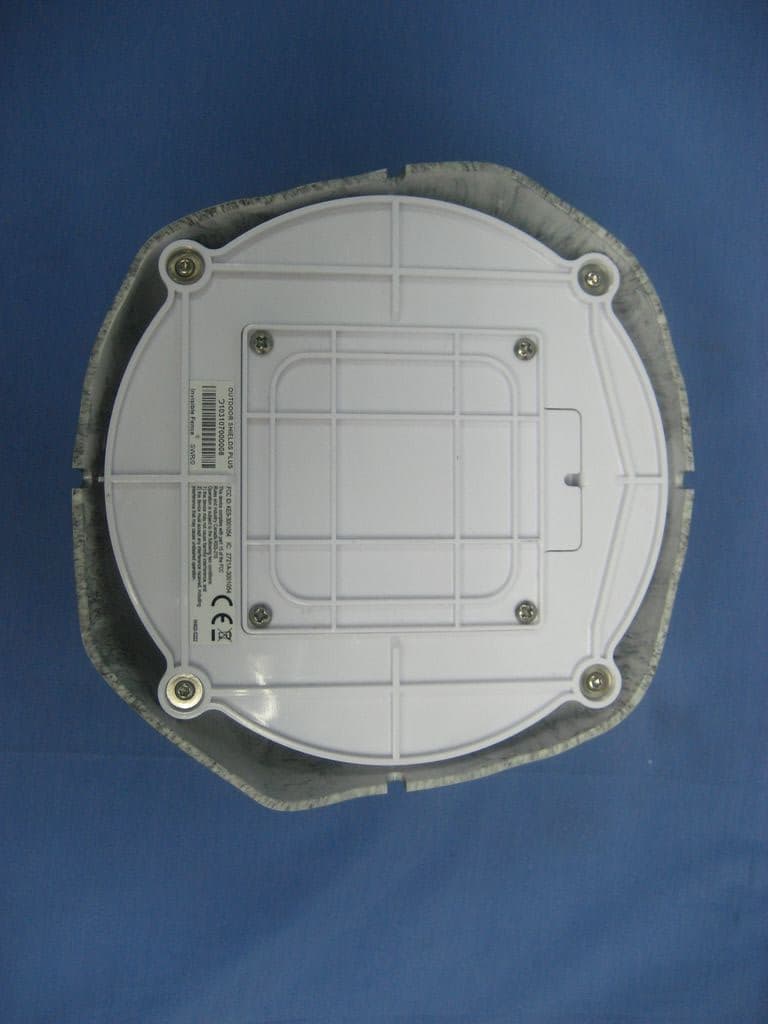

Label location & info:

Report No. SZEE100126119718 Page 1 of 18 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : RAC00-12635 Model Number : Outdoor Shields Plus IC : 2721A-3001054 FCC ID : KE3-3001054 Trade Name : Invisible Fence Report Number : SZEE100126119718 Date : Mar. 02, 2010 Prepared for: Radio Systems Corporation Shenzhen Representative Office of: Radio Systems Corporation 10427 Electric Ave. Knoxville, TN 37932 USA TEL: +1 865 218 1557 FAX: +1 865 671 6854 Prepared by: CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3362 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results RSS 210 Issue 7: 2007 RSS-Gen Issue 2: 2007 FCC Part 15C: 2009 Pass Pass Pass Report No. SZEE100126119718 Page 2 of 18 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..........................................................................................3 2. TEST SUMMARY .........................................................................................................4 3. MEASUREMENT UNCERTAINTY ...............................................................................4 4. PRODUCT INFORMATION ..........................................................................................4 5. TEST EQUIPMENT ......................................................................................................4 6. 99% BANDWIDTH MEASUREMENT ..........................................................................5 6.1. LIMITS ...................................................................................................................5 6.2. BLOCK DIAGRAM OF TEST SETUP ....................................................................5 6.3. TEST PROCEDURE..............................................................................................5 6.4. TEST RESULT......................................................................................................5 7. RADIATED EMISSIONS MEASUREMENT..................................................................6 7.1. LIMITS ...................................................................................................................6 7.2. BLOCK DIAGRAM OF TEST SETUP ....................................................................6 7.3. TEST PROCEDURE..............................................................................................7 7.4. TEST RESULT......................................................................................................7 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................13 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT ......................................................14 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT .......................................................15 N/A means not applicable. Report No. SZEE100126119718 Page 3 of 18 1. GENERAL INFORMATION Applicant & Address: Radio Systems Corporation Shenzhen Representative Office of: Radio Systems Corporation 10427 Electric Ave. Knoxville, TN 37932 USA Manufacturer & Address: Whitways Enterprises Limited Whitways Electronics Factory, San Zhong Management Zone, Qing Xi, Dong Guan Shi, Guang Dong Province, China Equipment Under Test: RAC00-12635 Model Name: Outdoor Shields Plus IC: 2721A-3001054 FCC ID: KE3-3001054 Trade Name: Invisible Fence Serial Number: N/A Technical Data: DC 6V Date of test: Jan. 26, 2010 to Mar. 02, 2010 Condition of Test Sample: Normal The above equipment was tested by Centre Testing International Corporation for compliance with the requirements set forth in the RSS 210, RSS-Gen, FCC Part15 Section 15.209 and the measurement procedure according to IC requirements and ANSI C63.4. The test results of this report relate only to the tested sample identified in this report. Prepared by : Christy Chen Reviewed by : Louisa Lu Approved by : Jim Zhang Manager Date : Mar. 02, 2010 Report No. SZEE100126119718 Page 4 of 18 2. TEST SUMMARY Clause Test Item Rule Result 6 99% bandwidth RSS-Gen 4.6.1 PASS 7 Radiated Emission RSS-210 Table 2, Table 3 & FCC Part15.209 (a) PASS *: The power supply of EUT is by battery. 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Uncertainty Radiated Emissions 4.6 dB 4. PRODUCT INFORMATION Items Description Rating DC 6V Equipments Class Magnetic Field Transmitter Modulation OOK Operated Frequency 7.25kHz and 10.7kHz Channel Number 1 Antenna Inductive Antenna 5. TEST EQUIPMENT Equipment Manufacturer Model Number Serial Number Due Date Receiver R&S ESCI 100435 08/25/2010 Spectrum Analyzer Agilent E4443A MY45300910 01/19/2011 Biconilog Antenna ETS-LINGREN 3142C 920250 01/19/2011 Horn Antenna ETS-LINDGREN 3117 00057407 06/07/2010 Loop Antenna ETS-LINDGREN 6502 00071730 09/22/2010 Multi device Controller ETS-LINGREN 2090 00057230 01/19/2011 3M Chamber & Accessories ETS-LINDGREN FACT-3 N/A 01/19/2011 Preamplifier(9kHz-1GHz) Agilent 11909A 186871 08/25/2010 Report No. SZEE100126119718 Page 5 of 18 6. 99% BANDWIDTH MEASUREMENT 6.1. LIMITS No limits. 6.2. BLOCK DIAGRAM OF TEST SETUP 6.3. TEST PROCEDURE 1. The transmitter output (antenna port) was connected to the spectrum analyzer. 2. Set spectrum analyzer’s RBW and VBW to applicable value with Peak in Max Hold. 3. A PEAK output reading and 99% OBW function in spectrum analyzer were taken. 6.4. TEST RESULT Channel Frequency 99% BW 1 10.7kHz 9.54kHz Report No. SZEE100126119718 Page 6 of 18 7. RADIATED EMISSIONS MEASUREMENT 7.1. LIMITS RSS-210 Table 2, Table 3 & FCC Part15.209 (a) Table 1: General Field Strength Limits for Transmitters and Receivers at Frequencies Above 30 MHz Field Strength mic…
