KE3-3001112DOG TRAINER, HAND HELD UNIT

GPS TRACKING OPERATING GUIDE PLEASE READ THIS ENTIRE GUIDE BEFORE BEGINNING 400-1360 TEK 1.0L Manual.indd 13/31/11 1:49 PM 21-800-732-0144 IMPORTANT SAFETY INFORMATION Explanation of Attention Words and Symbols used in this guide This is the safet y alert symbol. It is used to alert you to potential personal injury hazards. Obey all safet y messages that follow this symbol to avoid possible injury or death. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION, used without the safet y alert symbol, indicates a hazardous situation which, if not avoided, could result in harm to your dog. NOTICE is used to address safe use practices not related to personal injury. • Not for use with aggressive dogs. Do not use this product if your dog is aggressive, or if your dog is prone to aggressive behavior. Aggressive dogs can cause severe injury and even death to their owner and others. If you are unsure whether this product is appropriate for your dog, please consult your veterinarian or a certified trainer. • This device contains Lithium-Ion (Li-Ion) batteries; never incinerate, puncture, deform, short- circuit, or charge with an inappropriate charger. Fire, explosion, propert y damage, or bodily harm may occur if this warning is not followed. • Risk of explosion if bat tery is replaced by an incorrect t ype. Dispose of used bat teries according to the regulations in your area. • Bat teries should never be removed from the bat tery compartment for charging. • Taking your product apart can cause damage and void your warrant y. • Do not charge the bat teries in areas with high temperature (100°F +) . • Keep bat teries away from children. • Using your TEK ™ Series Location System while operating a motor vehicle can be distracting. Always pay full at tention to operating your vehicle. • Always be alert to your surroundings when navigating to a way point. Do not cross dangerous terrain or obstacles as you move. 400-1360 TEK 1.0L Manual.indd 23/31/11 1:49 PM 3sportdog.com/tEK Please read and follow the instructions in this manual. Proper fit of the collar is important. • Avoid leaving the collar on the dog for more than 12 hours per day. • When possible, reposition the collar on the dog’s neck every 1 to 2 hours. • When using a separate collar for a lead, don’t put pressure on the GPS Collar. • Wash the dog’s collar weekly with a damp cloth. • Taking product apart can cause damage and void your warrant y. Contact the Customer Care Center for battery replacement service. • Avoid using a high-powered radio (greater than 5 wat ts) in close proximit y to the TEK ™ Series Location System. It may cause irreversible damage to the TEK Series Location System. • Avoid chemical cleaners and solvents that can damage plastic components. • Do not store the TEK Series Location System where prolonged exposure to temperature extremes may occur, because permanent damage may result. • When storing the device for an extended time, store within the following temperature range: from 32°F to 77°F (from 0° to 25°C) . • Do not leave the device exposed to a heat source or in a high-temperature location, such as in the sun in an unat tended vehicle. To prevent damage, remove the device from the vehicle or store it out of direct sunlight, such as in the glove box. 400-1360 TEK 1.0L Manual.indd 33/31/11 1:49 PM 41-800-732-0144 Thank you for choosing SportDOG Brand ® . Used properly, this product will help you track your dog ef ficiently and safely. To ensure your satisfaction, please review this owner’s manual thoroughly. If you have questions regarding this product’s operation, please see this manual’s Frequently Asked Questions or Troubleshooting section, contact our Customer Care Center at 1-800-732-014 4, or visit our website at www.sportdog.com. To get the most protection out of your warrant y, please register your product within 90 days at www.sportdog.com. By registering, and keeping your receipt you will enjoy the product’s full warrant y and should you ever need to call the Customer Care Center, we will be able to help you faster. Most importantly, SportDOG ™ will never give or sell your valuable information to anyone. Complete warranty information is available online at www.sportdog.com. 400-1360 TEK 1.0L Manual.indd 43/31/11 1:49 PM 5sportdog.com/tEK TAblE OF CONTENTS COMPONENTS .............................................................................................................................................................................6 HOW THE SYSTEM WORKS.......................................................................................................................................................7 KEY DEFINITIONS ........................................................................................................................................................................8 ICON DEFINITIONS ..................................................................................................................................................................10 MAIN MENU ..............................................................................................................................................................................12 OPERATING THE TEK ™ SERIES ..............................................................................................................................................13 PREPARE THE TEK SERIES HANDHElD DEvICE ...............................................................................................................13 TO CAlIBRATE THE COMPASS ..............................................................................................................................................15 PREPARE THE GPS COllAR ....................................................................................................................................................17 PAIR COllARS TO THE HANDHElD DEvICE ........…

Text truncated - open the document above for the full version.

Confidentiality Request April 19, 2011 Timco Engineering PO Box 370 Newberry, FL 32669 RE : FCC ID: KE3-3001112 Dear Application Examiner: 1. With regards to the exhibits submitted in support of the application for FCC ID: KE3-3001112, please classify the following as confidential pursuant to Sections 0.457 & 0.49 of the Commission’s Rules: -Schematics (file name 11-0041.Radio Systems.TEK G.CONFIDENTIAL Schematics.pdf) -Block diagram (file name 11-0041.Radio Systems.TEK G.CONFIDENTIAL. Block Diagram.pdf) -Theory of Operation (file name 11-0041.Radio Systems.TEK G.CONFIDENTIAL Theory of Operation.pdf) These exhibits contain technical information that Radio Systems deems to be sensitive and proprietary. Therefore this information cannot be published. If this information were to be made public it could be used to the disadvantage of the applicant in the marketplace. Sincerely, Sandi McEnery US Tech (Authorized Agent for Radio Systems) 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com

10427 Electric Ave Knoxville, TN. 37932 865-777-5404 www.petsafe.net AGENCY AGREEMENT Federal Communications Commission Date: April 18, 2011 P.O. Box 429 Columbia, MD 21045 Gentlemen: By signature below, we hereby appoint US Tech employees Sandi McEnery, Alan Ghasiani, and George Yang to act as our agents with regard to all FCC equipment authorizations. This appointment will remain in effect until otherwise notified. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. This appointment also includes the authority to complete and sign any confidentiality requests as an authorized agent on our behalf. Clifton P. Brick Product Safety and Regulatory Manager (FCC contact of record as of this date) Date: 4/18/2011

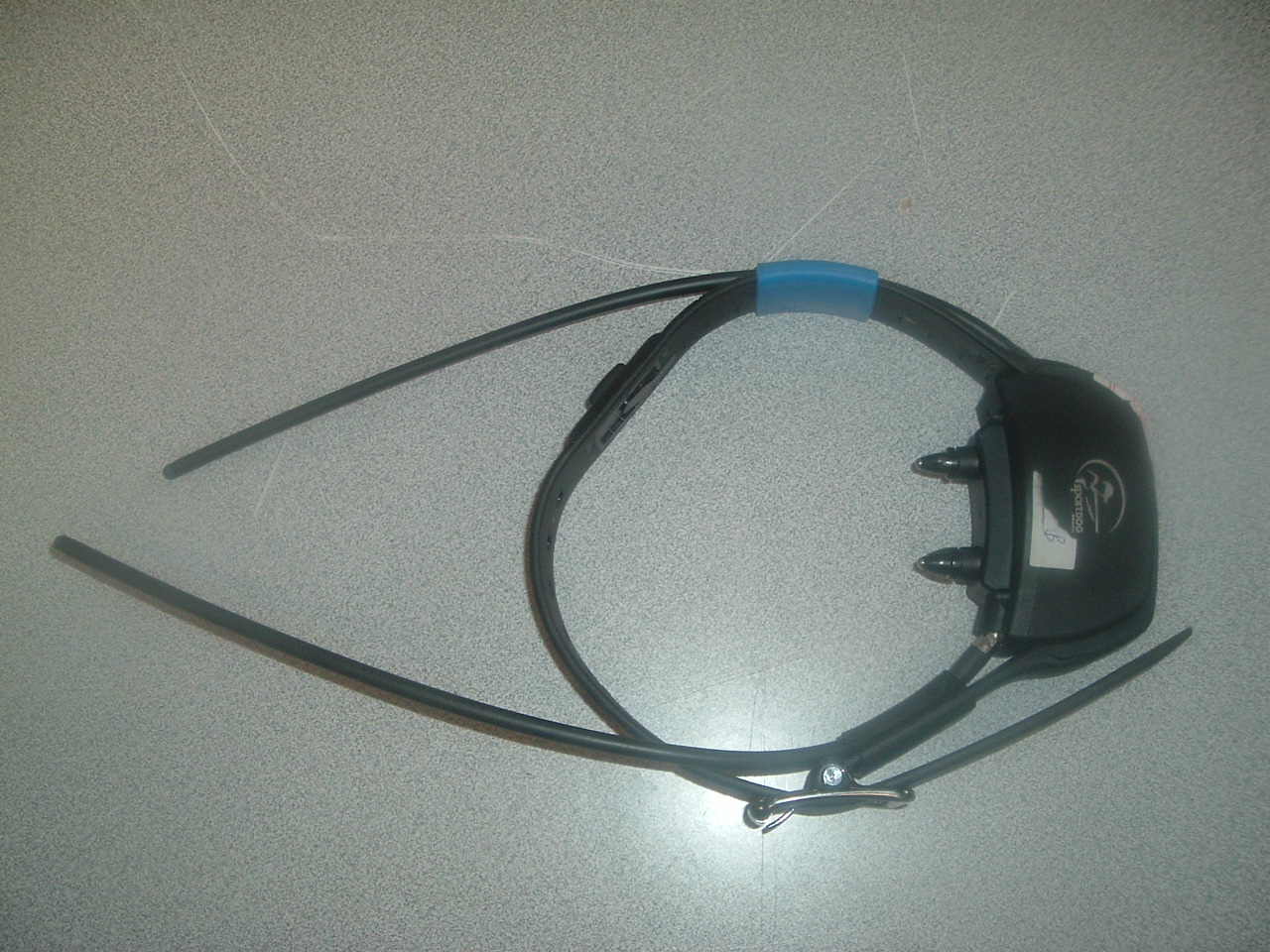

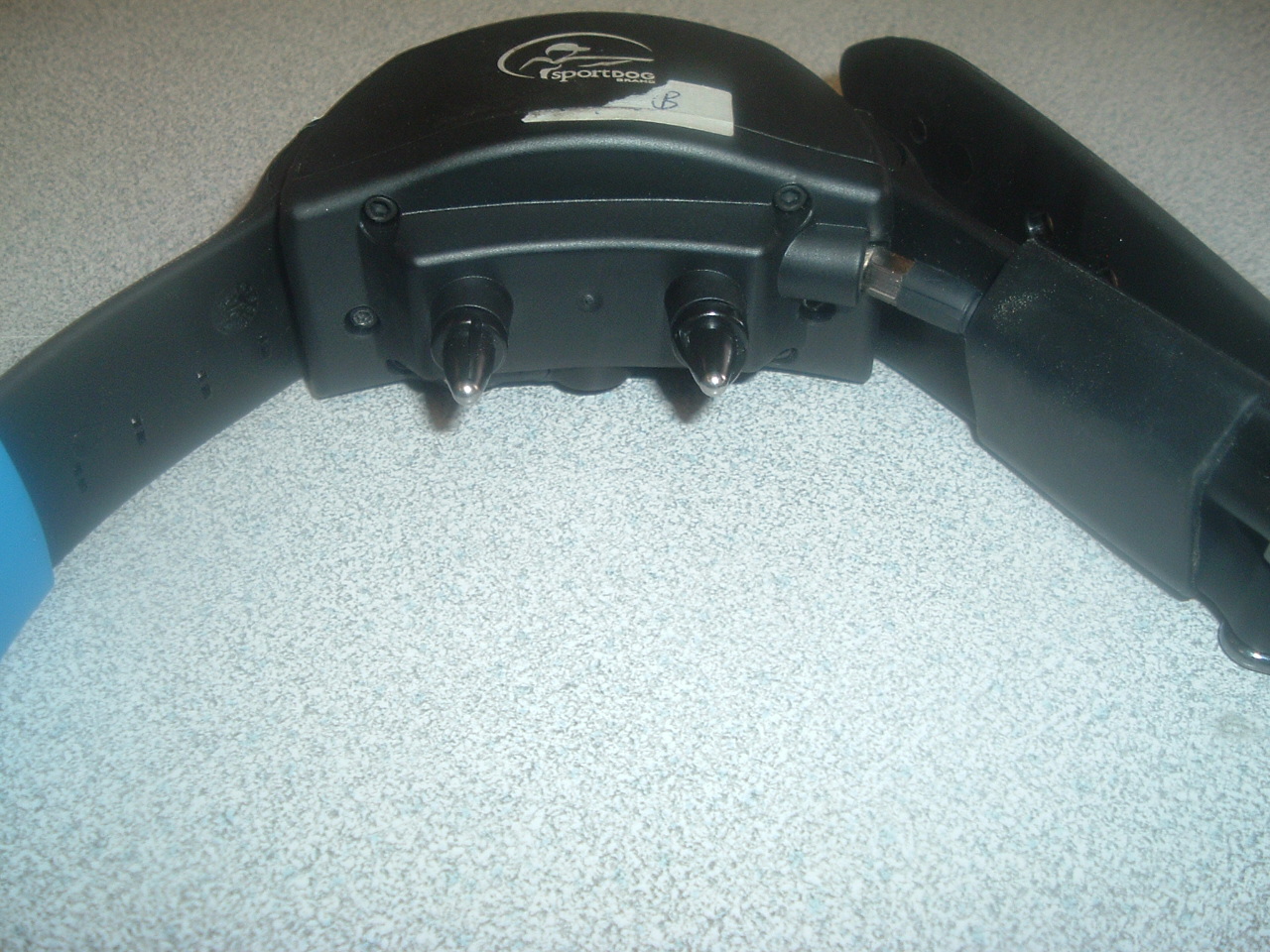

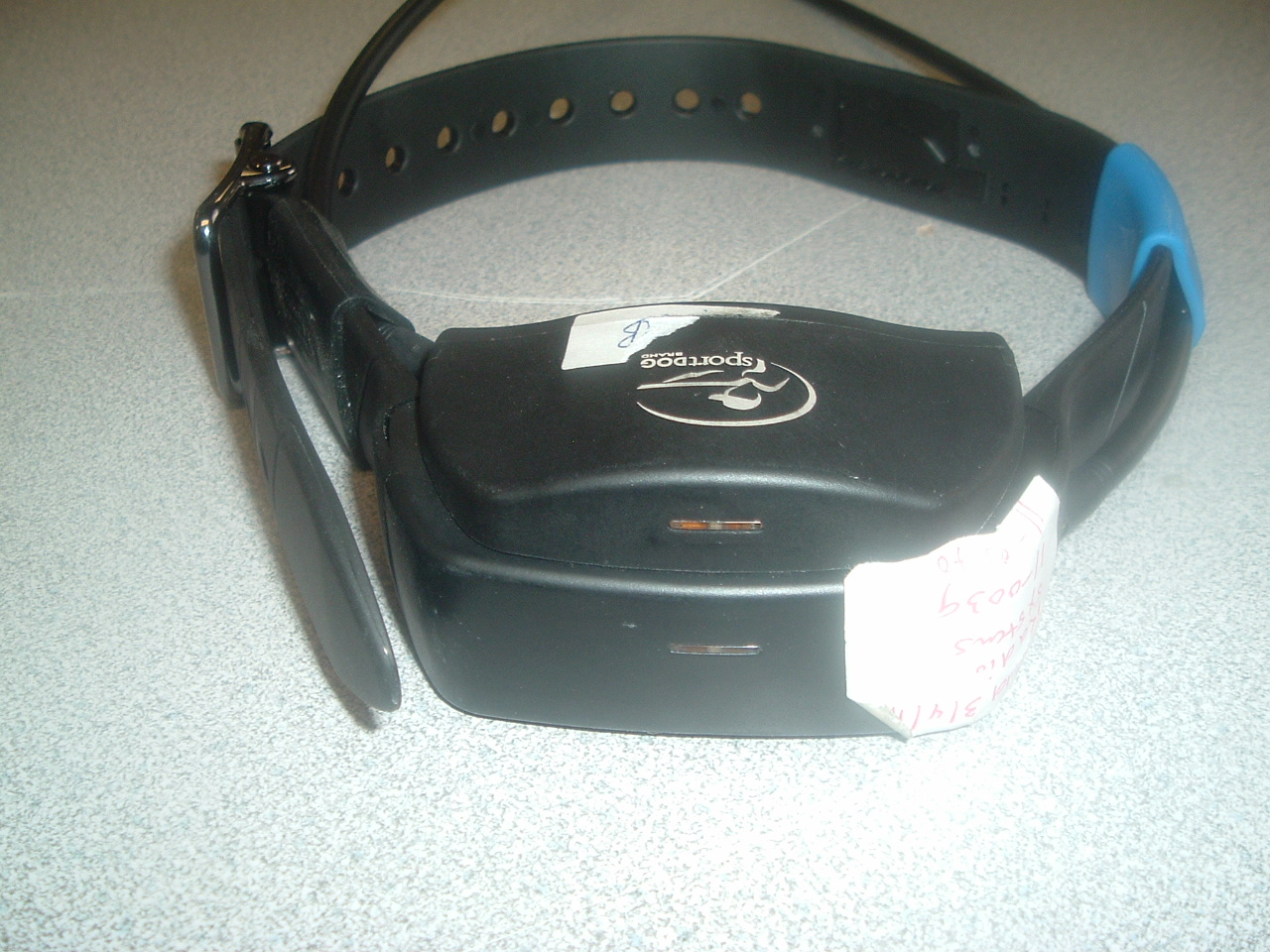

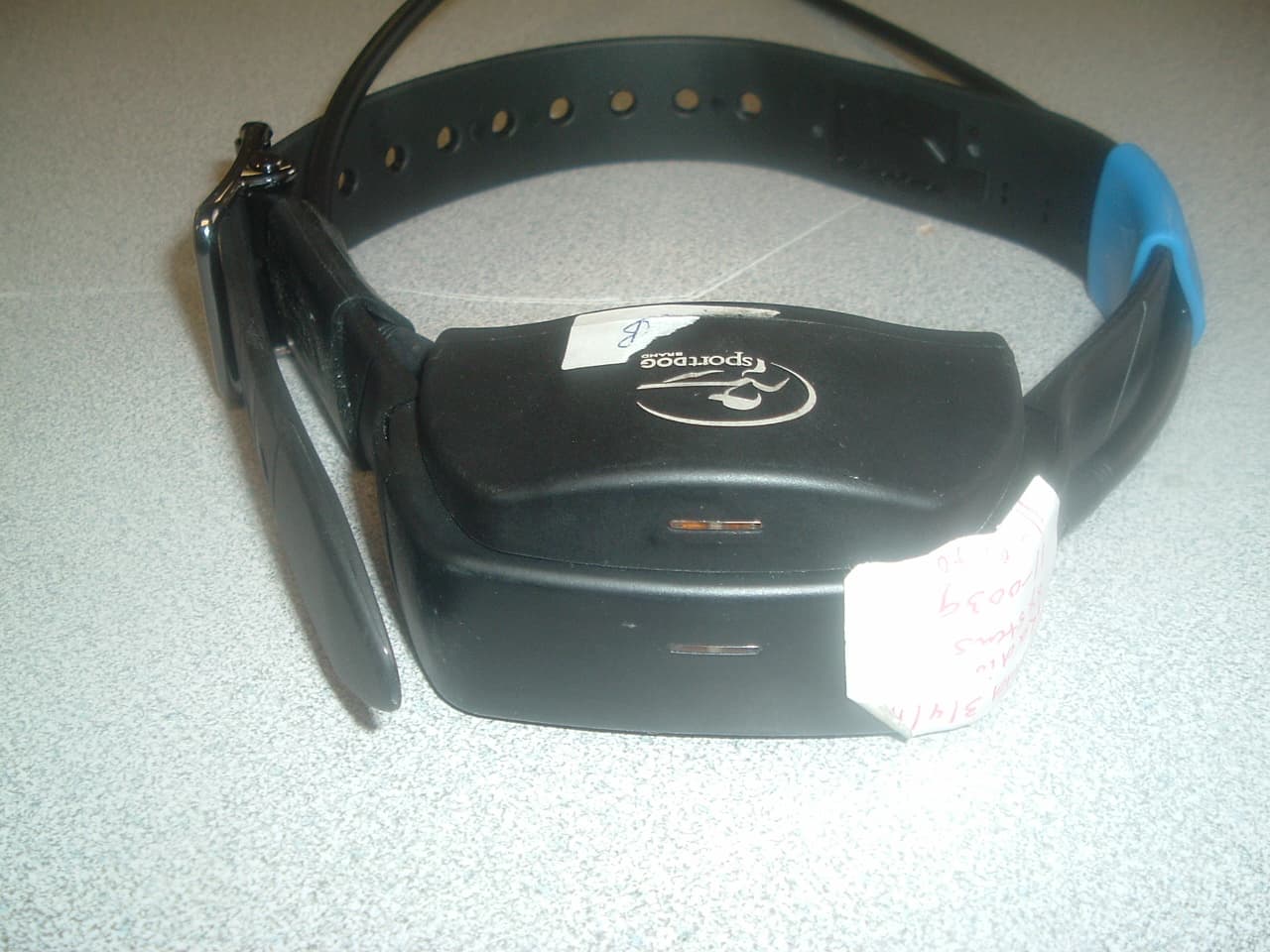

US Tech FCC ID:KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp. Page 1 of 4 Photograph 1 – EUT Front US Tech FCC ID:KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp. Page 2 of 4 Photograph 2 – EUT Back US Tech FCC ID:KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp. Page 3 of 4 Photograph 3 – EUT probe view US Tech FCC ID:KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp. Page 4 of 4 Photograph 4 – EUT LED view

300-1083 The world leader in pet training products RSC File Name: 417-583-1.ai Date: 08-09-2010 Revision Date:3-31-11 Drawn By: BS Approval: Date: Size: As Shown Material: N/A Color: N/A Process: Laser Etch Model# : TEK-100G Description: Artwork, Model &Serial Number, TEK-100G RSC Part: 417-583 Revision:1 Revision Description: Added FCC ID number Program used: AI CS4 Notes: 1. Laser Etch FCC ID number, Model Number and Serial Number as shown; 2. XXXXXXXXXXXXX : refer to 490-897 latest version, product serial number format section. TEK-100G XXXXXXXXXXXXX FCC ID: KE3-3001112

US Tech FCC ID:KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp. Page 1 of 3 Photograph 1 – PCB side 1 US Tech FCC ID:KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp. Page 2 of 3 Photograph 2 – PCB side 2 US Tech FCC ID:KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp. Page 3 of 3 Photo 3 – PCB with Fastrax shielding removed

SCHM-600-464 KRW 03/31/2011 R1 R1 100-982_R1 SCHM-600-464_R1.sch 12/11/2009 D 8 7 6 5 4 3 2 1 8 7 G G COMPANY CONFIDENTIAL SCHEMATIC TITLE:BOARD NUMBER: RSC 2009 RSC NUMBER: BY DATE ECO/PRO REV DESCRIPTION REVISION RECORD ABC 1 OF: 1 SHEET: DATED: COPYRIGHT C PJOHNSON ENGINEER: KWACASEY DRAWN: 12/11/2009 DATED: SIZE: FILE NAME: REV: TEK GPS D 10427 Electric Ave. - Knoxville, TN 37932-3369 - (8 65)777-5404 RADIO SYSTEMS CORPORATION 6 5 4 THESE PURPOSES.BE DESTROYED OR RETURNED TO RSC WHEN NO LONGER REQU IRED FOR REQUIRING IT'S USE FOR RSC AUTHORIZED PURPOSES. THI S DOCUMENT SHALL CORPORATION. THIS DRAWING AND THE INFORMATION CONTA INED HEREIN SHALL NOT BE REPRODUCED NOR DISCLOSED TO ANYONE EXC EPT THOSE THIS DRAWING IS THE PROPERTY OF AND PROPRIETARY TO RADIO SYSTEMS 3 2 1 D C B A E F EF RSCXXX Release to production 150MHZ TRANSCEIVER COLLAR WITH GPS ICSP VDD ICSP MCLRICSP DATAICSP CLK ICSP GND RED GRN V1 High: TX VCHARGE+ VCHARGE- 5V Charge Input 23 TEST_A 36 CLKOUT 2 CREG1 16 MIX_Q 6 RFIN 18 FILT_I 7 RFINB 10 RSET 8 RLNA 31 CREG2 41 CREG3 11 CREG4 17 FILT_I 20 FILT_Q 21 FILT_Q 13 MIX_I 14 MIX_I 4 RFOUT 9 VDD4 43 VDD 40 VDD3 32 VDD2 3 VDD1 30 ADCIN 47 GND1 19 GND4 45 GND 29 GND2 22 GND4 12 GND4 5 RFGND 39 OSC1 24 CE 25 SLE 26 SDATA 27 SREAD 28 SCLK 33 SWD 34 TXRXDATA 35 TXRXCLK 37 MUXOUT 38 OSC2 15 MIX_Q 42 CPOUT 46 L1 44 L2 1 VCOIN 48 CVCO 49GND_CNTPAD U1 ADF7021-N 505-290 R1100K C110N C21N C310N R2 10K R3 10K C4 100P C5 10N C61U C722P50V 1 2 L1 100NH C815P C9 15P C1010N L212N3 C1133P L5 10N C1282P C14 NO_POP C1610N C17 100N C18 100N C19 100N R4 1.1K R5 3.6K C2022N R6 3R9 C21 100N L6 16N C22100P R7 2.7K R8 270R C23270P 6 VCC 4 OUT 3 GND 1 GND X1 14.4MHZ C2430P 1 J2 2 GND 3 J3 6 V1 5 J1 4 V2 U2 505-294 SKY13270 D1 HSMP-3822 17 VDD 26 MCLR/VPP/RE3 12 RC4/SDI/SDA 25 RB7/KBI3/PGD 24 RB6/KBI2/PGC 22 RB4/KBI0/AN11/P1D 2 RA3/AN3/VREF+/C1IN+ 3 RA4/T0CKI/C1OUT 13 RC5/SDO 1 RA2/AN2/VREF-/CVREF/C2IN+ 15 RC7/RX/DT 14 RC6/TX/CK 23 RB5/KBI1/PGM 16 VSS 5 VSS 28 RA1/AN1/C12IN1- 6 OSC1/CLKIN/RA7 4 RA5/AN4/SS/HLVDIN/C2OUT 9 RC1/T1OSI/CCP2(1) 10 RC2/CCP1/P1A 8 RC0/T1OSO/T13CKI 27 RA0/AN0/C12IN0- 18 RB0/INT0/FLT0/AN12 20 RB2/INT2/AN8/P1B 19 RB1/INT1/AN10/C12IN3-/P1C 21 RB3/AN9/C12IN2-/CCP2(1 7 OSC2/CLKOUT/RA6 11 RC3/SCK/SCL 29 CNT_GND U3 PIC18F26K20-I/ML 500-269 R9 270R R10270R C2510N Q1 MMBT3904WT1 3904 R112.7K - + 1 + 2 - SPK1 100-623 R1215R 5% 101-829 SW1 WTD06400 107-026 R13 10K C2610N R14 1M 1% 101-541 C2710N C30100P 1 VCC1 5 VCC2 6 VCC2 3 RF_IN 8 2FO 7 NC 4 GND2 2 GND1 16 APC1 15 APC2 13 NC 11 RF_OUT 12 RF_OUT 9 RF_OUT 10 RF_OUT 14 VCC 17 BASE_GND U4 RF5110G C31100P L7 33NH C3247P C33 100N C34 1N 5 ON/OFF 2 VIN 3 VOUT 4 NC 1 GND U5 S-812C26BMC-C4GT2G 2V6 C35 100N C36 100N R16 270R R17 270R R1818R C37 100P 21 D2 BAS516 C3810N R192.2K R202.2K R212.2K R222.2K R232.2K R242.2K R252.2K R262.2K R272.2K R28 1M 1% 101-541 C39 100N C40100P C41100P C42100P C43100P C44100P C45100P C46100P C47100P C48100P 1 VSS 2 VIN 3 VOUT 4 NC U6 S-817A30ANB 3V R3010K R31 10K C4910N C5010N C5110N C5210N C53 100N C54 220P C55 6P8 L8 150N 106-128 C5610P R3218R C5710N R33 5.6 C5810N R3418R L9 56N L10 56N C5915P C6010N C61 100N C62 100N C63 100N 1 VSS 2 VIN 3 VOUT 4 NC U73V S-817A30ANB 123 J1 J2-1 J2-2J2-3J2-4 J2-5 F1 120R@100MHZ F2 120R@100MHZ Q33904 R412.2K 1 24 3 D6RED/GRN Q4 3904 R42 2.2K C661U C67100N ANT_150MHZ1 1 NC 2 A 3 GND 4 Y 5 VCC U8 NC7SZ14MX5X 1 VSET 2 VDD1 3 VDD2 4 VSS1 5 PROG 6 THREF 7 THERM 8 TIMER 9 VSS3 10 VBAT1 11 VBAT2 12 VBAT3 13 VSS2 14 EN 15 STAT2 16 STAT1 17 CNT_GND U9 IC_CHG_MCP73861_QFN-16_505-346 MCP73861 R43 1K C68330N C6910P C7224P C739P1 C7430P C7524P R44 10K 123 J3 B3B-ZR-3.4 C784U7 C8015PC8115P L11 47NH L12 47NH C83100PC84100P C8610N C7610N GPS_ANT C7110N 2 1 D5 BAT54XV2T1 104-038 2 1 D4 BAT54XV2T1 104-038 R4710K Q23904 R48 100K R45 14K3 L3 15N L4 56N C1339P 1 NC 2 NC 3 NC 4 NC 5 GND 6 NC 7 BU_BATT 8 STANDBY 9 XRESET 10 NC 11 GND 12 FOUT_32K 13 FIX_VALID 14 VDD_B 15 GND 16 TXD1 17 TXD0 18 RXD0 19 RXD1 20 GND 21 XANTSHORT 22 GND 23 GND 24 RF_IN 25 GND 26 GND 27 ANT_OK 28 VDD 29 NC 30 PPS U11 IT500 505-329 R46 270R R40 270R L14 56N L15 56N C8539P C8715P C15 1N 3 I/O 1 VIN 5 VOUT 4 BY 2 GND U10 505-324 LP2985IM5-3.0 C774U7 R3810K R37 270R J4 MH1 MH2 1 1 2 2 3 3 J5 CON-3PIN PAD1 PAD2 1 DVDD_IO 2 GND 3 N/C 4 IADDR0 5 GND 6 AVDD 7 CS 8 INT1/DRDY 9 INT2 10 N/C 11 N/C 12 SDO 13 SDA/SDI/SDO 14 SCL/SPC U12 MMA7455L 105-015 C2810U C6410U C65100N C88100N R35 100R 5% 101-531 R1510KR2910K TP_INT1TP_INT2 TP1 MH3 MH4 R363R9 5% 101-821 C291U 2 1 D3 BAT54XV2T1 104-038 L16 BLM18EG221SN1D T BATT1 1 2 D7 NSR0320MW2T1 R3910R TP_SW VBATT +3V VBATT VBATT VBATT +3V VBATT +3V ADF_PWR PIC_PWR ADF_PWR ADF_PWR VBATT PIC_PWR GPS_I/O VBATT VBATT

US Tech 11-0040 Client Radio Systems Corp Issue Date 04-18-2011 Model: TEK G FCC ID: KE3-3001112 Page 1 of 1 Maximum Public Exposure to RF (MPE) CFR 1.1310 The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S, of 0.2 mW/cm 2 at a distance, d, of 20 cm from the EUT. Therefore, for: Highest Gain Dipole Antenna= 0 dBi Peak Power (Watts) = 0.122 (from Table 5 of Test Report) Gain of Transmit Antenna = 0 dB i = 1.0, numeric (from Table 4 of Test Report) d = Distance = 20 cm = 0.2 m S = (PG/ 4πd 2 ) = EIRP/4A = 0.122 (1.0)/4*π*0.2*0.2 = 0.122/0.503 = 0.2425 W/m 2 = (W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.02425 mW/cm 2 which is << less than 0.2 mW/cm 2

Page 1 of 27 Application For Part 2, Subpart J, Paragraph 2.907 Equipment Authorization of Certification for an Intentional Radiator per Part 95, Subpart J and TIA/EIA 603-C-2004 For the Radio Systems Model(s): TEK G FCC ID: KE3-3001112 UST Project: 11-0040 Issue Date: April 18, 2011 Total Pages: 27 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 27 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (Agent Responsible For Test): By: Alan Ghasiani Name: Title: Consulting Engineer President Date: April 18, 2011 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com US Tech Test Report FCC 95 J FCC ID KE3-3001112 Test Report Number: 11-0040 Issue Date: April 19, 2011 Customer: Radio Systems Model: TEK G Page 3 of 27 MEASUREMENT TECHNICAL REPORT COMPANY NAME: Radio Systems MODEL: TEK G FCC ID KE3-3001112 DATE: April 18, 2011 This report concerns (check one): Original grant X Class II change Equipment type: FSK Transceiver Module Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until: ______N/A ___________ date agrees to notify the Commission by N/A date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 US Tech Test Report FCC 95 J FCC ID KE3-3001112 Test Report Number: 11-0040 Issue Date: April 19, 2011 Customer: Radio Systems Model: TEK G Page 4 of 27 Table of Contents 1 General Information ........................................................................................... 6 1.1 Purpose of this Report ................................................................................... 6 1.2 Characterization of Test Sample .................................................................... 6 1.3 Product Description ........................................................................................ 7 1.4 Configuration of Tested System ..................................................................... 7 1.5 Test Facility .................................................................................................... 8 2 Tests and Measurements .................................................................................. 9 2.1 Test Equipment .............................................................................................. 9 2.2 Modifications to EUT Hardware ..................................................................... 9 2.3 Number of Measurements for Intentional Radiators (15.31(m)) ................... 10 2.4 Frequency Range of Radiated Measurements (Part 15.33) ......................... 10 2.4.1 Intentional Radiator ........................................................................................... 10 2.4.2 Unintentional Radiator ....................................................................................... 10 2.5 Measurement Detector Function and Bandwidth (CFR 15.35) ..................... 10 2.6 EUT Antenna Requirements ........................................................................ 11 2.7 RF power output (CFR 2.1046 & 95.639(h)) ................................................ 13 2.8 Occupied bandwidth and emission mask (CFR 2.1049 & 95.633 & 95.635) 14 2.9 Unwanted radiation - emission mask (95.635) ............................................. 20 Field strength of spurious radiation (2.1053) ......................................................... 23 2.10 Frequency stability (CFR 2.1055 & CFR 95.632(c)) .................................. 24 2.11 Measurement Uncertainty ......................................................................... 26 2.11.1 Conducted Emissions Measurement Uncertainty: ......................................... 26 2.11.2 Radiated Emissions Measurement Uncertainty: ............................................ 26 2.12 Power conducted Output (CFR 15.247(b) & 95.639(h)) ............................ 26 US Tech Test Report FCC 95 J FCC ID KE3-3001112 Test Report Number: 11-0040 Issue Date: April 19, 2011 Customer: Radio Systems Model: TEK G Page 5 of 27 List of Tables Table 1 - EUT and Peripherals .................................................................................. 8 Table 2 - Test Instruments ......................................................................................... 9 Table 3 - Number of Test Frequencies for Intentional Radiators ............................. 10 Table 4 - Allowed Antenna(s) ................................................................................... 11 Table 5 - Peak Radiated Harmonic & Spurious Emissions ...................................... 13 Table 6 – Bandwidth per CFR 95.633(f) .................................................................. 14 Table 7 - Peak Radiated Harmonic & Spurious Emissions ...................................... 23 Table 8 – Frequency Stability Table ......................................................................... 24 Table 9 – Peak Antenna Conducted Output Power per Part 15.247 (b) (3) (Same as EIRP) ....................................................................................................................... 27 List of Figures Figure 1 - Test Configuration ................................................................................... 12 Figure 2 – Channel 1 Occupied Bandwidth .............................................................. 15 Figure 3 – Channel 2 -Occupied Bandwidth .........…

Text truncated - open the document above for the full version.

US Tech FCC ID: KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp Page 1 of 3 Test Configuration Photo – Radiated Emissions US Tech FCC ID: KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp Page 2 of 3 Test Configuration Photo – Radiated Emissions below 1 GHz US Tech FCC ID: KE3-3001112 Test Report: 11-0040 Date: 04-19-2011 Model: TEK G Customer: Radio Systems Corp Page 3 of 3 Test Configuration Photo – Radiated Emissions above 1 GHz
