Boundary Plus ® V5 Computer Collar ® Owner’s Manual www.invisiblefence.com 2 www.invisiblefence.com Important Precautions • Invisible Fence ® Brand pet containment systems have contained over two million pets. However, there are some precautions you should take. • Read and retain manuals: Read the entire Owner’s Manual before using your new Invisible Fence ® Brand pet containment system. • Adhere to all warnings and cautions contained in any Invisible Fence ® Brand manual. WARNING indicates a hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION used without the safety alert symbol, indicates a hazardous situation, which, if not avoided, could result in harm to your pet. NOTICE is used to address safe use practices not related to personal injury. • Never open a Power Cap ® , dispose of it in a fire, recharge it, expose it to heat above 212º F (100º C), or expose its contents to water. Doing so can cause leakage or explosion and may lead to personal injury. • Not every pet can be trained to avoid the established boundary. Sometimes even a properly trained pet may cross the boundary. Therefore, Invisible Fence ® , Inc., as well as Invisible Fence ® Distributors and Dealers, cannot guarantee the system will, in all cases, keep a customer’s pet within the established boundary. Accordingly, if a customer has reason to believe that their pet may pose a danger to others, or harm itself, the customer should not rely solely upon the Invisible Fence ® Brand pet containment system to keep the pet from crossing the boundary. • Do not install, connect, or remove your system during a lightning storm. If the storm is close enough for you to hear thunder, it is close enough to create hazardous surges. Read and follow the important instructions on how to avoid pressure necrosis. Proper fit of the Computer Collar ® is important. A Computer Collar ® worn for too long or made too tight on the pet’s neck may cause skin damage. Ranging from redness to pressure ulcers; this condition is commonly known as bedsores. The following tips will help keep your pet safe and comfortable. Millions of pets are comfortable while they wear stainless steel posts. Some pets are sensitive to contact pressure. You may find after some time that your pet is very tolerant of the Computer Collar ® . If so, you may relax some of these precautions. It is important to continue daily checks of the contact area. If redness or sores are found, discontinue use until the skin has fully healed. • Avoid leaving the Computer Collar ® on the pet for more than 12 hours per day. • When possible, reposition the Computer Collar ® on the pet’s neck every 1 to 2 hours. • Check the fit to prevent excessive pressure; follow the instructions in this manual. • Never connect a leash to the Computer Collar ® ; it will cause excessive pressure on the contacts. • When using a separate collar for a leash, don’t put pressure on the Computer Collar ® . • Wash the pet’s neck area and the contacts of the Computer Collar ® weekly with a damp cloth. • Examine the contact area daily for signs of a rash or a sore. • If a rash or sore is found, discontinue use of the Computer Collar ® until the skin is healed. • If the condition persists beyond 48 hours, see your veterinarian. You may need to trim the hair in the area of the Correction Posts or switch to the longer Correction Posts to ensure consistent contact. Never shave the pet’s neck; this may lead to a rash or infection. WARNING CAUTION NOTICE WARNING CAUTION www.invisiblefence.com 3 To prevent an unintended correction: • The Computer Collar ® should not be on your pet when the system is tested. • Remove the Computer Collar ® before making any changes to your system. • Before placing the Computer Collar ® on your pet, test the Boundary Area and Width after any change. • The use of any power source other than a Power Cap ® may cause a Computer Collar ® to operate erratically or fail. The use of unnecessary force may damage the case and render the Power Cap ® inoperable. • Train your pet according to the instructions in the Invisible Fence ® Brand training manuals. Complete all steps before allowing your pet to run free. Do not become overly confident if your pet has become conditioned to the Invisible Fence® Brand pet containment system sooner than expected. • Your Invisible Fence ® Brand Dealer has professionally installed your pet containment system and ensured it is working properly. You will want to perform periodic maintenance checks to make sure the system is properly functioning for your pet’s safe containment. • Check the Invisible Fence ® Brand transmitter periodically to make sure it is operating properly. To do this, simply bring the Computer Collar ® to the edge of the containment field to verify function. • The transmitter has visual and audible signals to warn of a system malfunction. The transmitter should be installed where such signals may be easily seen and heard. If the transmitter is installed by the customer in an enclosed box, or in a place not readily accessible to the customer, the customer will not benefit from the system’s warning functions, for which Invisible Fence ® , Inc., as well as Invisible Fence ® Distributors and Dealers, assume no responsibility. • Do not attempt to service any Invisible Fence ® Brand equipment. Refer all service to your authorized Invisible Fence ® Brand Dealer. Only your authorized Invisible Fence ® Brand Dealer should make adjustments to your pet containment system. • All Invisible Fence ® Brand pet containment systems are designed for domesticated animal use only. Never attempt to use this product for any purpose not specifically described in this manual. • Use care when mowing, aerating, or trimming your lawn so as not to cut the loop wire. • If you have any questions about any aspect of your Invisible Fence ® Brand pet containment system, call your Invisible Fence ® Brand Dealer immediately. NOTICE 4 www.invisiblefen…

Text truncated - open the document above for the full version.

COVER LETTER IC: 2721A-3001163 Radio Systems Corporation We, Radio Systems Corporation, for this Application (IC: 2721A-3001163),hereby acknowledges that this product cannot be distributing, leased, or offered for sale in Canada until it is listed on the Industry Canada Radio Equipment List, the power of sale belong to the Radio Systems Corporation or the company which Radio Systems Corporation authorized. The Boundary Plus® V5 is compatible with Boundary Plus® and 800 Series Transmitters to contain your pet within areas you choose, or teach your pet to avoid specific areas such as flower beds, gardens, or pools. The transmitter produces a signal that travels along the signal field wire and back to the transmitter to produce an Invisible Boundary. When your pet approaches the established boundary, the Boundary Plus® V5 generates a tone and correction to remind your pet of the boundary. With training and praise, your pet will quickly learn to avoid the established boundary. September 21, 2011 Radio Systems Corporation Clifton P. Brick

Radio Systems Corp Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: KE3-3001163. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description KE3-3001163_SCH.pdf KE3-3001163_BlockDiagram.pdf KE3-3001163_CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Clifton P. Brick

Radio Systems Corporation FCC ID: KE3-3001163 POWER OF ATTORNEY September 21, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on September 20, 2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Radio Systems Corporation, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Radio Systems Corporation ------------------ Clifton P. Brick

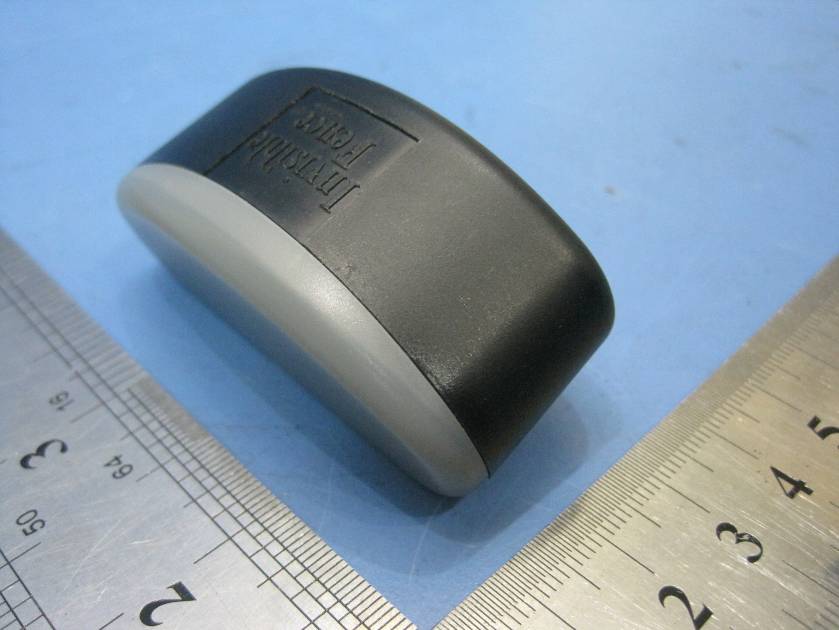

2.1 EUT – Appearance View1 2.2 EUT – Appearance View2

Page:21 of 21 Radio Systems Corporation FCC ID: KE3-3001163 WALTEK SERVICES Reference No.: WT11084244-D-E-F 10 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable.

FCC ID Label Sample for Model: RIG00-13329

2.1 EUT – Open View 2.2 PCB – Front View 2.3 PCB – Back View

Page: 1 of 21 FCC TEST REPORT WALTEK SERVICES Reference No.: WT11084244-D-E-F FCC ID : KE3-3001163 Applicant : Radio Systems Corporation Address : 10427 Electric Ave.Knoxville, TN 37932 USA Equipment Under Test (EUT) : Product Name : Boundary Plus® V5 Model No. : RIG00-13329 Standards : FCC CFR47 Part 15 Section 15.209:2009 Date of Test : August 22 ~ August 26, 2011 Date of Issue : September 5, 2011 Test Engineer : Hunk yan Reviewed By : Philo zhong Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 21 Radio Systems Corporation FCC ID: KE3-3001163 WALTEK SERVICES Reference No.: WT11084244-D-E-F 2 Test Summary FCC Part 15 Subpart C Requirements Test Items Test Requirement Test Method Result Spurious Radiated Emissions (9kHz to 5GHz) 15.209 ANSI C63.4: 2003 PASS Conducted Emissions (150kHz ~ 30MHz) 15.207 ANSI C63.4:2003 N/A Page:3 of 21 Radio Systems Corporation FCC ID: KE3-3001163 WALTEK SERVICES Reference No.: WT11084244-D-E-F 3 Contents Page 1 COVER PAGE........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 4 4.3 DETAILS OF E.U.T................................................................................................................................................. 4 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 4 4.6 TEST FACILITY...................................................................................................................................................... 5 4.7 TEST LOCATION.................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................. 6 6 CONDUCTED EMISSIONS.................................................................................................................................. 7 7 SPURIOUS RADIATED EMISSIONS ................................................................................................................. 8 7.1 MEASUREMENT UNCERTAINTY............................................................................................................................. 8 7.2 EUT SETUP........................................................................................................................................................... 9 7.2.2 Spectrum Analyzer Setup .......................................................................................................................... 10 7.3 TEST PROCEDURE................................................................................................................................................ 11 7.4 SUMMARY OF TEST RESULTS.............................................................................................................................. 12 7.5 PHOTOGRAPH – RADIATION EMISSION TEST SETUP............................................................................................ 16 8 ANTENNA REQUIREMENT ............................................................................................................................. 17 9 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS...................................................................................... 18 9.1 EUT – APPEARANCE VIEW1 ...............................................................................................................................18 9.2 EUT – APPEARANCE VIEW2 ...............................................................................................................................18 9.3 EUT – OPEN VIEW.............................................................................................................................................. 19 9.4 PCB – FRONT VIEW............................................................................................................................................ 19 9.5 PCB – BACK VIEW.............................................................................................................................................. 20 10 FCC LABEL.......................................................................................................................................................... 21 Page:4 of 21 Radio Systems Corporation FCC ID: KE3-3001163 WALTEK SERVICES Reference No.: WT11084244-D-E-F 4 General Information 4.1 Client Information Applicant : Radio Systems Corporation Address of Applicant : 10427 …
