KE3-3002769INDOOR SHIELDS PLUS

Radio Systems Corp
INDOOR SHIELDS PLUS - FCC ID KE3-3002769 - Radio Systems Corp
Click to zoom

Application Details

Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant
Sep 29, 2013
Application Purpose
Original Equipment
Date of Application
Sep 29, 2013
Equipment Note
INDOOR SHIELDS PLUS
Frequency Range
0.01050000 - 0.01050000
Company
Radio Systems Corp
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Indoor Shields ® Plus Owner’s Manual Please read this entire guide before operating. www.InvisibleFence.com www.InvisibleFence.com 2 Important Precautions • Invisible Fence ® Brand pet containment systems have contained over two million pets. However, there are some precautions you should take. • Read and retain manuals: Read the entire Owner’s Manual before using your new Indoor Shields® Plus solution. If you have any questions after reading this manual, call your Invisible Fence ® Brand dealer. • Adhere to all warnings and cautions contained in any Invisible Fence ® Brand manual. Explanation of Attention Words and Symbols used in this guide This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE is used to address safe use practices not related to personal injury. • Not every pet can be trained to avoid the established boundary. Sometimes even a properly trained pet may cross the boundary. Therefore, Invisible Fence, Inc., as well as Invisible Fence ® Brand Distributors and Dealers cannot guarantee the system will, in all cases, keep a customer’s pet within the established boundary. Accordingly, if a customer has reason to believe that their pet may pose a danger to others, or harm itself, the customer should not rely solely upon the Invisible Fence ® Brand system to keep the pet from crossing the boundary. • Do not install, connect, or remove your system during a lightning storm. If the storm is close enough for you to hear thunder, it is close enough to create hazardous surges. www.InvisibleFence.com 3 • Read and follow the important tips on how to avoid pressure necrosis in your Invisible Fence ® Brand Computer Collar ® unit manual. • Train your pet according to the instructions in the Invisible Fence ® Brand training manuals. Complete all steps before allowing your pet to run free. Do not become overly confident if your pet has become conditioned to the Invisible Fence® Brand pet containment system sooner than expected. • Your Invisible Fence ® Brand dealer has professionally installed your pet containment system and ensured it is working properly. You will want to perform periodic maintenance checks to make sure the system is properly functioning for your pet’s containment. • Check the Invisible Fence ® Brand transmitter periodically to make sure it is operating properly. To do this, simply bring the Computer Collar® unit to the edge of the signal field to verify function. • Do not attempt to service any Invisible Fence ® Brand equipment. Refer all service to your authorized Invisible Fence ® Brand dealer. Only your authorized Invisible Fence® Brand dealer should make adjustments to your pet containment system. • All Invisible Fence ® Brand pet containment systems are designed for domesticated animal use only. Never attempt to use this product for any purpose not specifically described in this manual. • Congratulations on your purchase of the Indoor Shields ® Plus solution. Please read and review this entire manual to become familiar with Indoor Shields ® Plus solution components and its operation. It is strongly recommended you review this information before using the product. • The Indoor Shields ® Plus solution gives you control over the areas a pet or pets have access to inside your home. It is designed to work independently or to complement your Invisible Fence® Brand 800 Series and/or Boundary Plus ® digital electronic pet containment system. The Indoor Shields ® Plus transmitter is designed for indoor use only. For information on or about Outdoor Shields ® products, please contact your local Invisible Fence ® Brand dealer or visit us at www.invisiblefence.com. This device is not designed to operate as a containment transmitter. • Important: To ensure your pet does not receive an unintended correction, make sure your pet is not wearing the Computer Collar ® Unit when turning ON or adjusting the Indoor Shields ® Plus transmitter. www.InvisibleFence.com 4 Table of Contents Important Precautions .................................................................................................................2-3 Components.......................................................................................................................... 5 How the System Works.......................................................................................................... 5 Operating Guide..............................................................................................................6 Charging ................................................................................................................6 Turning On and Off.................................................................................................6 Adjust Signal Field Range ............................................................................................ 7 Verify Signal Field Range............................................................................................. 7 Changing the Channel Setting on the Indoor Micro Shield® Transmitter..................7 Wired Operation......................................................................................................8 Signal Field Wire Preparation.....................................................................................8 Connect the Wires to the Indoor Shields ® Plus...............................................................8 Test the Signal Field................................................................................................8 Multi-Area Avoidance ...................................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Radio Systems Corporation Date: Sep 24, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: KE3-3002769 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics SCH.pdf Block Diagram BlockDiagram.pdf Operational Description CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Radio Systems Corporation 10427 Petsafe Way Knoxville,TN 37932 USA ............................................................... Signature Cindy Allen/ Product Safety and Regulatory Manager ............................................................... Typed name and Title

Cover Letter(s)

Radio Systems Corporation FCC ID: KE3-3002769 POWER OF ATTORNEY Date: Sep 24,2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Sep 23,2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Radio Systems Corporation, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signature: Cindy Allen/ Product Safety and Regulatory Manager .................................................................................... [typed name and title] Radio Systems Corporation 10427 Petsafe Way Knoxville,TN 37932 USA

External Photos

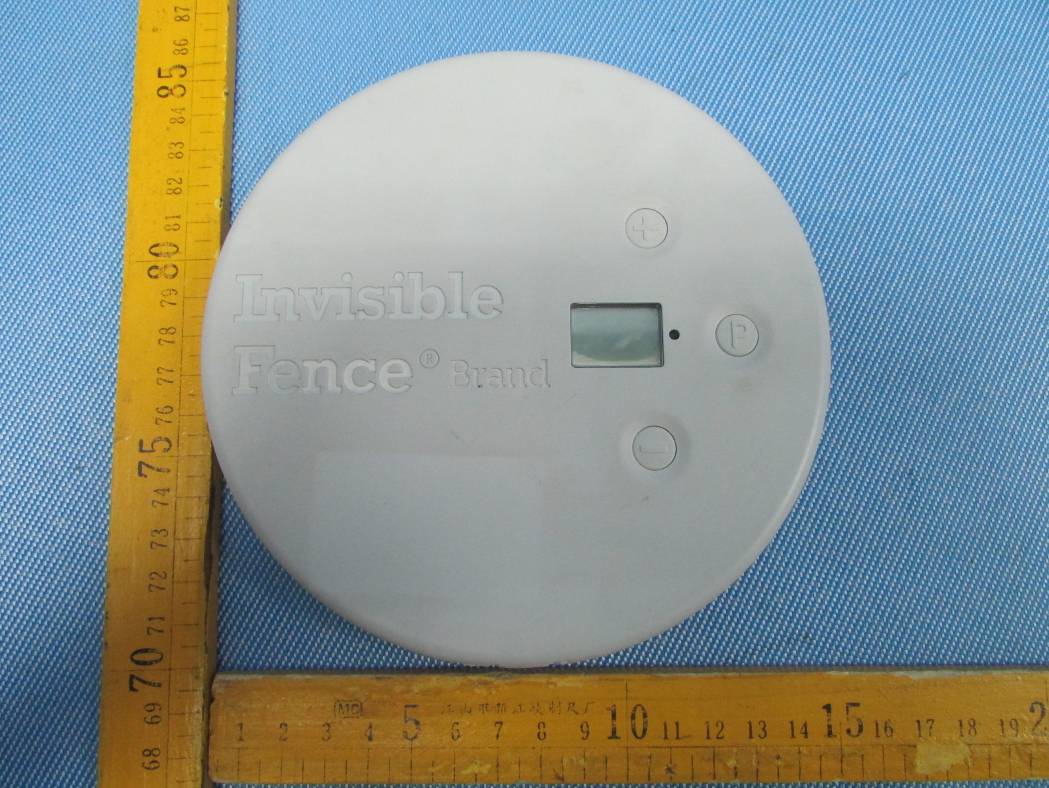

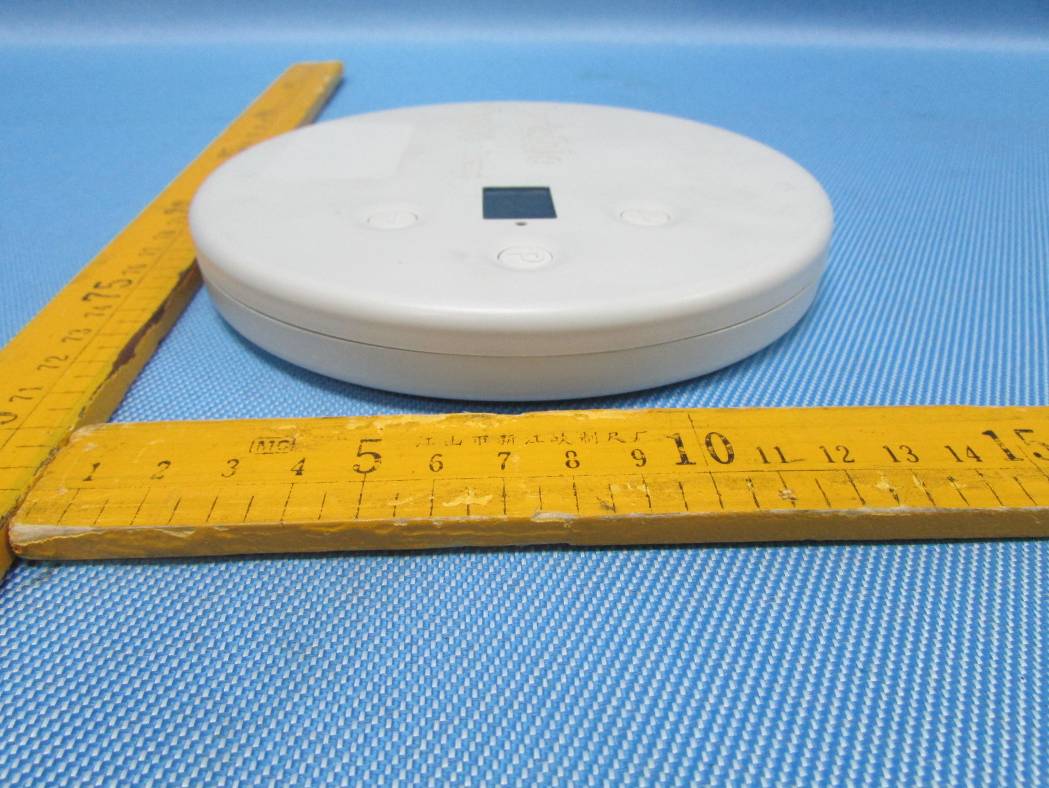

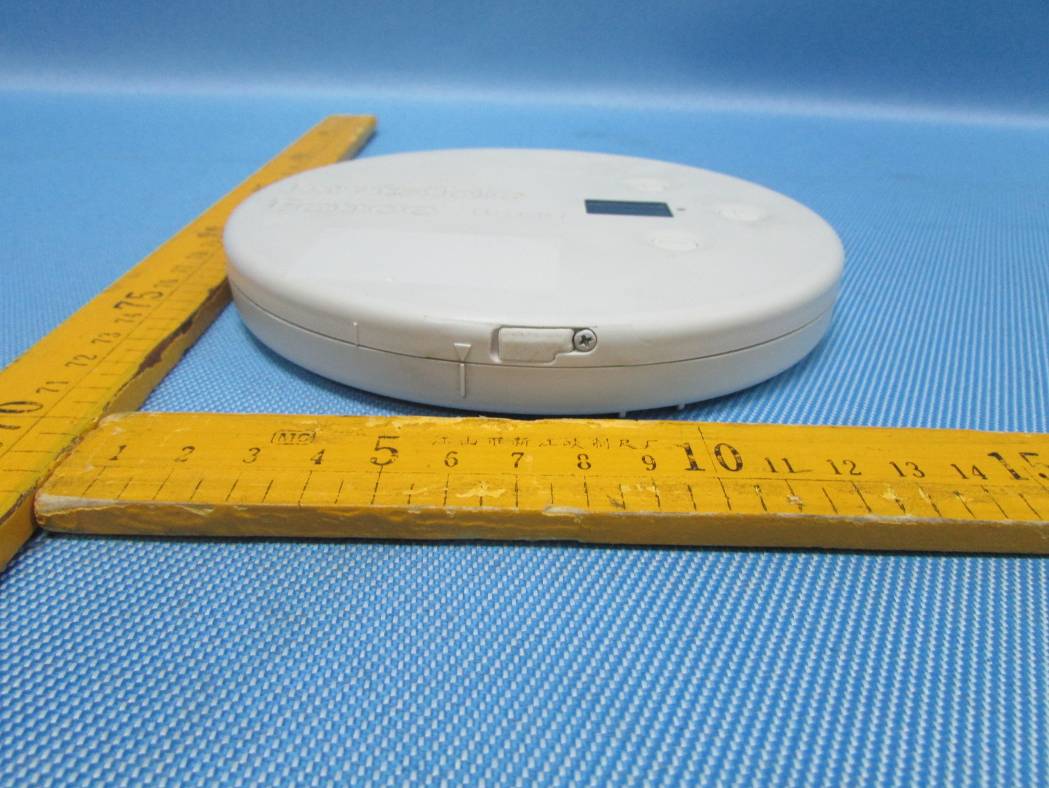

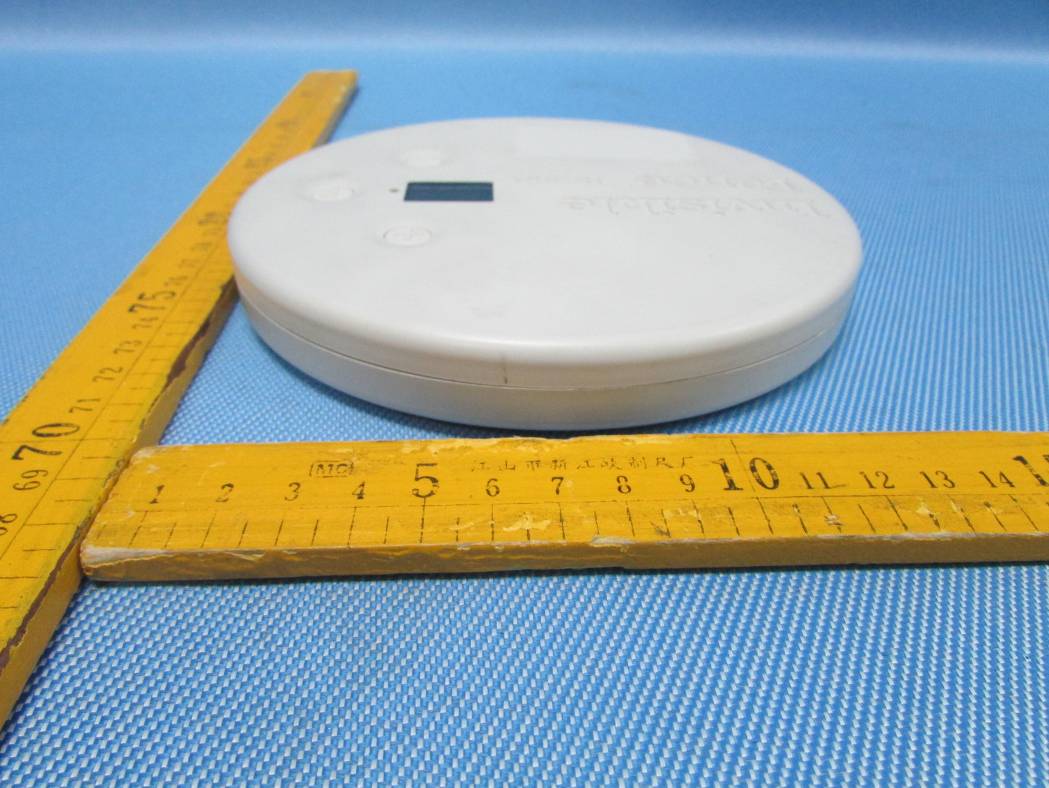

Reference No.: WTS13S0705883E Page 15 of 19 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 9 Photographs - Constructional Details 9.1 EUT – Appearance View Reference No.: WTS13S0705883E Page 16 of 19 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTS13S0705883E Page 17 of 19 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn
