KE3-3003048MURS GPS Base Station

www.invisiblefence.com GPS 1.0 Pet Containment System Owner’s Manual www.invisiblefence.com Important Precautions  Invisible Fence ® Brand pet containment systems have contained over two million pets. However, there are some precautions you should take.  Read and retain manuals; Read the entire Owner’s Manual before using your new Invisible Fence ® Brand pet containment system.  Adhere to all warnings and cautions contained in any Invisible Fence ® Brand manual.  Not every pet can be trained to avoid the established boundary. Sometimes even a properly trained pet may cross the boundary. Therefore, Invisible Fence, Inc., as well as Invisible Fence ® Brand Distributers and Dealers, cannot guarantee the system will, in all cases, keep a customer’s pet within the established boundary. Accordingly, if a customer has reason to believe that their pet may pose a danger to others, or harm itself, the customer should not rely solely upon the Invisible Fence ® Brand pet containment system to keep the pet from crossing the boundary.  Do not install, connect, or remove your system during a lightning storm. If the storm is close enough for you to hear thunder, it is close enough to create hazardous surges.  This device contains Lithium-Ion (Li-Ion) batteries; never incinerate, puncture, deform, short-circuit, or charge with an inappropriate charger. Fire, explosion, property damage, or bodily harm may occur if this warning is not followed.  Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the regulations in your area.  Batteries should never be removed from the battery compartment for charging.  Taking your product apart can cause damage and void your warranty.  Do not charge the batteries in areas with high temperature (100 o F+).  Keep batteries away from children. Read and follow the important instructions on how to avoid pressure necrosis. Proper fit of the GPS Mobile Collar ™ Unit is important. A GPS Mobile Collar ™ Unit worn for too long or made too tight on the pet’s neck may cause skin damage. Ranging from redness to pressure ulcers; this condition is commonly known as bedsores.  Avoid leaving the GPS Mobile Collar ™ Unit on the pet for more than 12 hours per day.  When possible, reposition the GPS Mobile Collar ™ Unit on the pet’s neck every 1 to 2 hours.  Check the fit to prevent excessive pressure; follow the instructions in this manual.  Never connect a leash to the GPS Mobile Collar ™ Unit; it will cause excessive pressure on the GPS Mobile Collar ™ Unit and can damage the GPS antenna cable.  Wash the pet’s neck area and the contacts of the GPS Mobile Collar ™ Unit weekly with a damp cloth.  Examine the contact area daily for signs of rash or a sore.  If a rash or sore is found, discontinue use of the GPS Mobile Collar ™ Unit until the skin is healed  If the condition persists beyond 48 hours, see your veterinarian. WARNING indicates a hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION used without the safety alert symbol, indicates a hazardous situation, which, if not avoided, could result in harm to your pet. NOTICE is used to address safe use practices not related to personal injury. www.invisiblefence.com These steps will help keep your pet safe and comfortable. Millions of pets are comfortable while they wear stainless steel contacts. Some pets are sensitive to contact pressure. You may find after some time that your pet is very tolerant of the GPS Mobile Collar ™ Unit. If so, you may relax some of these precautions. It is important to continue daily checks of the contact area. If redness or sores are found, discontinue use until the skin has fully healed. You may need to trim the hair in the area of the Correction Posts or switch to the longer Correction Posts to ensure consistent contact. Never shave the pet’s neck; this may lead to a rash or infection. To prevent an unintended correction:  The GPS Mobile Collar ™ Unit should not be on your pet when the system is tested.  Remove the GPS Mobile Collar ™ Unit before leaving the property.  Before placing the GPS Mobile Collar ™ Unit on your pet, test a Boundary after any change.  Train your pet according to the instructions in the Invisible Fence ® Brand training manuals. Complete all steps before allowing your pet to run free. Do not become overly confident if your pet has become conditioned to the Invisible Fence ® Brand pet containment system sooner than expected.  Your Invisible Fence ® Brand Dealer has professionally installed your pet containment system and ensured it is working properly. You will want to perform periodic maintenance checks to make sure the system is properly functioning for your pet’s containment.  Check the Invisible Fence ® Brand Base Station periodically to make sure it is operating properly. To do this, simply check the LEDs on the Base Station. Use the LED light indicator chart in the Operation Guide section.  The Base Station has visual and audible signals to warn of a system malfunction. The Base Station should be installed where such signals may be easily seen and heard. If the Base Station is installed by the customer in an enclosed box, or in a place not readily accessible to the customer, the customer will not benefit from the system’s warning functions, for which Invisible Fence, Inc., as well as Invisible Fence ® Brand Distributers and Dealers, assume no responsibility.  Do not attempt to service any Invisible Fence ® Brand equipment. Refer all service to your authorized Invisible Fence ® Brand Dealer. Only your authorized Invisible Fence ® Brand Dealer should make adjustments to your GPS pet containment system.  All Invisible Fence ® Brand pet containment systems are designed for domesticated animal use only. Never attempt to use this product for any purpose not specifically described in this manual.  If you have any questions about any aspect of your Invisible Fence ® Brand …

Text truncated - open the document above for the full version.

10427 PetSafe Way Knoxville, TN. 37932 865-777-5404 www.petsafe.net AGENCY AGREEMENT Federal Communications Commission Date: 9/18/2012 P.O. Box 429 Columbia, MD 21045 Gentlemen: By signature below, we hereby appoint US Tech employees Sandi McEnery, Alan Ghasiani and George Yang to act as our agents with regard to all FCC equipment authorizations. This appointment will remain in effect until otherwise notified. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Signature: ________________________ Name: Cindy Allen Title: Product Safety and Regulatory Specialist Date: 9/18/2012

Request for Confidentiality Date: ___April 30, 2015 _ ____ Subject: Confidentiality Request for:_FCC ID: KE3-3003048 Pursuant to FCC 47 CRF 0.457(d) and 0.459, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: Proprietary documentation ______Radio Systems Corporation______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, By: __________________________ ___Sandi McEnery __- Agent (Signature/Title) (Print name) 3505 Francis Circle Alpharetta, GA 30004 770-740-0707 www.ustech-lab.com

US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID. KE3-3003048 Page 1 of 6 External Photographs Figure 1. Front of EUT US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID. KE3-3003048 Page 2 of 6 Figure 2. Top of EUT US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID. KE3-3003048 Page 3 of 6 Figure 3. Right Side of EUT US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID. KE3-3003048 Page 4 of 6 Figure 4. Left Side of EUT US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID. KE3-3003048 Page 5 of 6 Figure 5. Bottom of EUT US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID. KE3-3003048 Page 6 of 6 Figure 6. Back of EUT

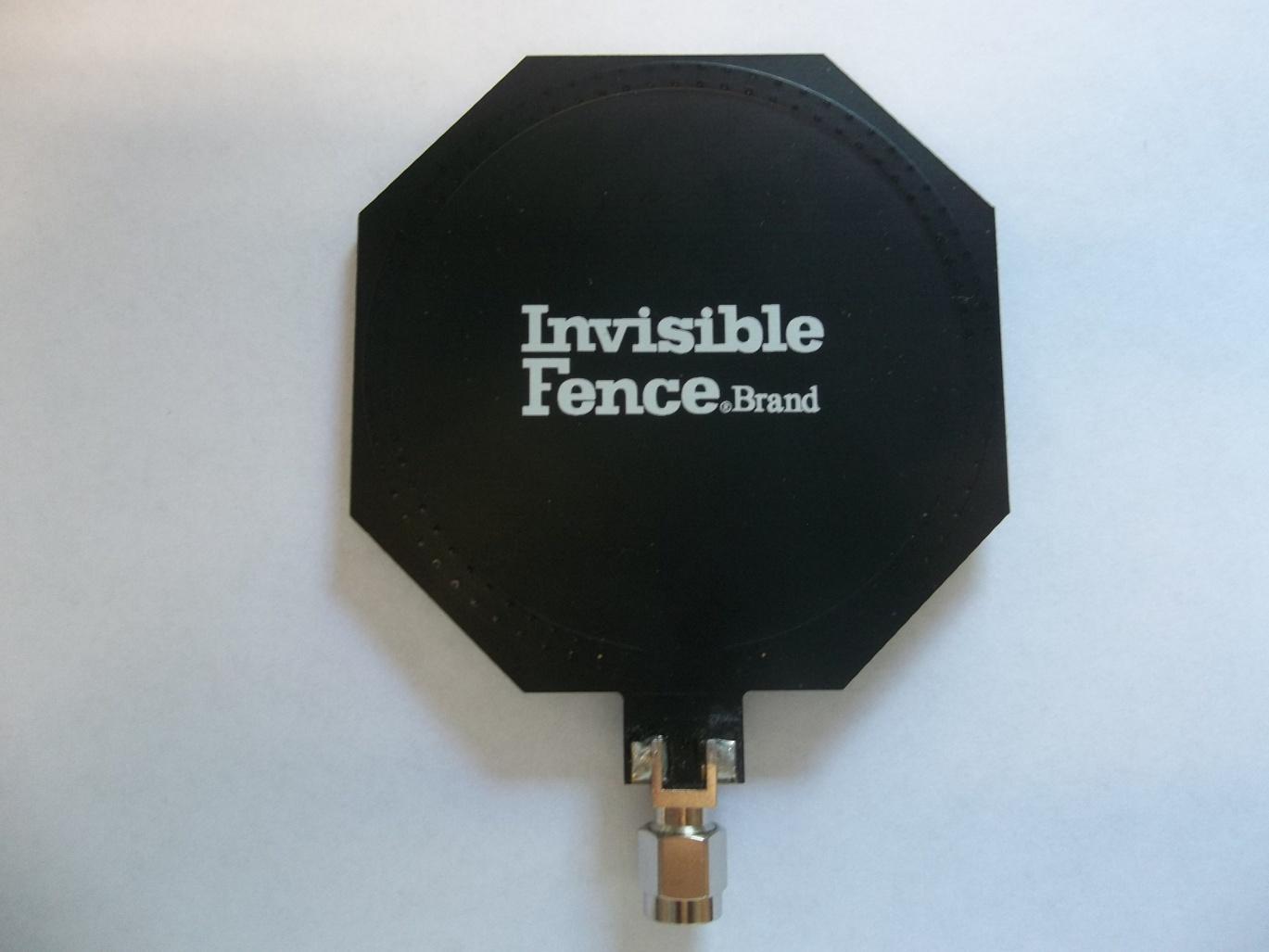

US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 1 of 2 Antenna Photographs Figure 1. Transmitting Antenna Front US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 2 of 2 Figure 2. Transmitting Antenna Back

US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 1 of 2 SAMPLE LABEL Figure 1. Sample Label (Location is displayed On Next Page) US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 2 of 2 Figure 2. Label Location

US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 1 of 2 Internal Photographs Figure 1. Top of PCB US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 2 of 2 Figure 2. Solder Side of PCB

10427 PetSafe Way Knoxville, TN. 37932 865-777-5404 www.petsafe.net 5/6/2015 RE: 300-3048 To whom it may Concern, The 300-3048 Model: Invisible Fence® GPS 2.0 Containment Base Reference Unit does not have a Tune Up procedure that an End User would use. This device is installed by the Invisible Fence Dealer. The End User does not adjust the device at all. The factory test limits for transmit power out are +13 to +16 dBm. There are no tunable parts in the RF path. All transmit and receive functions are under firmware control by the host micro- controller. Transmit and receive local oscillators are fully synthesized. Host firmware confirms the proper operating frequency by checking for PLL lock prior to any transmit or receive operation. Applicable FCC Rule: 95.639 Maximum transmitter power. (h) No MURS unit, under any condition of modulation, shall exceed 2 Watts transmitter power output. Sincerely, Cindy Allen Global Regulatory and Safety Manager Radio Systems Corporation 865-824-5431 www.petsafe.net

US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 1 of 1 Maximum Public Exposure to RF (MPE) CFR 1.1310 The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S, of 1 mW/cm 2 at a distance, d, of 20 cm from the EUT. Therefore, for: Highest Gain Dipole Antenna= -1 dBi Peak Power (Watts) = 0.0367 (from Figure 2 of Test Report) Gain of Transmit Antenna = -1 dB i = 0.79, numeric (EUT uses an external Loop antenna) d = Distance = 20 cm = 0.2 m S = (PG/ 4d 2 ) = EIRP/4A = 0.0367(0.79)/4*π*0.2*0.2 = 0.029/0.5030 = 0.0577 W/m 2 = (W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.00577 mW/cm 2 which is << less than 1.0 mW/cm 2

May 5, 2015 Ms. Cindy Allen Radio Systems Corporation 10427 Electric Avenue Knoxville, TN 37932 Dear Ms. Allen: Enclosed herewith, please find Radio Systems Corporation's file copy of the FCC Part 95 Certification Report for the Radio Systems Corporation GPSC GEN2 Base Station, Model 300-3048. Please keep the report in your files as proof that the product has been successfully tested. If you have any questions, please don't hesitate to call. Thank you very much for your business. Sincerely, Alan Ghasiani Consulting Engineer - President 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 1 of 19 Report of Title 47 CFR Part 95 Subpart J, Multi User Radio Services (MURS) and TIA-603-C (2004) Land Mobile FM or PM- Communications Equipment Measurement and Performance Standard For the Radio Systems Corporation Family Name: GPSC Mobile Model Name: GPSC GEN2 BASE STATION Model: 300-3048 FCC ID: KE3-3003048 Issue Date: May 5, 2015 Test Dates: April 24-30, 2015 UST Project No.: 15-0116 Total Number of Pages Contained in this Report: 19 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 19 I certify that I am authorized to sign for the test facility and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (Agent Responsible For Test): By: ____________________ Name: George Yang Title: Laboratory Manager Date: May 5, 2015 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. US Tech’s NVLAP accreditation does not allow product endorsement by NVLAP or any agency of the U.S. Government. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: May 5, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 3 of 19 Table of Contents Paragraph Title Page 1 General Information ............................................................................................... 5 1.1 Product Description ............................................................................................ 5 1.2 Related Submittal(s)/Grant(s)............................................................................. 5 1.3 Test Methodology .............................................................................................. 5 1.4 Test Facility ........................................................................................................ 6 1.5 Test Equipment .................................................................................................. 7 1.6 Modifications to EUT .......................................................................................... 8 2 Output Power........................................................................................................ 10 2.1 Maximum Transmitter Power (FCC 2.1046 & 95.639(h)) .............................. 10 2.1.1 Maximum Power Allowed .......................................................................... 10 2.1.2 Measured Fundamental Signal .................................................................. 10 3 Emission Bandwidth (Part 95.633(f)(1)) .............................................................. 12 3.1 Maximum Authorized Bandwidth, FCC requirement. ....................................... 13 4 Unwanted Radiation Emission (CFR 95.635 (e)) ................................................ 14 4.1 Test Method ........................................................................................................ 14 4.2 FCC Limits ......................................................................................................... 14 4.3 Test Results ........................................................................................................ 15 5 Field Strength of Spurious Radiation, (FCC 2.1051 & 95.635(b)) ..................... 16 5.1 Test Method ..................................................................................................... 16 5.2 FCC Limits ....................................................................................................... 16 5.3 Test Results ..................................................................................................... 17 6 Frequency Stability (CFR 2.1055, 95.632(b)) ...................................................... 18 6.1 Test Method ..................................................................................................... 18 6.2 FCC Limits ....................................................................................................... 18 6.3 Test Results ..................................................................................................... 19 US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: May 5, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 4 of 19 List of Figures Figure Title Page Figure 1. Block Diagram .................................................................................................. 8 Figure 2. Measured Conducted Power .......................................................................... 11 Figure 3. Bandwidth Measurement ............................................................................... 13 Figure 4. Transmitter Spurious Emissions at Antenna Terminals .................................. 15 List of Tables Table Title Page Table 1. Test Instruments ................................................................................................ 7 Table 2. EUT and Peripherals ......................................................................................... 9 Table 3. Antennas ..........…

Text truncated - open the document above for the full version.

US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 1 of 6 Test Configuration Photographs Figure 1. Radiated Emissions Test Setup, Front (Radio Test with EUT in worst case position) US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 2 of 6 Figure 2. Radiated Emissions Test Setup, Rear 9 kHz to 30 MHz (Normal Operation with EUT in worst case position) US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 3 of 6 Figure 3. Radiated Emissions Test Setup, Rear 30 MHz to 200 MHz (Radio Test with EUT in worst case position) US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 4 of 6 Figure 4. Radiated Emissions Test Setup, Rear 200 MHz to 1 GHz (Radio Test with EUT in worst case position) US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 5 of 6 Figure 5. Radiated Emissions Test Setup, Rear Above 1 GHz (Radio Test with EUT in worst case position) US Tech Test Report: FCC Part 95 Report Number: 15-0116 Issue Date: April 30, 2015 Customer: Radio Systems Corporation Model: 300-3048 FCC ID: KE3-3003048 Page 6 of 6 Figure 6. Frequency Stability Test Setup
