KE3-300307910.5 kHz low power transmitter

Radio Systems Corp

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Jun 04, 2015
Application Purpose: Original Equipment
Date of Application: Jun 04, 2015
Equipment Note: 10.5 kHz low power transmitter
Frequency Range: 0.01050000 - 0.01050000
Company: Radio Systems Corp
Country: United States

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Request for Confidentiality Date: ___June 3, 2015_____ Subject: Confidentiality Request for: ___FCC ID: KE3-3003079 IC: 2721A-3003079 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 6, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual Radio Systems has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ ___Sandi McEnery__- Agent (Signature/Title 1 ) (Print name)

Cover Letter(s)

CROSS REFERENCE FCC TO IC RSS-210/Gen For UST Project 15-0125 FCC ID: KE3-3003079 IC: 2721A-3003079 TEST IC RSS-210 ISSUE 8 IC RSS-Gen ISSUE 4 FCC 15.207 and 15.209 Transmit Antenna Requirement RSS-210, A8.4(4) 15.203 Fundamental Peak Power N/A N/A Antenna Conducted Spurious Emissions N/A N/A Restricted Bands RSS-210, 2.2 15.205 Bandwidths RSS-Gen 6.6 Transmitter Unwanted emissions RSS-Gen 6.13 RSS-Gen 8.9 15.209 Receiver Spurious emissions RSS-Gen 7.1 15.109 Frequency Strengths and Frequency Bandwidths RSS-210, A1.1.2 15.231(c) Power Spectral Density RSS-210, A8.5 N/A Conducted ICES-003 15.207(a) & 15.107(a) Digital Device Radiated ICES-003 15.109(a) Modular Approval RSS-Gen 2.1 N/A Antenna Requirement RSS-Gen 8.3 15.203

Cover Letter(s)

10427 PetSafe Way Knoxville, TN. 37932 865-777-5404 www.petsafe.net AGENCY AGREEMENT Federal Communications Commission Date: 9/18/2012 P.O. Box 429 Columbia, MD 21045 Gentlemen: By signature below, we hereby appoint US Tech employees Sandi McEnery, Alan Ghasiani and George Yang to act as our agents with regard to all FCC equipment authorizations. This appointment will remain in effect until otherwise notified. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Signature: ________________________ Name: Cindy Allen Title: Product Safety and Regulatory Specialist Date: 9/18/2012

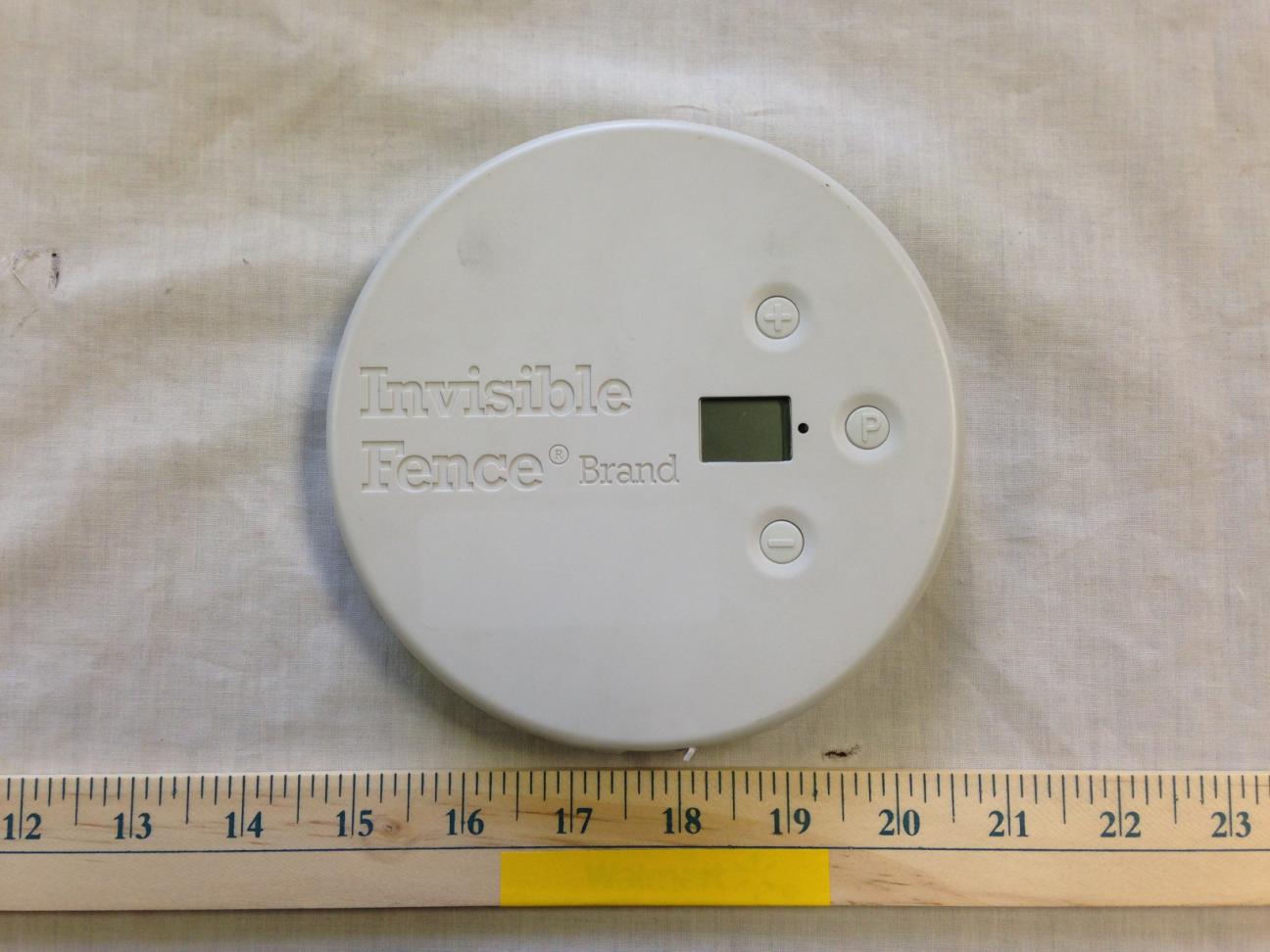

External Photos

ID Label/Location Info

Internal Photos

Test Report

Page 1 of 23 Application For Title 47 USC Part 2, Subpart J, Paragraph 2.907 Equipment Authorization of Certification for an Intentional Radiator per Part 15, Subpart C, Paragraphs 15.207 and 15.209 And Industry Canada, Radio Standards Specifications: RSS Gen Issue 4 and RSS-210 Issue 8 For the Radio Systems Model: RAC00-15373 FCC ID: KE3-3003079 IC: 2721A-3003079 UST Project: 15-0125 Issue Date: June 3, 2015 Total Pages in This Report: 23 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 23 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (Agent Responsible For Test): By: Alan Ghasiani Name: Title: Compliance Engineer – President Date June 3, 2015 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: KE3-3003079 IC: 2721A-3003079 Test Report Number: 15-0125 Issue Date: June 3, 2015 Customer: Radio Systems Model: RAC00-15373 Page 3 of 23 MEASUREMENT TECHNICAL REPORT COMPANY NAME: Radio Systems MODEL: RAC00-15373 FCC ID: KE3-3003079 IC: 2721A-3003079 DATE: June 3, 2015 This report concerns (check one): Original grant X Class II change Equipment type: 7.5 kHz or 10.5 kHz Transmitter Module Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until: ______N/A___________ date agrees to notify the Commission by N/A date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: KE3-3003079 IC: 2721A-3003079 Test Report Number: 15-0125 Issue Date: June 3, 2015 Customer: Radio Systems Model: RAC00-15373 Page 4 of 23 Table of Contents Paragraph Title Page 1 General Information .......................................................................................... 6 1.1 Purpose of this Report .................................................................................. 6 1.2 Characterization of Test Sample ................................................................... 6 1.3 Product Description ...................................................................................... 6 1.4 Configuration of Tested System .................................................................... 7 1.5 Test Facility ................................................................................................... 7 2 Tests and Measurements ................................................................................. 9 2.1 Test Equipment ............................................................................................. 9 2.2 Modifications to EUT Hardware .................................................................. 10 2.3 Number of Measurements for Intentional Radiators (15.31(m)) .................. 10 2.4 Frequency Range of Radiated Measurements (Part 15.33)........................ 10 2.4.1 Intentional Radiator ................................................................................. 10 2.4.2 Unintentional Radiator ............................................................................ 11 2.5 Measurement Detector Function and Bandwidth (CFR 15.35) ................... 11 2.5.1 Detector Function and Associated Bandwidth ........................................ 11 2.5.2 Corresponding Peak and Average Requirements ................................... 11 2.5.3 Pulsed Transmitter Averaging ................................................................. 11 2.6 EUT Antenna Requirements (CFR 15.203) ................................................ 12 2.7 Restricted Bands of Operation (Part 15.205) .............................................. 13 2.8 Intentional Radiator, Power Line Conducted Emissions (CFR 15.207) ....... 13 2.9 Intentional Radiator, Radiated Emissions (CFR 15.209, (IC RSS 210)) ..... 13 2.10 99% Occupied Bandwidth (IC RSS 210, A8.1) ........................................... 16 2.11 Unintentional/Intentional Radiator, Power line Emissions (CFR 15.107 and 15.207) ................................................................................................................. 18 2.12 Unintentional/Intentional Radiator, Radiated Emissions (CFR 15.109 and 15.209) ................................................................................................................. 20 2.13 Measurement Uncertainty .......................................................................... 23 2.13.1 Conducted Emissions Measurement Uncertainty ................................. 23 2.13.2 Radiated Emissions Measurement Uncertainty .................................... 23 US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: KE3-3003079 IC: 2721A-3003079 Test Report Number: 15-0125 Issue Date: June 3, 2015 Customer: Radio Systems Model: RAC00-15373 Page 5 of 23 List of Figures Figures Title Page Figure 1. Block Diagram of Test Configuration ........................................................ 12 Figure 2. 20 dB & 99% Bandwidth ........................................................................... 17 List of Tables Table Title Page Table 1. EUT and Peripherals .................................................................................... 8 Table 2. Test Instruments .............................…
