KE3-3003631Stay and Play TX

Please read this entire manual before beginning PI F 0 0 -12917 Stay & Play ™ Compact Wireless Fence Product Manual 2 +1 (800) 732-2677 Welcome You and your pet were made for each other. Our aim is to help you have the best companionship and the most memorable moments together. Your new PetSafe ® Stay & Play ™ Compact Wireless Fence system is designed to give your pet maximum freedom while keeping him safe. We know that safe pets make happy owners. Before getting started, please have your utilities marked, and take a moment to read through the important safety information. If you have any questions, please don’t hesitate to contact us. Hereinafter Radio Systems Corporation, Radio Systems PetSafe Europe Ltd., Radio Systems Australia Pty Ltd. and any other affiliate or Brand of Radio Systems Corporation may be referred to collectively as “We” or “Us”. Important Safety Information Explanation of Attention Words and Symbols used in this product manual This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. CAUTION, used without the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in harm to your pet. NOTICE is used to address practices not related to personal injury. • Not for use with aggressive pets. Do not use this product if your pet is prone to aggressive behavior. Aggressive pets can cause severe injury or death to their owners and others. If you are not sure that this product is right for your pet, please talk to your veterinarian or a certified trainer. • Risk of electric shock. Use the fence transmitter indoors in a dry location only. • The battery should be charged in areas with temperatures ranging from 32°F to 104°F / 0°C to 40°C. Recharging the battery outside of this temperature range can cause the battery to overheat, explode or catch fire. • This device contains Lithium-Ion (Li-Ion) batteries; never incinerate, puncture, deform, short- circuit, or charge with an inappropriate charger. Fire, explosion, property damage, or bodily harm may occur if this warning is not followed. • This system is NOT a solid barrier. It is designed to act as a deterrent to remind pets to remain within the established boundary by use of static correction. It is important that you reinforce training with your pet on a regular basis. Since the tolerance level to static correction varies from pet to pet, Radio Systems Corporation CANNOT guarantee that the system will, in all cases, keep a pet within the established boundary. Not all pets can be trained to avoid crossing the boundary! Therefore, if you have reason to believe that your pet may pose a danger to others or harm himself if he is not kept from crossing the boundary, you should NOT rely solely upon this system to confine your pet. Radio Systems Corporation shall NOT be liable for any property damage, economic loss or any consequential damages sustained as a result of any animal crossing the boundary. • This product is not a toy. Keep it out of the reach of children. 3 petsafe.com Proper fit of the receiver collar is important. A receiver collar worn for too long or made too tight on your pet’s neck may cause skin damage, ranging from redness to pressure ulcers. This condition is commonly known as bed sores. • Avoid leaving the receiver collar on your pet for more than 12 hours per day. • When possible reposition the collar on your pet’s neck every 1 to 2 hours. • Check the fit to prevent excessive pressure; follow the instructions in this product manual. • Regularly recheck the fit to prevent excessive pressure; follow the instructions in this product manual. • You may need to trim the hair in the area of the contact points. Never shave your pet’s neck; this may lead to a rash or infection. • Never connect a leash to a collar with contact points. It will cause excessive pressure on the contact points. • When using a separate collar for a leash, do not put pressure on the receiver collar. • Wash your pet’s neck area and the contact points of the receiver collar weekly with a damp cloth. • Examine the contact area daily for signs of a rash or a sore. • If a rash or sore is found, discontinue use of the receiver collar until the skin has healed. • If the condition persists beyond 48 hours, see your veterinarian. • For additional information on bed sores and pressure necrosis, please visit our website. • Proper training of your pet is essential to successfully using the system. During the first 2 weeks of training, do not use the system without direct supervision of your pet. • The boundary zone must be tested whenever an adjustment is made to the transmitter setting to prevent unintended corrections to your pet. • Always remove your pet’s receiver collar before performing any fence transmitter testing. This will prevent unintended corrections. • To prevent an unintended correction, after the boundary flags have been placed, be sure to set the static correction on the receiver collar back to level 1, which is tone only. • To prevent an unintended correction, remove the receiver collar from your pet when indoors. • Never remove power from the system when the collar is on the pet. This may activate the receiver collar. • Radio Systems Corporation recommends the use of an Uninterruptible Power Supply (UPS) for use with your wireless fence. Should the power go out at your home, your pet will be unprotected. Power outages can be unpredictable, and the use of a UPS will provide you with some time to properly restrain your pet. In rare instances, if your pet is near the boundary at the time when the power fails, it is possible that your pet will receive…

Text truncated - open the document above for the full version.

Radio Systems Corporation TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.12.07 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Radio Systems Corporation hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization of the (Stay and Play TX / PetSafe / 300-3631), including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Cindy Allen Signature:

Radio Systems Corporation TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.12.10 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Stay and Play TX / 300-3631/FCC ID: KE3-3003631) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Cindy Allen Signature:

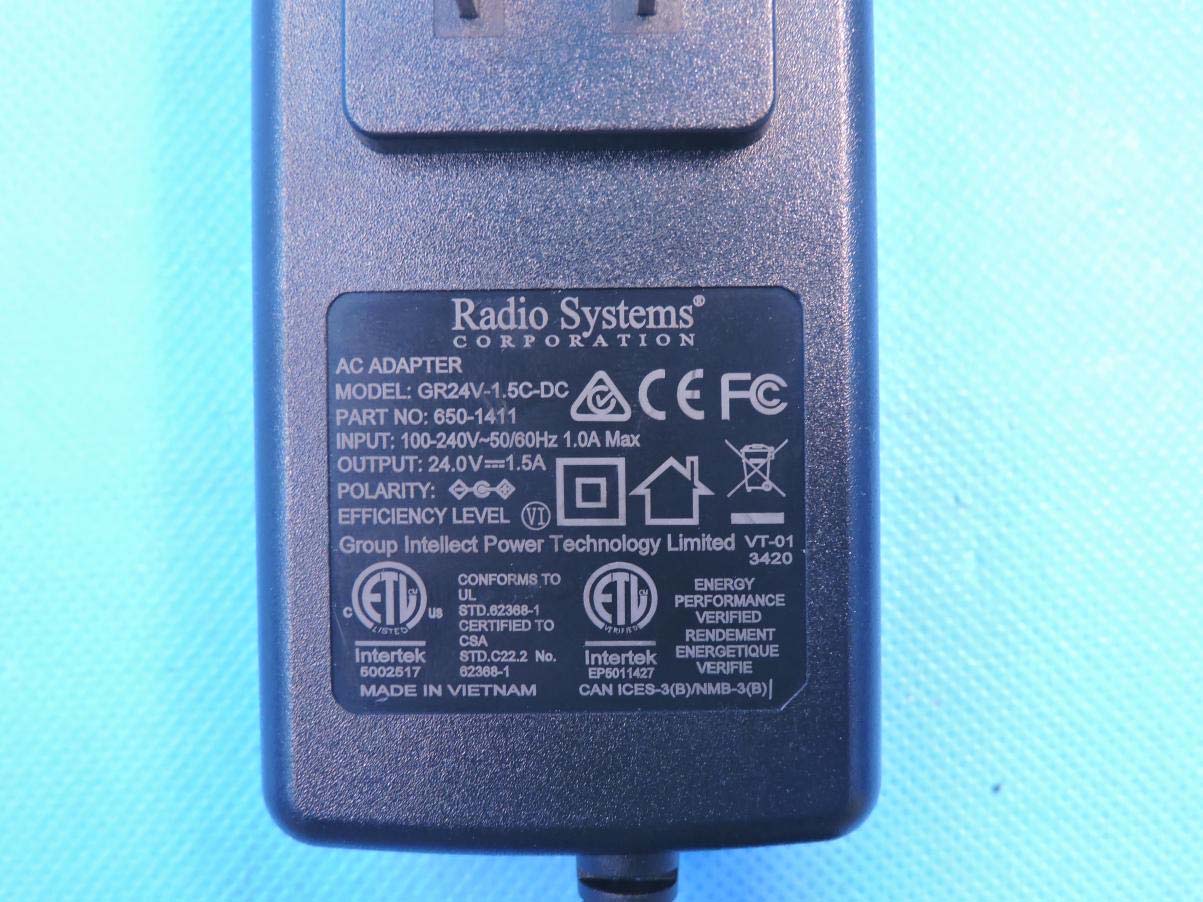

Page 1 of 5 Report No.: STS2011312 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: PetSafe Photo 1 Photo 2 Page 2 of 5 Report No.: STS2011312 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2011312 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2011312 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2011312 Photo 9

68mm 48mm Place Barcode Label 402-13988 In This Area Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. Cet appareil est conforme à la partie 15 des règles FCC. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radio Systems Corporation Patents: / Brevets : / Patenten: / Patentes: / Brevetti: / Patente: www.radiosystemscorporation.com/patents FCC ID: KE3-3003631 IC: 2721A-3003631 MOD:300-3631 402-21800 24VDC 1.5A This device complies with Industry Canada license-exempt RSS standard(s). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Location

Page 1 of 5 Report No.: STS2011312 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: PetSafe Photo 1 Photo 2 Antenna Page 2 of 5 Report No.: STS2011312 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2011312 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2011312 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2011312 Photo 9

RF Exposure Report FCC-ID: KE3-3003631 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Mode 18.72KHz Detector PEAK Phase modulation 108.39 dBuV/m Electric field strength Limit 614 (V/m) Electric field strength Limit 175.76 dBuV/m 108.39 dBuV/m ＜ 175.76 dBuV/m

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] MPE TEST REPORT Report No:STS2011312H02 Issued for Radio Systems Corporation 10427 PetSafe Way. Knoxville, TN 37932 USA Product Name: Stay and Play TX Brand Name: PetSafe Model Name: 300-3631 Series Model: N/A FCC ID: KE3-3003631 Test Standard: FCC CFR 47 part 1, 1.1310 S T L A B S Page 2 of 11 Report No.: STS2011312H02 TEST RESULT CERTIFICATION Applicant’s Name ................... : Radio S ystems Corporation Address .................................. : 10427 PetSafe Way. Knoxville, TN 37932 USA Manufacture's Name .............. : Radio Systems Corporation Address .................................. : 10427 PetSafe Way. Knoxville, TN 37932 USA Product Description Product Name ........................ : Stay and Play TX Brand Name ......................... : PetSafe Model Name ........................... : 300-3631 Series Model .......................... : N/A Standards ............................... : FCC CFR 47 part 1, 1.1310 Test Procedure ..................... : 680106 D01 RF Exposure Wireless Charging Apps v03 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document ma y be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................ : Date of receipt of test item ..... : 03 Nov. 2020 Date of performance of tests .. : 03 Nov. 2020 ~ 13 Jan. 2021 Date of Issue .......................... : 13 Jan. 2021 Test Result .............................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory: (Vita Li) Page 3 of 11 Report No.: STS2011312H02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5
1.1 TEST FACTORY 5
1.2 MEASUREMENT UNCERTAINTY 5
1.3 GENERAL DESCRIPTION OF THE EUT 6
1.4 EQUIPMENTS LIST FOR ALL TEST ITEMS 7
2. MAXIMUM PERMISSIBLE EXPOSURE 8
2.1 MAXIMUM PERMISSIBLE EXPOSURE 8
2.2 TEST PROCEDURE 9
2.3 TEST SETUP 9
2.4 TEST RESULTS 9
2.5 MAXIMUM PERMISSIBLE EXPOSURE 10
Page 4 of 11 Report No.: STS2011312H02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 20 Jan. 2021 STS2011312H02 ALL Initial Issue Page 5 of 11 Report No.: STS2011312H02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01v03 Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainly 1 H-filed ±1.2μT 2 E-filed ±16% Page 6 of 11 Report No.: STS2011312H02 1.3 GENERAL DESCRIPTION OF THE EUT Product Name Stay and Play TX Trade Name PetSafe Model Name 300-3631 Series Model N/A Model Difference N/A Equipemnt Category Non-ISM frequency Antenna Type Internal Coil Operating frequency 18.72KHz Modulation Type Phase Power Rating Input: 100-240V~50/60Hz 1.0A Max Output:DC 24.0V 1.5A Hardware version number Rev 3 Software version number 1 Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector NOTE 1 PetSafe 300-3631 Internal Coil N/A Antenna The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. Page 7 of 11 Report No.: STS2011312H02 1.4 EQUIPMENTS LIST FOR ALL TEST ITEMS Kind of Equipment Manufacturer Type No. Serial No. Last calibration Calibrated until Electromagnetic field strength analyzer Coliy Technology GmbH E300 13945 2010.10.19 2021.10.18 Three-dimensional omnidirectional electric field probe Coliy Technology GmbH EP0650 N/A 2010.10.19 2021.10.18 Three-dimensional omnidirectional magnetic field probe Coliy Technology GmbH HP0350 N/A 2010.10.19 2021.10.18 Three-dimensional omnidirectional electric and magnetic field combo probe Coliy Technology GmbH EHP150 N/A 2010.10.19 2021.10.18 Page 8 of 11 Report No.: STS2011312H02 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1 MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 / f)* 30 30-300 27.5 0.073 0.2 30 300…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC TEST REPORT Report No: STS2011312W02 Issued for Radio Systems Corporation 10427 PetSafe Way. Knoxville, TN 37932 USA Product Name: Stay and Play TX Brand Name: PetSafe Model Name: 300-3631 Series Model: N/A FCC ID: KE3-3003631 Test Standard: FCC Part 15 Subpart C S T L A B S Page 2 of 21 Report No.: STS2011312W02 TEST RESULT CERTIFICATION Applicant’s Name ................... : Radio Systems Corporation Address .................................. : 10427 PetSafe Way. Knoxville, TN 37932 USA Manufacture's Name .............. : Radio Systems Corporation Address .................................. : 10427 PetSafe Way. Knoxville, TN 37932 USA Product Description Product Name ........................ : Stay and Play TX Brand Name ........................... : PetSafe Model Name ........................... : 300-3631 SeriesModel ........................... : N/A Test Standards ...................... : FCC Part 15 Subpart C Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................ : Date of receipt of test item ..... : 03 Nov. 2020 Date (s) of performance of tests: 03 Nov. 2020 ~ 13 Jan. 2021 Date of Issue .......................... : 13 Jan. 2021 Test Result .............................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 21 Report No.: STS2011312W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF THE EUT 6 2.2 DESCRIPTION OF THE TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 8 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 9 3. CONDUCTED EMISSION TEST RESULT(SECTION 15.207) 10 3.1 POWER LINE CONDUCTED EMISSION LIMITS 10 3.2 TEST PROCEDURE 11 3.3 TEST SETUP 11 3.4 EUT OPERATING CONDITIONS 11 3.5 TEST RESULTS 12 4. RADIATED&FIELD EMISSION TEST RESULT(SECTIOU 15.209) 14 4.1 LIMIT 14 4.2 TEST PROCEDURE 14 4.3 TEST SETUP 15 4.4 TEST RESULTS 16 5. 20 DB BANDWIDTH TEST 20 5.1 LIMIT 20 5.2 TEST SETUP 20 5.3 TEST RESULTS 20 APPENDIX-PHOTOS OF TEST SETUP 21 Page 4 of 21 Report No.: STS2011312W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 13 Jan. 2021 STS2011312W02 ALL Initial Issue Page 5 of 21 Report No.: STS2011312W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.209（a） Radiated emission, Spurious Emission PASS 2.1049 20 dB Bandwidth PASS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainly 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 6 of 21 Report No.: STS2011312W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Stay and Play TX Trade Name PetSafe Model Name 300-3631 Series Model N/A Model Difference N/A Channel List Please refer to the Note 2. Equipemnt Category Non-ISM frequency Operating frequency 18.72KHz Modulation Type Phase Adapter: Input: 100-240V~50/60Hz 1.0A Max Output:DC 24.0V 1.5A Hardware version number Rev 3 Software version number 1 Connecting I/O Port(s) Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User’s Manual. 2. Channel List Channel Frequency (KHz) Channel Frequency (KHz) Channel Frequency (KHz) 00 18.72 3. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector NOTE 1 PetSafe 300-3631 Internal Coil N/A Antenna Page 7 of 21 Report No.: STS2011312W02 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX Mode For Conducted Emission Final Test Mode Description Mode 1 TX Mode For Radiated Emission Final Test Mode Description Mode 1 TX Mode Page 8 of 21 Report No.: STS2011312W02 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED During testing channel & power controlling software provided by the cus…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID:KE3-3003631 DCD Setup photo Model name: 300-3631 Conduction Radiation(9KHz-30MHz) Page 2 of 2 FCC ID:KE3-3003631 Radiation(30MHz-1000MHz)
