KE3-33611130Pet Training System Remote Control Transmitter

- 1 -- 1 - www.innotek.net Instruction Guide 2 Manuel d’instructions 9 Handleiding 16 Instructivo 23 Istruzioni per l’uso 30 Bedienungsanleitung 37 - 2 -- 2 - www.innotek.net Thank you for choosing Innotek®. Through consistent use of our products, you can have a better behaved dog in less time than with other training tools. If you have any questions, please contact the Customer Care Center (Centre) at 1-800-826-5527 (U.S.A./Canada). For a listing of international Customer Care Center (Centre) telephone numbers, visit our website at www.innotek.net. To get the most protection out of your warranty, please register your product within 30 days at www.innotek.net/registerproduct.shtml. By registering, and keeping your receipt, you will enjoy the product’s full warranty and should you ever need to call the Customer Care Center (Centre), we will be able to help you faster. Most importantly, Innotek® will never give or sell your valuable information to anyone. INSTRUCTION GUIDEINSTRUCTION GUIDE THE KIT INCLUDESTHE KIT INCLUDES PREPARATIONPREPARATION EnglishEnglish Congratulations! You are now the owner of an Innotek® Spray Commander® Waterproof training system with remote control designed for your dog’s education. Your new Innotek® Spray Commander® system can be used to interrupt any of your dog’s unwanted behaviors (behaviours) such as running away and chasing, stealing objects or food, digging, jumping on guests, etc. This system will improve and strengthen dog- owner relationships because the correction is associated with the action and not the owner. It will allow you to redirect your dog’s attention and behavior (behaviour) while promoting a healthy emotional state. This instruction guide will provide you with all the information required to maximize the effi ciency of your new Innotek® Spray Commander®. How it works Innotek® Spray Commander® uses a remote control and a harmless spray collar to re-direct the attention of the distracted or misbehaving dog, or one that has learned that obedience is optional. It can be activated at a distance up to 250 ft (85 m). In addition to having two levels of spray to disrupt unwanted behaviors (behaviours), the Innotek® Spray Commander® also incorporates a sound signal for positive reinforcement. You can use it to let your dog know when the behavior (behaviour) he is engaged in is acceptable. The sound becomes a reward for your dog. This innovative system causes no secondary eff ects (fear, pain). • Spray device Waterproof • Remote control • Adjustable collar • Can of stainfree, hypo-allergenic spray • Two 6-volt alkaline batteries • Instruction guide Adjusting the collar to the spray device 1. Remove the keeper from the black collar (A). Pass the black collar (B) through the loops of the spray device (C). Put the keeper back on the collar (D). The curved edge of the keeper should face inward. AB C D - 3 -- 3 - www.innotek.net Adjust the collar to fi t like a regular collar. You should be able to easily pass two fi ngers between your dog’s neck and the device (A). We suggest that you check the collar regularly to make sure that it is well adjusted. Note: If these instructions are not properly followed, the buckle can easily be pulled off the collar. This could lead to the device being lost or damaged. Your dog must get used to the device before you actually start using it. We suggest that you make your dog wear the spray device during 4 to 5 days before inserting the battery and fi lling the device. At the same time, we also suggest that you remove and put the collar back frequently on your dog. Filling the device Inserting the battery 1. Set the device on a fl at surface, with the fi ll-up valve turned upwards. Shake the spray can before using it. 2. Hold the can upside down, then insert the aerosol tip in the fi ll-up valve – the deepest cavity (A) – then press down fi rmly for 10 seconds (B). Release pressure and press down for another 10 seconds, then release. Note: If spray is escaping as you attempt to fi ll the device, increase the downward pressure on the refi ll can to get a better seal. You cannot overfi ll the device. When completely fi lled, there should be enough gas in your device for 18-23 sprays. 1. Insert a coin into the slot of the battery cover and orient towards open position. Remove cover and insert one 6 Volt battery with positive terminal towards the inside of the device. Place cover back on. Screw cover towards off position. 2. Slide off the battery cover from the remote control and insert one 6-volt alkaline battery, respecting polarity (+ and -) (C, D). Slide the cover back on. NOTE : Check if the device is working by pressing the upper button no 1 on your remote control; you should hear a beep (make sure the spray device is in the “on” position). AB C D 2. Feed the free end of the collar into the slot of the buckle (A) from the back to the front. Then, thread the free end of the collar through the outside slot (B) from the front to the back. The free end should now hang on the outside, then thread the keeper (C). When you have completed this section, the assembled collar looks as illustrated (D). - 4 -- 4 - www.innotek.net DO’S AND DON’T’SDO’S AND DON’T’S • Never infl ict punishment, pain or cruelty on your pet – even if he refuses to listen. • Reward your pet when he listens and obeys your commands. • Never let the dog ignore a command he understands. • Do not use the spray when you want your dog to obey a command that he does not understand yet. • Never fi ll the device while your dog is wearing it because it may damage the fi ll-up valve. • Never fasten a leash (lead) to the Innotek® Spray Commander® collar. • To ensure that your dog does not make the connection between you and the Innotek® Spray Commander®, don’t let him see you prepare the device, neither for the fi rst try, nor for subsequent use. Keep your dog away while you prepare the device as well as when you fi ll it or change the battery. • Make sure the device i…

Text truncated - open the document above for the full version.

11 22 33 44 D D C C B B A A Title Number Revision Size Orcad A Date: 2011/5/7 Sheet of File: D:\Program Files\..\336 ᮍḚ೒ -NEW Transmitter.SchDoc Drawn By: Antenna 916MHz In Out 916.0MHz BALUN 6V Battery 6V 6V In 3V Out IC 1 VOLTAGE REGULATOR VDD GND XTAL RF OutputVDD GPIO1GPIO2GPIO3 Transmitter IC Si4010 BOI Block diagram for 868MHz Transmitter A Simon 12 Y1 10MHz In Out Power filterC6,C3,C21,C20,C17 Block diagram for 916MHz Transmitter VDD GND S3 Long-Spray S2 Short-Spray S1 Buzzer GND In Out C14,C15,L19 Filter IC2 FCC ID: KE3-33611130IC: 2721A-33611130Model: RFA-419T CRYSTAL-LESS SOC RF TRANSMITTER Si4010 Rev. 0.5 7/10Copyright © 2010 by Silicon LaboratoriesSi4010 This information applies to a product under development. Its characteristics and specifications are subject to change without notice. Single Coin-cell Battery Transmitter Supply voltage: 1.8 to 3.6 V Standby current < 10 nA Crystal-less operation Temperature range –40 to +85 °C Automotive quality option, AEC-Q100 10-pin MSOP/14-pin SOIC Pb free/RoHS compliant RF Transmitter Frequency range: 27—960 MHz +10 dBm output power, adjustable Automatic antenna tuning Symbol rate up to 100 kbps FSK/OOK modulation Manchester, NRZ, 4/5 encoder Analog Peripherals LDO regulator with POR circuit Integrated temperature sensor Battery voltage monitor High-Speed 8051 μC Core Pipeline instruction architecture 70% of instructions in 1 or 2 clocks Up to 24 MIPs with 24 MHz clock Memory 4 kB RAM/8kB NVM 128 bit EEPROM 256 byte of internal data RAM 256 byte of external data RAM (XREG) 12 kB ROM embedded functions 8 byte low leakage RAM Digital Peripherals 128 bit AES Accelerator 4/8 GPIO with wakeup functionality 1 LED driver Data serializer High-speed frequency counter RTC, Timers 2, 3 On-chip debugging - C2 Clock Sources High-speed crystal-less VCO Programmable low-power osc - LPOSC Ultra low-power sleep timer Optional crystal oscillator input Applications Garage and gate door openers Home automation and security Remote keyless entry Si4010 NVM 8 Kbyte EEPROM 128-bit VDD GND PA RAM/ ROM PUSH BUTTONS CR2032 COIN CELL 1.8 – 3.6 V DIVIDER I/O INTERFACE GPIO 4/8 INTEGRATED 8051 MCU LDO REGULATOR TXM TXP LOOP ANTENNA FSKOOK LED VDD

10427 Electric Ave Knoxville, TN. 37932 865-777-5404 www.petsafe.net AGENCY AGREEMENT Federal Communications Commission Date: April 18, 2011 P.O. Box 429 Columbia, MD 21045 Gentlemen: By signature below, we hereby authorize Intertek Testing Services (Mr. Terry Chan) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 of the FCC Rules. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. This appointment will remain in effect until December 31, 2011. Clifton P. Brick Product Safety and Regulatory Manager (FCC contact of record as of this date) Date: 5/2/2011

10427 Electric Ave Knoxville, TN. 37932 865-777-5404 www.petsafe.net Request for Confidentiality Federal Communications Commission Date: May 2, 2011 P.O. Box 429 Columbia, MD 21045 Applicant: Radio Systems Corporation FCC ID: KE3-33611130 (Tx) To whom it may concern, Request is hereby submitted by Radio Systems Corporation to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Bill of material/ parts list (if provided) Rationale for request for confidentiality: Radio Systems Corporation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would give them significant competitive advantages in developing similar products. Clifton P. Brick Product Safety and Regulatory Manager (FCC contact of record as of this date) Date: 5/2/2011 KE3-33611131 (Rx)

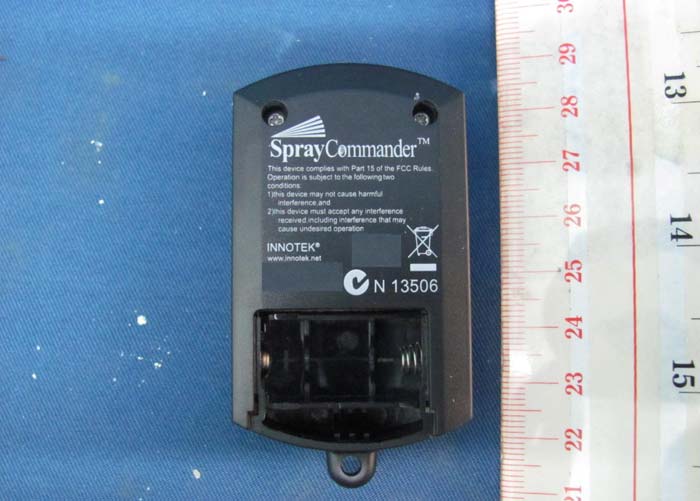

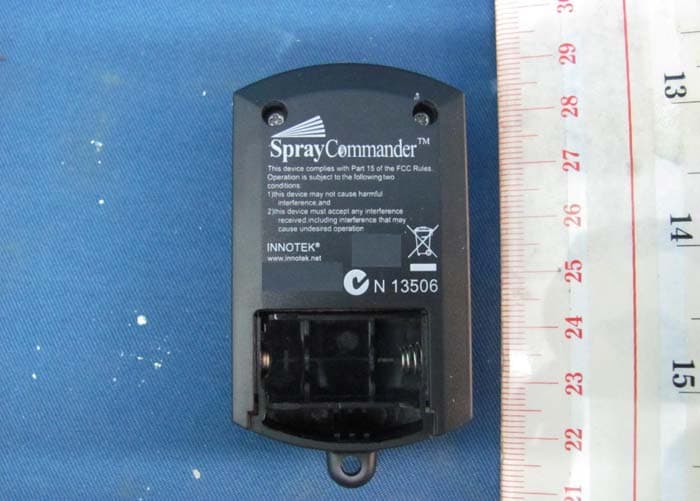

INTERTEK TESTING SERVICE Report No.: HK11031092-1 FCC ID: KE3-33611130 IC: 2721A-33611130 Equipment Photographs Model : RFA-419T (External)

INTERTEK TESTING SERVICE Report No.: HK11031092-1 FCC ID: KE3-33611130 IC: 2721A-33611130 Equipment Photographs Model : RFA-419T (Internal) INTERTEK TESTING SERVICE Report No.: HK11031092-1 FCC ID: KE3-33611130 IC: 2721A-33611130 Equipment Photographs Model : RFA-419T (Internal) INTERTEK TESTING SERVICE Report No.: HK11031092-1 FCC ID: KE3-33611130 IC: 2721A-33611130 Equipment Photographs Model : RFA-419T (Internal)

Technical Description (RFA-419T) TRANSMITTER 1. Transmitter IC The Transmitter IC Si4010 (IC2) is a fully integrated crystal-less CMOS SoC RF transmitter with an embedded CIP-51 8051 MCU designed for the sub 1 GHz ISM frequency bands. The signals are amplified by Internal PA, through the Balun, Filter and antenna transmit to space. 2. Power supply The 6V battery follows the VOLTAGE REGULATOR (IC1) giving 3.0V output for theTransmitter IC (IC2) which can work at 1.8~3.6V 3. Crystal The crystal oscillator Y1 10MHz produces an accurate clock reference for applications demanding a high-accuracy transmit carrier frequency and the output is connected to the frequency counter. The center frequency is determined by the programmable multipiler. 4. Modulation The three switches S1, S2 and S3 are to choose the modulation signal S1---Control Buzzer beep S2--- Control Solenoid short spray S3---ControlSolenoid long spray RECEIVER SECTION 1. Receiver IC The Receiver IC SI1010 is fully integrated mixed-signal System-on-a-Chip MCU. The RF signal through helix antenna and 50ohm matching network directly transmit to the SI1010. The SI1010 through it’s internal LNA and mixer demodulate the received signal and control Buzzer beep or Solenoid spray. 2. Power Supply The 6V battery through the IC1 VOLTAGE REGULATOR output 3.0V and supply to Transmitter IC which can work at 1.8~3.6V 3. Crystal Y1---30MHz Crystal generate local carrier frequency and input to mixer to demodulate the received signal. Y2---32.768KHz Crystal generate System clock FCC ID: KE3-33611130 IC: 2721A-33611130 CRYSTAL-LESS SOC RF TRANSMITTER Si4010 Rev. 0.5 7/10Copyright © 2010 by Silicon LaboratoriesSi4010 This information applies to a product under development. Its characteristics and specifications are subject to change without notice. Single Coin-cell Battery Transmitter Supply voltage: 1.8 to 3.6 V Standby current < 10 nA Crystal-less operation Temperature range –40 to +85 °C Automotive quality option, AEC-Q100 10-pin MSOP/14-pin SOIC Pb free/RoHS compliant RF Transmitter Frequency range: 27—960 MHz +10 dBm output power, adjustable Automatic antenna tuning Symbol rate up to 100 kbps FSK/OOK modulation Manchester, NRZ, 4/5 encoder Analog Peripherals LDO regulator with POR circuit Integrated temperature sensor Battery voltage monitor High-Speed 8051 μC Core Pipeline instruction architecture 70% of instructions in 1 or 2 clocks Up to 24 MIPs with 24 MHz clock Memory 4 kB RAM/8kB NVM 128 bit EEPROM 256 byte of internal data RAM 256 byte of external data RAM (XREG) 12 kB ROM embedded functions 8 byte low leakage RAM Digital Peripherals 128 bit AES Accelerator 4/8 GPIO with wakeup functionality 1 LED driver Data serializer High-speed frequency counter RTC, Timers 2, 3 On-chip debugging - C2 Clock Sources High-speed crystal-less VCO Programmable low-power osc - LPOSC Ultra low-power sleep timer Optional crystal oscillator input Applications Garage and gate door openers Home automation and security Remote keyless entry Si4010 NVM 8 Kbyte EEPROM 128-bit VDD GND PA RAM/ ROM PUSH BUTTONS CR2032 COIN CELL 1.8 – 3.6 V DIVIDER I/O INTERFACE GPIO 4/8 INTEGRATED 8051 MCU LDO REGULATOR TXM TXP LOOP ANTENNA FSK OOK LED VDD

1 2 34 ABCD 4 3 2 1 D CBA Company:Drawn:Date:Date:Date:Checked:Approved: Title:Document No:File: Sheet of Rev: REVISION RECORD Change Description Date JDI ELECTRONIC FACTORY ANT 916MHz 868MHz C14 3.9pF C16 2.7pF C9 2.7pF C13 10nF C18 1.5pF C200.1uF J2 -BATTERY J1 +6V BATTERY C6 0.1uF C50.1uF L31.8nH C1710nF C1018pF L7 180nH TAW03/17/2011 916MHz Waterpoof Spray Commander Transmitter 01 TP1 C2D Y1 10MHz L21.8nH L612nH L19 8.2nH C153.9pF L58.2pF VDD C10.1uF SW3 LONG SPRAY SW2 SHORT SPRAY SW1 BUZZER GPIO0/XTAL 1 GND 2 TXM 3 TXP 4 VDD 5 LED 6 GPIO4 7 GPIO3 8 GPIO2 9 GPIO1 10 IC2 SI4010-GT SI4010-GT R1 10R C212.2uF TP2 GPIO0 TP3 C2CK D1BAT54T1 C22 12pF C12 10nF VDD VDD Vin GND Vout IC1 XC62FP3002 TP5 GND TP4 VDD VDD C2 2.2uF C32.2uF C110R REV0.0: NEW RELEASE 03/17/11 336-11130BN 916MHz Transmitter FCC ID: KE3-33611130IC: 2721A-33611130Model: RFA-419T

INTERTEK TESTING SERVICES Report No. : HK11031092-1 Sample No. : 1/3 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11031092-1 Radio Systems Corporation Application For Certification (Original Grant) (FCC ID: KE3-33611130) (IC: 2721A-33611130) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: June 14, 2011 INTERTEK TESTING SERVICES Report No.: HK11031092-1 FCC ID: KE3-33611130 IC: 2721A-33611130 i GENERAL INFORMATION Radio Systems Corporation BRAND NAME: Spray Commander, MODEL: RFA-419T FCC ID: KE3-33611130 IC: 2721A-33611130 Grantee: Radio Systems Corporation Grantee Address: 10427 Electric Ave., Knoxville, TN 37932, USA. Contact Person: Clifton Brick Tel: 865-218-1557 Fax: 865-671-6855 e-mail: [email protected] Manufacturer: Blue Ocean Innovation Limited Manufacturer Address: Room 1813. Fotan Industrial Centre, 26-28 Au Pui Wan Street, Fotan Hong Kong Brand Name: Spray Commander Model: RFA-419T Type of EUT: Transmitter Description of EUT: Pet Training System Remote Control Transmitter Serial Number: N/A FCC ID / IC: KE3-33611130 / 2721A-33611130 Date of Sample Submitted: March 23, 2011 Date of Test: March 30, 2011 Report No.: HK11031092-1 Report Date: June 14, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11031092-1 FCC ID: KE3-33611130 IC: 2721A-33611130 ii SUMMARY OF TEST RESULT Radio Systems Corporation BRAND NAME: Spray Commander, MODEL: RFA-419T FCC ID: KE3-33611130 IC: 2721A-33611130 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11031092-1 FCC ID: KE3-33611130 IC: 2721A-33611130 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ..............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11031092-1 FCC ID: KE3-33611130 IC : 2721A-33611130 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: RFA-419T HK11031092-1 Model: RFA-419T side A INTERTEK TESTING SERVICE Report No: HK11031092-1 FCC ID: KE3-33611130 IC : 2721A-33611130 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: RFA-419T HK11031092-1 Model: RFA-419T side B
