KEAADLV

Trimble Navigation Ltd

Advanced Data Link Vantage and Advanced Data Link Sentry (ADLV)

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Aug 22, 2009
Application Purpose: Original Equipment
Date of Application: Aug 22, 2009
Equipment Note: Advanced Data Link Vantage and Advanced Data Link Sentry (ADLV)
Frequency Range: 430.00000000 - 470.00000000
Company: Trimble Navigation Ltd
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

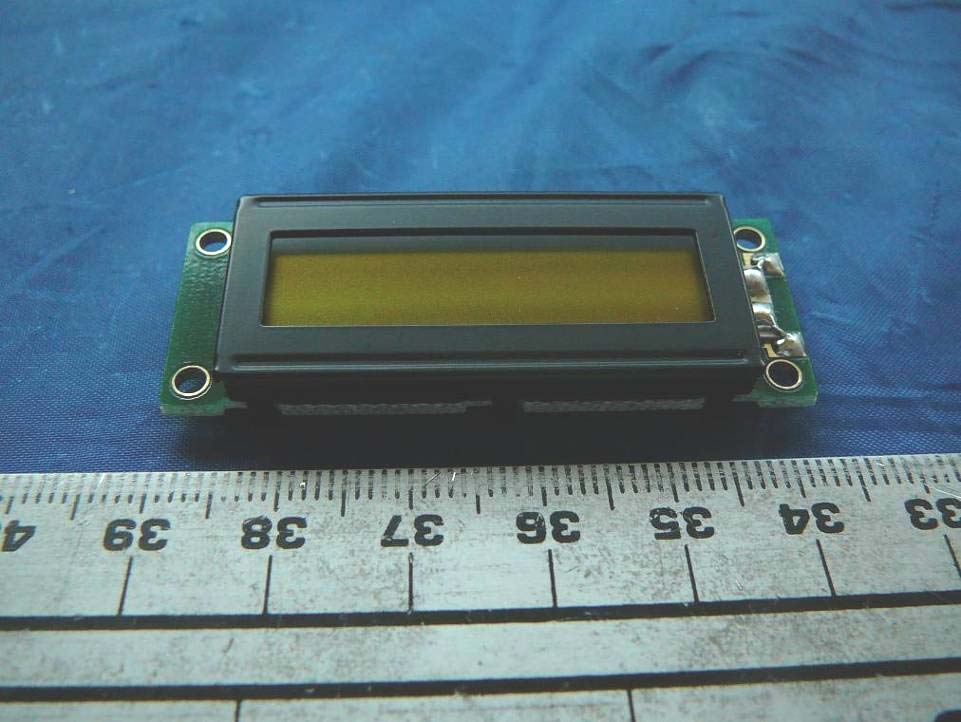

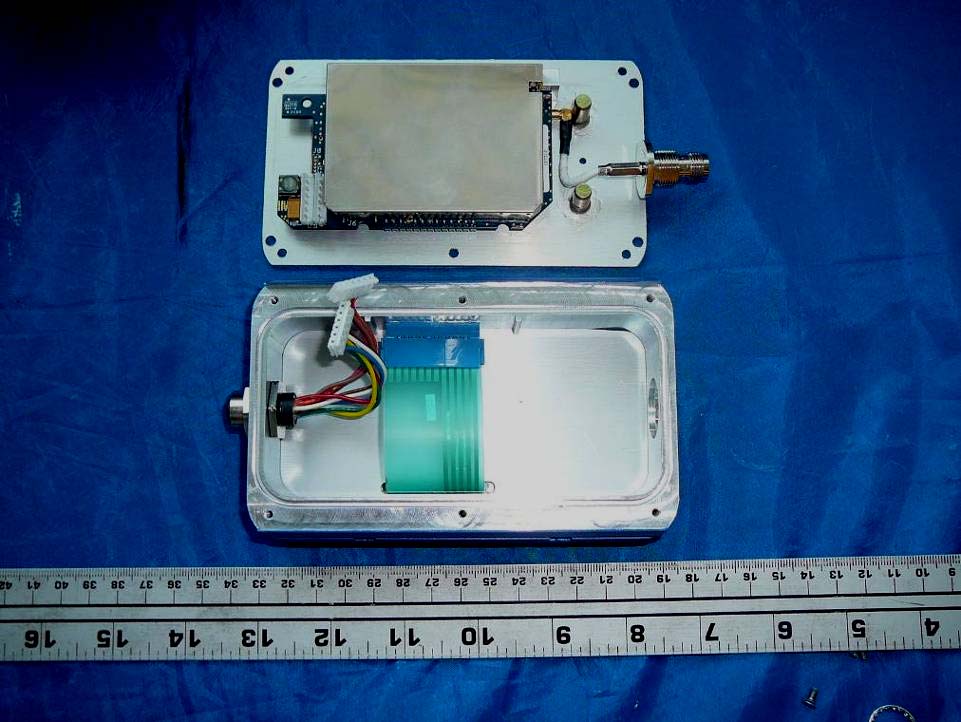

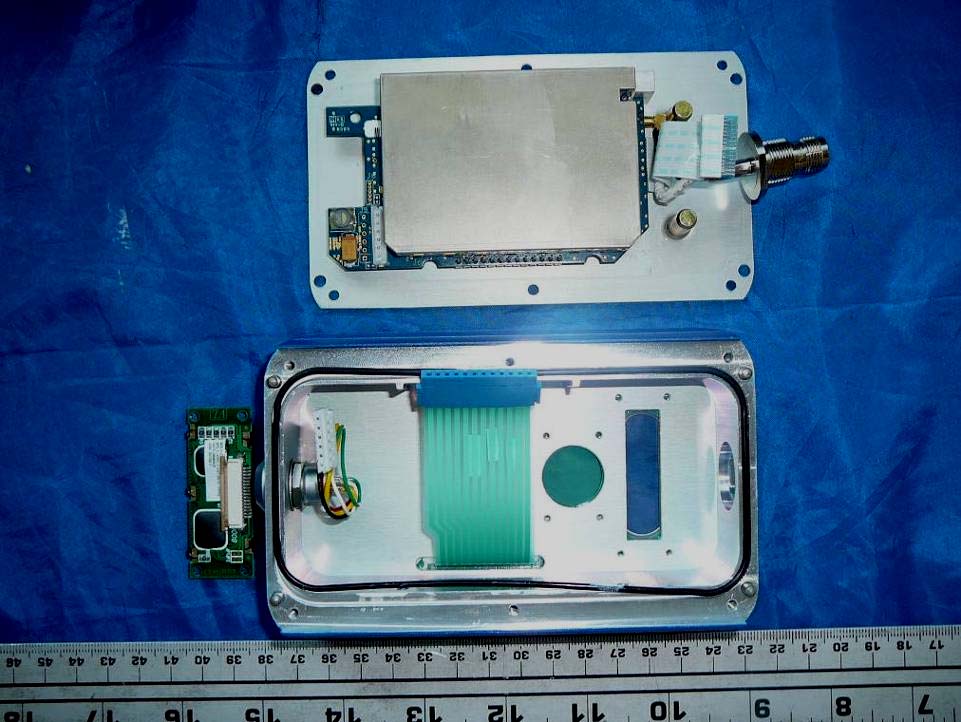

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	9	430 MHz - 470 MHz	4 W	9K75F1D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power listed is Maximum conducted. The antenna installation and operating configurations of this transmitter, including any applicable duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of �2.1091. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 120 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
