KHKCK5446NWeather Band Radio

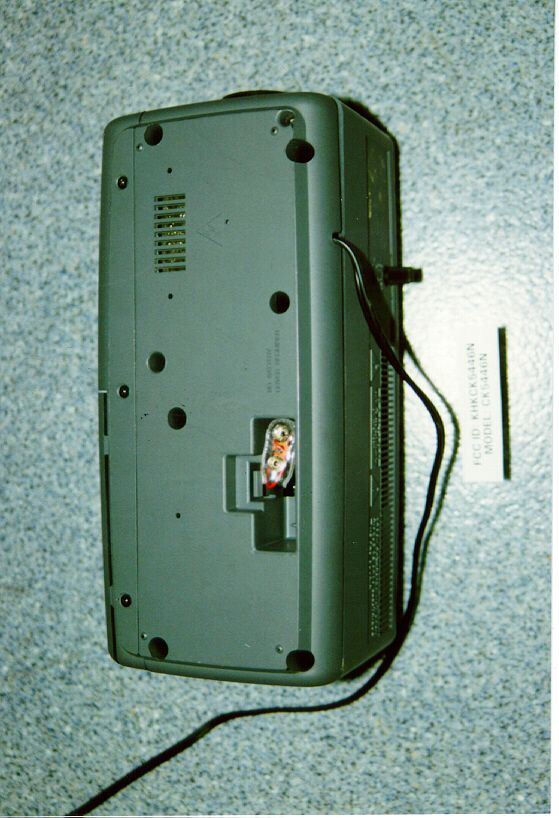

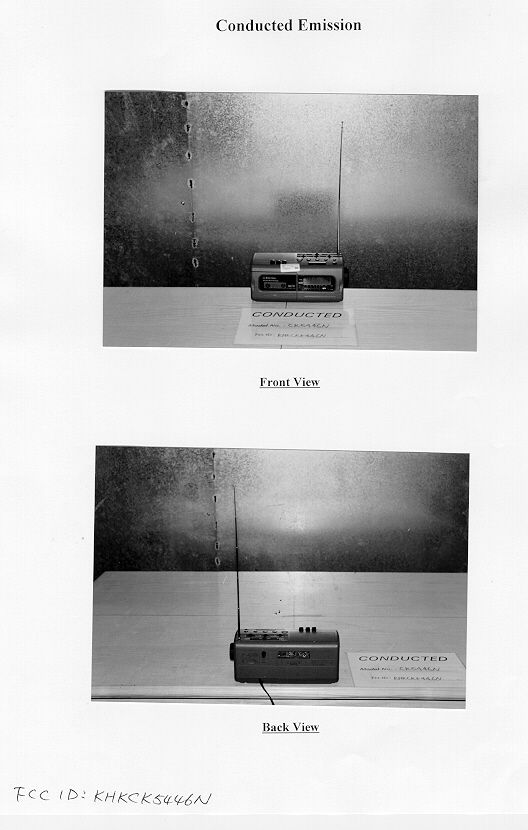

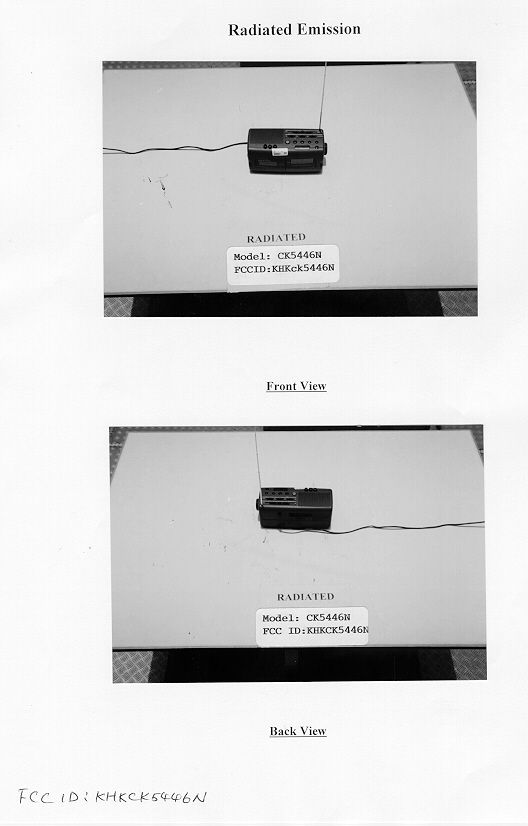

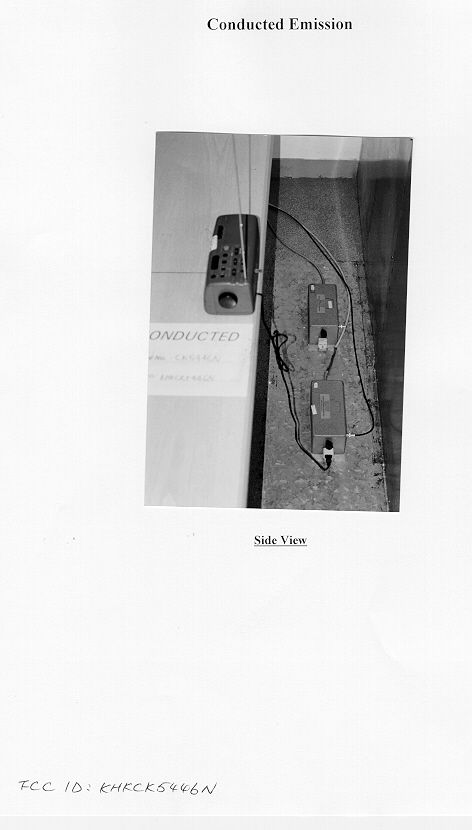

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Limtied FCC ID: KHKCK5446N Wai Hang Electronic Co., Ltd. Application For Notification (FCC ID: KHKCK5446N) Date: August 19, 1998 WO# 98065171 Wilson S. K. Loke/at August 19, 1998 INTERTEK TESTING SERVICES FCC ID: KHKCK5446N i LIST OF EXHIBITS EXHIBIT 1 :General Description EXHIBIT 2 :Emission Results EXHIBIT 3 :Equipment External Photographs EXHIBIT 4 :Product Labelling EXHIBIT 5 :Technical Specifications EXHIBIT 6 :Instruction Manual INTERTEK TESTING SERVICES FCC ID: KHKCK5446N ii MEASUREMENT/TECHNICAL REPORT Wai Hang Electronic Co., Ltd. - Model: Emerson CK4 & Emerson CK5446N FCC ID: KHKCK5446N Date: August 19, 1998 This report concerns (check one: )Original Grant X Class II Change Equipment Type: Weather Band (example: computer, printer, modem, etc) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on y that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:C. K. Lam Intertek Testing Services 2/F., Garment Center, 576 Castle Peak Rd., Kowloon, Hong Kong. Phone:852-2746-8218 Fax:852-2785-5487 INTERTEK TESTING SERVICES FCC ID: KHKCK5446N 1 Table of Contents 1.0 General Description ............................................................................................................... 2 1.1 Product Description ........................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................... 2 1.3 Test Methodology .............................................................................................................. 2 1.4 Test Facility........................................................................................................................ 2 2.0 Emission Results ..................................................................................................................... 6 2.1 Radiated Emission Results................................................................................................. 7 2.2 Radiated Emission Configuration Photograph ................................................................... 8 2.3 Line Conducted Emission Results ..................................................................................... 9 2.4 Line Conducted Emission Configuration Photograph ..................................................... 13 3.0 Equipment Photographs ...................................................................................................... 15 4.0 Product Labelling ................................................................................................................ 20 4.1 Label Artwork.................................................................................................................. 21 4.2 Label Location ................................................................................................................. 22 5.0 Technical Specifications ...................................................................................................... 24 6.0 Instruction Manual .............................................................................................................. 28 INTERTEK TESTING SERVICES FCC ID: KHKCK5446N 2 List of attached file Exhibit typefilename Test Reportreport.doc Test Setup Photoradiated.jpg, conduct1.jpg, conduct2.jpg External Photoophoto1.jpg, ophoto2.jpg, ophoto2,jpg External Photo(iphoto1.jpg) to (iphoto7.jpg) Block Diagramblock.pdf Schematicscircuit.pdf ID Labellabel.pdf ID Locationlocation.pdf User Manualmanual.pdf Test Reportaf.pdf Cover letterletter.pdf Attestationattest.pdf INTERTEK TESTING SERVICES FCC ID: KHKCK5446N 3 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: KHKCK5446N 4 1.0 General Description 1.1Product Description The product is a AM/FM/WB Clock Radio with cassette player. It provide audio feature and broadcast information. It is powered by 230V, 60Hz AC. And it also has a clock and alarm function. 1.2Related Submittal(s) Grants This is a single application for Notification of a receiver. The FM receiver is tested subject to the verification. 1.3Test Methodology Both AC mains line-conducted and radiated emission measurements were performed according to the procedures in ANSI C63.4 (1992). All measurements were performed in Open Area Test Sites. Preliminary scans were performed in the Open Area Test Sites only to determine worst case modes. For each scan, the procedure for maximizing emissions in Appendices D and E were followed. All Radiated tests were performed at an antenna to EUT distance of 3 meters, unless stated otherwise in the " Justification Section " of this Application. 1.4Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located at Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. This test facility and site measurement data have been placed on file with the FCC. 1.5Attestation The Attestation which is filled by the applicant is saved with filename: attest.pdf. INTERTEK TESTING SERVICES FCC ID: KHKCK5446N 5 EXHIBIT 2 EMISSION RESULTS INTERTEK TESTING SERVICES FCC ID: KHKCK5446N 6 2.0 Emission Results The judgement on the radiated emission and conducted emission test together with the corresponding configuration photographs are included in the following pages. TEST PERSONNEL: Test Signature …
