KLLTM-366MARINE TRANSCEIVER

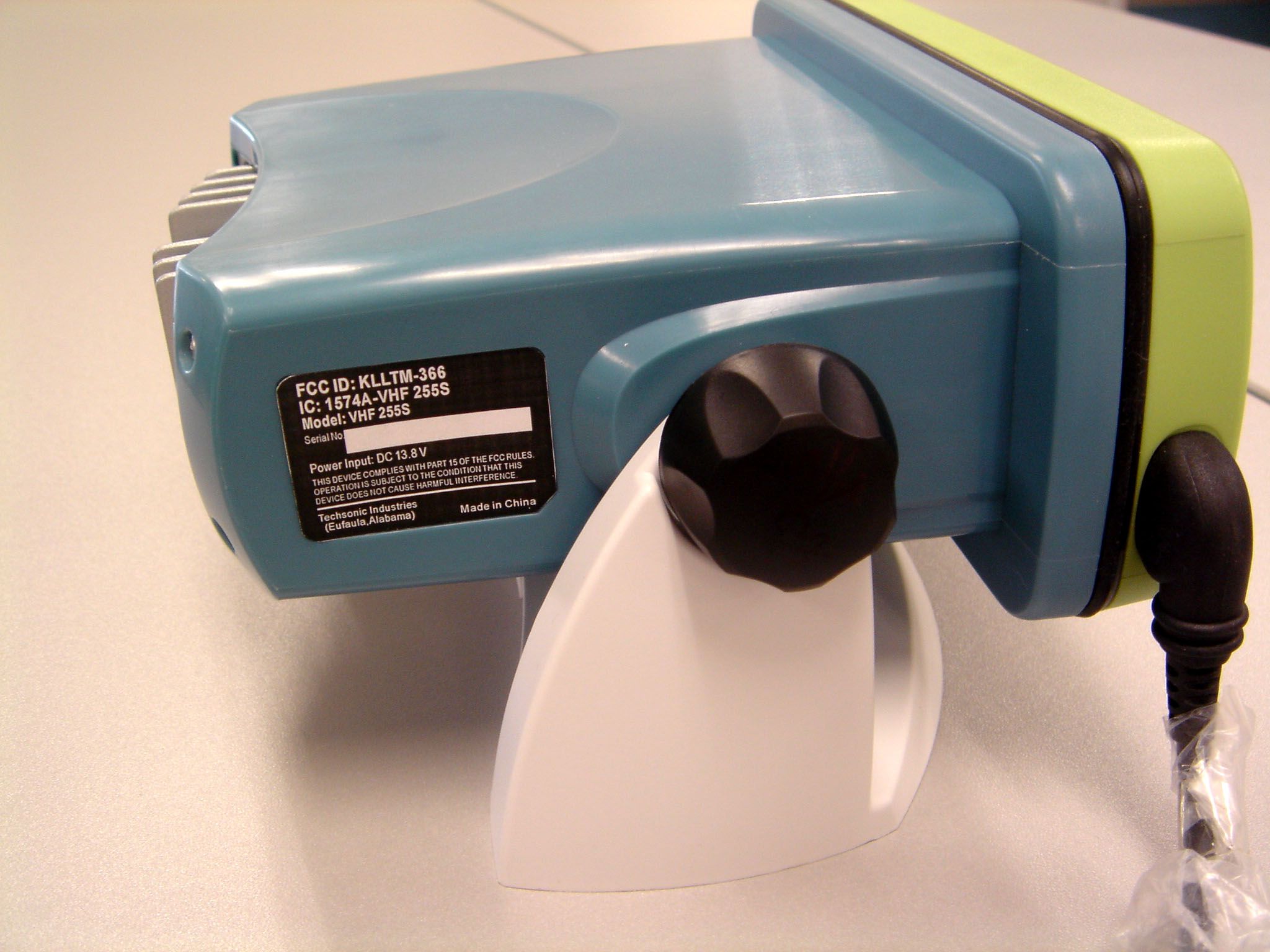

VHF255S DSC MARINE RADIO TM366-USA 25/1 Watt VHF/FM OPERATOR WARNING HUMMIINBIRD requires the radio operator to meet the requirements for Radio Frequency Exposure. Unauthorized changes or modifications to this equipment may void compliance with ***Rule.Any change or modification must be approved in writing by HUMMIINBIRD Corp This equipment has been tested and licensed to comply with the limits for Class D Digital Marine Devices. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generate or radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications and human body. Never transmit before you make sure the antenna is properly located. This device is only an aid to navigation. Its performance can be affected by many factors including equipment failure or defects, environmental condition and improper handling or use. It is the user's responsibility to exercise common prudence and navigational judgement, and this device should not be relied upon as a substitute for such prudence and judgement. Your Radio Ocean VHF radio generates and radiates radio frequency (RF) electromagnetic energy (EME). This equipment must be installed and operated in accordance with the instructions contained in this handbook. Failure to do so can result in personal injury and/or product malfunction. Page 3 Page 4 TABLE OF CONTENTS EQUIPMETN DESCRIPTION...................................................................3 1.1 INTRODUCTION......................................................................3 2. CONTROLS AND LCD DISPLAY................................................4 2.1 BASE STATION PANEL............................................................5 2. 2 BASE STATION PANEL (REAR).................................................6 2. 3 HANDSET...............................................................................7 2. 4 LIQUID CRYSTAL DISPLAY........................................................8 3.I INSTALLATION.........................................................................8 SUPPLIED ACCESSORIES.......................................................8 3.2 LOCATION............................................................................8 3.3 CONNECTIONS......................................................................8 3.4 MOUNTING THE RADIO...........................................................9 3.5 ANTENNA MOUNTING/THE EMC EXPOSURE.............................11 3.6 MOUNTING THE HANDSET.....................................................12 4 BASE OPERATION.................................................................13 4.1 TRANSMISSION AND RECEPTION...........................................14 4.2 BAND SWITCH.......................................................................14 4.3 SAVE FAV CHANNELS............................................................15 4.4 TRANSMIT TIME-OUT-TIME.....................................................16 4.5 SCAN...................................................................................16 4.6 WATCH ................................................................................17 4.7.1 Dual WATCH.........................................................................17 4.7.2 TRI WATCH ..........................................................................17 4.8 POSITION INDICATION...........................................................17 5.0 DIGITAL SELECTIVE CALLING................................................17 5.1 GENERAL......................................................................17 5.1.1 MARITIME MOBILE SERVICE IDENTITY(MMIS)L.........................17 5.1.2 HOW CAN I OBTAIN MMSI ASSIGNMENT?.............................18 5.2. DSC CALL TYPE ...................................................................18 5.2.1 SEND A DISTRESS CALL........................................................19 5.2.2 SEND AN ALL SHIPS CALL.....................................................20 5.2.3 SEND A GROUP CALL............................................................21 5.2.4 MAKE A ROUTING CALL (INDIVIDUAL).....................................21 5.2.4.1 MANUALLY SENDING AN INDIVIDUAL CALL.............................21 5.2.4.2 SENDING AN INDIVIDUAL CALL).............................................22 5.2.4.3 ACK OF AN INDIVIDUAL INCOMING.........................................23 5.2.5 LAST CALL...........................................................................23 5.2.6 SENDING AN INDIVIDUAL CALL USING THE CALL LOG.............23 5.2.7.1 POS REQUEST......................................................................23 5.2.7.2. POS REPLY...........................................................................23 5.3 RECEIVER DSC CALL.............................................................24 5.3.1 RECEIVER A DISTRESS CALL................................................24 5.3.2 RECEIVING A DISTRESS ACK FROM A COAST STATION...........24 5.3.3 RECEIVER DISTRESS RELAY CALL..........................................25 5.3.4 RECEIVING AN ALL SHIPS CALL..............................................25 5.3.5 RECEIVING A GROUP CALL..............................................26 5.3.6 RECEIVING AN INDIVIDUAL CALL .........................................26 5.3.7 RECEIVING AN “POSITION RELAY” CALL................................26 5.3.8 RECEIVING A GEOGRAPHIC AREA CALL..................................27 6.0 SET-UP MENUS.....................................................................28 6.1 MENU FUNCTION DESCRIPTION.............................................28 6.2 SET-UP MENU NAVIGATION...................................................28 6.3 BUDDY LIST........................................................................28 6.3.1 ADDING AN ENTRY...............................................................28 6.3.2 EDIT EX…

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A LPF L1,L2,L3 D17,D9 ANT-SW BPF RF DETPOWER AMP TX AMP TX/RX LOCAL AMP A.P.C. VCOLPF PLL TX/RX SHIFT BPF BPF 20.95M CPU HI/LO 1-ST MIX DSC 70CH RECEIVER RF AMP IF AMP 21.4M D/A DSC LPF MIC MUTE mod mod mic mute MIC AMP MIC SW D8 data lock Local/Distance 2-nd MIX/IF DET/SQ BPF 450KHz 2-nd local osc IC8A SQL SQL SET 5V AF MUTE AF DEM HORN AF MUTE DSC BPF IC609 DSC/ATIS SW FSK DECODE AF AMP IC10A,B EXT SP INT SP BEEP/ALERT DSC DET DSC/ATIS SW PC PORT ATTEN SP MUTE BACK LIGHT LCD CONTRAST MIC KEY LCD DRV. KEY BOARD EEPROM RX SW TX SW. IC206 PC FLASH LCD 14.7456M IC3 8V SEG IC5 5V REG 13.6V GPS IN/OUT PC TX/RX 8V SQLI BAT DET A/DD/A NETWORK TM366-USA Block Diagram HD64F3062 IC7 D3,D4,D5 RA35H1516 Q2 IC12 Q10 Q9 D22,D23 IC15 IC205B,C IC205A,D 5V POWER SW Q7 5V REG VDD TX INH 13.6V 8V TX /RX 5V LA4629 GPS Q20 BEEP CONTROL 24C64KS0073 IC16 IC6C,D Date: Sep 13,2005 Rev.: A

TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 EXTERNAL PHOTOS

TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 INTERNAL PHOTOS

Page: 1 of 8 THEORY OF OPERATION TM366-USA Techsonic September 19, 2005 This PLL controlled VHF marine mobile transceiver provides an accurate and stable multi-channel operation. The transceiver consists of 14 main sections
Transmitting stage
Receiving stage
Local oscillator PLL (Phase Lock Loop) Circuit
Memory backup
Low voltage detection
Large LCD
Local/distance Circuit
2nd Receiver
WX Alert Circuit
PC Program
DSC Feature
GPS Message
MPU
Transmitter Stage Voice audio is picked up from the internal Mic. The audio signal after passing through the MIC mute switch, a pre-emphasis network are then amplified and limited (IDC: instantaneous deviation control)by Audio IC205C, IC205B and filtered by a low pass filter IC10C, IC10D. The audio that is adjusted by VR3 to obtain suitable the frequency deviation, modulates the carrier of VCO, through Varicap (VD2). The modulated signal output from the VCO is pre-amplified by Q2, When the supply voltage is 13.6V, this signal will be amplified by IC1up to 1W or 25W RF power. Then the signal is filtered by low-pass filter circuit of which consists of L1, L2, L4, C1, C2, C3, C5, C6, C14, C47.These low pass filters are necessary to suppress the second and the third harmonics as higher. The signal is then fed into the antenna terminator and radiated out. The signal is also fed into another path consisting of C9, C10, D3, D4 for sampling, and is converted into a direct current voltage for the Automatic Power Control (APC) circuit IC12, Q5, Q14, Q15, Q24 to control the voltage of IC1 Pin 2 to maintain the output power stability. Q15 is used control Hi/Lo power When the unit is transmitting, the channel control voltage is added to the TX VCO varactor diode VD6. The capacitance of VD2 is varied following the audio signal, therefore the carrier is modulated to form the modulated signal. Page: 2 of 8
Receiver Stage The receiver uses a double frequency super-heterodyne circuit. The first Immediate Frequency (IF) is 21.4 MHz and the second is 450 kHz. The RF signal is received by the antenna, and passes through a low-pass filter network L1, L2, L3, L9, C1, C2, C3, C5, C6, C14, C47 to filter out unwanted signal. The received RF signal then passes through a high RF transformer L10 and is amplified by RF amplifier Q9. L11, L12, L13, C15, C18, C20 form the band pass filter. The RF signal then is mixed with the local oscillation signal from Q10 by the mixer D22, D23. The first IF (Immediate Frequency) 21.4 MHz is produced. This IF is passed through a coil T2 and a pair of crystal filter F1, F2 to further filter out other unwanted signals. The first IF then is amplified by Q11 and the IF amplifier IC7. (IC7 is an integrated IF amplifier which consists of a local oscillator, a demodulator, a second mixer, squelch control circuit, and IF amplifier). The 21.4 MHz IF then is mixed by the 21.950 MHz signal from the pin9 of IC16 here with second mixer and converted into 2nd Immediate Frequency (IF) 450 kHz. The 2nd IF passes through a ceramic filter F4 to filter out the residue unwanted signal at pin 5 of IC7 output this final IF signal and The demodulated AF signal is output at pin 9 of IC7. The demodulated AF signal pass through IC15 then passes through a volume control VR201 through de-emphasis circuit feeding IC10A, IC10B.and finally amplified by Audio amplifier IC11 and heard in the speaker. The squelch control signal also produced by IC7, the rectified noise signal is output by Pin 14 of the IC7. Pass through the network by composition of C170, R44 are sends the digital squelch control signal to the MCU to mute the audio speaker path and to indicate the RX station on LCD, R214, R217 and VR203 form a variable resistor, which correspond to the squelch level.
PLL synthesizer The receiver and transmitter both share the same PLL synthesizer to produce the stability carrier frequency or the 1st local oscillation frequency. The RX VCO is comprised of Q301 and VD1, when Rx 5Vvoltage is supply, the VCO will produce local oscillator frequency which at 21.4MHz below. The TX VCO is comprised of Q303 and VD2 when TX 5Vvoltage is supply it oscillates at the fundamental frequency, with direct frequency-modulation using varactor diode VD6 The high stability frequency is determined by crystal X2 (20.950 MHz) and as the PLL reference oscillator. This signal is frequency-divided by IC16 and a 12.5 kHz signal is produced. When the VCO frequency applied to IC16 pin1 and frequency-divided by IC2 produces a frequency comparable to 12.5 kHz, PLL IC pin 3 will output a PD voltage to control the VCO. When these two frequencies are matched, a constant control voltage is output from PLL to lock VCO in desired frequency. Otherwise the PLL IC pin 5 will also output a unlock indication to MCU to indicate that the PLL is in the frequency unlock state.
Memory Backup IC201 is an EEPROM AT24C64, which acts as a memory backup for the working channel code and the system parameters. Every time when the unit is switched on, the MCU will reset the system, clear the RAM, and recall the memory from the EEPROM to refresh the RAM in MCU IC203. Page: 3 of 8
Low Voltage Detection The battery voltage divided byR250 and R251 through R254 is input to IC203 for voltage level detection. If the battery voltage drops below 10 V, LCD will indicate the battery is in low state.
Large LCD All message through series way from MCU to display driver IC401 and will be displayed through a 38×26mm 4×12 characters dot matrix LCD display.
Local/distance circuit Local/distance circuits are composed of D15, and R35 WHen local SW is on high level, receiver sensitive is high otherwise is low
2nd Receiver 2nd receiver circuit is a dedicated channel 70 watchkeeping receiver for DSC decoder. RF input is from C101 of main PCB, the received RF signal then passes through a high RF transformer L505 and is amplified by RF amplifier Q501, L506, L507, L508, C15, C18, C20 form the band pass filter. Then pass…

Text truncated - open the document above for the full version.

TEKCOM INDUSTRIES LTD. Pa g e: 1 Multi-Level Ex p lo. W / L oc R p t ( IDT ) As -of-date: 0 2009-12-2 5 17:30 ---------------------- --------------------- --------------------------------------------------------------- ----------- ------ ---- ----- Item Number: TM366US-- 18 TM366US / PLN BOM / VER.1 Q uantit y : 1 UOM: EA TM366US FOR TECHSONIC Batch-size: 1 T yp e: F Effective: 01 / 01 / 1951 Ex p iration: 12 / 31 / 29 99 Revision ID: Drawin g ID: -------------------- --------------------- --------------------------------------------------------------- ----------- ------ ---- -- --- Level Number Com p onent Descri p tion Per Batch UOM #LOC Location Codes1.................... 748P1000000-0035 TM366US / DUMMY U-M / REV.0 ( F1 ) 1 EACH 1.................... 748P1030300-0009 TM366US / U-M / REV.0 F1 TECHSONIC HUMMINBIRD / USA / BLK 1 EACH 2.................. 748P1030303-0007 TM366US / MAIN UNIT ASSY / HUMMINBIRD / USA / BLK 1 EACH 3................. 366P20USR10-6706 GPS FILTER BOARD DIP ASS'Y 1 EACH4................ 071-526063-90002 SCREW M2.6*6.0mm PM NI 2 EACH4................ 366P30USR10-6607 GPS FILTER BOARD SMT ASS'Y 1 EACH5............... 003-510163-10001 CHIP CAP 1608 100PF 50V + / -5% NPO 4 EACH 4 C909 C910 C911 C912 5............... 003-510266-1M085 CHIP CAP 1608 0.001UF 50V + / -1 0% X7R 4 EACH 4 C903 C904 C905 C906 5............... 006-A22502-60008 CHIP FERRITE INDUCTOR 1608 2.2 UH + / -10% ( SDFL1608 Q 2R2KB ) 4 EACH 4 L903 L904 L905 L906 5............... 010-22BAV7-00002 SMT DIODE BAV70 ( EDS2838&SDS2838&1SS184 ) SOT-23 1 EACH 1 D901 5............... 021-515163-10003 CHIP RES 1608 150 OHM 1 / 16W + / -5% 1 EACH 1 R903 5............... 021-547173-10004 CHIP RES 1608 470 OHM 1 / 10W + / -5% 4 EACH 4 R901 R902 R906 R907 5............... 023-239014-T0008 SMT TRANSISTOR KTC9014S ( SSC162 3G&2SC2712 ) 1 EACH 1 Q 901 5............... 026-GSD188-10008 CHIP VARISTOR 1608 18V 80PF ( SD V1608A180C800NPT ) . 2 EACH 2 R904 R905 5............... 116-2RM366-USF22 PCB DS FR4- L25---W21--T1.6 GPS FILTER RM366 REV.2 1 EACH3................. 369P20EUR11-1102 2ND RECEIVER DIP BOARD 1 EACH4................ 003-121071-62214 CAP-ELE 100-U / M 16-V D6H5 -40+105 *** 1 EACH 1 C532 4................ 003-123361-62005 CAP-ELE 33--U / M 16-V D5H8---- 1 EACH 1 C531 4................ 007-217925-80002 CRYSTAL FILTER 17.9MHz UM- ( PAIR ) + / -7.5KHz -30-+70C 2 EACH 2 F501 F502 4................ 007-318322-80001 CRYSTAL 18.355MHz UM-1 + / -20PPM 20PF -20~+60C 1 EACH 1 X502 4................ 007-36932C-80007 CRYSTAL 69.3125MHz UM-1 + / -5PPM -20~+60C 1 EACH 1 X501 4................ 025-505539-40001 PVC WIRE 28# WHITE 55mm ( 3+3 ) 1 EACH 1 J 502 4................ 201-44551E-H J 504 CERAMIC FILTER 455KHz ( 12A )Q A45 5-FW ( CF455F ) 1 EACH 1 F503 4................ 204-4524DA-00003 5Pins CONNECTOR ASSEMBLY 28# 100mm Pitch:1.5mm ( UL1571 ) 1 EACH 1 J 501 4................ 306-000822-00003 IFT----- COIL 864W 5 J F 1 EACH 1 L505 4................ 306-000823-00000 IFT----- COIL 865MW 5 J F 4 EACH 4 L503 L504 L506 L507 4................ 306-200022-B0003 IFT A002 1 EACH 1 L513 4................ 306-2A1352- J 0003 IFT A135 TYPE:5 J F 010984360 1 EACH continued on p a g e: 2 TEKCOM INDUSTRIES LTD . Pa g e: 2 Multi-Level Ex p lo. W / L oc R p t ( IDT ) As -of-date: 0 2009-12-2 5 17:30 ---------------------- --------------------- --------------------------------------------------------------- ----------- ------ ---- ----- Item Number: TM366US-- 18 TM366US / PLN BOM / VER.1 Q uantit y : 1 UOM: EA TM366US FOR TECHSONIC Batch-size: 1 T yp e: F Effective: 01 / 01 / 1951 Ex p iration: 12 / 31 / 29 99 Revision ID: Drawin g ID: -------------------- --------------------- --------------------------------------------------------------- ----------- ------ ---- -- --- Level Number Com p onent Descri p tion Per Batch UOM #LOC Location Codes 1 L509 4................ 306-2A1362- J 0001 IFT A136 TYPE:5 J F 010984361 1 EACH 1 L510 4................ 306-2A1372- J 0009 IFT A137 5BL-N7116 1 EACH 1 L508 4................ 369P30EUR11-1209 2ND RECEIVER SMT PC BOARD 1 EACH5............... 003-500560-10001 CHIP CAP 1608 0.5PF 50V + / -0.2 5PF NPO 2 EACH 2 C513 C533 5............... 003-503060-10002 CHIP CAP 1608 3PF 50V + / -0.25P F NPO 1 EACH 1 C506 5............... 003-504060-10004 CHIP CAP 1608 4PF 50V + / -0.25P F NPO 1 EACH 1 C518 5............... 003-505060-10006 CHIP CAP 1608 5PF 50V + / -0.25P F NPO 1 EACH 1 C534 5............... 003-507060-10000 CHIP CAP 1608 7PF 50V + / -0.25P F NPO 2 EACH 2 C512 C515 5............... 003-508060-10002 CHIP CAP 1608 8PF 50V + / -0.25P F NPO 2 EACH 2 C505 C545 5............... 003-509060-10004 CHIP CAP 1608 9PF 50V + / -0.25P F NPO 1 EACH 1 C514 5............... 003-510060-10009 CHIP CAP 1608 10PF 50V + / -0.25 PF NPO 2 EACH 2 C517 C508 5............... 003-510266-1M085 CHIP CAP 1608 0.001UF 50V + / -1 0% X7R 6 EACH 6 C520 C523 C535 C540 C 546 C542 5............... 003-510367-10001 CAP-CSM 0.01U / K 50-V 1608-X7R 3 EACH 3 C511 C524 C529 5............... 003-510468-10009 CHIP CAP 1608 0.1UF 50V +80-20 % Y5V 10 EACH 10 C504 C507 C525 C526 C 527 C530 C536 C537 C539 C544 5............... 003-512063-10004 CHIP CAP 1608 12PF 50V + / -5% NPO 1 EACH 1 C501 5............... 003-515063-10000 CHIP CAP 1608 15PF 50V + / -5% NPO 1 EACH 1 C509 5............... 003-520063-10003 CHIP CAP 1608 20PF 50V + / -5% NPO 1 EACH 1 C510 5............... 003-530063-10006 CHIP CAP 1608 30PF 50V + / -5% NPO 1 EACH 1 C521 5............... 003-533063-10002 CHIP CAP 1608 33PF 50V + / -5% N PO 1 EACH 1 C522 5............... 003-533265-10008 CHIP CAP 1608 0.0033UF 50V + / - 10% X7R 1 EACH 1 C543 5............... 003-539063-10004 CHIP CAP 1608 39PF 50V + / -5% N PO 1 EACH 1 C528 5............... 003-547063-10003 CHIP CAP 1608 47PF 50V + / -5% NPO 3 EACH 3 C502 C503 C519 5............... 003-568166-10003 CHIP CAP 1608 680PF 50V + / -10% X7R 1 EACH 1 C541 5............... 005-SL5018-10008 SMT IC SL5018 1 EACHcontinued on p a g e: 3 TEKCOM INDUSTR…

Text truncated - open the document above for the full version.

Page: 5 of 8 ALIGNMENT PROCDDURES This transceiver is completely aligned at the factory and does not require any adjustments for installation. However it is considered as good practice to verify that none of the adjustments are changed. Do not adjust any circuitry in this radiotelephone unless you understand the circuit operation and have experience in adjusting radiotelephone. Tampering with the radiotelephone may upset the alignment and lower its performance. Test Equipment Required:
Regulated DC power supply, 10 -16V adjustable, 7A
Audio signal generator, 10Hz~3kHz
Digital multimeter
Deviation meter {linear detector}
Frequency counter, 0~500MHz high impedance
Oscilloscope
RF power meter, ≥30W
High frequency standard generator, >500MHz
Tracking generator, >500MHz
Distortion analyzer
Audio level meter
T-coupler
Sinad meter
Alignment drivers, etc.
Or a radio communication test set 2955 (MARCONI INSTRUMENTS) Page: 6 of 8 ADJUSTMENT PROCEDURE Step Item Adjustment Procedure 1, PLL L302, L307 RX PD voltage=1.6V TX PD voltage =2V, at CH16 2 TX Frequency VC2 Adjust VC2 to obtain demanded TX frequency. ±200Hz 3 TX Power Hi VR5 Adjust VR5 to obtain demanded TX power 23±2W. 4 TX Power Low VR6 Adjust VR6 to obtain demanded TX power 0.8±0.1W 5 TX Deviation VR3 1. Inject an audio frequency (AF) –20dBm. 2. Adjust VR3 to obtain maximum TX deviation ≤5kHz. 3. Check MIC modulation sensitivity, which should be 2.5~10 mV 6 RX Sensitivity L10, L11, L12, L13, L14, L19, T1, T2, T3 1. Check RX sensitivity if it is normal. 2. Adjust L10, L11, L12, and L13 to obtain the Best frequency response. 3. Adjust T1, T2 to obtain the Best the frequency response. 4. Adjust L14, L19 to obtain the Best sensitivity. 5. Adjust T3 to obtain Best the SINAD and Distortion. When at antenna terminal input 1mV RF signal and modulated with normal test modulation. 6. Repeat step 1 to 5.at CH28 and CH3. 7 DSC test Check Modulation index for DSC. Modulation rate for DSC. Frequency error (demodulated DSC signal) Page: 7 of 8 TROUBLESHOOTING Before troubleshooting, prepare your unit as follows:
Connect the power supply.
Turn volume control fully clockwise so that it is all the way up. Item Symptom Cause/Remedy 1 Unit is not able to turn on.
Check the power voltage and power switch.
Check to see if regulator IC8 defective. 2 No sound with AF signal applied to pin 6 of IC6.
Check to see if IC1 and /or associated components is Defective.
Check to see if speaker on control circuit VR201, IC10A, IC10B, is defective. 3 Squelch circuit inoperative.
Check to see if VR203 is defective.
Check to see if IC4 is defective. 4 No receiver (RX)
Check to see if IC11 is defective.
Check to see if IC7 audio output at pin 9 is defective.
Check Q12.
Check 21.4MHz output of first mixer Q10.
Check 21.4MHz output of crystal filters F1, F2.
Check 21.4MHz output of first IF amplifier Q11.
Check 450kHz signal from ceramic filter F3.
Check to see if VCO circuit is defective.
Check to see MCU is defective. 5 Low receiver sensitivity
Check to see if antenna is bad connecting.
Check to see if the output from Q9, Q10, Q11 and F1，F2 is defective. 6 No transmission (TX)
Check to see if the PTT switch is defective.
Check to see if Q13 is defective.
Check to see if power transmit circuit Q1, Q2, Q3 are defective.
Check to see if VCO circuit is defective.
Check PLL control voltage if it reads 2±0.2V at 156.05MHz. 7 Poor or no modulation
Check to see if the microphone or MIC jack is defective.
Check to see if IC205 and/or its associated components are defective. 8 Deviation of transmit frequency
Check the frequency of 20.950MHz crystal X2.
Adjust VC2 and verify the transmit frequency. Page: 8 of 8 DISASSEMBLY INSTRUCTIONS To disassembly follow the procedures below: A． Unscrew the 6 Screws of hand MIC. B． Unscrew 6 screws for the bottom cabinet of the main UNIT.

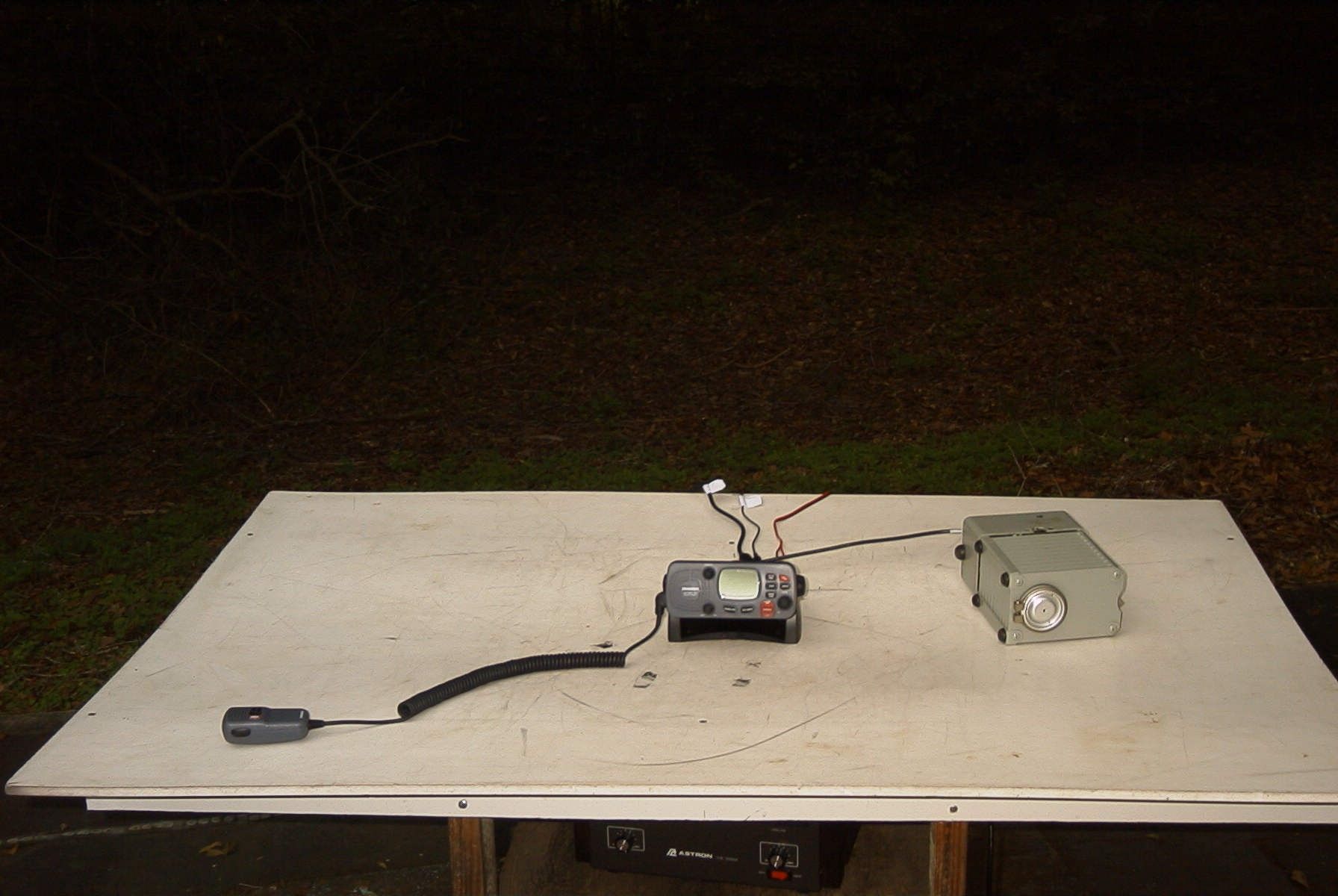

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 Test Report Product Name: MARINE TRANSCEIVER FCC ID: KLLTM-366 Applicant: TEKCOM INDUSTRIES LTD. BLOCK C, 9/F., KAISER ESTATE, PHASE 1 41 MAN YUE STREET HUNGHOM, KOWLOON FO TAN, N.T. HONG KONG Date Receipt: 9/29/2005 Date Tested: 10/16/05 REPORT #: T\TEKCOM_KLL\2033AUT5\2033AUT5TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 TABLE OF CONTENTS LIST APPLICANT: TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 TEST REPORT: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION CONTINUED PAGE 3............RF POWER OUTPUT PAGE 4............TECHNICAL DATA PAGE 5............VOICE MODULATION CHARACTERISITICS AUDIO FREQUENCY RESPONSE PAGE 6............AUDIO LOW PASS FILTER PAGE 7............MODULATION LIMITING PAGE 8............OCCUPIED BANDWIDTH PAGE 9............OCCUPIED BANDWIDTH PLOT PAGE 10............SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 11...........METHOD OF MEASURING CONDUCTED SPURIOUS EMISS PAGE 12-13........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 14...........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 15...........FREQUENCY STABILITY PAGE 16...........MPE CALCULATION PAGE 17...........LIST OF TEST EQUIPMENT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TUNING PROCEDURE TEST SET UP PHOTOGRAPHS REPORT #: T\TEKCOM_KLL\2033AUT5\2033AUT5TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 GENERAL_INFORMATION 2.1033(c) TEKCOM INDUSTRIES LTD. will sell the FCC ID: KLLTM-366 VHF Marine transmitter in quantity, for use under FCC RULES PART 80. 2.1033(c) TECHNICAL_DESCRIPTION (4) Type of Emission: 16K0G3E/16K0F3E Bn = 2M + 2DK M = 3000 D = 4.8KHz (Peak Deviation) K = 1 Bn = 2(3.0K) + 2(4.8K)(1) = 6.0K + 10.0 = 16.0K 80.205 (a) ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. (5) Type of Emission: 16K0G3E/16K0F3E Bn = 2M + 2DK M = 3000 D = 4.8KHz (Peak Deviation) K = 1 Bn = 2(3.0K) + 2(4.8K)(1) = 6.0K + 10.0 = 16.0K 80.205 (a) ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. 2.1033(c)(6) Frequency Range: 156.025 – 157.425 MHz 2.1033(c)(7) Power Range and Controls: There is a user Power switch for High/Low Power. Maximum Output Power Rating: High= 25 Watts, Low= 1 Watt into a 50 ohm resistive load. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY High Low Vce = 13.6 Volts Vce = 13.6 VDC Ice = 4.05 A. Ice = 0.88 Pin = 55.08 Watts Pin = 11.97 Watts REPORT #: T\TEKCOM_KLL\2033AUT5\2033AUT5TestReport.doc Page 1 of 17 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 Function of each electron tube or semiconductor device or other active circuit device is included in the parts list exhibit. 2.1033(c)(9) Complete Circuit Diagrams: The circuit diagrams and block diagrams are included. 2.1033(c)(10) Instruction book. The instruction manual is included. 2.1033(c)(11) Tune-up procedure. The tune-up procedure is included. Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description 2.1033(c)(11) Digital modulation. This unit does NOT use digital modulation. The data required by 2.1046 through 2.1055 is submitted below. REPORT #: T\TEKCOM_KLL\2033AUT5\2033AUT5TestReport.doc Page 2 of 17 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 2.1046(a) RF_power_output. 80.215 (e)(1) RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: HIGH: 25 W CONDUCTED LOW: 1 W CONDUCTED METHOD OF MEASURING RF POWER OUTPUT Transmitter 50 ohm under test Resistive Wattmeter Power Supply REPORT #: T\TEKCOM_KLL\2033AUT5\2033AUT5TestReport.doc Page 3 of 17 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-366 TECHNICAL DATA: 80.203 (b) External Controls: The transmitter is capable of changing frequency between 156.05 – 157.425 MHz by external control. The available channels are shown in the User Manual description Channel List. These channels are preprogrammed by the manufacturer and change of frequency is inaccessible to the station operator. 80.203 (c) Five minutes continuous transmission test. The antenna was connected to a dummy load and the radio was locked in a transmit PTT mode. An external timer digital clock was used to observe the duration of the un-modulated transmission. The transmitter turned off and the radio went to receive mode at 4 minutes, 58 seconds as displayed by the external digital clock. 80.203 (n) This radio complies with the requirement for DSC capability in the 156 – 162 MHz band and in accordance with 80.225. 80.873; 80.956 Transmitter G3E emission capability: The transmitter was connected to 50 ohm resistive wattmeter and the frequency was set to 156.300 and to 156.800 MHz. With normal modulation, the output power displayed was 25 Watts at the high power setting and 1 watt at low power setting, consistent with previous me…
