KLLTM-886Handheld Marine Transceiver

TEKCOM Industries Limited Page 1 of 7 OWNER’S MANUAL TM886-USA Jun 23,2005 INTRODUCTION Your marine transceiver TM-886 represents the state-of-the-art in high-tech engineering. Designed for international operation. This allows you to transmit and receive on all international channels in the VHF marine band, as assigned by the international Union (ITU). This unit is a quality piece of electronic equipment, skillfully constructed with the finest components. It is approved with commercial-grade standards to give you clear, reliable communication. Your transceiver is designed for many years of reliable, trouble-free performance. It is under control of a microprocessor resulting in enhanced features and performance. The microprocessor controls not only the marine band tuning but also dual watch, memory channels, and a host of other useful features. Your transceiver has the following features: Channel 16 Switch ---- provides quick access to channel 16, the universal marine frequently used channel. PLL (Phase Lock Loop) Controlled Circuitry ---- Provides accurate and stable channel selection. Squelch Adjustment ---- help eliminate noise between transmissions. Key Lock ---- lets you lock the keypad in order to prevent the controls from accidental pressing. High/Low Power Selection ---- lets you save power by selecting a suitable transmitting power for long or short distances. Battery Level Indicator ---- shows the battery pack’s condition. Supplied Battery Charge Stand ---- lets you conveniently recharge your transceiver’s battery pack. Backlit LCD Display ---- allows you to operate the transceiver in dark environment. Memory Channels ---- lets you store channels as memory channels. Dual/Scan Button ---- lets you to select the reception of a programmed channel or scan all the channels for existing channels. We recommend you record your transceiver’s serial number here. This number is on the transceiver’s back panel. Serial Number_______________________ SAFETY INFORMATION Your hand-held marine VHF radio contains a low power transmitter. When the Push-To-Talk (PTT) button is pushed it sends out radio frequency (RF) signals. TEKCOM Industries Limited Page 2 of 7 USING THE RADIO A. DISPLAY Your radio comes with a multifunctional display. B. FUNCTION AND LOCATION OF THE CONTROLS TEKCOM Industries Limited Page 3 of 7 C. BASIC OPERATION Before operating your transceiver, you should make the following preparations. You should install the battery pack on to the main unit and fully charge your 7.2/12VDC Ni-MH battery pack or charge it separately before its being attached onto the radio, then you can use it after making sure to attach the antenna on your radio. Turning On/Off Your Transceiver Rotate VOLUME knob to turn the transceiver on or off with an indicating voice of click. And adjust the volume to a comfortable level. Adjusting Squelch Rotate SQ knob to adjust squelch threshold level. Squelch is used to eliminate static and background noise and allows for silent operation of the TM-886 until a transmission is received. If the squelch is too high, only the strongest transmissions can be heard, and when too low, intermittent static and noise are heard. Selecting High/Low Power or Lock keypad Press and release this key to toggle the transmit power between high and low. When the unit is operating at low power, “Lo” appears on LCD and “Hi” appears on LCD when operating at high power. You also can lock your radio keypad to avoid accidental pressing of keys by activating the key lock. Pressing and holding H/L/LOCK button until key lock icon will appear on LCD if it is enabled. The function is effective to all other knobs/keys except PTT and H/L/LOCK buttons. Selecting a Channel Press the ▲/▼ (UP/DOWN) button to scroll through the available channels. Note: Not all channel numbers are available in INT bands. Transmitting and Receiving Press and hold the Push-To-Talk (PTT) key to transmit on the selected channel, then release to receive. The TX indicator appears while transmitting. Selecting a Weather Channel (If Available) The US National Oceanic and Atmospheric Administration (NOAA) broadcasts continuous weather reports and severe weather alerts, as needed. If so equipped, your TM886 is programmed to receive10 NOAA weather channels and sound an alarm if a weather alert is received. Press and release the WX/BAND button to enter Weather mode. The WX indicator appears. Press Channel ▲/▼ (UP/DOWN) button to change the WX channel 1 through Channel 10. Press and release WX/BAND button again to return to normal operation. Note: 1. Weather broadcasts can only be heard in the North America. 2. The TM886 can receive these broadcasts only if the unit has been upgraded by the distributor to use WX Channels. 3. During Weather mode, the PTT, SCAN and H/L/LOCK keys are disabled and an error beep sounds if pressed. TEKCOM Industries Limited Page 4 of 7 SCANNING FEATURES The TM886 is equipped with three types of scan options: All Scan, Saved(Memory) Scan and Priority Scan. If there are no channels in memory, the default is All Scan. This function automatically searches for transmissions on the channel set being scanned. If a TX signal is received, the scan stops on the receiving channel as long as it is present and the SCAN indicator flashes. If the signal is lost for five seconds, the radio resumes scanning. During the Scan Modes: Press the Channel ▲/▼ (UP/DOWN) button to change the scan direction. UP increments the channel while DOWN decrements it. Press and release theSCAN button to terminate the SCAN mode. DW/TRI button do not function and sound an error beep if pressed. Note: Scan modes are disabled when the ATIS operation is active. All Scan Press and release the SCAN button when no channels are stored in memory to activate the All Scan function. The SCAN indicator appears on the LCD during All Scan. In All Scan mode, all channels in the channel set are scanned in sequence, assuming no channels have been stored in memo…

Text truncated - open the document above for the full version.

TEKCOM Industries Limited Page 1 of 7 OWNER’S MANUAL TM886-USA Oct. 25, 2005 INTRODUCTION Your marine transceiver TM-886 represents the state-of-the-art in high-tech engineering. Designed for international operation. This allows you to transmit and receive on all international channels in the VHF marine band, as assigned by the international Union (ITU). This unit is a quality piece of electronic equipment, skillfully constructed with the finest components. It is approved with commercial-grade standards to give you clear, reliable communication. Your transceiver is designed for many years of reliable, trouble-free performance. It is under control of a microprocessor resulting in enhanced features and performance. The microprocessor controls not only the marine band tuning but also dual watch, memory channels, and a host of other useful features. Your transceiver has the following features: Channel 16 Switch ---- provides quick access to channel 16, the universal marine frequently used channel. PLL (Phase Lock Loop) Controlled Circuitry ---- Provides accurate and stable channel selection. Squelch Adjustment ---- help eliminate noise between transmissions. Key Lock ---- lets you lock the keypad in order to prevent the controls from accidental pressing. High/Low Power Selection ---- lets you save power by selecting a suitable transmitting power for long or short distances. Battery Level Indicator ---- shows the battery pack’s condition. Supplied Battery Charge Stand ---- lets you conveniently recharge your transceiver’s battery pack. Backlit LCD Display ---- allows you to operate the transceiver in dark environment. Memory Channels ---- lets you store channels as memory channels. Dual/Scan Button ---- lets you to select the reception of a programmed channel or scan all the channels for existing channels. We recommend you record your transceiver’s serial number here. This number is on the transceiver’s back panel. Serial Number_______________________ SAFETY INFORMATION Your hand-held marine VHF radio contains a low power transmitter. When the Push-To-Talk (PTT) button is pushed it sends out radio frequency (RF) signals. USING THE RADIO TEKCOM Industries Limited Page 2 of 7 A. DISPLAY Your radio comes with a multifunctional display. B. FUNCTION AND LOCATION OF THE CONTROLS C. BASIC OPERATION Before operating your transceiver, you should make the following preparations. You should install TEKCOM Industries Limited Page 3 of 7 the battery pack on to the main unit and fully charge your 7.2/12VDC Ni-MH battery pack or charge it separately before its being attached onto the radio, then you can use it after making sure to attach the antenna on your radio. Turning On/Off Your Transceiver Rotate VOLUME knob to turn the transceiver on or off with an indicating voice of click. And adjust the volume to a comfortable level. Adjusting Squelch Rotate SQ knob to adjust squelch threshold level. Squelch is used to eliminate static and background noise and allows for silent operation of the TM-886 until a transmission is received. If the squelch is too high, only the strongest transmissions can be heard, and when too low, intermittent static and noise are heard. Selecting High/Low Power or Lock keypad Press and release this key to toggle the transmit power between high and low. When the unit is operating at low power, “Lo” appears on LCD and “Hi” appears on LCD when operating at high power. You also can lock your radio keypad to avoid accidental pressing of keys by activating the key lock. Pressing and holding H/L/LOCK button until key lock icon will appear on LCD if it is enabled. The function is effective to all other knobs/keys except PTT and H/L/LOCK buttons. Selecting a Channel Press the ▲/▼ (UP/DOWN) button to scroll through the available channels. Note: Not all channel numbers are available in INT bands. Transmitting and Receiving Press and hold the Push-To-Talk (PTT) key to transmit on the selected channel, then release to receive. The TX indicator appears while transmitting. Selecting a Weather Channel (If Available) The US National Oceanic and Atmospheric Administration (NOAA) broadcasts continuous weather reports and severe weather alerts, as needed. If so equipped, your TM886 is programmed to receive10 NOAA weather channels and sound an alarm if a weather alert is received. Press and release the WX/BAND button to enter Weather mode. The WX indicator appears. Press Channel ▲/▼ (UP/DOWN) button to change the WX channel 1 through Channel 10. Press and release WX/BAND button again to return to normal operation. Note: 1. Weather broadcasts can only be heard in the North America. 2. The TM886 can receive these broadcasts only if the unit has been upgraded by the distributor to use WX Channels. 3. During Weather mode, the PTT, SCAN and H/L/LOCK keys are disabled and an error beep sounds if pressed. 4. To ensure compliance with FCC RF exposure guidelines, hold device no closer than 2.5 cm from mouth when transmitting. SCANNING FEATURES The TM886 is equipped with three types of scan options: All Scan, Saved(Memory) Scan and Priority Scan. If there are no channels in memory, the default is All Scan. This function TEKCOM Industries Limited Page 4 of 7 automatically searches for transmissions on the channel set being scanned. If a TX signal is received, the scan stops on the receiving channel as long as it is present and the SCAN indicator flashes. If the signal is lost for five seconds, the radio resumes scanning. During the Scan Modes: Press the Channel ▲/▼ (UP/DOWN) button to change the scan direction. UP increments the channel while DOWN decrements it. Press and release theSCAN button to terminate the SCAN mode. DW/TRI button do not function and sound an error beep if pressed. Note: Scan modes are disabled when the ATIS operation is active. All Scan Press and release the SCAN button when no channels are stored in memory to activate the All Scan function. The SCAN indicator appears on the LCD during All Sca…

Text truncated - open the document above for the full version.

Applicant: Tekcom Industries Limited FCC ID: KLLTM-886 Freq. Range: 156 - 157.425 MHz Model(s): Tekcom TM-886, Techsonic VHF 5S DUT: Portable VHF PTT Marine Radio Transceiver 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 1 of 31 Test Report Serial No.: 072505KLL-T658-S80V Test Date: July 26, 2005 Date of Report Issue: July 28, 2005 Test Report Issue No.: Issue 1 Rev0 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information TEKCOM INDUSTRIES LIMITED Block C, 9/F Kaiser Estate, Phase 1, 41 Man Yue Street, HungHom, Kowloon, Hong Kong FCC IDENTIFIER: KLLTM-886 Trade Name(s) / Model No(s).: Tekcom TM-886 Techsonic VHF 5S Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Part 80 VHF Hand Held Transmitter (GMDSS) - GHH Device Description: Portable VHF PTT Marine Radio Transceiver Modulation Type: FM (VHF) Tx Frequency Range: 156 - 157.425 MHz Max. RF Output Power Measured: 37.41 dBm (5.5 Watts) Conducted (156.8 MHz) Antenna Type(s) Tested: Detachable Whip (P/N: 05-005601-00009) Battery Type(s) Tested: NiMH (7.2 V, 1300 mAh) Body-Worn Accessories Tested: n/a (radio does not have provision for body-worn transmit operation) Audio Accessories Tested: n/a (radio does not have provision for audio accessory) Max. SAR Level(s) Measured: Face-held: 0.241 W/kg (50% Duty Cycle) Performed By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Tekcom Industries Limited FCC ID: KLLTM-886 Freq. Range: 156 - 157.425 MHz Model(s): Tekcom TM-886, Techsonic VHF 5S DUT: Portable VHF PTT Marine Radio Transceiver 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 2 of 31 Test Report Serial No.: 072505KLL-T658-S80V Test Date: July 26, 2005 Date of Report Issue: July 28, 2005 Test Report Issue No.: Issue 1 Rev0 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 3 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT) _________________________________________ 3 3.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 4.0 MEASUREMENT SUMMARY _________________________________________________________ 5 5.0 DETAILS OF SAR EVALUATION _____________________________________________________ 6 6.0 EVALUATION PROCEDURES ________________________________________________________ 6 7.0 SYSTEM PERFORMANCE CHECK ____________________________________________________ 7 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________ 8 9.0 SAR SAFETY LIMITS _______________________________________________________________ 8 10.0 ROBOT SYSTEM SPECIFICATIONS__________________________________________________ 9 11.0 PROBE SPECIFICATION (ET3DV6) _________________________________________________ 10 12.0 PLANAR PHANTOM______________________________________________________________ 10 13.0 VALIDATION PLANAR PHANTOM __________________________________________________ 10 14.0 DEVICE HOLDER ________________________________________________________________ 10 15.0 TEST EQUIPMENT LIST __________________________________________________________ 11 16.0 MEASUREMENT UNCERTAINTIES _________________________________________________ 12 17.0 REFERENCES __________________________________________________________________ 14 APPENDIX A - SAR MEASUREMENT DATA _______________________________________________ 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA ____________________________________ 18 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS___________________________________ 24 APPENDIX E - SYSTEM VALIDATION ____________________________________________________ 30 APPENDIX F - PROBE CALIBRATION____________________________________________________ 31 Applicant: Tekcom Industries Limited FCC ID: KLLTM-886 Freq. Range: 156 - 157.425 MHz Model(s): Tekcom TM-886, Techsonic VHF 5S DUT: Portable VHF PTT Marine Radio Transceiver 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the written permission of Celltech Labs Inc. 3 of 31 Test Report Serial No.: 072505KLL-T658-S80V Test Date: July 26, 2005 Date of Report Issue: July 28, 2005 Test Report Issue No.: Issue 1 Rev0 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 1.0 INTRODUCTION This measurement report demonst…

Text truncated - open the document above for the full version.

12345678 A B C D 87654321 D C B A 16/9 H/L LOCK BACK LAMP X1 20.95MHz SPEAKER VOL MIC MEM DOWN UP PTT X2 4.19MHz POWER SW MOD BAT. 7.2V U1:TA75S01 APC MA2J732 D5 DETPOWER U8:A 1SS356 21.4MHz LOB BAT DAN235E D9 2SC4901 Q24:MMB3906 2SC4901 3SK320 2SC4901 R22R21 TX POWER AMP. F1,F2 O1 LOW BAT Q3 BUFFER AMP RX/TX SW 2SC4901 Q2 BUFFER AMP 2SK3078 Q20 TX YOUNGER U3 BA4116 2nd LOCAL MIXER,SQL Q1 IF AMPCRYSTAL BPF Q18 1st MIX Q5 RF AMP D1,D2 ANT SW TX/RX TRANS ANT Q23:MMB3906 TX SW U4 LOCK DATA CLK AUDIO AF POWER AMP AF POWER U2 Q7,Q10,Q11 NJM2070 2SA1298 MMB3904 X 2 MIC AMP U7:C,D LM324(2/4) LM324(1/4) MUTE U5 UPD789407 KEY BOARD DATA BACKUP U10 AT24C16 BACK LAMP-CON U6:XC6204B502 Q14:2SA1298 VCC 5V TM886-USA Block Diageam AUDIO Q19 2SK3476 LCD Q15 MMB3904 BPF R116 C164 C165 LV2105V PLL IC8:A ATIS SAVE F3 450KHz 2nd-if RX VCO Q16 2nd-IF DET H/L C168 R12 CS TX VCO Q17 R128:20K X 4 CPU 5V 2SC4901 Q4 AMP 2SK210 2SK302 D8 MOD AF MUTE Q8 MMB3904 1050Hz&ATIS CHECK R131 10K X 4 O2 O3 IC9 RESET XC61FC4012M RESET Q10:MMB3904 D19: BW56 DW/TRI LM324(1/4) LPF BPF LPF O4 LPF SCAN WX/BAND SAW BPF HVU307 MOD HUV307 D6 HUV307 D7 F.CONT F.CONT F4:HDF160B RSSI SQL SQL AMP SQL RSSI CHG SENSE B+7.2V B+7.2V B+7.2V B+7.2V BEEP B+7.2V AF SW 1050HZ&ATIS 1050Hz&ATIS AF SW MUTE RX SW TX SW RX SW Q21,Q22,Q25 MMB3906 X 3 TX 5V RX 5V RX SW TX SW VCC 5V BEEP H/L LPF SAVE Q25:MMB3906 Q14:MMB3904 VCC 5V TX 5V TX INHIDIT TX INHIDIT Q9:MMB3904 VR4 VR1;VR5 CLONE 156-163MHz SAW BPF 156-163MHz F5:HDF160B ATIS VOL 10K VR6 VR2 Q14:MMB3904 MOD 5V TX INHIBIT SQL-CON U7:C LM324(1/4) HPF Q27:2SC4901 Q28:2SC4901 OSC X3 CBD450C24 Date: Jun 23,2005 Rev.: A

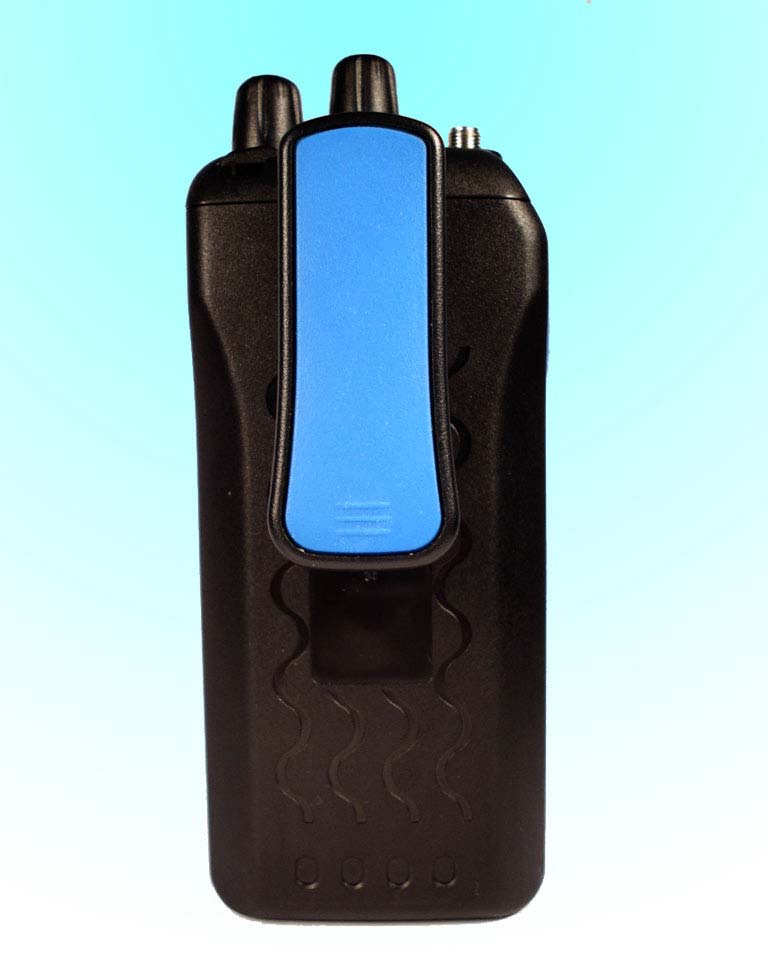

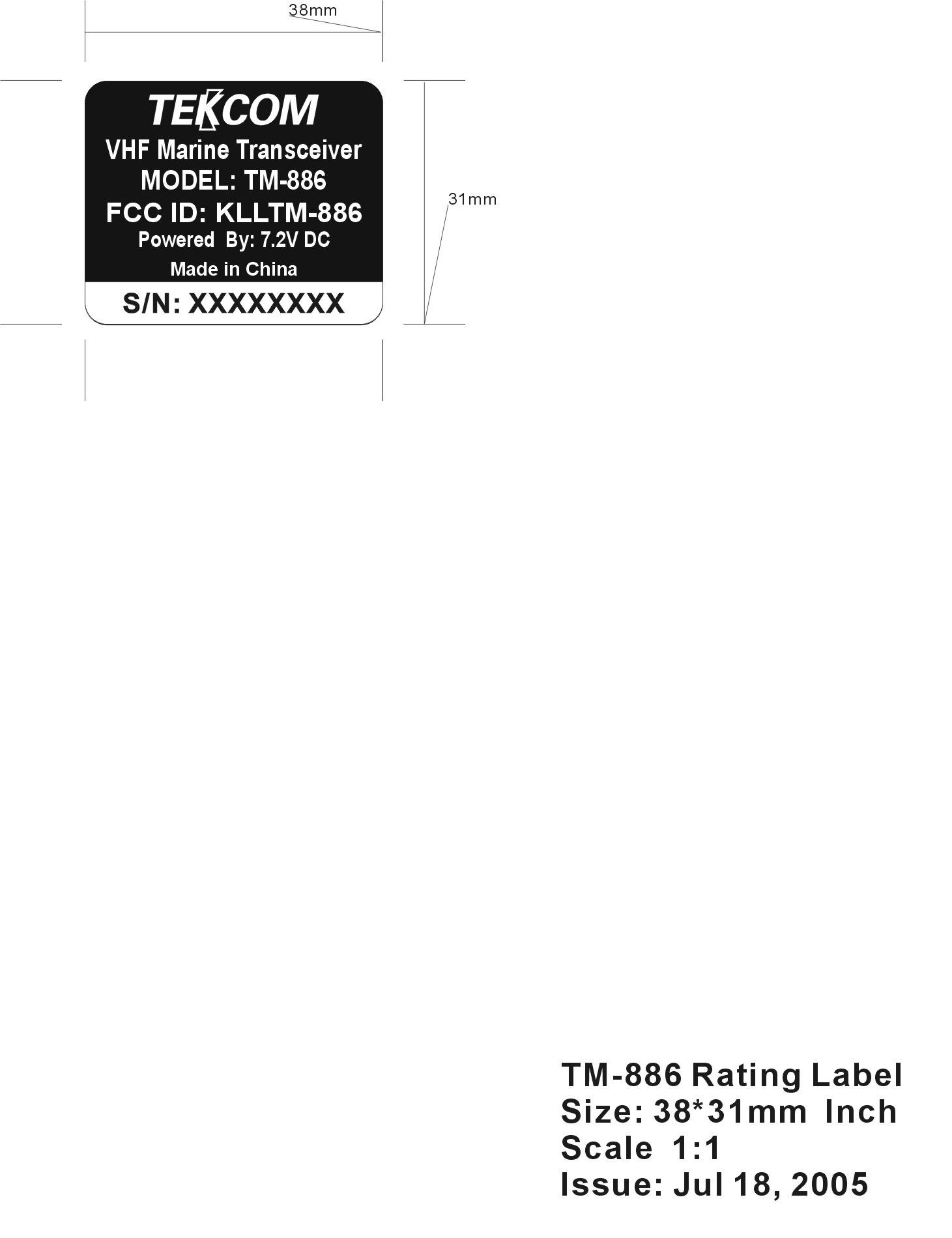

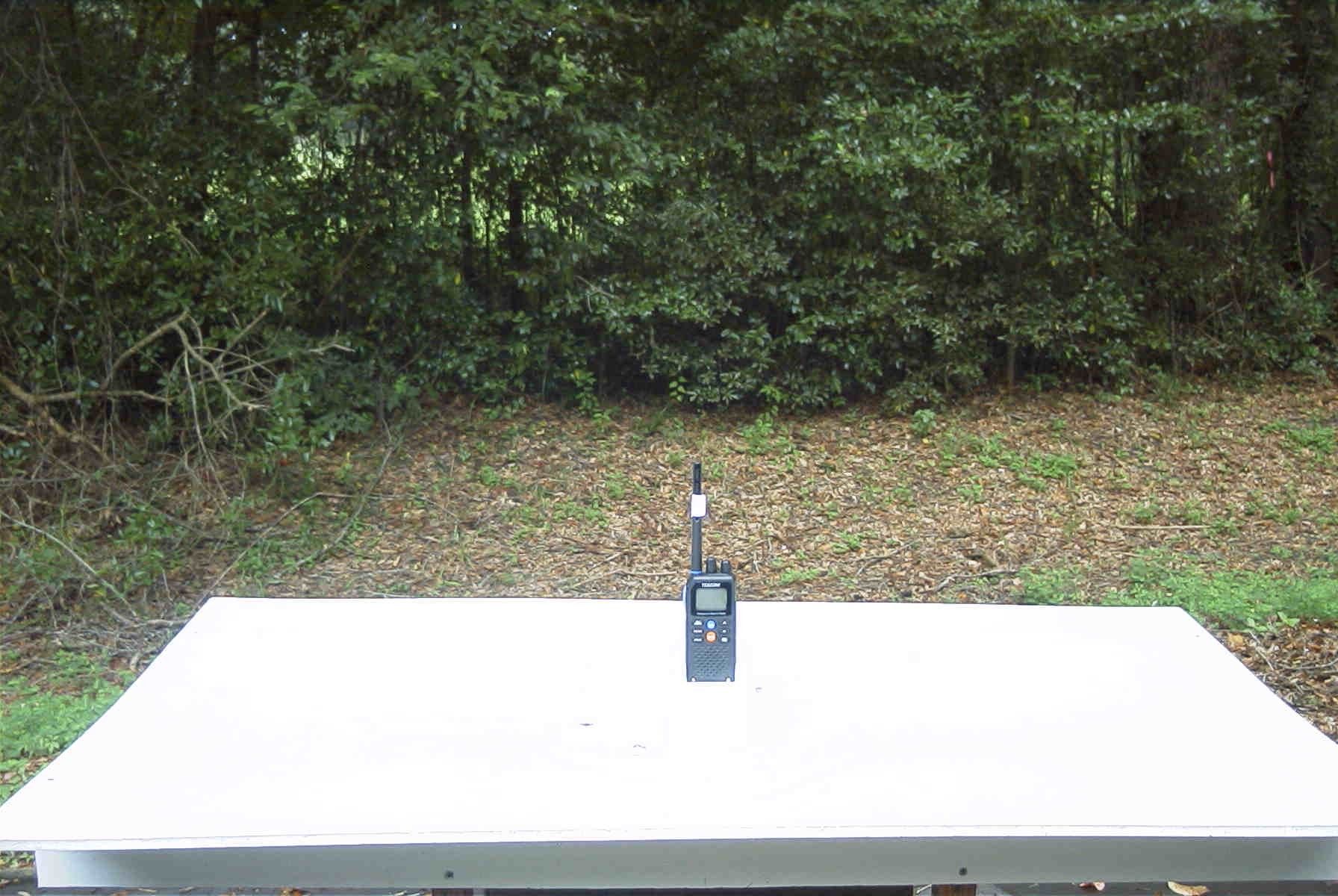

TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-886 EXTERNAL PHOTOS

TEKCOM INDUSTRIES LTD. FCC ID: KLLTM-886 INTERNAL PHOTOS

Page: 1 of 5 THEORY OF OPERATION TM886-USA Jun 23, 2005 This PLL - controlled VHF marine transceiver provides an accurate and stable multi-channel operation. The transceiver consists of 6 main sections:
Transmitter
Receiver
Low voltage detection
Weather alert
Local oscillator PLL (Phase Lock Loop) Circuit
Memory backup
Transmitter The audio is picked up from the internal MIC, the audio signal is then amplified by Audio Amplifier, IC7 LM324 (4/4), IC7 (3/4) and filtered by a low pass filter IC7 (2/4). The audio is adjusted with VR3 to obtain a suitable Audio frequency response, and then modulated with the carrier by VCO, through Varicap (D8). The modulated signal output from the VCO is pre-amplified by Q3, Q4 and Q2. Then it is amplified by Q20, Q19 .The amplified signal then passes through a low -pass filter network which consists of L3, C98, C19, L6, C91 filters out spurious emission, and the antenna switching circuit, D2, D1. The signal is filtered by another low-pass filter circuit which is consists of C16, L2, C5, C11, L1, C4, C1. These low pass filters are necessary to suppress the second and third harmonics. The signal is then fed into the antenna input and radiated out. The signal is also fed into another path consisting of C88, D5, R47 for sampling, and is converted into a direct current voltage for the Automatic power control (APC) circuit IC1, Q6, VR5, VR1,Q9. When the unit is transmitting, the audio signal is added to the TX VCO Varicap D8. The capacitance of D8 is varied following the audio signal and when mixed with the carrier to form the modulated signal.
Receiver The receiver uses a double frequency super-heterodyne circuit. The first Immediate Frequency (IF) is 21.4 MHz and the second is 450 KHz. The RF signal is received by the antenna, and passes through a low-pass filter network C1, L1, C4, C11, L2, C5, C16, L5, C10 to filter out the unwanted signals, the antenna switching circuit D1 switching circuit to receive. The received RF signal then passes through a SAW filter F4. And is amplified by RF amplifier Q5. The amplified RF signal passes through another SAW filter F5. The RF signal then is mixed with the local oscillation frequency by the mixer Q18. A first IF (Immediate Frequency) 21.4 MHz is produced. The IF Page: 2 of 5 is passed through a pair of crystal filter F1 (1/2), F2 (2/2) to further filter other unwanted signals. The first IF then is amplified by Q1 and the IF amplifier IC3 (BA4116). IC3 is a integrated RF amplifier which is consists of a local oscillator, a demodulator, a second mixer, squelch control circuit, and RF amplifier. The 21.4 MHz IF then is mixed here with second mixer and converted into 2nd Immediate Frequency (IF) 450 kHz. The 2nd IF passes through a ceramic filter F3 to filter out the residue unwanted signal at pin 5 of IC4 (BA4116) output this final IF signal and the Audio signal is output at pin 9 of IC3 (BA4116). The audio signal is fed through a volume control VR6 and finally amplified by Audio amplifier IC2 (NJM2070) and heard in the speaker. The squelch control is also controlled by IC3 (BA4116). The second IF passes through IC3 (BA4116) internal squelch control R114, C164, C165 form as a squelch amplifier. The ceramic filter produces a squelch signal (RF noise). Pin 14 of IC3 sends the digital squelch control signal to the CPU mute the audio speaker path. Pin 12 of IC3 output a RSSI level to the CPU.
Low Voltage Detection The battery voltage, divided by R21, R22 is input to IC5 Pin 41 for voltage level sample.
Weather alert The weather signal pass through a band pass filter which is consist of IC8(B,C,D) LM324, and is reshaped by IC8A LM324, then is detected by IC5 UPD789407.
PLL (Phase Lock Loop) Circuit: The receiver and transmitter both share the same PLL (Phase Lock Loop) Circuit to produce the carrier or the receive frequency. The local oscillator consists of a fundamental frequency oscillator X1 20.95MHz and IC4 (KB8825). A phase Lock Loop (PLL) IC4 (KB8825), TX VCO Q17 and RX VCO Q16. The fundamental frequency is frequency divided by IC4 and a 25 kHz signal is produced. When the VCO frequency applied to and frequency divided by IC4 produces a frequency comparable to 25 kHz, PLL will control the VCO. When these two frequencies are matched, a constant control voltage is output from PLL to lock VCO in desired frequency. The PLL also will output a lock indication to CPU to indicate the PLL is in frequency lock state.
Memory Backup IC10 is an EEPROM AT24C16 which acts as a memory backup for the working channel code and the system parameters. Every time when the unit is switched on, the CPU will reset the system, clear the RAM, and recall in the memory from the EEPROM to refresh the RAM in MCU . Page: 3 of 5 ALIGNMENT AND ADJUSTMENT This transceiver is completely aligned at the factory and does not require any adjustments for installation. However it is considered as good practice to verify that none of the adjustments have changed. The test equipment listed below are used for the test setup shown in Fig. 3.1. This test setup used either partially or totally during the following adjustmentslibr. A.TEST EQUIPMENT 1) DC Power Supply (7.2V DC) 0 - 15V 3A max. 2) RF Power Meter 10 W 50 Ohm 100-200 MHz 3) RF Signal Generator 100-200 MHz, 50 ohm termination 4) FM Linear Detector (FMLD) 100-200 MHz 5) Frequency Counter 1-500 MHz 6) Oscilloscope 20 MHz 7) Distortion Meter 8) SINADDER (Trademark of Helper Instruments Co.) 9) Audio Oscillator 10) Toggle Switch (for use as PTT switch). Fig. 3.1 RF POWER METER DC POWER SUPPLY AUDIO OSC PTT SWITCH UNIT UNDER TEST OSCILLOSCOPE SINADDER FMLD FREQ COUNTER DISTORT METER RF SG SPEAKER MIC ANT RX TX COUPLER Page: 4 of 5 ADJUSTMENT PROCEDURE Step Adjustment Test Point Procedure 1 L16 Receive TP1 1. Connect digital voltmeter to TP1 on RF PCB. 2. Set CH16. 3. Adjust L16. 4. TP1 voltage 1.2~1.6V DC. 2 L17 Transmit TP1 1. Connect a digital voltmeter to TP1 on RF PCB. 2. Set CH01 INT…

Text truncated - open the document above for the full version.

TEKCOM INDUSTRIES L TD. Pa g e: 1 Multi-Level Ex p lo. W / Loc R p t ( IDT ) As-of-date: 06 / 24 / 2005 ------------------------------------------- -------------------------------------------------------------------------------- - -------- Item Number: TM886U-----00012 TM886U / PLN BOM / VER.1 Q uantit y : 1 UOM: EA HANDHELD VHF SUBMERSIBLE RADIO Batch-size: 1 T yp e: F Effective: 01 / 01 / 1951 Ex p iration: 12 / 31 / 29 99 Revision ID: Drawin g ID: ----------------------------------------- -------------------------------------------------------------------------------- - -------- Level Number Com p onent Descri p tion Per Batch UOM #LOC Location Codes1.................... 746P1000000-0021 TM886EU / DUMMY U-M / REV.0 ( F1 ) 1 EACH 1.................... 746 p 1004700-0007 TM886EU / U-M / REV.0 ( F1 NORTEL ) 1 EACH 2.................. 746P1004701-0003 TM886EU / UNIT 1 EACH 3................. 746P2004701-0007 TM886EU / PCBA / CPU 1 EACH 4................ 003-121062-52000 CAP-ELE 10--U / M 25-V D4H5---- 3 EACH 3 C158 C159 C1714................ 003-121071-02202 CAP-ELE 100-U / M 10-V D5H8---- 2 EACH 2 C134 C1354................ 003-121071-62006 CAP-ELE 100-U / M 16-V D6H5----- 2 EACH 2 C132 C1334................ 003-122261-62052 CAP-ELE 22--U / M 16-V D4H5---- TRACO 2 EACH 2 C160 C1614................ 004-990017-10004 CONNECTOR TNC------- 62 CU M7.0*0.75 1 EACH4................ 007-221425-W0003 CRYSTAL FILTER 21.4MHz UM-5 + / -7.5KHz PAIR 2 EACH 2 F1 F24................ 007-349123-C0002 Q UARTZ CRYSTAL 4.914MHz ( + / -30P MM ) 16PF NC-3 1 EACH 1 X24................ 007-D2952C-80005 CRYSTAL 20.95MHz UM-5 + / -5PPM ( WHITE FLAKE ) 1 EACH 1 X14................ 010-124001-20007 DIODE IN4001 1 EACH1 D164................ 011-A27361-20004 SILICONE INTER CONNECTOR "SP" PITCH:0.1MM L27.3*W6.0*H2.0 1 EACH4................ 014-01D622-00005 LCD TN-G --- L42-W35.5-T2.05 40725TF-F 5.0V 9TM886 ) 1 EACH 1 LCD14................ 022-041101-V2001 SWITCH TACT 100M 1101V-2 MCU POWER 1 EACH4................ 026-71032A-A0009 ROTARY POTENTIOMETER W / SW A10K RD810S-AA1-A103-0G12 1 EACH 1 VR64................ 026-81031A-A0005 ROTARY POTENTIOMETER B10K RD81 0N-AA1-B103-0G12 1 EACH1 VR24................ 055-002477-00003 LCD BACK LIGHT PLATE ( PMMA ) ( TM886EU ) 1 EACH 4................ 056-0RY1B1-W0007 BATTERY BRACKET PLATE ( C1000 ) BLACK C 1 EACH 4................ 058-002576-00005 ASTIGMATISM LIGHT PAPER ( TM886EU ) 1 EACH 4................ 058-002584-00009 REFLECT LIGHT PAPER ( TM886EU ) 1 EACH 4................ 058-378323-10002 CRYSTAL INSULATION PLATE 7.8*3 .2*0.2mm 2 EACH4................ 061-3M34S0-60002 SWITCH MOUNT PLATE 1 EACH4................ 063-003178-00004 LCD MOUNTING PLATE ( S / S ) ( TM886EU ) 1 EACH 4................ 063-003179-00001 METAL BRACKET ( ALUMINUM+NI ) ( TM886EU ) 1 EACH 4................ 063-3RY1PG-50004 POWER CONNECT PLATE ( S / S+GILD ) 3 EACH 4................ 065-336404-50007 EXTERNAL TOOTH WASHER M3 ID3.3 *OD6.4*H0.4mm 1 EACH4................ 068-120041-50009 SCREW M2.0*4.0mm BM S / S 1 EACH 4................ 071-120053-50006 SCREW M2.0*5.0mm PM S / S 6 EACH 4................ 089-003029C016 CUSH SILI RUBBER RING FOR LOCK PLATE A BLACK 3U2X TM886EU 1 EACH4................ 089-003031C018 CUSH SILI RUBBER RING FOR LOCK PLATE B BLAKC 3U2X TM886 1 EACH4................ 089-070901-30007 DOUBLE COATED WHITE SPONGE 9*7 *1mm 1 EACH4................ 089-83416B-20009 RUBBER PAD 3.4*1.6*2mm 6 EACH4................ 112-7M3401-50009 VCO SHIELD CASE ( STEEL ) 1 EACH 4................ 201-545015-A0007 CERAMIC FILTER 450KHz + / -7.5KH z ( LTM450EW ) 1 EACH continued on p a g e: 2 TEKCOM INDUSTRIES L TD. Pa g e: 2 Multi-Level Ex p lo. W / Loc R p t ( IDT ) As-of-date: 06 / 24 / 2005 ------------------------------------------- -------------------------------------------------------------------------------- - -------- Item Number: TM886U-----00012 TM886U / PLN BOM / VER.1 Q uantit y : 1 UOM: EA HANDHELD VHF SUBMERSIBLE RADIO Batch-size: 1 T yp e: F Effective: 01 / 01 / 1951 Ex p iration: 12 / 31 / 29 99 Revision ID: Drawin g ID: ----------------------------------------- -------------------------------------------------------------------------------- - -------- Level Number Com p onent Descri p …
