KPG-MOD900T

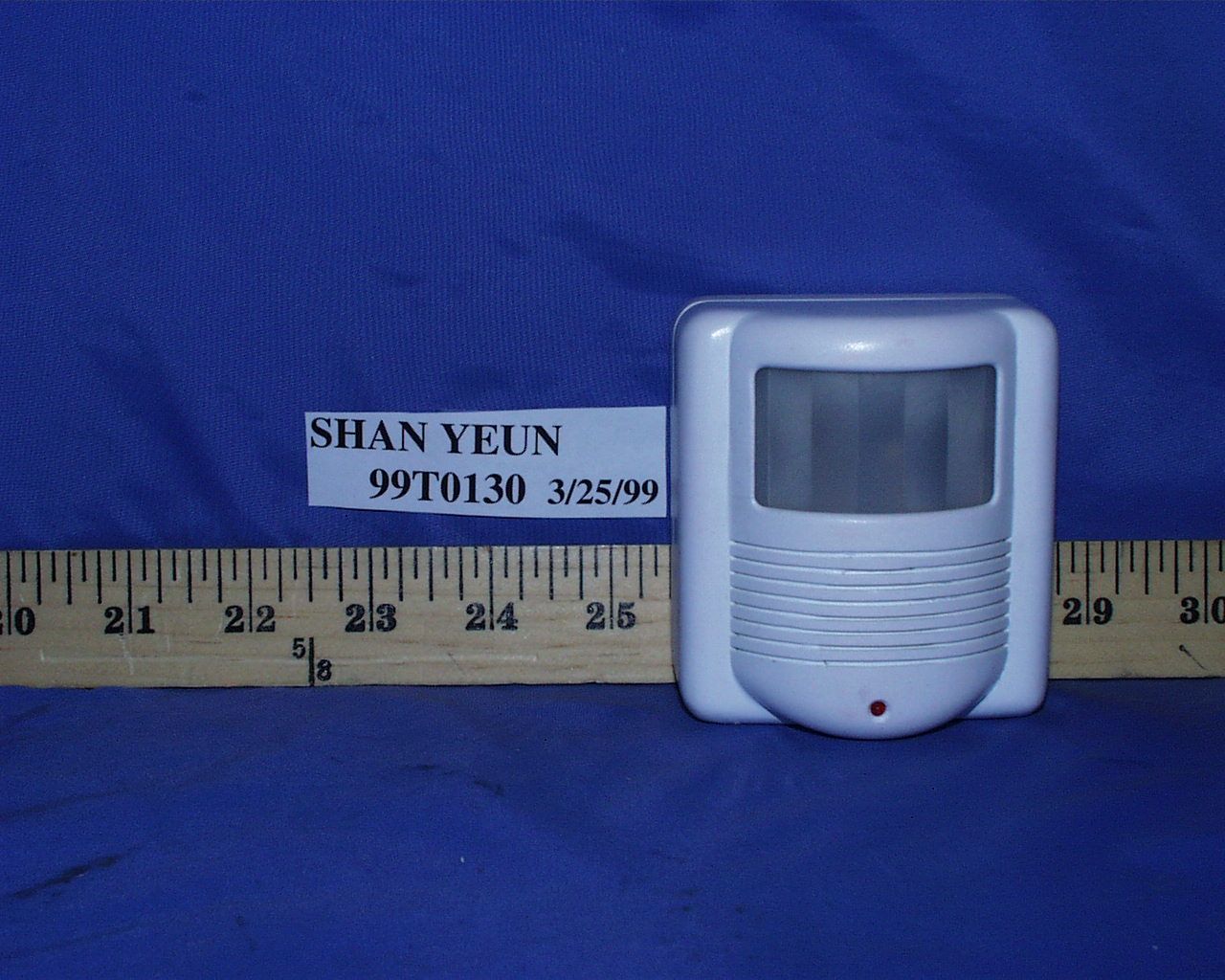

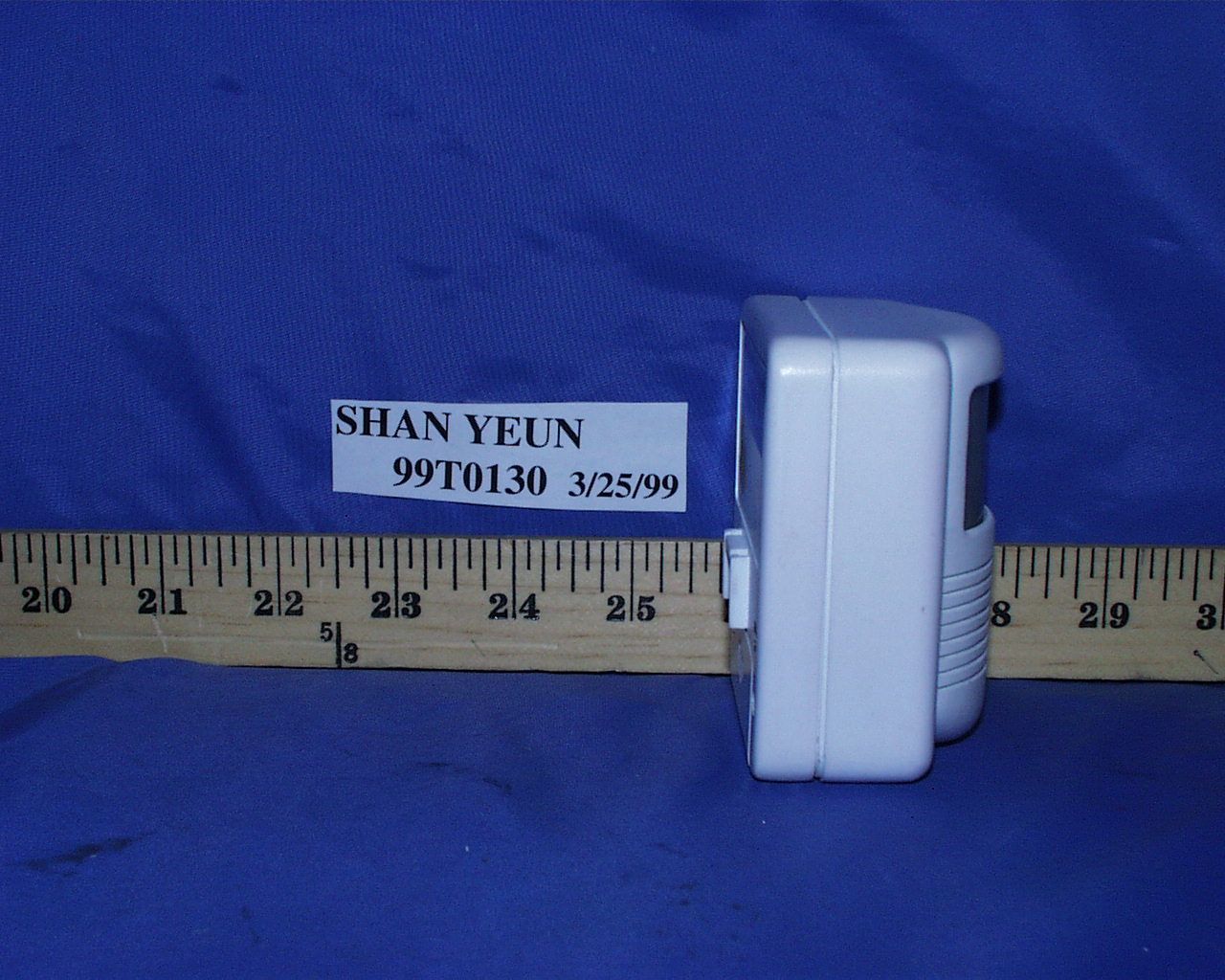

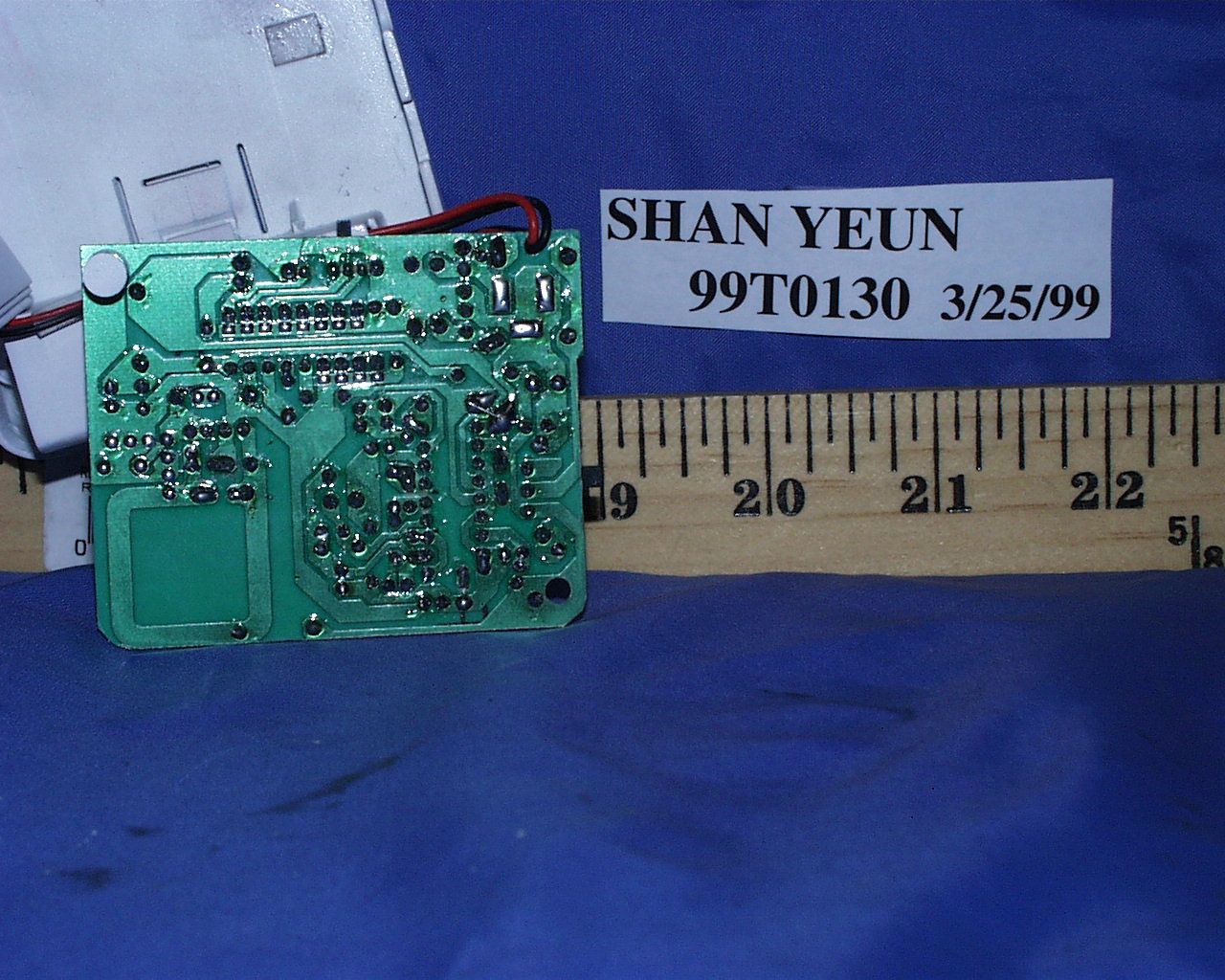

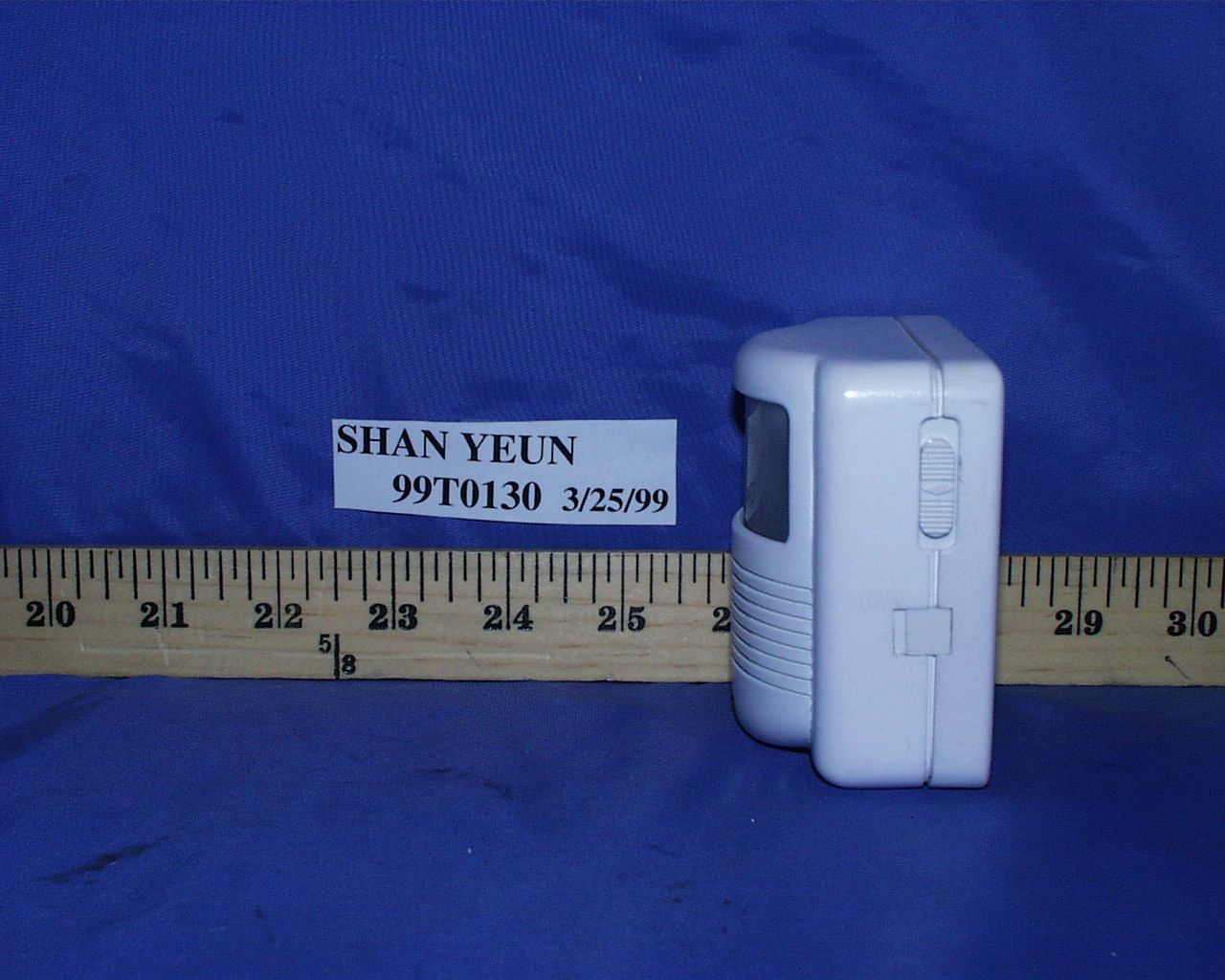

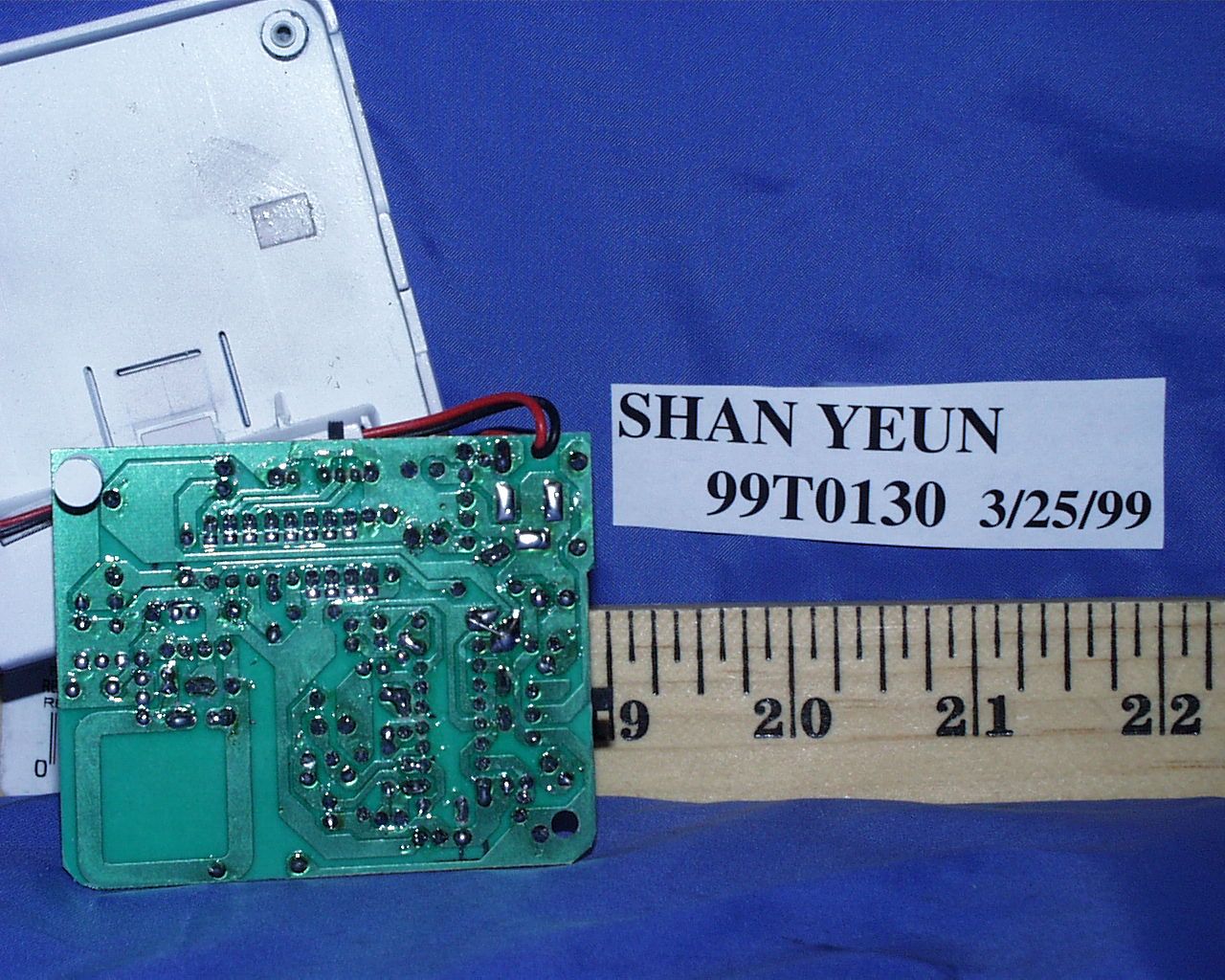

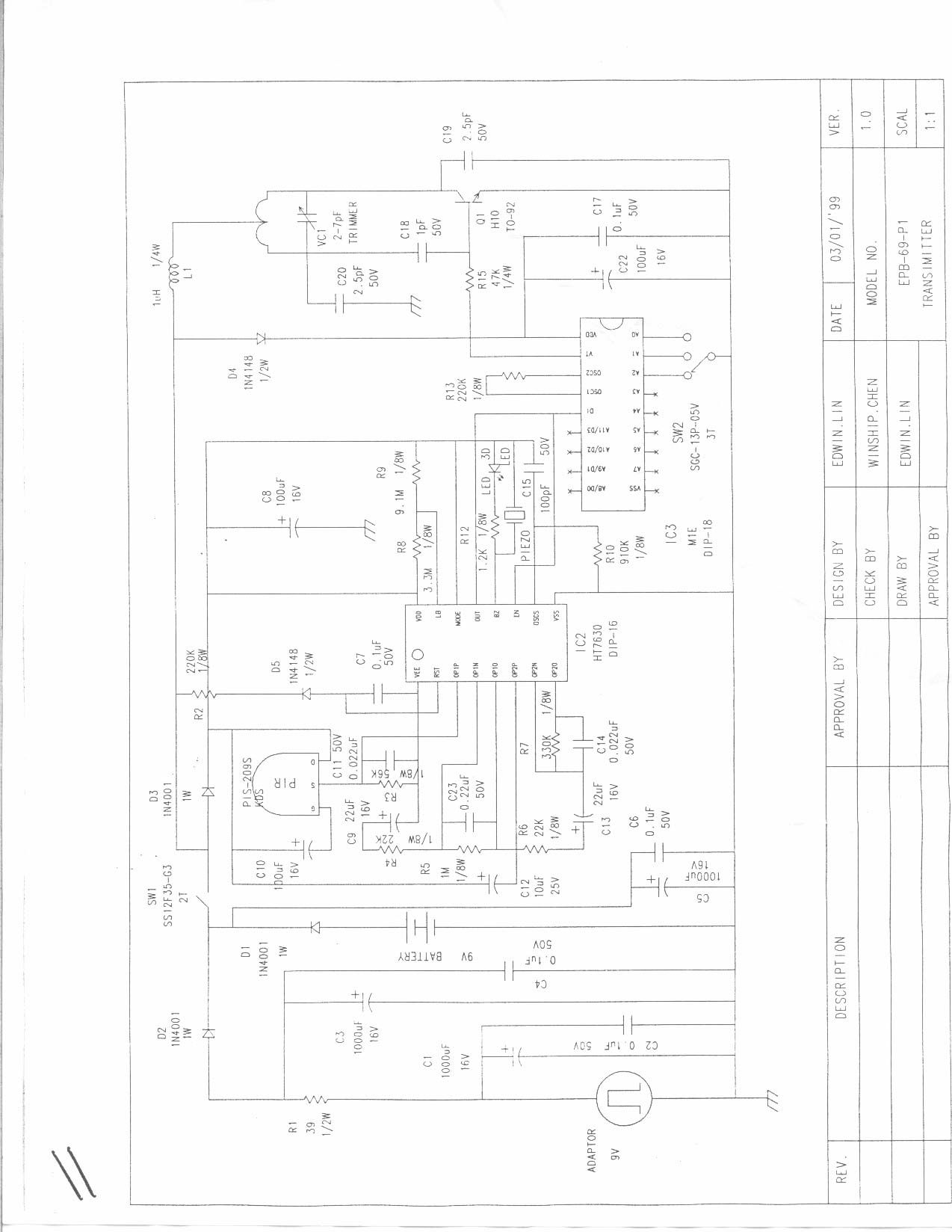

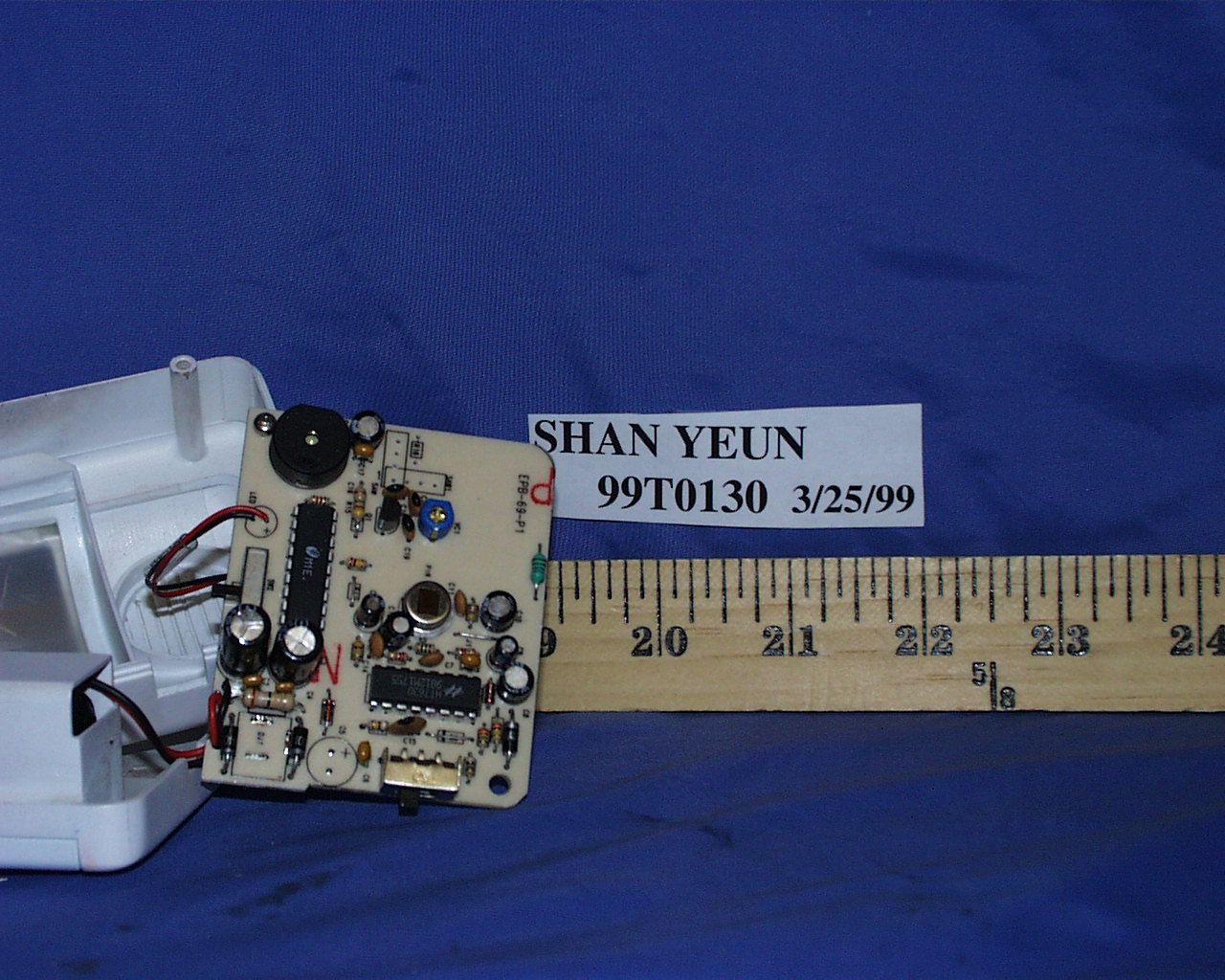

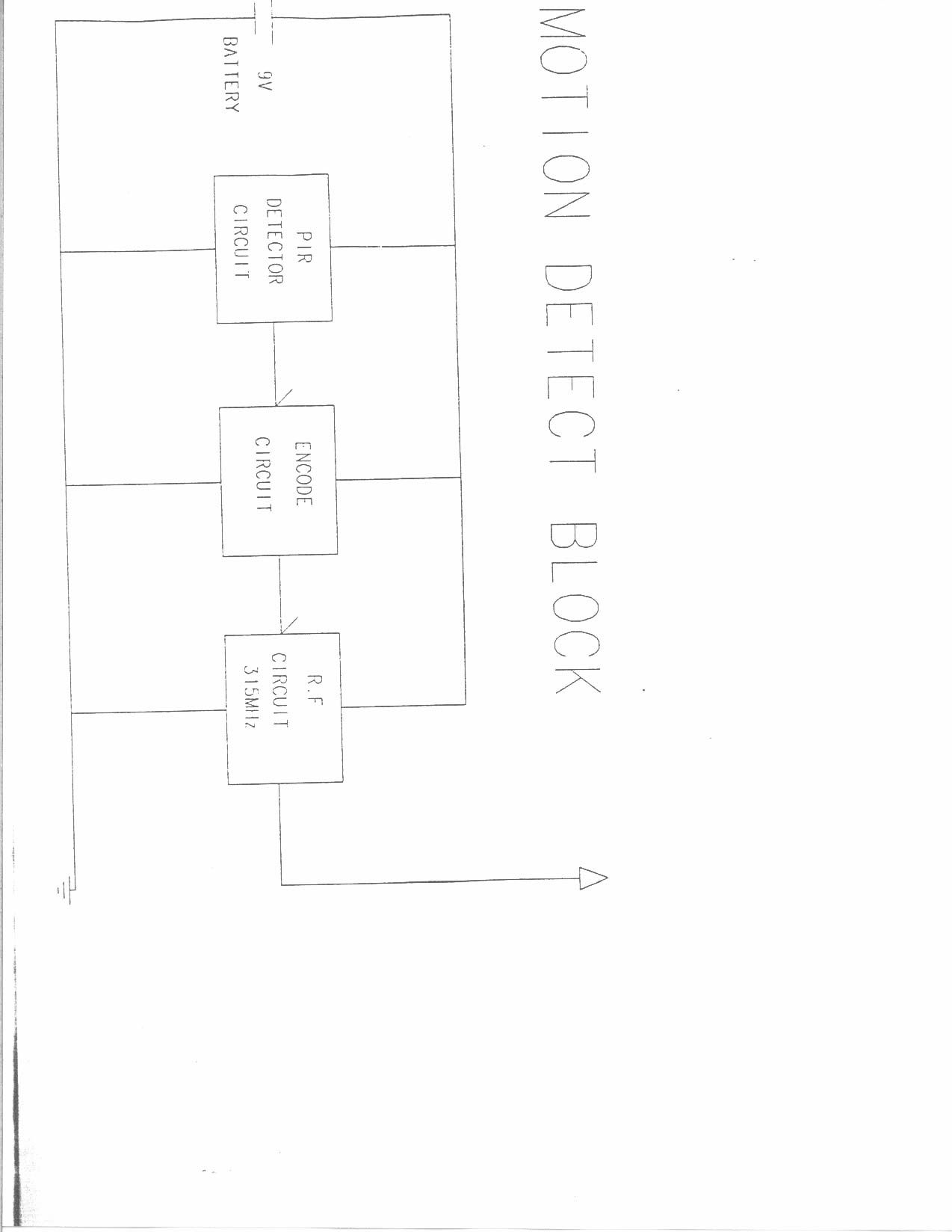

SHAN YEUN CO., LTD. PIR MOTION DETECTOR (MOD-900T) This improved home alarm system offers greater protection with its highly sensitive PIR sensor that detects any moment within its operating range. SPECIAL FEATURES *It offers a wide angle PIR detection. *It offers greater protection. *It covers a large operating distance of over 100ft. *Eliminate false alarm. *RF transmission. *Comes with a mounting brackets. *Detects any movement by PIR sensor. *Cheap, reliable and easy to operate. *Optional features available on request. INSTALLATION (Transmitter) Slide open the battery compartment and connect a 9V (3D) battery as indicated by the polarity symbol. Replace the battery cover. Place the unit to any suitable location or mount it on the wall opposite to whatever you want it to monitor. To activate the unit, slide the power ON/OFF switch to “ON” position. INSTALLATION (Receiver) *Slide open the battery compartment of the receiver in the direction of the arrow. *Insert two AA batteries as indicated by the polarity symbol (+ and -) marked inside the battery compartment. *Replace the battery cover *Select a suitable and convenient location to place the receiver. *To activate the unit, slide the switch to “ON” position. OPERATION When the PIR sensor detects any movement wherever it is mounted or installed, its encoder circuit is triggered. The signal is then transmitted through the AM modulation, producing RF to the receiver via the antenna. The receiver will then amplify and decode the signal, which in turn produces an alarm or ding-dong sound depending on your switch position. NOTE *Use alkaline batteries for best results. *Switch OFF the unit when not in use. *Replace battery (a) when red indicator on the transmitter fails to light. (b) When chime tone becomes weak or inaudible. CAUTION – *Tampering or any modification of the unit will invalidate its warranty. *Do not operate the unit where the PIR sensor will be covered by objects such as glass, plastics, wood, etc. *Do not drop the unit from a height. FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. CAUTION: Changed or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authorization to operate the equipment.

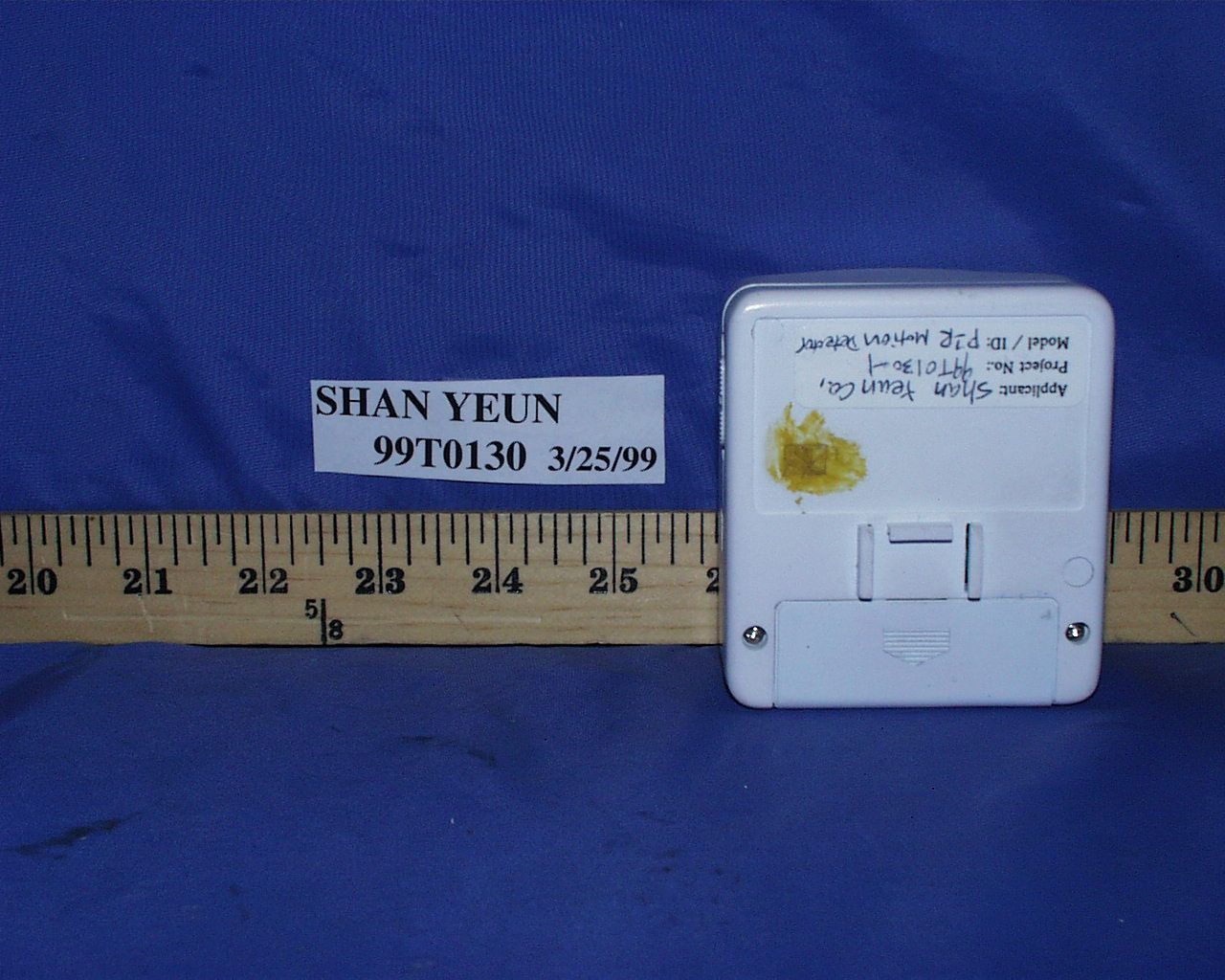

PROPOSED FCC ID LABEL AND LOCATION SHAN YEUN CO., LTD. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: KPG-MOD900T FCC ID LOCATION

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 315 MHz PIR MOTION DETECTOR MODEL NO: PIR MOTION DETECTOR FCC ID NO: KPG-MOD900T REPORT NO: 99T0130-1 ISSUE DATE: MARCH 24, 1999 Prepared for SHAN YEUN CO., LTD. NO 35, LANE 646, SEC 2, BIN HAI ROAD SU-AO, I-LAN, TAIWAN R.O.C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:99T0130-1 FCC ID:KPG-MOD900T DATE:03/24/1999 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE ............................................................................................................ 1 2.PRODUCT DESCRIPTION............................................................................................................................. 2 3.TEST FACILITY .............................................................................................................................................. 2 4.MEASUREMENT STANDARDS .................................................................................................................... 2 5.TEST METHODOLOGY ................................................................................................................................. 2 6.MEASUREMENT EQUIPMENT USED ........................................................................................................ 2 7.POWERLINE RFI LIMIT ............................................................................................................................... 3 8.RADIATED EMISSION LIMITS.................................................................................................................... 3 9.SYSTEM TEST CONFIGURATION.............................................................................................................. 4 10.TEST PROCEDURE......................................................................................................................................... 5 11.EQUIPMENT MODIFICATIONS .................................................................................................................. 5 12.TEST RESULT .................................................................................................................................................. 6 12.1M AXIMUM MODULATION PERCENTAGE (M%) ........................................................................................... 6 12.2T HE EMISSIONS BANDWIDTH...................................................................................................................... 6 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement REPORT NO:99T0130-1 FCC ID:KPG-MOD900T DATE:03/24/1999 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME : SHAN YEUN CO., LTD. NO. 35, LANE 646, SEC. 2, BIN HAI ROAD SU-AO, I-LAN, TAIWAN, R.O.C. CONTACT PERSON : JOE BROWN TELEPHONE NO. : (886) 3-990-7711 EUT DESCRIPTION : 315 MHz PIR MOTION DETECTOR MODEL NAME/NUMBER : PIR MOTION DETECTOR FCC ID : KPG-MOD900T DATE TESTED : MARCH 24, 1999 REPORT NUMBER : 99T0130-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 315 MHz PIR MOTION DETECTOR MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:99T0130-1 FCC ID:KPG-MOD900T DATE:03/24/1999 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.Product Description Fundamental Frequency315 MHz Power SourceBattery Transmitting TimePeriodic < 5 seconds Modulation TypeAM Associated ReceiverSHAN YEUN / FCC ID: KPG-FRD370R 3.Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4.Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5.Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6.Measurement Equipment Used Manufacturer Model Number Description Cal Due Date H.P. 8568A Spectrum Analyzer (100Hz - 1.5GHz) 02/00 H.P. 8566B Spectrum Analyzer 09/99 REPORT NO:99T0130-1 FCC ID:KPG-MOD900T DATE:03/24/1999 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4020B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. (100Hz – 22GHz) EMCO 3146 Antenna (200-1000 MHz) 10/99 H.P. 84…

Text truncated - open the document above for the full version.

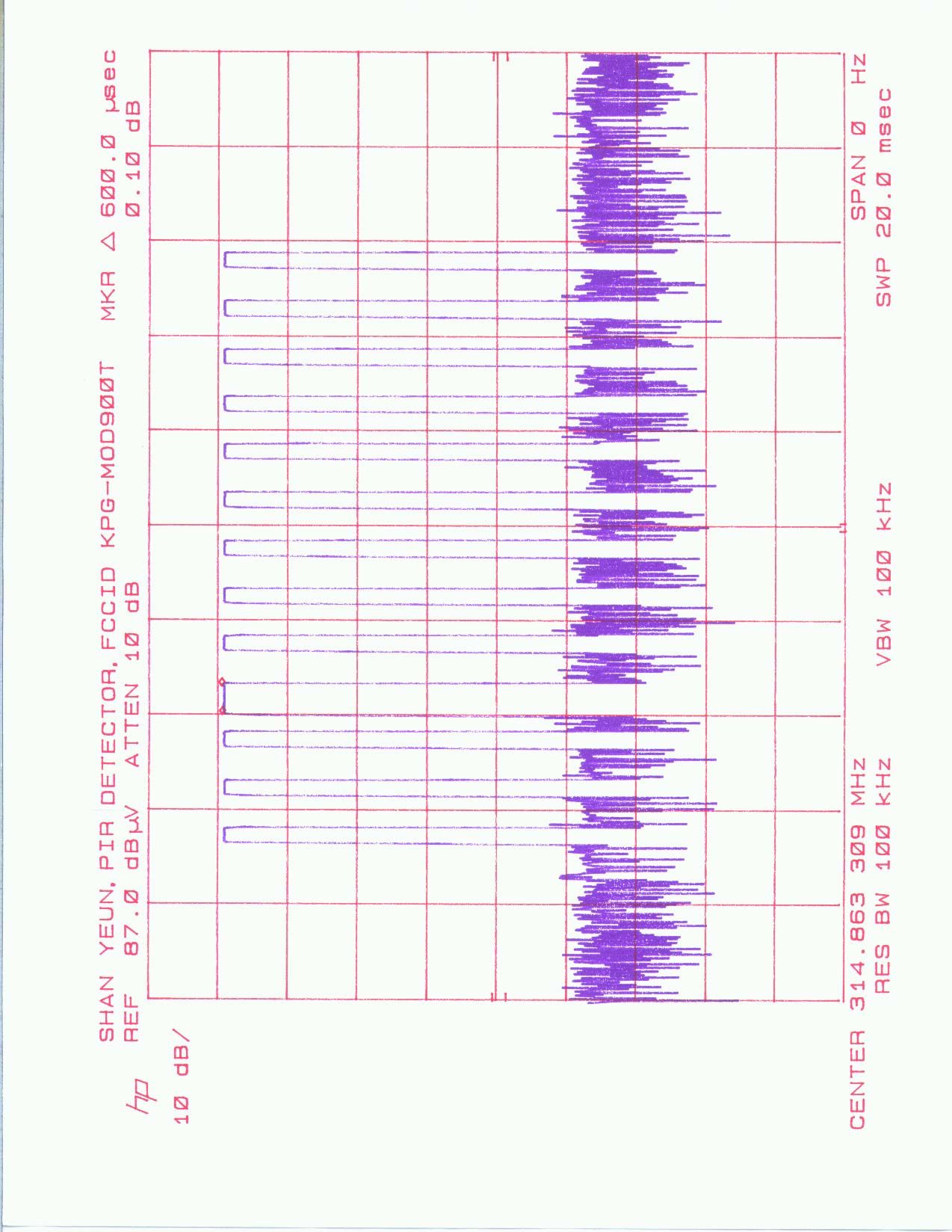

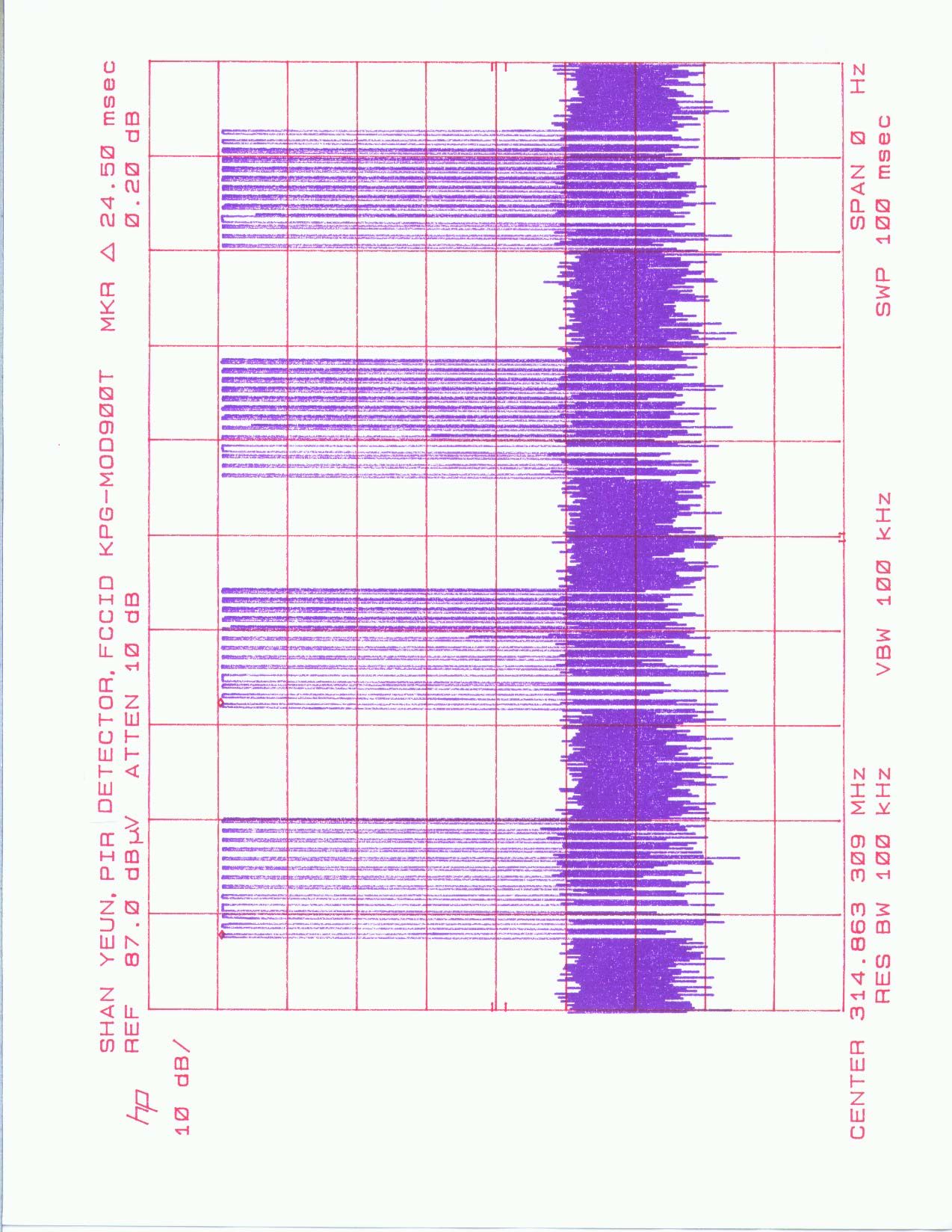

Report No. : 990324A6 Compliance Engineering Services Inc. Date : 03/24/1999 Time : 16:05 >> 3 M RADIATED EMISSION DATA << Test Engr : MIKE ZHU Company : SHAN YEUN CO., LTD. Equipment Under Test : PIR MOTION DETECTOR Test Configuration : EUT ONLY Type of Test : FCC 15.231 Mode of Operation : NORMAL Freq. dBuV-PK dBuV-AVE CF(dB) dBuV-AVE FCC-B EUT-B Note V/X: 314.77 51.5 35.5 -7.9 27.5 74.2 -46.7 Vertical 629.54 34.4 18.4 -3.5 14.9 54.2 -39.3 Vertical 944.31 33.5 17.5 2.1 19.6 54.2 -34.6 Vertical V/Y: 314.72 65.3 49.3 -7.9 41.4 74.2 -32.8 Vertical 629.54 34.5 18.5 -3.5 15.0 55.7 -40.7 Vertical 944.10 33.5 17.5 2.1 19.6 55.7 -36.1 Vertical V/Z: 314.82 70.1 54.1 -7.9 46.1 74.2 -28.1 Vertical 629.64 35.2 19.2 -3.5 15.7 54.2 -38.5 Vertical 944.46 32.6 16.6 2.1 18.7 54.2 -35.5 Vertical H/X: 314.74 72.6 56.6 -8.1 48.4 74.2 -25.8 Horizontal 629.51 36.2 20.2 -2.9 17.2 54.2 -37.0 Horizontal 944.25 33.9 17.9 2.7 20.6 54.2 -33.6 Horizontal H/Y: 314.83 67.2 51.2 -8.1 43.0 74.2 -31.2 Horizontal 629.66 34.9 18.9 -2.9 15.9 54.2 -38.3 Horizontal 944.49 34.7 18.7 2.7 21.4 54.2 -32.8 Horizontal H/Z: 314.82 66.1 50.1 -8.1 41.9 74.2 -32.3 Horizontal 629.64 34.9 18.9 -2.9 15.9 54.2 -38.3 Horizontal 944.46 33.0 17.0 2.7 19.7 54.2 -34.5 Horizontal Total # of data 18 V.1.0a Duty cycle calcuration: 15.84ms/100ms=0.1584 or M(%)=15.84% Analyzer: HP8546A EMI Receiver,9K-6.5Ghz,cal due:3/30/99 Antenna: EMCO 3146,200-2000Mhz,cal due:3/15/00 Preamplifier: HP8447D,0.1-1300Mhz,cal due:10/27/99

Radiated Emissions Test of Harmonics 3/26/99 Client Name: SHAN YEUN CO.,LTD. Mike Zhu EUT Name: PIR MOTION DETECTOR Site: 1 m FCCID: KPG-MOD900T F0=315 MHz Freq. Level AF CL AMP DIST Total Limit Margin (Mhz) (dBuv) (dB) (dB) (dB) (dB) (dBuv/m) (dBuv/m) (dB) 1260pk 47.3 24.4 0.7 -35 -10.45 26.95 74 -47.05 1260av 35.7 24.4 0.7 -35 -10.45 15.35 54 -38.65 1575pk 47.1 25.2 1.3 -35 -10.45 28.15 74 -45.85 1575av 31.5 25.2 1.3 -35 -10.45 12.35 54 -41.65 1890pk 46.9 27.3 1.7 -35 -10.45 30.45 74 -43.55 1890av 35.2 27.3 1.7 -35 -10.45 18.75 54 -35.25 2205pk 46.0 28.0 2.6 -35 -10.45 31.15 74 -42.85 2205av 34.4 28.0 2.6 -35 -10.45 19.95 54 -34.05 2520pk 45.6 28.0 3.2 -35 -10.45 31.35 74 -42.65 2520av 34.3 28.0 3.2 -35 -10.45 20.05 54 -33.95 2835pk 45.4 30.4 3.6 -35 -10.45 33.95 74 -40.05 2835av 34.2 30.4 3.6 -35 -10.45 22.75 54 -31.25 3150pk 44.2 31.6 3.8 -35 -10.45 34.15 74 -39.85 3150av 33.1 31.6 3.8 -35 -10.45 23.05 54 -30.95 All above data are Noise Floor DIST- 3ft measurement distance: -10.45dB Analyzer: HP8566B,cal due:7/17/99 Antenna: EMCO 3115, S/N: 90001-32451, cal due:12/11/99 Preamp: HP8449D, cal due:4/2/99 Analyzer BW Settings: Peak Ave. Res 1Mhz 1Mhz Vid 1Mhz 10Mhz
