KQGMI16-433RECEIVER FOR MACHINE TOOLS TELEMETRY RX

MI16 433 MHz LP USA MP18 Probe System selectable channel radio transmission Installation and User's Guide 2 PATENTS Features of the MP18 Probe With Channel Selectable Radio Transmission are the subject of the patents and patent applications listed below : EP108521JP326, 001/1992US4, 599, 524 EP501680JP89, 397/1993US4, 636, 960 EP506318JP1, 847, 335US4, 636, 960 EP652413JP1, 942, 442US5, 272, 817 FCC DECLARATION USA FCC ID: KQG MI16-433 3 FCC DECLARATION (USA) FCC Section 15.19 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmfull interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Section 15.105 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, This product has been tested to the following European Standards I-ETS 300 220 (October 1993) ETS 300 683 (June 1997) if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense. FCC Section 15.21 The user is cautioned that any changes or modifications not expressly approved by Renishaw plc, or authorised representative could void the user's authority to operate the equipment. FCC Section 15.27 The user is also cautioned that any peripheral device installed with this equipment such as a computer, must be connected with a high quality shielded cable to insure compliance with FCC limits. 4 GB SAFETY Beware of unexpected movement. The user should remain outside of the full working envelope of probe head/extension/probe combinations. Handle and dispose of batteries according to the manufacturer’s recommendations. Use only the recommended batteries. Do not allow the battery terminals to contact other metallic objects. For instructions regarding the safe cleaning of Renishaw products, refer to the Maintenance section of the relevant product documentation. Remove power before performing any maintenance operations. Refer to the machine supplier’s operating instructions. The unit must be supplied from a 24V DC SELV supply complying with the essential requirements of BS EN 61010 or similar specification. D SICHERHEITSANWEISUNGEN Auf unerwartete Bewegungen achten. Der Anwender soll sich immer außerhalb des Meßtasterkopf-Arm-Meßtaster-Bereichs aufhalten. Batterien immer gemäß den Anleitungen des Herstellers handhaben und diese vorschriftsmäßig entsorgen. Nur die empfohlenen Batterien verwenden. Die Batterieklemmen nicht in Kontakt mit metallischen Gegenständen bringen. Anleitungen über die sichere Reinigung von Renishaw-Produkten sind in Kapitel MAINTENANCE (WARTUNG) in der Produktdokumentation enthalten. Bevor Wartungsarbeiten begonnen werden, muß erst die Stromversorgung getrennt werden. Beziehen Sie sich auf die Wartungsanleitungen des Lieferanten. Die Einheit muß von einer Schutzkleinspannungsversorgung mit 24V DC gespeist werden, die den wesentlichen Anforderungen von BS EN 61010 oder einer ähnlichen Norm entspricht. DK SIKKERHED Pas på uventede bevægelser. Brugeren b¢r holde sig uden for hele sondehovedets/ forlængerens/ sondens arbejdsområde. Håndtér og bortskaf batterier i henhold til producentens anbefalinger. Anvend kun de anbefalede batterier. Lad ikke batteriterminalerne komme i kontakt med andre genstande af metal. Se afsnittet MAINTENANCE (VEDLIGEHOLDELSE) i produktdokumentationen for at få instruktioner til sikker reng¢ring af Renishaw-produkter. Afbryd str¢mforsyningen, f¢r der foretages vedligeholdelse. Se maskinleverand¢rens brugervejledning. Enheden skal forsynes fra en 24 V d.c. SELV (Separat ekstra lav spænding) netspænding, der efterlever de vigtige krav i BS EN 61010 eller lignende specifikation. 5 E SEGURIDAD Tener cuidado con los movimientos inesperados. El usuario debe quedarse fuera del grupo operativo completo compuesto por la cabeza de sonda/ extensión/sonda o cualquier combinación de las mismas. Las baterías deben ser manejadas y tiradas según las recomendaciones del fabricante. Usar sólo las baterías recomendadas. No permitir que los terminales de las mismas entren en contacto con otros objetos metálicos. Para instrucciones sobre seguridad a la hora de limpiar los productos Renishaw, remitirse a la sección titulada MAINTENANCE (MANTENIMIENTO) en la documentación sobre el producto. Quitar la corriente antes de emprender cualquier operación de mantenimiento. Remitirse a las instrucciones de manejo del proveedor de la máquina. La unidad debe de ser alimentada desde un alimentador .V c.c. SELV (Tensión Extra Baja Separada) que cumpla con los requisitos esenciales de BS EN 61010 o una especificación similar. F SECURITE Attention aux mouvements brusques. L’utilisateur doit toujours rester en dehors de la zone de sécurité des installations multiples tête de palpeur/rallonge/palpeur. Suivre les conseils du fabricant pour manipuler et jeter les batteries. Utiliser uniquement les batteries recommandées. Veiller à ce que les bornes de la batterie n’entrent pas en contact avec d’autres objets métalliques. Les conseils de nettoyage en toute sécurité des produits Renishaw figurent dans la section MAINTENANCE de votre documentation. Mettre la machine hors tension avant d’entreprendre toute opération de maintenance. Consulter le mode d’emploi du fournisseur de la machine. L’appareil doit être alimenté par un courant continu de 24V SELV (voltage ultra-faible séparé), conformément aux exigences primordiales de la norme BS EN 61010 ou d’une spé…

Text truncated - open the document above for the full version.

1 PATENTS Features of the MP18 Probe With Channel Selectable Radio Transmission are the subject of the patents and patent applications listed below : EP108521JP326, 001/1992US4, 599, 524 EP501680JP89, 397/1993US4, 636, 960 EP506318JP1, 847, 335US4, 636, 960 EP652413JP1, 942, 442US5, 272, 817 FCC DECLARATION USA FCC ID: KQG MI16-433 2 FCC DECLARATION (USA) FCC Section 15.19 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmfull interference. 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Section 15.105 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, This product has been tested to the following European Standards I-ETS 300 220 (October 1993) ETS 300 683 (June 1997) if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense. FCC Section 15.21 The user is cautioned that any changes or modifications not expressly approved by Renishaw plc, or authorised representative could void the user's authority to operate the equipment. FCC Section 15.27 The user is also cautioned that any peripheral device installed with this equipment such as a computer, must be connected with a high quality shielded cable to insure compliance with FCC limits. 3 GB SAFETY Beware of unexpected movement. The user should remain outside of the full working envelope of probe head/extension/probe combinations. Handle and dispose of batteries according to the manufacturer’s recommendations. Use only the recommended batteries. Do not allow the battery terminals to contact other metallic objects. For instructions regarding the safe cleaning of Renishaw products, refer to the Maintenance section of the relevant product documentation. Remove power before performing any maintenance operations. Refer to the machine supplier’s operating instructions. The unit must be supplied from a 24V DC SELV supply complying with the essential requirements of BS EN 61010 or similar specification. D SICHERHEITSANWEISUNGEN Auf unerwartete Bewegungen achten. Der Anwender soll sich immer außerhalb des Meßtasterkopf-Arm-Meßtaster-Bereichs aufhalten. Batterien immer gemäß den Anleitungen des Herstellers handhaben und diese vorschriftsmäßig entsorgen. Nur die empfohlenen Batterien verwenden. Die Batterieklemmen nicht in Kontakt mit metallischen Gegenständen bringen. Anleitungen über die sichere Reinigung von Renishaw-Produkten sind in Kapitel MAINTENANCE (WARTUNG) in der Produktdokumentation enthalten. Bevor Wartungsarbeiten begonnen werden, muß erst die Stromversorgung getrennt werden. Beziehen Sie sich auf die Wartungsanleitungen des Lieferanten. Die Einheit muß von einer Schutzkleinspannungsversorgung mit 24V DC gespeist werden, die den wesentlichen Anforderungen von BS EN 61010 oder einer ähnlichen Norm entspricht. DK SIKKERHED Pas på uventede bevægelser. Brugeren b¢r holde sig uden for hele sondehovedets/ forlængerens/ sondens arbejdsområde. Håndtér og bortskaf batterier i henhold til producentens anbefalinger. Anvend kun de anbefalede batterier. Lad ikke batteriterminalerne komme i kontakt med andre genstande af metal. Se afsnittet MAINTENANCE (VEDLIGEHOLDELSE) i produktdokumentationen for at få instruktioner til sikker reng¢ring af Renishaw-produkter. Afbryd str¢mforsyningen, f¢r der foretages vedligeholdelse. Se maskinleverand¢rens brugervejledning. Enheden skal forsynes fra en 24 V d.c. SELV (Separat ekstra lav spænding) netspænding, der efterlever de vigtige krav i BS EN 61010 eller lignende specifikation. 4 E SEGURIDAD Tener cuidado con los movimientos inesperados. El usuario debe quedarse fuera del grupo operativo completo compuesto por la cabeza de sonda/ extensión/sonda o cualquier combinación de las mismas. Las baterías deben ser manejadas y tiradas según las recomendaciones del fabricante. Usar sólo las baterías recomendadas. No permitir que los terminales de las mismas entren en contacto con otros objetos metálicos. Para instrucciones sobre seguridad a la hora de limpiar los productos Renishaw, remitirse a la sección titulada MAINTENANCE (MANTENIMIENTO) en la documentación sobre el producto. Quitar la corriente antes de emprender cualquier operación de mantenimiento. Remitirse a las instrucciones de manejo del proveedor de la máquina. La unidad debe de ser alimentada desde un alimentador .V c.c. SELV (Tensión Extra Baja Separada) que cumpla con los requisitos esenciales de BS EN 61010 o una especificación similar. F SECURITE Attention aux mouvements brusques. L’utilisateur doit toujours rester en dehors de la zone de sécurité des installations multiples tête de palpeur/rallonge/palpeur. Suivre les conseils du fabricant pour manipuler et jeter les batteries. Utiliser uniquement les batteries recommandées. Veiller à ce que les bornes de la batterie n’entrent pas en contact avec d’autres objets métalliques. Les conseils de nettoyage en toute sécurité des produits Renishaw figurent dans la section MAINTENANCE de votre documentation. Mettre la machine hors tension avant d’entreprendre toute opération de maintenance. Consulter le mode d’emploi du fournisseur de la machine. L’appareil doit être alimenté par un courant continu de 24V SELV (voltage ultra-faible séparé), conformément aux exigences primordiales de la norme BS EN 61010 ou d’une spécification semblable. FINTURVALLISUUTTA Varo äkillistä liikettä. Käyttäjän tulee pysytellä täysin anturin …

Text truncated - open the document above for the full version.

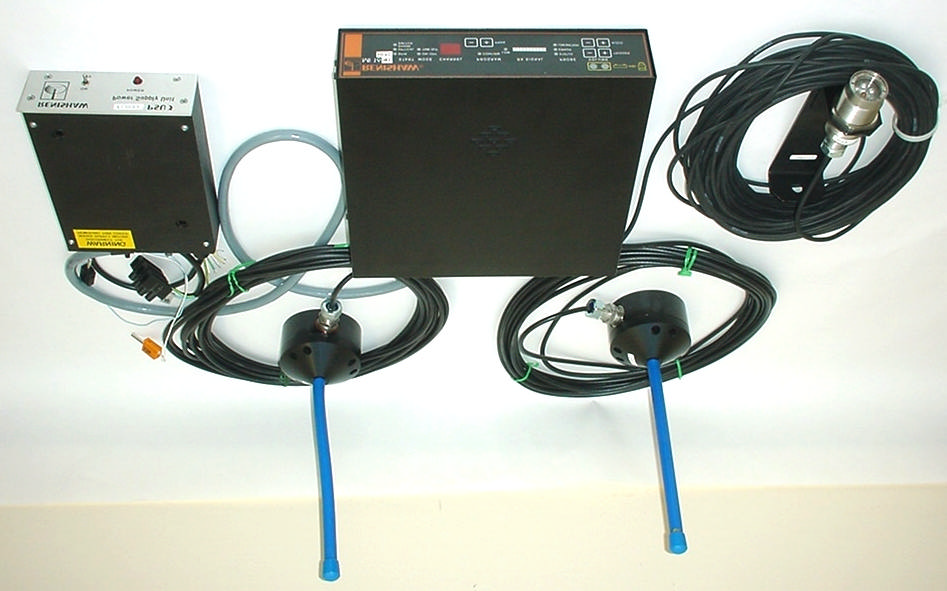

PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : General view of MI16 system. FCC ID : KQG MI16-433 Optional Already FCC listed : ID KQG MI16-224 PSU3 Optional Already FCC listed : ID KQG MI16-224 OM16 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : FCC label FCC ID : KQG MI16-433 FCC Label FCC ID KQGMI16-433 65 34 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) MI16 extension « MK2 » and « MK3 » meaning : MK2 is an improvement designed to reduce the SETUP time between probe « Start » and interface « Ready » and to give a choice between two TIMEOUT delay. MK3 is an improvement designed to give a choice between three levels of reception sensitivity. These improvements do not modify the RF section. Title: MI16 extension name FCC ID : KQG MI16-433 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Rx, front view. FCC ID : KQG MI16-433 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Rx, rear view, without case covers. FCC ID : KQG MI16-433 Output connectorRX sensitivity adjustmentConnectors antenna

PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : General view of MI16 system. FCC ID : KQG MI16-433 Optional Already FCC listed : ID KQG MI16-224 PSU3 Optional Already FCC listed : ID KQG MI16-224 OM16 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : FCC label FCC ID : KQG MI16-433 FCC Label FCC ID KQGMI16-433 65 34 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) MI16 extension « MK2 » and « MK3 » meaning : MK2 is an improvement designed to reduce the SETUP time between probe « Start » and interface « Ready » and to give a choice between two TIMEOUT delay. MK3 is an improvement designed to give a choice between three levels of reception sensitivity. These improvements do not modify the RF section. Title: MI16 extension name FCC ID : KQG MI16-433 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Rx, front view. FCC ID : KQG MI16-433 PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Rx, rear view, without case covers. FCC ID : KQG MI16-433 Output connectorRX sensitivity adjustmentConnectors antenna

PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Disassembled unit parts. FCC ID : KQG MI16-433 Logic PWB Front panel PWB Sensitivity PWB PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Logic PCB, top. Front panel connector Radio receiver w/o cover shield Solid state relay w/o cover shield Antenna connectors Logic DC power supply w/o cover shield Output connector PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Logic PCB, bottom. PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Front panel PCB, top. PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Front panel PCB, bottom. PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Sensitivity PCB, top. PHOTOGRAPHS OF THE EQUIPMENT : (Taken on completion of all tests) Title : Sensitivity PCB, bottom.

Issue date:29/03/20MP18 433MHz-FCC ID:KQG RMP3-433,KQG MI16-433 page: 1 TECHNICAL DESCRIPTION FOR MP18 433 MHz VERSION Part Number H-2249-0140 FCC codes: KQG RMP3-433 KQG MI16-433 Issue date:29/03/20MP18 433MHz-FCC ID:KQG RMP3-433,KQG MI16-433 page: 2 I. GENERAL DESCRIPTION The radio probe MP18 made by RENISHAW is a non line-of-sight probing system designed to equip numerical controlled machine tools with in cycle measuring equipment.The installation comprises a probe (RMP3), two antennas (RMM2) and an interface (MI16). RMM2 (Aerial) RMM2 (Aerial) MI16 Shank Transmitter RMP3 MP7 MP18 Issue date:29/03/20MP18 433MHz-FCC ID:KQG RMP3-433,KQG MI16-433 page: 3 II. RADIO PROBE DESCRIPTION A. ANTENNA (RMM2) The antennas are ¼ wavelength tuned and earth plane units with about 0.5 MHz bandwidth and a good VSWR of 1.2. The base is insulated and the grounding is made by capacitance to the machine body. A common problem has been seen of sympathetic radiators in machines, which lead to signal nulls. Sympathetic radiators are parts of machines which are also ¼ wavelength long or thereabouts; these receive and re-radiate the RF signal which can cause field cancellation and loss of signal.The use of two antennas and corresponding circuitry will correct this problem. B. PROBE (RMP2) 1. GENERAL DESCRIPTION The probe is assembled as a series of 5 PCB’s, one with a RF transmitter module. The other boards contain the reference clock, the tracking probe interface, the set-up module, the switch and the power supply. The method of operation is as follows. Two frequencies are derived from a 4 MHz crystal oscillator at nominally 500 and 1000 Hz, the 500 Hz is transmitted as a time reference to the modulation on the 1000 Hz. In the receiver the 500 Hz is used to synchronise a clock and regenerate a 1000 Hz for demodulation of the signal. On a probe change of state the time since the last 1000 Hz pulse is latched as an 8 bit word giving a resolution of 256. A start bit, a parity bit and a stop bit are added, and the information is sent as phase modulation on each cycle of the 1000 Hz carrier over the next 11 ms to the receiver. This decodes the time interval and adds it to the transmission frame time to give a precise delay from probe change of state to interface output change with an accuracy of around 4μs. The probe status (trigger or reseat) is carried by the fundamental modulation of the 1000 Hz carrier : in phase or antiphase. The low battery status information is sent as a 125 Hz signal. An infrared link exists to set-up the probe channel and its mode. It operates in the following modes: • Start by rotation and stop by rotation • Start by rotation and stop by time out • Start and stop by a shank switch • Optical start and stop • Optical start and stop by time out 2. POWER SUPPLY PCB One PP3 battery supply a voltage of 9V to the input of a step-down switching regulator. Issue date:29/03/20MP18 433MHz-FCC ID:KQG RMP3-433,KQG MI16-433 page: 4 3. LOGIC AND INTERFACE PCB This unit has a probe contact tracking interface and a high voltage generator, which together enhance the reseat performance of the probe. A FPGA (Field Programmable Gate Arrays) contains the following logic: • Probe contact debounce • Clock divider • 8 bits counter • Parity generator • Shift register • Phase inverter generator. The modulation frequencies are generated from a Walsh generator (stepped sine wave synthesis, using the shift register as ring counters). The 1000 Hz is phase modulated by inverting the output of the ring counter. In the same way a 125 Hz sine wave is generated when the batteries are below 6.5 V. The sine waves are combined in a low pass filter and sent to the transmitter. A PIC (Programmable controller) is used to control the programming of the mode and the channel by the infrared link. 4. TRANSMITTER 433 MHz The transmitter operates at a nominal 433 MHz, the precise frequency set by 69 synthesised channels, spaced at 25 KHz intervals. The first channel is set to 433,075 MHz and the last to 434,775 MHz. The reference clock for the synthesiser (UMA 1017) is 8 MHz. The output of the internal phase comparator controls the frequency of a voltage-controlled oscillator (VCO) with a varicap diode. C. INTERFACE ( MI16) 1. DESCRIPTION The interface comprises a double receiver allowing diversity reception. Each receiver uses a double conversion system with a common local oscillator. The logic selects the strongest signal automatically. Three switched capacitor filters are used to separate the frequencies of the demodulated signal, a highpass for the 1000 Hz, and bandpass for the 500 Hz and 125 Hz. The 500 Hz is used in a phase locked loop ( PLL ) frequency multiplier to generate a 250 KHz reference clock. The VCO voltage in the PLL is held during the reception of a word to reduce the residual FM, and hence the timing errors. Issue date:29/03/20MP18 433MHz-FCC ID:KQG RMP3-433,KQG MI16-433 page: 5 A FPGA ( Field Programmable Gate Arrays ) contains the following logic: • Clock divider to generate a second 500 Hz frequency for the PLL phase comparator • 1000 Hz decoder • Down counter to generate the additional part of the delay • Parity check • Error detection • Status bit generation The IF detector has a signal strength output which is fed to a bar graph driver to give a visual indication of signal strength. An error output is created if the received RF is too low. An amplitude comparator detects the 125 Hz presence and generates a low battery bit. The front panel displays: • The channel number • The probe mode • The status mode • The received signal strength • The low battery information 2. RECEIVER MODULE • A circuit SA601 includes a low noise amplifier (LNA) and a mixer. The output of the LNA is mixed with a synthesised signal around 412 MHz to deliver an IF signal at 21.4 MHz. • The synthesiser used is a UMA 1017. The first local oscillator delivers a frequency of 411,675 MHz for the first channel and 413,375 MHz for the last. • A …

Text truncated - open the document above for the full version.

Consultation fichier composés Date : 21/03/02 12:16:52 --------------------- Code composé : F1 A-2137-0160 Description : MI16 433 MHZ Code alpha : Unités : UN Fictif? : N Numérode plan : A-2137-0160-03-A N° révision : 0005 Date : 29/03/02 % rejet0 SéqCode composant Quantité 1 F1 A-2137-0033 S1 UNMI16 KIT 2 F1 A-2137-0163 S1 UNMI16 433 MHZ NOT PACKED 3 F1 M-2015-77061 UNSHIP CARTON Page 1 de 19FCC ID: KQG MI16-433 Consultation fichier composés Date : 21/03/02 12:16:52 --------------------- Code composé : F1 A-2137-0163 Description : MI16 433 MHZ NOT PACKED Code alpha : Unités : UN Fictif? : N Numérode plan : A-2137-0163-03-A N° révision : 0002 Date : 29/03/02 % rejet0 SéqCode composant Quantité 1 F1 A-2137-0056 S 1 UN UPPER COVER ASSY 2 F1 A-2137-0057 S 1 UN BOTTOM COVER ASSY 3 F1 A-2137-0065 S 1 UN MI16 LOGIC + PANEL 4 F1 M-2056-0341 1 UN SERIAL NUMBER 5 F1 M-2137-0072 1 UN CLAMP 6 F1 M-2137-0139 2 UN FOAM 75*50*20 7 F1 M-2137-0138 2 UN FOAM 75*50*8 8 F1 A-2056-1020 S 1 UN PACKING KIT MI14 9 F1 ECROU2.5 1 UN NUT M2.5 10 F1 RONDLEV2.5 1 UN LOCWASHER 2.5 DI 11 F1 P-SC01-0258 1 UN SCREW TCHC M2,5* 12 F1 P-SC01-0306 8 UN SCREW TCHC M3*6 Page 2 de 19FCC ID: KQG MI16-433 Date : 04/12/01 9:56:18 Code composé : F1 A-2137-0004 Description : FRONT PANEL PWB Code alpha : Unités : UN Fantôme? : N Numérode plan : A-2137-0004-03-A N° révision : 0003 Date : 20/03/02 % rejet : 0.00 Code composantQtyDescription F1 M-2137-0002-051 MI16 FRONT PANEL PCB F1 M-2137-00701 SPACER DIL 20 F1 M-2137-00711 SPACER DISPLAY F1 P-CN01-0CAP6 SWITCH MICROCOSM F1 P-CN01-TOUC6 SWITCH MICROCOSM F1 P-CN02-26AD1 ADAPTOR 2X13W FL F1 P-CN02-26CB0 FLAT CABLE 26W F1 P-CN02-26PL1 PLUG 2X13 WAY F1 P-CN02-50062 PLUG SMT 6W F1 P-CN02-PIN24 PLUG 20W F1 P-CN02-STRP2 STRAP 2W 2.54P F1 P-CP14-M1024 CAPA. 100N 0603 F1 P-CP22-10N02 CAPA. 10N 0603 F1 P-CP22-22P02 CAPA. 22P 0603 N F1 P-DD08-00041 BAT 254 SOD110 F1 P-MF01-10871 MAX821MUS SOT143 F1 P-ML01-10621 IC LM3914 DIL18 F1 P-ML01-822A1 IC AD822AR SO8 F1 P-MP10-F8702 IC PIC16F870 F1 P-PA01-10141 LED TX TSIP7601 F1 P-PA02-10111 LED RX BVP10F F1 P-RF01-150R1 RESISTOR 150R F1 P-RF35-001M2 RESISTOR 1M 0603 F1 P-RF35-01K27 RESISTOR 1K2 F1 P-RF35-047K3 RESISTOR 47K F1 P-RF35-04K76 RESISTOR 4K7 F1 P-RF35-330R8 RESISTOR 330R 06 F1 P-RF35-470R1 RESISTOR 470R 06 F1 P-RV04-10K12 POT.10K CMS MULT F1 P-TR03-10401 BC850 SOT23 F1 P-TR03-10414 BC860 SOT23 F1 P-VT01-0BIC1 LED T-1 RED GREEN F1 P-VT01-0RED8 LED RED 3DIA F1 P-VT01-0YEL1 LED YELLOW 3DIA F1 P-VT01-DISP2 DISPLAY F1 P-VT08-00011 BARGRAPH 3G/4Y/3 F1 PXTAF10M01 CRYSTAL 10MHZ F1 PXTAFSUP11 CRYSTAL HC49 Page 3 de 19FCC ID: KQG MI16-433 Code composé : F1 A-2056-0009 Description : LOUDSPEAKER ASSY Code alpha : Unités : UN Fictif? : N Numérode plan : A-2056-0009-01-A N° révision : 0001 Date : % rejet0 SéqCode composant Quantité 10 F1 P-AT01-0M141 LOUDSPEAKER 12 F1 P-CX01-03021 CONNECTOR 2 WAY 14 F1 PIN2 PIN 16 F1 FIL NOIR0 BLACK WIRE KY30-04 18 F1 FIL ROUGE0 RED WIRE KY30-04 20 F1 SLEEVE30 SLEEVING 3 DIA Page 4 de 19FCC ID: KQG MI16-433 Consultation fichier composés Date : 13/06/01 3:32:06 --------------------- Code composé : F1 A-2137-0011 Description : MI16 LOGIC PWB Code alpha : Unités : UN Fantôme? : N Numérode plan : A-2137-0011-03-A N° révision : 0005 Date : 20/03/02 % rejet : 0.00 Part Number QuantitéDescription F1 A-2137-0008 S1 TRANSFO SUPPLY M F1 A-2137-0009 S2 TRANSFO RELAY MI F1 COSSE6.351 CRIMP 6.35 F1 FIL VERTJA0 GREEN YELLOW WIRE F1 FUSEPIN4 MINIFUSE HOLDER F1 M-2137-0006-021 MI16 LOGIC PCB F1 M-2137-01452 BOX 30*30 F1 M-2137-01462 COVER 30*30 F1 M-2137-01471 BOX 75*50 F1 M-2137-01481 COVER 75*50 F1 M-2137-10001 BOX 100*50 F1 M-2137-10011 COVER 100*50 F1 P-CH03-00014 SELF F1 P-CN02-10021 PLUG 2WAY F1 P-CN02-16PL1 SCREW TERMINAL P F1 P-CN02-26TR1 SOCKET 2X13W F1 P-CN02-COAX2 PLUG COAX F1 P-CN02-PIN219 PLUG 20W F1 P-CN02-STRP1 STRAP 2W 2.54P F1 P-CP01-0M177 CAPA. 100N 5.08 F1 P-CP04-0M1?1 CAPA. 100M 25V 2 F1 P-CP04-100M2 CAPA. 100M 63V 1 F1 P-CP04-220M1 CAPA. 220M 35V R F1 P-CP04-M1002 CAPA. 100M 16V S F1 P-CP14-01M?2 CAPA. 1M POLYEST F1 P-CP14-01M01 CAPA. 1M 0805 F1 P-CP14-04P71 CAPA. 4P7 0603 N F1 P-CP14-10P11 CAPA. 10P 0603 N F1 P-CP14-1N034 CAPA. 1N 0603 F1 P-CP14-1P5?1 CAPA. 1P5 0603 N F1 P-CP14-33P13 CAPA. 33P 0603 N F1 P-CP14-3N3?3 CAPA. 3N3 0603 F1 P-CP14-470P11 CAPA. 470P 0603 F1 P-CP14-47P12 CAPA. 47P 0603 N F1 P-CP14-56P14 CAPA. 56P 0603 N F1 P-CP14-82P02 CAPA. 82P 0603 N F1 P-CP14-M10266 CAPA. 100N 0603 F1 P-CP14-N1503 CAPA. 150P 0603 F1 P-CP14-N2212 CAPA. 220P 0603 F1 P-CP14-N33012 CAPA. 330P 0805 F1 P-CP16-03M32 CAPA. 3M3 16V TA F1 P-CP16-10M16 CAPA. 10M 16V TA Page 5 de 19FCC ID: KQG MI16-433 F1 P-CP16-10M21 CAPA. 10M 25V TA F1 P-CP16-1M0011 CAPA. 1 M 1206 F1 P-CP17-000?1 CAPA. 1,4-3 PF N F1 P-CP22-02P01 CAPA. 2P 0603 NP F1 P-CP22-05P01 CAPA. 5P 0603 NP F1 P-CP22-100P8 CAPA. 100P 0603 F1 P-CP22-10N022 CAPA. 10N 0603 F1 P-CP22-22P05 CAPA. 22P 0603 N F1 P-CP22-N3305 CAPA. 330P 0603 F1 P-CT01-08M01 CRYSTAL 8MHZ F1 P-DD01-03091 1N4004 DO41 F1 P-DD08-00049 BAT 254 SOD110 F1 P-DD08-ES1D1 DIODE ES1D F1 P-DD08-ES3D4 DIODE ES3D F1 P-DD09-000217 BAS 216 SOD110 F1 P-DD10-00021 1N5359B F1 P-DD12-00021 BBY31 SOT23 F1 P-DD12-00031 BBY40 SOT23 F1 P-FS02-1A501 FUSE 500MA F1 P-FS11-10011 FUSE HOLDER F1 P-FS20-00622 MINIFUSE 63 mA F1 P-FT01-0M474 INDUCTOR 0.47MH F1 P-FT01-100N1 INDUCTOR 100NH F1 P-FT01-10M04 INDUCTOR LQH3N10 F1 P-FT01-10N01 INDUCTOR 10NH F1 P-FT03-000413 TRANZ 26V VC1206 F1 P-FT03-10761 VARISTANCE 35 V F1 P-FT03-30V02 TRANZORB 30V F1 P-FT04-00022 FILTER CFW455F F1 P-FT04-21M42 FILTER 21.4MHZ F1 P-FT04-BNX21 FILTER BNX0002 F1 P-FT04-HELC4 FILTER HELIC F1 P-LX01-00032 TRANSFO 455 KHZ F1 P-MC04-40461 IC HC4046 SO16 F1 P-MC04-40531 IC 4053 SO16 F1 P-MF01-10592 IC MC 3371/D F1 P-ML01-05011 IC MCPL0501 SO8 F1 P-ML01-10721 IC L272M DIL8 F1 P-ML01-14131 IC MC1413D SO16 F1 P-ML01-571D1 IC NE571D SOL16 F1 P-ML01-822A3 IC AD822AR SO8 F1 P-ML01-95142 IC X9514WS SO8 F1 P-ML01-C5551 IC TLC555 SO8 F1 P-ML01-F3981 IC LF398 SO14 F1 P-ML01-MF…

Text truncated - open the document above for the full version.

1 FCC ID: KQG MI16-433 2 FCC ID: KQG MI16-433

EMITECH ATLANTIQUE RA-02-33183/03DATE: 28-Jun-02PAGE: 2 / 13 RIA-02-33183-03-A.doc EQUIPMENT UNDER TEST type:MI16-433 serial number:Q04620 MANUFACTURER:RENISHAW METROLOGY LTD COORDINATES OF THE COMPANY SUBMITTING THE EQUIPMENT: Company:RENISHAW METROLOGY LTD Address:New Mills, Wotton Under Edge Gloucestershire GL 12 8JR ENGLAND Responsible:Mr WOOLLETT DATE (S) OF THE TEST: 22, 23 and 24 May 2002 LOCALITY OF THE TEST: EMITECH ATLANTIQUE open area test site in LA POUEZE (49) France EMITECH ATLANTIQUE laboratory at ANGERS (49) France TESTED BY:D. GRATON EMITECH ATLANTIQUE RA-02-33183/03DATE: 28-Jun-02PAGE: 3 / 13 RIA-02-33183-03-A.doc CONTENTS TITLEPAGE 1. INTRODUCTION ....................................................................................................................... 4 2. PRODUCT DESCRIPTION....................................................................................................... 4 3. NORMATIVE REFERENCE .................................................................................................... 4 4. TEST METHODOLOGY........................................................................................................... 5 5. RELATED SUBMITTAL GRANT ........................................................................................... 5 6. TEST UNIT CONFIGURATION .............................................................................................. 5 7. TESTS AND CONCLUSIONS .................................................................................................. 6 8. RADIATED EMISSIONS UNINTENTIONAL ....................................................................... 7 9. ANTENNA POWER CONDUCTION LIMITS FOR RECEIVERS ..................................... 9 10.PHOTOGRAPHIES OF THE EQUIPMENT UNDER TEST .......................................... 12 EMITECH ATLANTIQUE RA-02-33183/03DATE: 28-Jun-02PAGE: 4 / 13 RIA-02-33183-03-A.doc 1. INTRODUCTION This document presents the result of E.M.C. test carried out on the following equipment: MI16-433 in accordance with normative reference. 2. PRODUCT DESCRIPTION Utilization:interface for machine tools telemetry, receiver Antenna type: 2 external antennas (diversity mode) Operating frequency range: from 433.075 MHz to 434.775 MHz No of channels:69 Channel spacing: 25 kHz Frequency generation:
SAW Resonator
Crystal Synthetiser Modulation:
Amplitude
Digital Frequency
Phase Power source: 24 Vdc Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. 3. NORMATIVE REFERENCE FCC Part 15 (2000)Code of Federal Regulations Title 47 - Telecommunication Chapter 1 - Federal Communications Commission Part 15 - Radio frequency devices Subpart C…
