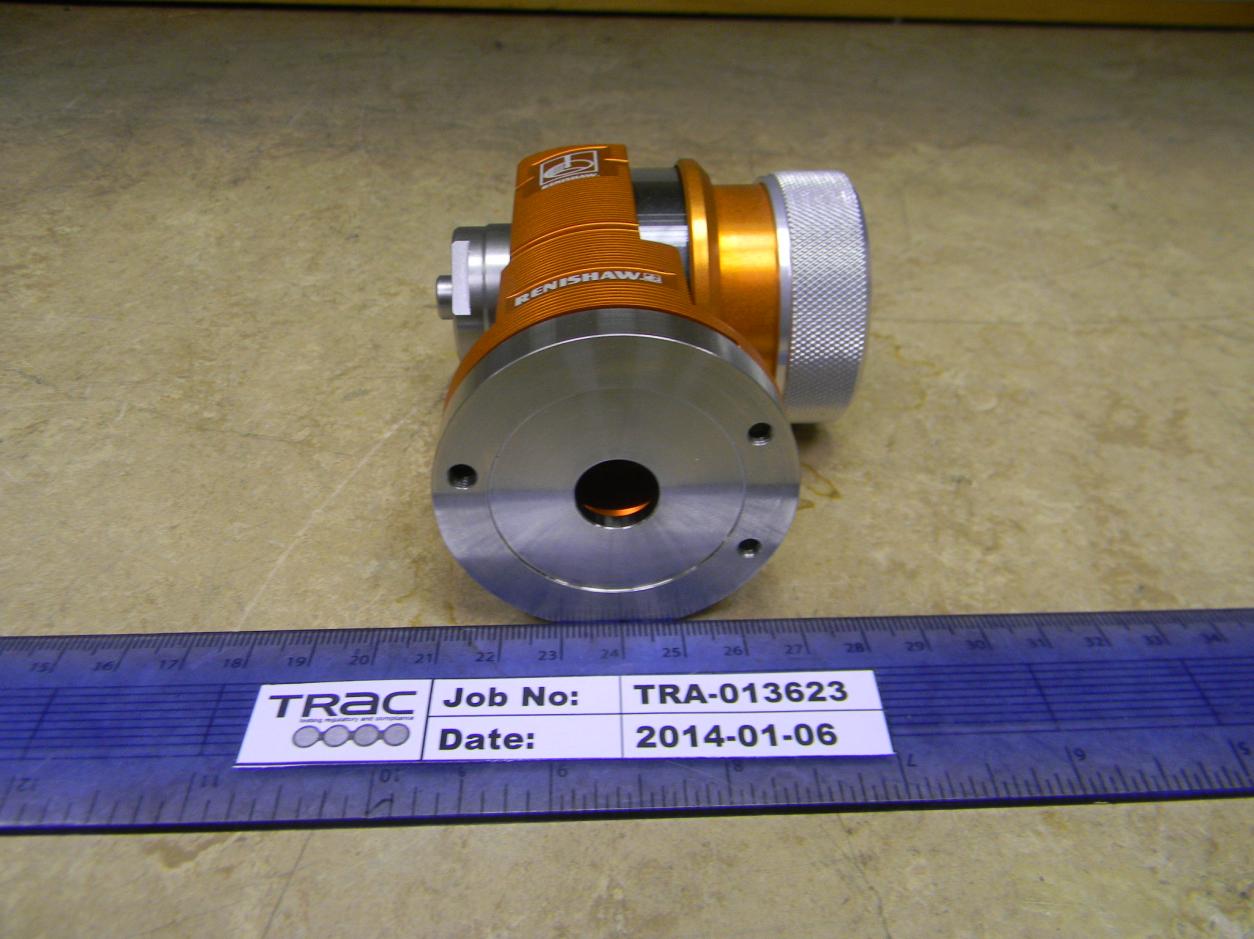

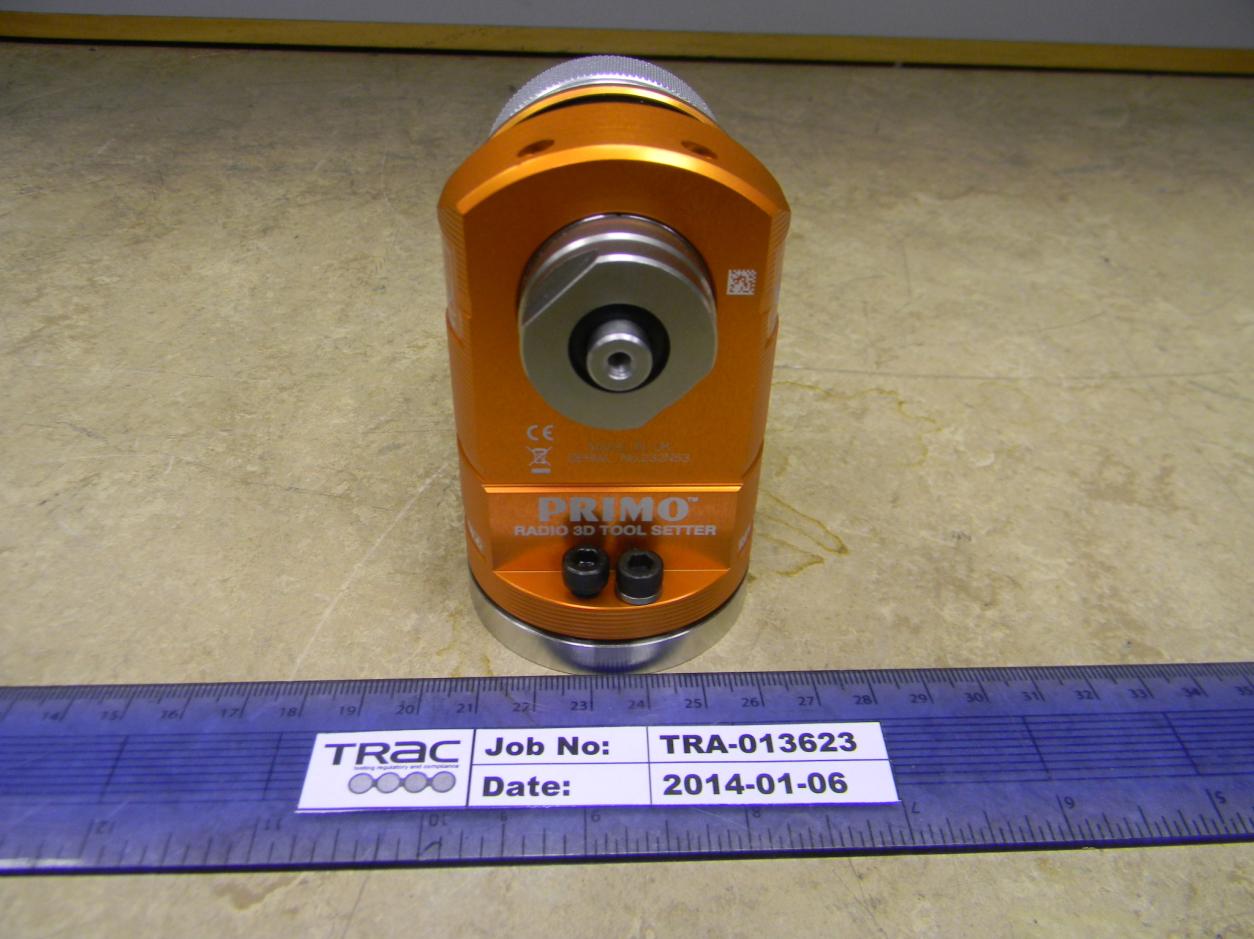

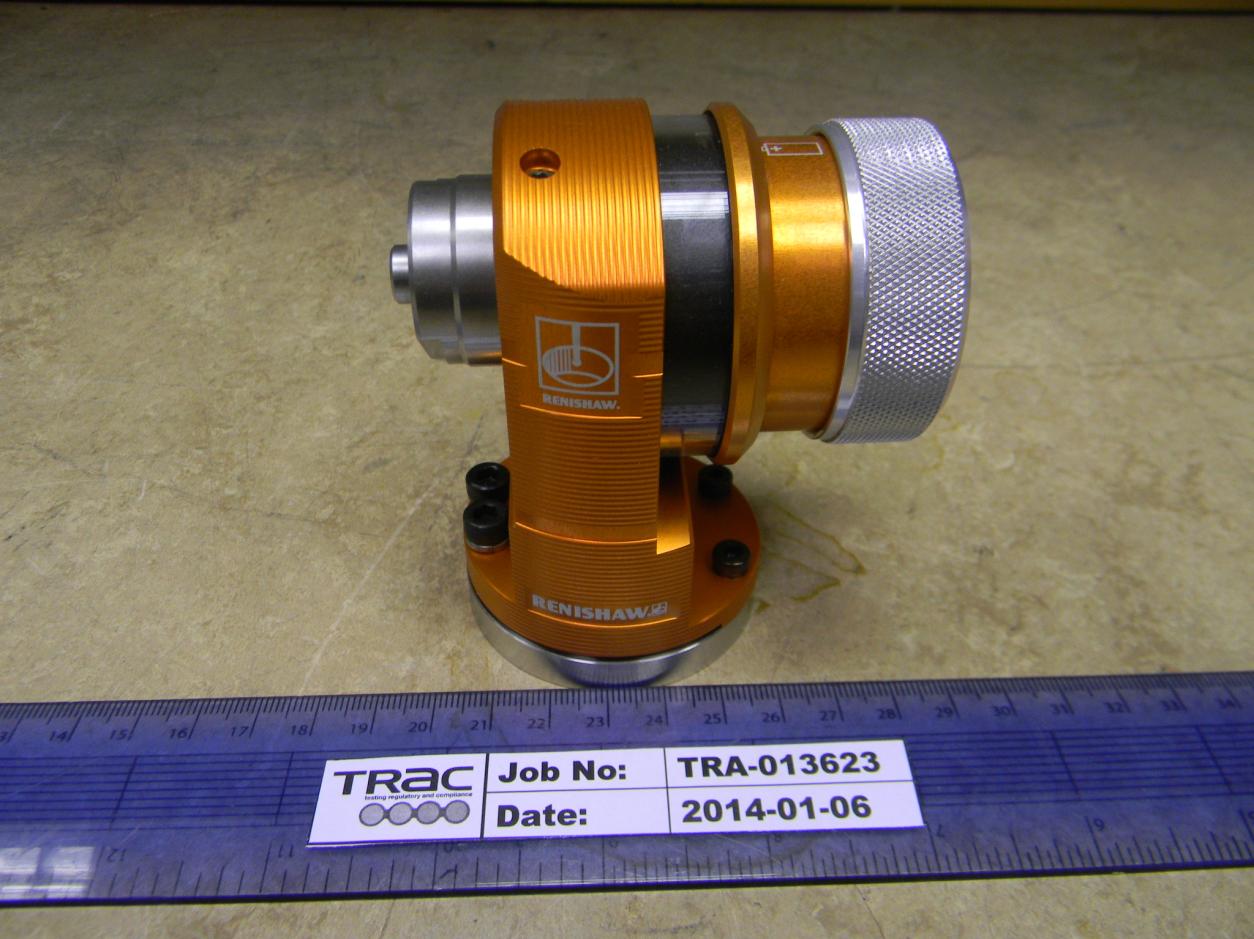

KQGPR3DTSPrimo Radio 3D Tool Setter

Primo™ system © 2013 Renishaw plc. All rights reserved. This document may not be copied or reproduced in whole or in part, or transferred to any other media or language, by any means, without the prior written permission of Renishaw plc. The publication of material within this document does not imply freedom from the patent rights of Renishaw plc. Contents Before you begin......................................................................................................................... 1.1 Before you begin....................................................................................................................1.1 Disclaimer................................................................................................................. 1.1 Trademarks............................................................................................................... 1.1 Warranty................................................................................................................... 1.1 Changes to equipment.............................................................................................. 1.1 CNC machines............................................................................................................1.1 Care of the Primo equipment................................................................................... 1.1 Patents................................................................................................................................... 1.2 EC declaration of conformity................................................................................................. 1.3 WEEE directive.......................................................................................................... 1.3 FCC declaration (US)................................................................................................. 1.3 Radio approvals..................................................................................................................... 1.4 Safety..................................................................................................................................... 1.5 Information to the equipment installer................................................................................. 1.6 Primo training programme.................................................................................................... 1.7 Radio Part Setter & Radio 3D Tool Setter Basics 2.1 Introduction........................................................................................................................... 2.1 Getting started.......................................................................................................... 2.1 Credit........................................................................................................................ 2.1 Modes of operation.................................................................................................. 2.1 Configurable settings............................................................................................................. 2.2 Switch on/switch off methods.................................................................................. 2.2 Enhanced trigger filter.............................................................................................. 2.2 Recalibration............................................................................................................. 2.2 Acquisition mode...................................................................................................... 2.2 Primo credit token................................................................................................................. 2.3 Upgrade credit token................................................................................................ 2.3 Credit transfer........................................................................................................... 2.3 Four low credit indicators......................................................................................... 2.3 Radio Part Setter & Radio 3D Tool Setter operation............................................................. 2.4 Achievable set-up tolerances.................................................................................... 2.4 Software routines.................................................................................................................. 2.5 Interface basics 3.1 Introduction........................................................................................................................... 3.1 Power supply............................................................................................................ 3.1 Input voltage ripple................................................................................................... 3.1 Contents I Renikey...................................................................................................................... 3.1 Interface visual diagnostics....................................................................................... 3.1 Interface inputs...................................................................................................................... 3.2 Interface outputs................................................................................................................... 3.2 SSR output specifications.......................................................................................... 3.2 Interface output waveform.................................................................................................... 3.3 Switches SW1 and SW2.......................................................................................................... 3.4 Switch SW1 output configuration.......................................................................................... 3.5 Switch SW2 output configuration...................…

Text truncated - open the document above for the full version.

Schematic

A Radio Test Report FOR Renishaw Plc ON Primo Radio 3D Tool Setter DOCUMENT NO.TRA-013623-47-03A Total number of pages : 53 TRaC Wireless Test Report : TRA-013623-47-03A Applicant : Renishaw Plc Apparatus : Primo Radio 3D Tool Setter Specification(s) : CFR47 Part 15.247 & RSS-210 Annex 8 FCCID :KQGPR3DTS ICID :3928A-PR3DTS Purpose of Test : Certification Authorised by : : Radio Product Manager Issue Date :13 th February 2014 Authorised Copy Number : PDF TRaC Global Test Report: TRA-013623-47-03A 3 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Appendix A: Formal Emission Test Results 11 A1 Transmitter Peak Output Power 12 A2 RF Antenna Conducted Spurious Emissions 13 A3 Radiated Electric Field Emissions 17 A4 20 dB Bandwidth and Carrier Frequency Separation 22 A5 Hopping frequencies 23 A6 Channel Occupancy 24 A7 Antenna Gain 25 A8 Unintentional Radiated Electric Field Emissions 26 Appendix B: Supporting Graphical Data 29 Appendix C: Additional Test and Sample Details 43 Appendix D: Additional Information 49 Appendix E: Photographs and Figures 50 Appendix F: MPE Calculation 52 Radio Test Report: TRA-013623-47-03A 4 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: S Hodgkinson Report author: A Tosif This report must not be reproduced except in full without prior written permission from TRaC Global. Radio Test Report: TRA-013623-47-03A 5 1.2 Tests Requested By This testing in this report was requested by: Renishaw Plc New Mills Wotton Under Edge Gloucestershire GL12 8JR 1.3 Manufacturer As above 1.4 Apparatus Assessed The following apparatus was assessed between 09 th January 2014 and 20 th January 2014. Primo Radio 3D Tool Setter The above device operates in the license free 2.4GHz radio band. Radio Test Report: TRA-013623-47-03A 6 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Title 47 of the CFR: Part 15 Subpart (c) RSS – 210 Issue 8, December 2010 Radiated spurious emissions (Restricted bands) 15.247 Annex 8, A8.5 ANSI C63.10:2009 Pass Conducted spurious emissions (Non-restricted bands) 15.247 Annex 8, A8.5 ANSI C63.10:2009 Pass AC Power conducted emissions 15.207 Section 7.2.2 ANSI C63.10:2009 N/A 20dB Bandwidth and Channel Spacing 15.247(a)(1)(i) Annex 8, A8.1(b) ANSI C63.10:2009 Pass Conducted Carrier Power 15.247(b)(2) Annex 8, A8.4(2) ANSI C63.10:2009 Pass Hopping Frequencies 15.247(a)(1) Annex 8, A8.1(d) ANSI C63.10:2009 Pass Channel Occupancy 15.247(a)(1)(i) Annex 8, A8.1(d) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions 15.109 Section 7.2.3 ANSI C63.10:2009 Pass Extrapolation Factor: 15.31(f) RSS-Gen Issue 3 7.2.7 - - Maximum Frequency of Search: 15.33 RSS-Gen Issue 3 4.9 - - Antenna Arrangements Integral: 15.203 RSS-Gen Issue 3 7.1.2 - - Antenna Arrangements External Connector: 15.204 RSS-Gen Issue 3 7.1.2 - - Restricted Bands: 15.205 RSS-Gen Issue 3 7.2.2 - - Abbreviations used in the above table: ANSI C 63.10:2009 is outside the scope of the laboratories UKAS accreditation. Mod : Modification RSS : Radio Standards Specification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions Radio Test Report: TRA-013623-47-03A 7 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 °C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards tested to. Radio Test Report: TRA-013623-47-03A 8 Section 2: …
