KQGRMIV2Interface for Sensor Machine Tools

Installation and user’s guide H-2000-5220-05-A RMI - radio machine interface 2003 - 2006 Renishaw plc. All rights reserved. This document may not be copied or reproduced in whole or in part, or transferred to any other media or language, by any means, without the prior written permission of Renishaw. The publication of material within this document does not imply freedom from the patent rights of Renishaw plc. Renishaw part no: H-2000-5220-05-A Issued: 07.06 Disclaimer Considerable effort has been made to ensure that the contents of this document are free from inaccuracies and omissions. However, Renishaw makes no warranties with respect to the contents of this document and specifically disclaims any implied warranties. Renishaw reserves the right to make changes to this document and to the product described herein without obligation to notify any person of such changes. Trademarks RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Renishaw plc in the UK and other countries. apply innovation and Trigger Logic are trademarks of Renishaw plc. All brand names and product names used in this document are trade names, service marks, trademarks, or registered trademarks of their respective owners. 1 Contents Contents EC declaration of conformity ........................... 2 FCC declaration (USA) .................................... 3 Safety ............................................................... 3 Installation and user’s guide ............................ 4 RMI .................................................................. 5 Mounting bracket ............................................. 6 RMI visual diagnostics.................................... 7 RMI outputs ..................................................... 9 RMI output waveforms ................................... 12 Switches SW1, SW2 and start input ............. 14 Wiring diagram ............................................... 16 RMP60-RMI partnership ................................ 17 Remote external audible output .................... 19 RMI cable ....................................................... 20 RMI cable sealing.......................................... 21 Fitting flexible conduit.................................... 21 RMI cover ...................................................... 22 Side exit to rear exit cable conversion .......... 24 Screw torque values...................................... 25 Fault finding................................................... 26 Parts list ......................................................... 28 2 EC DECLARATION OF CONFORMITY Renishaw plc declares that the product:- Name:RMI Description:Radio machine interface has been manufactured in conformity with the following standard: BS EN 61326:1998/Electrical equipment for measurement, control and laboratory use - EMC requirements. Immunity to annex A - industrial locations. Emissions to class A - (non-domestic) limits. and that it complies with the requirements of directive (as amended): 89/336/EECElectromagnetic compatibility The above information is summarised from the full EC declaration of conformity. A copy is available from Renishaw on request. Radio approvals Brazil: Canada: IC: 3928A-RMI Europe: CE 0536! Japan: 004NYCA0042 USA:FCC ID KQGRMI Australia China Israel New Zealand Russia Switzerland 3 FCC DECLARATION (USA) FCC Section 15.19 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device may accept any interference received, including interference that may cause undesired operation. FCC Section 15.105 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses , and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense. FCC Section 15.21 The user is cautioned that any changes or modifications not expressly approved by Renishaw plc, or authorised representative could void the user’s authority to operate the equipment. SAFETY Information for the user Beware of unexpected movement. The user should remain outside of the full working envelope of probe head/extension/probe combinations. Handle and dispose of batteries in according to the manufacturers recommendations. Use only the recommended batteries. Do not allow the battery terminals to contact other metallic objects. In all applications involving the use of machine tools or CMMs, eye protection is recommended. Refer to the machine supplier’s operating instructions. Information for the machine supplier It is the machine supplier’s responsibility to ensure that the user is made aware of any hazards involved in operation, including those mentioned in Renishaw product documentation, and to ensure that adequate guards and safety interlocks are provided. Under certain circumstances the probe signal may falsely indicate a probe seated condition. Do not rely on probe signals to stop the machine’s movement. 4 Installation and user’s guide Installation and user’s guide Warranty Equipment requiring attention under warranty must be returned to your supplier. No claims will be considered where Renishaw equipment has been misused, or repairs or adjustments have been attempted by unauthorised persons. Care of the RMI Keep system components clean and treat the RMI with care. Do not apply metallic labels to the front of the RMI. Changes to equipment Renishaw reserve the right to change specifications withou…

Text truncated - open the document above for the full version.

1
 COMPANY CONFIDENTIAL PAGE 1 OF 3 Document No: PD- 4113 – 9058Issue: -05Date: 29 June 2006 Document Title: RMP60 block diagrams. Summary/Scope: This document provides a block diagram as required by FCC regulations. This document applies to RMI. Reason for Issue/Nature of change: This document has been updated to describe the RMP60 and RMI using the Nordic nRF2401A radio modem. It will be supplied to the FCC as an exhibit for the type approval applications for KQGRMIV2. Distribution: Author:Job Title:Signed:Date: M Woollett Radio Design Manager Reviewed by:Job Title:Signed:Date: S Cresson Design Engineer Ren Sa Reviewed by:Job Title:Signed:Date: J Styles RF Design Engineer Approved by:Job Title:Signed:Date: M WoollettRadio Design Manager Form No: QA401Issue: 1Date: 10 Aug 93 2 Summary of RMP60 system The system is a point to point touch trigger probe radio transmission system for use on CNC (computer numerically controlled) machine tools. It consists of two components, the RMP (Radio Module Probe) and RMI (Radio Machine Interface) which are the two radio stations. RMP60M contains the same circuits as RMP60, the only difference between RMP60M and RMP60 is the mechanical housing. Radio details The system uses FHSS (frequency hopping spread spectrum) transmission in the frequency band from 2400 to 2483.5 MHz. There are 79 * 1 MHz wide channels. The maximum ERP (emitted radio power) is 1mw (0dBm) and the transmission range is up to 15m. The radio link is bi-directional with half duplex transmission. Both RMP and RMI use a nRF2401 Nordic radio modem. The nRF2401 is a transceiver circuit. When transmitting the modem uses a synthesiser to generate the desired carrier from the 13MHz clock. The modem then modulates this carrier using the input serial data and then amplifies it for transmission to the antenna via a filter. When receiving the signal from the antenna is fed via the filter to a low noise amplifier and then to the built in heterodyne receiver. The receiver circuits generate intermediate frequencies of 350MHz and 3 MHz which are used to down mix the signal. Following the mixers the signal is demodulated and the resulting serial received data is output. RMI (see Fig 1) The RMI dimensions are 108*90*40mm (L*W*H), with a cable exit gland which can be fitted to its side or rear faces. The RMI is intended to be connected to the machine tool controller using a multicore screened cable supplied with the RMI. The RMI is powered from the machine tool by 10-30V DC. The RMI contains the electronic circuitry needed to process the radio transmissions to and from the RMP, and the inputs and outputs to and from the machine tools CNC controller. The RMI is controlled by a microprocessor. The microprocessor encodes and decodes the radio messages that are sent or received via the FPGA to or from the radio modem. The FPGA contains a correlator which is used to recognise messages addressed to the RMI. The FPGA contains the timing logic required for the radio modem. The microprocessor and the FPGA use the 40MHz clock. The RMI outputs to the machine tool include 3 * solid state relay outputs (probe status/ skip, low battery and error) and 2 driven outputs (for probe status/ skip). The RMI has an input for an M code start for the system. 3 Fig 1 RMI block diagram Radio Modem Baseband Processor/ PIC Start input Antenna Electrical outputs, SSRs & driven. FPGA Buffer, Correlator & Timing Logic 16 MHz Clock Power Supply (switch mode) Power input 10-30V DC 40 MHz Clock User indicator leds, signal str, error, probe status & low batt

FCC ID : KQGRMIV2 NOTE ; When I transmitted the application the schematics and the Part list were sent without the confidentiality. Note that it is an error I confirm that these documents are confidential. I transmit these documents a second time with confidentiality. Regards P. BONNENFANT ZI Angers Beaucouzé 15 rue de la claie 49070 BEAUCOUZE Tél. : 02 41 73 26 27 Fax : 02 41 73 26 40 [email protected] http://www.emitech.fr

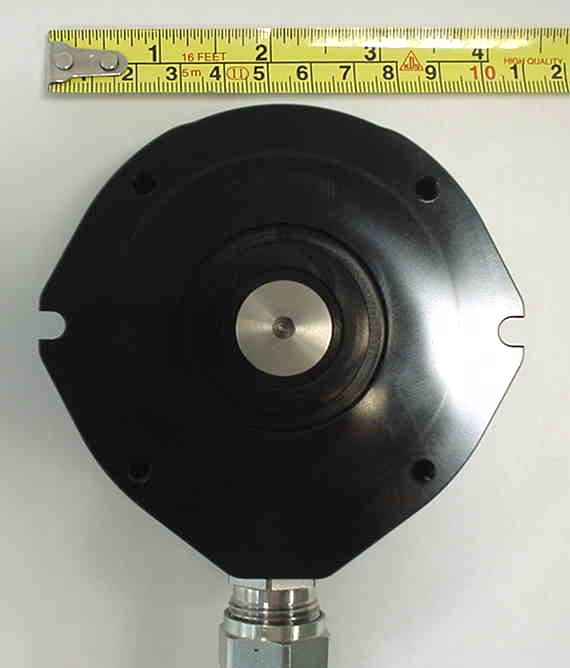

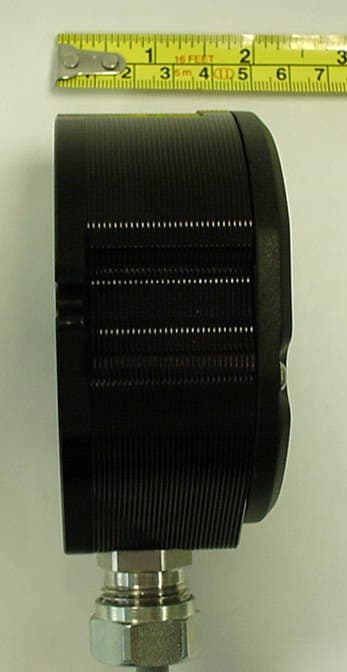

RMI EXTERNAL PHOTOS :

Internal photos Antenna patch

1
 COMPANY CONFIDENTIAL PAGE 1 OF 2 Document No: PD- 4113 – 9058Issue: -4Date: 29 June 2006 Document Title: RMI functional description. Summary/Scope: This document provides a functional description as required by FCC regulations. This document applies to RMI. Reason for Issue/Nature of change: This document has been updated to describe the RMP60 and RMI using the Nordic nRF2401A radio modem. It will be supplied to the FCC as an exhibit for the type approval applications for KQGRMIV2. Distribution: Author:Job Title:Signed:Date: M Woollett Radio Design Manager Reviewed by:Job Title:Signed:Date: S Cresson Design Engineer Ren Sa Reviewed by:Job Title:Signed:Date: J Styles RF Design Engineer Approved by:Job Title:Signed:Date: M WoollettRadio Design Manager Form No: QA401Issue: 1Date: 10 Aug 93 2 Summary of RMP60 system The system is a point to point touch trigger probe radio transmission system for use on CNC (computer numerically controlled) machine tools. It consists of two components, the RMP (Radio Module Probe) and RMI (Radio Machine Interface) which are the two radio stations. RMP60M contains the same circuits as RMP60, the only difference between RMP60M and RMP60 is the mechanical housing. Radio details The system uses FHSS (frequency hopping spread spectrum) transmission in the frequency band from 2400 to 2483.5 MHz. There are 79 * 1 MHz wide channels. The maximum ERP (emitted radio power) is 1mw (0dBm) and the transmission range is up to 15m. The radio link is bi- directional with half duplex transmission. Both RMP and RMI use a nRF2401 Nordic radio modem. The nRF2401 is a transceiver circuit. When transmitting the modem uses a synthesiser to generate the desired carrier from the 13MHz clock. The modem then modulates this carrier using the input serial data and then amplifies it for transmission to the antenna via a filter. When receiving the signal from the antenna is fed via the filter to a low noise amplifier and then to the built in heterodyne receiver. The receiver circuits generate intermediate frequencies of 350MHz and 3 MHz which are used to down mix the signal. Following the mixers the signal is demodulated and the resulting serial received data is output. RMI The RMI dimensions are 108*90*40mm (L*W*H), with a cable exit gland which can be fitted to its side or rear faces. The RMI is intended to be connected to the machine tool controller using a multicore screened cable supplied with the RMI. The RMI is powered from the machine tool by 10-30V DC. The RMI contains the electronic circuitry needed to process the radio transmissions to and from the RMP, and the inputs and outputs to and from the machine tools CNC controller. The RMI is controlled by a microprocessor. The microprocessor encodes and decodes the radio messages that are sent or received via the FPGA to or from the radio modem. The FPGA contains a correlator which is used to recognise messages addressed to the RMI. The FPGA contains the timing logic required for the radio modem. The microprocessor and the FPGA use the 40MHz clock. The RMI outputs to the machine tool include 3 * solid state relay outputs (probe status/ skip, low battery and error) and 2 driven outputs (for probe status/ skip). The RMI has an input for an M code start for the system.
