KQP09ENERGY SAVING LAMP

CHUAN SHIH INDUSTRIAL CORPORATION LTD. Energy Saving Lamp FCC ID: KQP09 USERS MANUAL 1.0. General Description These 3-Way CFL products are a direct replacement to the 3-Way Incandescent Bulbs. They are self-ballasted, screw-in Compact Fluorescent Lamps, to be used in the 3-Way sockets, driven by a 3-Way switch, primarily on the Table Lamp and Floor Lamp applications. The applications, by the nature of the 3-way switch operation, require an easy access by hand, in order to perform the sequential switching of the 3 Light Levels. 1.1. The 3 Light Levels Similar to any typical Incandescent Bulb operation, these CFL Products are capable of generating 3 distinct Light Levels. Turning the 3-Way Switch from the OFF state will generate the first Light Level, followed by the two more Light Levels, in a sequential increase of Light Intensity. The first Light Level generates a level of Light Intensity in the range of about (20-30)%, the next Light Level generates a level of Light Intensity in the range of (50-60)%, while the highest Light Level generates a level of 100% of Light Intensity. 2.0. Instructions and Environmental Conditions Handling of these products under power presents the risk of electric shock. The Products are to be used in dry locations only. The Products are not to be used where exposed to weather. 2.1. Installation These 3-Way CFL Products are designated for installation in 3-Way sockets only, as direct replacements to the Incandescent Bulbs. They are not for use with light dimmers. They are not for use in totally enclosed recessed fixtures. Whenever the Product is screwed into a typical ON-OFF Incandescent Fixture, it will generate a single Light Level, most typically the intermediate one. In a typical installation there is no need for the “harp” of the Table or Floor Lamp to be removed prior to installation. The Product will screw in like a regular Incandescent Bulb. CHUAN SHIH INDUSTRIAL CORPORATION LTD. Energy Saving Lamp FCC ID: KQP09 2.2. Operators There are no special qualification requirements to the Product Operator. 3.0. Compliance This device has been tested and found to comply with Part 18 of FCC Rules. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 4.0 Intellectual Property These products are governed by the following US Patents: 5798617, 582699, 5982111

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 3 Part I : SE-18T PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 3 Part II : SE-23T PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 3 Part III : SE-27T PHOTOS OF EUT

Sample of FCC ID Label FCC ID: KQP09 Model No.: SE-18T Model No.: SE-23T Model No.: SE-27T

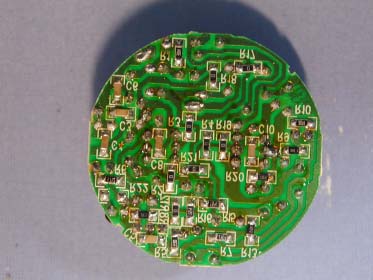

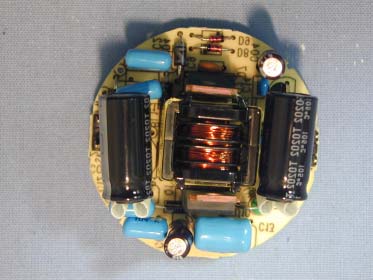

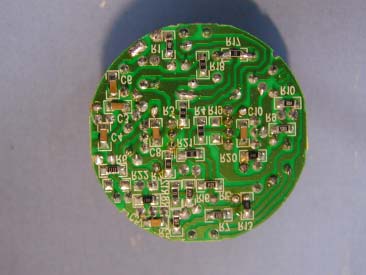

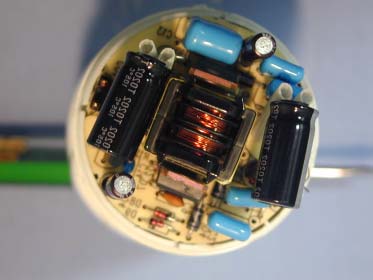

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 6 Part I : SE-18T PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 6 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 6 Part II : SE-23T PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 6 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 6 Part III : SE-27T PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 6 of 6 PHOTOS OF EUT

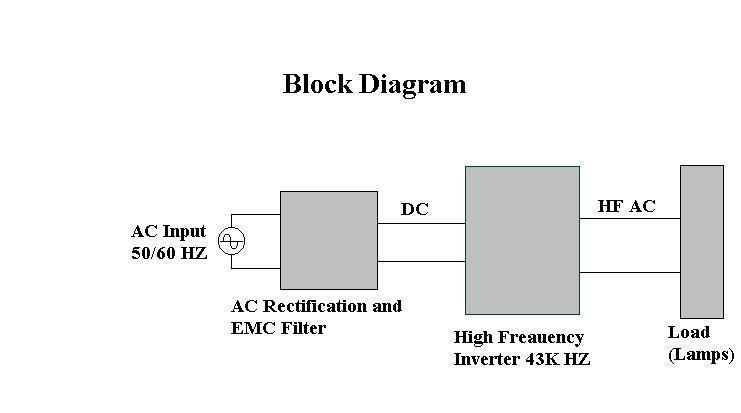

FCC ID: KQP09 Operational Description of the equipment The EUT is a direct replacement to the 3-Way Incandescent Bulbs. They are self-ballasted, screw-in Compact Fluorescent Lamps, to be used in the 3-Way sockets, driven by a 3-Way switch, primarily on the Table Lamp and Floor Lamp applications. The applications, by the nature of the 3-way switch operation, require an easy access by hand, in order to perform the sequential switching of the 3 Light Levels. PRODUCT Energy Saving Lamp MODEL NO. SE-18T, SE-23T, SE-27T POWER SUPPLY 120Vac/60Hz CABLE N/A WORKING FREQUENCY 43 kHz OUTPUT 18W, 23W, 27W

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.: A03052211 Report No.: FCDA03052211 Page: 2 of 23 R.O.C. Date: Jul. 29, 2003 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................3 1.1 DOCUMENT POLICY........................................................................................3 1.2 TEST STATEMENT............................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE......................................................4 2.1 GENERAL DESCRIPTION OF EUT..................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE....................................................4 2.3 DESCRIPTION OF TEST MODE.......................................................................5 2.4 DESCRIPTION OF SUPPORT UNIT.................................................................5 3. DESCRIPTION OF APPLIED STANDARDS......................................................5 4. CONDUCTED EMISSION TEST........................................................................6 4.1 CONDUCTED EMISSION LIMIT........................................................................6 4.2 TEST EQUIPMENT............................................................................................6 4.3 TEST SETUP.....................................................................................................7 4.4 TEST PROCEDURE..........................................................................................7 4.5 EUT OPERATING CONDITION.........................................................................7 4.6 TEST RESULT...................................................................................................8 5. RADIATED EMISSION TEST............................................................................11 5.1 RADIATED EMISSION LIMIT............................................................................11 5.2 TEST EQUIPMENT...........................................................................................11 5.3 TEST SET-UP...................................................................................................12 5.4 TEST PROCEDURE.........................................................................................13 5.5 EUT OPERATING CONDITION........................................................................13 5.6 RADIATED EMISSION TEST RESULT.............................................................14 6. PHOTOS OF TESTING....................................................................................17 7. TERMS OF ABRIVATION.................................................................................23 FCC ID: KQP09 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.: A03052211 Report No.: FCDA03052211 Page: 3 of 23 R.O.C. Date: Jul. 29, 2003 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - AC power source, 120 Vac/60 Hz, was used during the test. FCC ID: KQP09 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.: A03052211 Report No.: FCDA03052211 Page: 4 of 23 R.O.C. Date: Jul. 29, 2003 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Energy Saving Lamp MODEL NO. SE-18T, SE-23T, SE-27T POWER SUPPLY 120Vac/60Hz CABLE N/A NOTE : The EUT has three model numbers as below on market. They are identical in all aspects except for the following: Mode No. Output SE-18T 18W SE-23T 23W SE-27T 27W Working Frequency: 43 kHz For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A NOTE : 1. The highest clock is 40kHz and 50kHz. 2. Frequency range to be measured. Radiated emission is 30 MHz to 1 GHz. FCC ID: KQP09 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.: A03052211 Report No.: FCDA03052211 Page: 5 of 23 R.O.C. Date: Jul. 29, 2003 2.3 DESCRIPTION OF TEST MODE The EUT was pre-tested under the following luminous: High Middle Low The worst emission was found under “Middle” and therefore the test data of only this mode is recorded. The EUT was tested under the following modes: Mode Model No. 1 SE-18T 2 SE-23T 3 SE-27T 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:1992 and CISRP 22:1997. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID / DOC CABLE N/A NOTE : For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of ISM and according to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 18 ANSI C63.4:1992 MP-5 All tests have been performed and recorded as per the above standards. FCC ID: KQP09 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.: A03052211 Report No.: FCDA03052211 Page: 6 of 23 R.O.C. Date: Jul. 29, 2003 4. CONDUCTED EMISSION TEST 4.1 CONDUCTED EMISSION LIM…

Text truncated - open the document above for the full version.

- Conducted test (Mode 1: SE-18T) FCC ID: KQP09 Lab Code: 200099-0 - Conducted test (Mode 2: SE-23T) FCC ID: KQP09 - Conducted test (Mode 3: SE-27T) FCC ID: KQP09 - Radiated test (Mode 1: SE-18T) FCC ID: KQP09 - Radiated test (Mode 2: SE-23T) FCC ID: KQP09 - Radiated test (Mode 3:SE-27T) FCC ID: KQP09
