KSME1003925Remote Control Transmitter

EDR10488 4/05 Document Part No. 99300799 © Leggett & Platt, Inc. OPERATION GUIDE MASSAGE NOTE: When activated, the massage system will launch the prior intensity setting used and automatically shut off after 30 minutes. To restart Neurosage wave, press the Neurosage on/off button. To restart head or foot massagers, press the “+” symbol on the head or foot massage button/s. IMPORTANT: Read advisory information in the owners manual carefully before using this product. The potential for electrical shock exists if electrical components are not installed or operated properly. See back of page for additional programming features... FOOT UP/DOWN BUTTON Press and hold to raise or lower the foot section. HEAD UP/DOWN BUTTON Press and hold to raise or lower the head section. POSITION RECALL BUTTONS Press to activate a position set by the program button. FLAT BUTTON Press to return bed to the level position. HEAD MASSAGE BUTTON Press the “+” symbol to activate the head massager at a preset intensity. Press and hold the “+” symbol to intensify head massager. Press and hold the “–” symbol to decrease head massager intensity. PROGRAM SET BUTTON Press to capture any position of the bed as a programmed position (3 unique positions). Press the recall buttons (“P1, P2 or P3”) to return bed to any of the preset positions. To Program Preset Positions: 1. Set the head and/or foot to the desired position. 2. Press the program set button once. 3. Press position recall button “P1” to save position. 4. Repeat steps 1 thru 3 above to program favorite positions for “P2” and “P3”. TRANSMISSION INDICATOR LIGHT FOOT MASSAGE BUTTON Press the “+” symbol to activate the foot massager at a preset intensity. Press and hold the “+” symbol to intensify foot massager. Press and hold the “–” symbol to decrease foot massager intensity. STOP BUTTON Press to immediately stop all active bed functions. NEUROSAGE ON/OFF BUTTON Press to activate or deactivate the Neurosage wave vibration system. NEUROSAGE WAVE INTENSITY BUTTON Press and hold the “+” symbol to intensify Neurosage wave intensity. Press and hold the “–” symbol to decrease Neurosage wave intensity. www.lpadjustablebeds.com 4002 BATTERY REPLACEMENT Requires (2) CR2032 3 volt batteries. REMOVAL: 1. Remove the battery compartment cover located on the back of the hand control (FIGURE 1). 2. Press the round- shaped tab (FIGURE 2) and each battery will eject from the plastic captive clip (FIGURE 3). 3. Grasp and remove batteries.Note position of batteries when removing for replacement. REPLACEMENT: 4. Position the new batteries face-up and insert into the plastic captive clips (reverse of removal). 5. Carefully push batteries in and down to install. 6. Replace battery compartment cover. FIGURE 1 PUSH IN (SLIGHTLY) AND SLIDE OFF BATTERY COMPARTMENT COVER FIGURE 3 WHEN BATTERY EJECTS FROM CAPTIVE CLIP, ROTATE UP AND OUT OF BATTERY COMPARTMENT TO REMOVE 4002 PROGRAMMING To set channels on a single base: 1. Plug the bed into a power source and within 30 seconds, press the head up button on the hand control until the transmission indicator light illuminates. This will confirm that the hand control and the bed are communicating. 2. The hand control channel is now programmed. To set channels for 2 or more beds to operate independently: 1. Unplug all beds from their power sources. 2. Plug in the first bed to be programmed and within 30 seconds, press the head up button on the hand control until the transmission indicator light illuminates. This will confirm that the hand control and the bed are communicating. 3. Repeat steps 1 and 2 with each base requiring programming (It is important to use the specific hand control that will be used to operate the bed). Beds prior programmed with the remote need not be unplugged. 4. Multiple beds are now programmed for independent operation. Note: In the event of power failure or if bed is inadvertently unplugged from the electrical power source, wait 30 seconds (after power is restored) before using any hand control. This will prevent bases from learning and working simultaneously. FIGURE 2 PUSH DOWN ON TAB TO EJECT BATTERIES BATTERIES Re: Certification for Raven Transmitter Model(s): E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will also be contained in the manual: WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Raven Transmitter Model(s): E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Raven Transmitter Model(s): E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Raven requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Raven has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan July 5, 2006 Re: Certification for Raven Transmitter Model(s): E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Raven Transmitter Model(s): E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Raven Industries Inc Electronic Systems Division, 4372 Green Ash Drive Earth City, MO 63045 Tim Diehl [email protected] Tel: 314-291-2712 ext 3102 Fax: 314-291-0773 It will be manufactured by: Raven Industries 4372 Green Ash Drive Earth City, MO 63045 Darren Hacker Tel: 314-291-2712 Fax: 314-291-0773 Canadian Contact: Globe Spring Co. 25 Doney Crescent Concord, Ontario L4K 1P6 Larry Marcus 416-669-9681


! " !#$ %& ' (  ' ( !#$

July 5, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Raven Transmitter Model(s): E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 Please find enclosed application materials for certification of Raven E1003925 Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist July 5, 2006 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Raven Transmitter Model(s): E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 Please find enclosed application materials for certification of Raven E1003925 Transmitter. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 2004A-E1003925 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

July 5, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KSME1003925 IC: 2004A-E1003925 Model(s): E1003925 Please find enclosed application materials for certification of Raven E1003925 Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

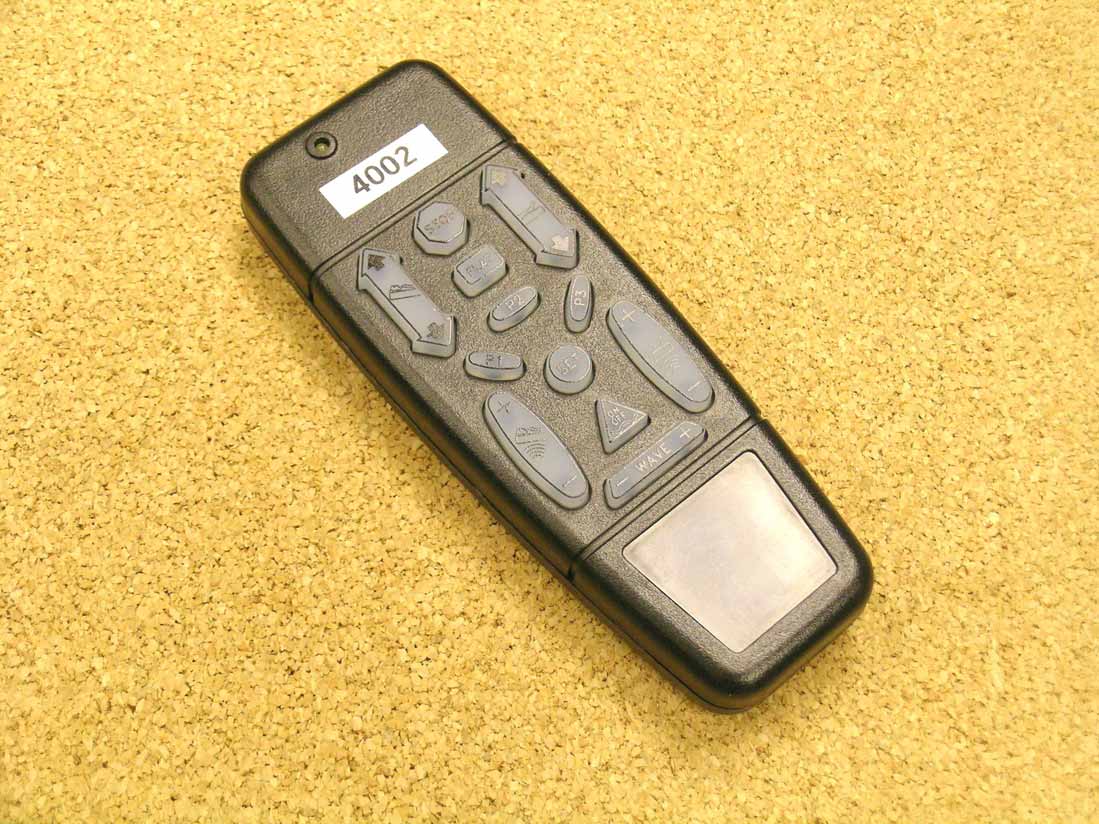

Technical Description of Operation 4002 Hand Wand The 4002 RF Hand Wand is a microcontroller based, battery powered 310MHz On-Off-Keyed transmitter. The hand wand is in sleep mode until a button on the Conductive Rubber Switch (CRS) is pressed. The button press wakes up the micro controller and processes the button press. After decoding, the microcontroller generates the data pattern to on-off key the transmitter circuit. The back light is activated and the microcontroller stays awake for six seconds until another button is pressed or the same button is held pressed. CRS/Button Matrix: The CRS has conductive carbon impregnated pads situated above gold plated contacts on the PCB. When the button section of the CRS is pressed, the pad shorts two adjacent conductors. These conductors make up a six column by four row switch matrix. After wake-up, the microcontroller drives the columns and reads the rows to determine which button was pressed. Battery: The hand wand uses qty 4 “AAA” type batteries connected in series. Backlight: The backlight consists of three LED’s to illuminate the translucent CRS. The back light is active when the microcontroller is awake, during data transmission and the six second wake time after button release.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-319 Page 1 of 10 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Raven Industries Inc. Transmitter Model(s): E1003925 Report No. 415031-319 July 5, 2006 Copyright © 2006 For: Raven Electronic Systems Division, 4372 Green Ash Drive Earth City, MO 63045 Contact: Tim Diehl [email protected] Tel: 314-291-2712 ext 3102 Fax: 314-291-0773 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Raven Industries Inc. model(s) E1003925. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on June 28, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 3.2 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from four 1.5 VDC batteries. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-319 Page 2 of 10 1. Introduction Raven Industries Inc. model E1003925 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-319 Page 3 of 10 3. Configuration and Identification of Device Under Test The DUT is a 310 MHz transmitter, approximately 2.5 x 6 x 1 inches in size. The DUT was designed and manufactured by Raven, Electronic Systems Division, 4372 Green Ash Drive , Earth City, MO 63045. It is identified as: Raven Transmitter Model: E1003925 FCC ID: KSME1003925 IC: 2004A-E1003925 3.2 Models There is only one model of the device, and it is designed for use in the remote control system of power adjustable beds. It is actuated by pushing a button, and transmits a PPM signal so long as a button is depressed. The coding is performed by a microprocessor, timed by a 12.8 MHz internal oscillator. Since the transmitter transmits continuous as long as the button is depressed, only one transmitter was used in all of the measurements. 3.3 Modes of Operation The DUT has only one mode of operation, and is manually activated. It ceases to transmit within 5 seconds of deactivation. See Figure 6.1. 3.3 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231(a-c), 15.209), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210 (Section 2.6 and 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (F…
