KSX-X9901

1 User Manual Battery........................................................................................................................................2 Status Panel.................................................................................................................................2 Taking a Picture..........................................................................................................................3 Viewing / Modifying Pictures.....................................................................................................4 Erase The Pictures Stored Inside the Camera...............................................................................7 Using the Album Application..................................................................................................7 Using the Buttons on the Camera.............................................................................................7 2 Battery Insert one battery into the compartment as shown Status Panel Display the abbreviated messages and the counts of picture taken List of LCD display messages – case sensitive: 1. Po: picture overflow cause: compressed picture size over the SRAM size (it won't happen in this camera) reseult: system soft-reset 2. FL : picture full cause: picture count meet maximum storage size result: can't take any more picture 3. FE: flash memory error cause: hardware error or inappropriate operation(such as shut-down power while writing flash) result: may get damaged picture 4. bE: board number error cause: hardware error result: dead camera 5: rS: system soft-reset cause: system time-out for hardware response result: may cause camera hung (try re-boot camera) 3 6. Lo: battery low cause: battery voltage below the threshold result: may cause picture worse quality (try new battery) 7. LL: low light condition cause: no enough lighting result: longer exposure time and may have noise within the picture 8. --: enter testing mode cause: press both buttons while power up result: start testing routine after release both buttons 9: FO: verify flash OK cause: test flash OK when enter testing mode result: enter button testing routine 10. b1: testing shutter button cause: push shutter in testing mode result: LED flash once and buzzer beep once 11. b2: testing self-timer button cause: push self-timer in testing mode result: LED flash twice and buzzer beep twice Taking a Picture 1. Turn the camera on Note: The camera will go to a Standby mode if you don’t take a shot in 10 seconds. 2. Frame the subject through the optical viewfinder Note: The distance between you and the subject(s) can range from 3 feet to infinity 3. Press the shutter button to take the shot Note: Press and hold the button until you hear a beep 4 Viewing / Modifying Pictures 4. Press the self-timer button to take a picture of yourself. Note: You will hear the beeps in an increasing frequency manner from the Camera Microphone. 1. Connect the serial port from the camera to the computer 5 2. Open the DPS320 ALBUM application from the Start Program menu 6 3. Click on the Download button while the camera is powered on and connected 4. Double click on an icon to open the picture for viewing or modification 7 Erase The Pictures Stored Inside the Camera Using the Album Application Using the Buttons on the Camera Click on the Erase button while the camera is powered on and connected 1. Press and hold the two buttons while the camera power is on 8 Note: After erasing the memory inside the camera (using either one of the techniques described above), the LCD display on the Status Panel should read “00”. 2. Switch the power to Off and then back On twice while you are holding the buttons

November 3,1998 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 Gentlemen: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U. S. C. 853(a). This authorization is effective only until November 3, 1999 Sincerely, Xirlink, Inc. 22 IO O’Toole Avenue, San Jose, CA 95 I3 I Tel: 408 324-2100 Fax: 408 324-2101 www.xirlink.com

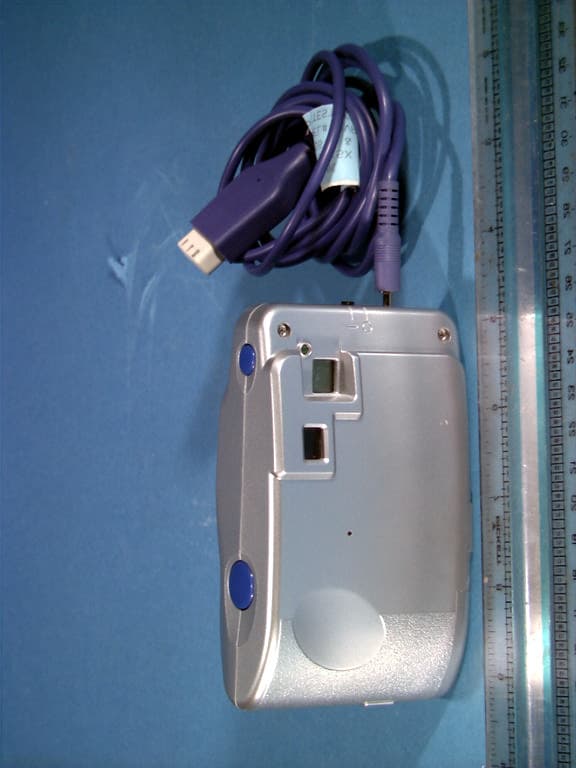

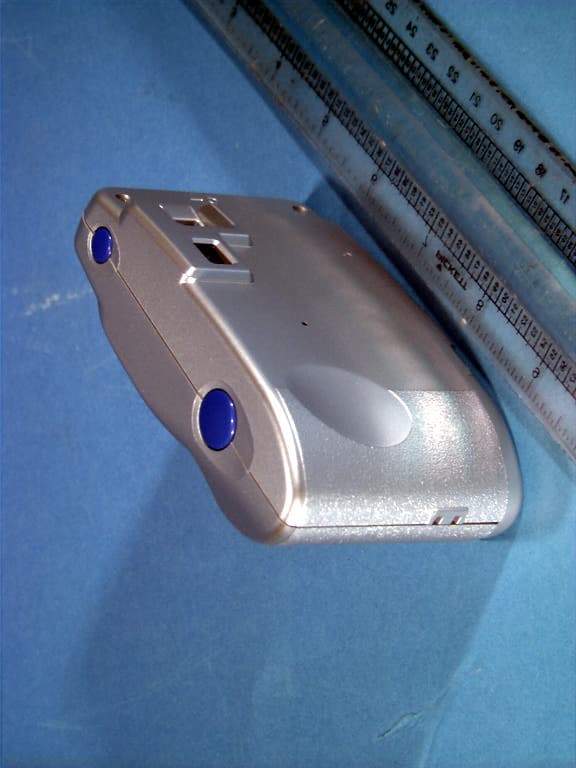

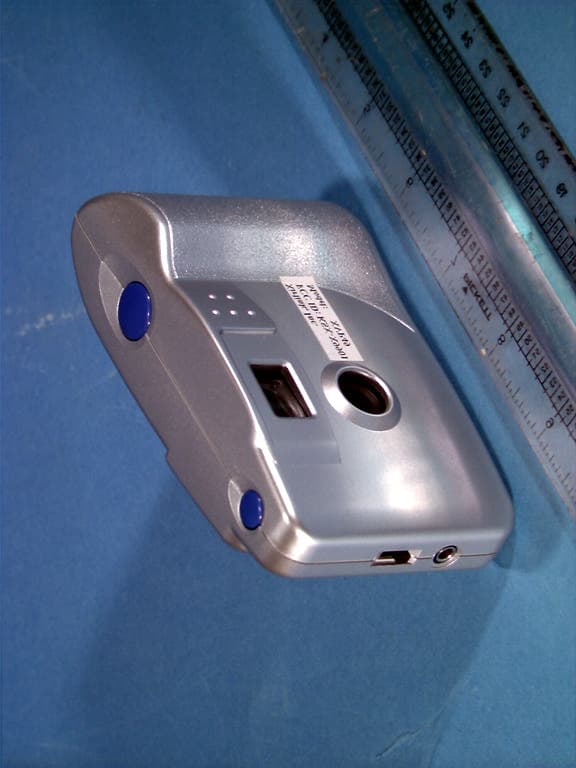

August 11, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:XIRLINK Inc. FCC ID: KSX-X9901 Gentlemen: Submitted herewith, on behalf of XIRLINK Inc., is an application for Part 15 Certification of the following peripheral device: FCC ID:KSX-X9901 MODEL:XVP49 TRADE NAME:Xirlink EUT TYPE:Serial PC Camera Attached is the authorization letter, measurement report (Radiation emission data, Line Conducted emission data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Patrick Lin President XIRLINK Inc.

Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49) Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49) Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49) Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49) Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49)

© 1999 PCTEST Lab FCC ID SAMPLE LABEL LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Required FCC statement will be placed in the user’s manual per §15.19(c) of the FCC Rules. FCC ID: KSX-X9901

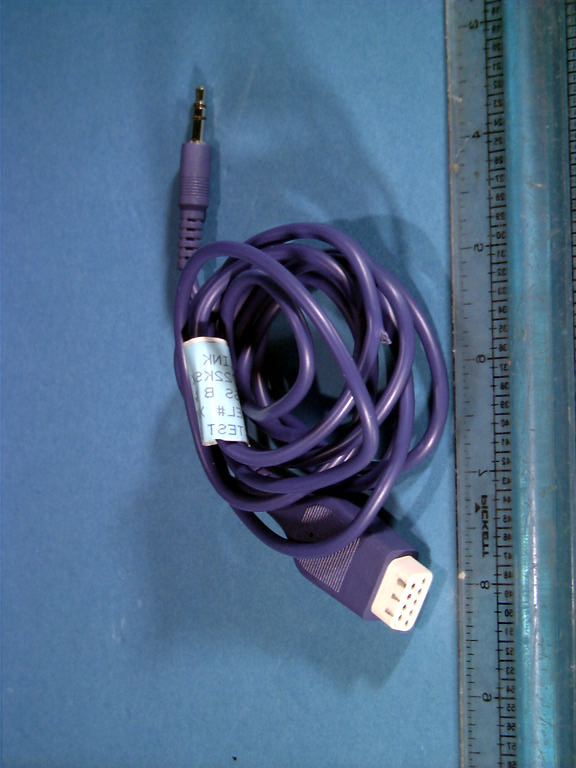

Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49) Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49) Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49) Test Report S/N: B.990722448.KSXFCC Class B Test Date(s): August 02-03, 1999Certification © 1999 PCTEST Lab XIRLINK FCC ID: KSX-X9901 NVLAP Lab Code: 100431-0 Serial PC Camera (Model: XVP49)

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE Xirlink, Inc.Dates of Tests: August 02-03, 1999 2210 O’Toole AvenueTest Report S/N: B.990722448.KSX San Jose, CA 95131Test Site: PCTEST Lab, Columbia MD Attn: Patrick Lin, PresidentJob No.: CHANEY #9013A FCC ID KSX-X9901 APPLICANT XIRLINK, INC. Rule Part(s):FCC Part 15 Subpart B Equipment Class:Class B Peripheral Device (JBP) EUT Type:Serial PC Camera Trade Name: Xirlink Model:XVP49 Crystal/Oscillator(s):44.2MHz, 22.11MHz This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified is ANSI C63.4-1992 (Note Codes: #37). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Lab Code 100431-0 © 1999 PCTEST Engineering Laboratory, Inc. FCC Class B TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCTION INFORMATION 3 DESCRIPTION OF TESTS (CONDUCTED) 4 DESCRIPTION OF TESTS (RADIATED) 5 LIST OF SUPPORT EQUIPMENT 6 TEST DATA (CONDUCTED) 7 TEST DATA (RADIATED) 8 SAMPLE CALCULATIONS 9 ACCURACY OF MEASUREMENT10 LIST OF TEST EQUIPMENT11 TEST SOFTWARE USED12 RECOMMENDATION / CONCLUSION13 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: BLOCK DIAGRAM(S) ATTACHMENT G: SCHEMATIC DIAGRAM(S) ATTACHMENT H: TEST SETUP PHOTOGRAPHS ATTACHMENT I: EXTERNAL PHOTOGRAPHS ATTACHMENT J: INTERNAL PHOTOGRAPHS ATTACHMENT K: USER’S MANUAL Test Report S/N: B.990722448.KSXFCC Class B Dates of Tests: August 02-03, 1999Certification © 1999 PCTEST LabXIRLINK FCC ID: KSX-X99011 Serial PC Camera (Model: XVP49) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Applicant:XIRLINK, INC. Address:2210 O’Toole Avenue San Jose, CA 95131 Attention:Patrick Lin - President • FCC ID:KSX-X9901 • Class:B Digital Device / Peripheral (JBP) • EUT Type:Serial PC Camera • Trade Name:Xirlink • Model:XVP49 • Rule Part(s):FCC Part 15 Subpart B • Test Procedure(s):ANSI C63.4 (1992) • Dates of Tests:August 02-03, 1999 • Place of Tests:PCTEST Lab, Columbia, MD • Test Report S/N:B.990722448.KSX • Job No.:CHANEY #9013A Lab Code 100431-0 Test Report S/N: B.990722448.KSXFCC Class B Dates of Tests: August 02-03, 1999Certification © 1999 PCTEST LabXIRLINK FCC ID: KSX-X99012 Serial PC Camera (Model: XVP49) 1.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from XIRLINK Serial PC Camera FCC ID: KSX-X9901. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: B.990722448.KSXFCC Class B Dates of Tests: August 02-03, 1999Certification © 1999 PCTEST LabXIRLINK FCC ID: KSX-X99013 Serial PC Camera (Model: XVP49) 2.1 Product Information 2.2 Equipment Description The Equipment Under Test (EUT) is the XIRLINK Model: XVP49 Serial PC Camera FCC ID: KSX-X9901. Crystal/Oscillator(s):44.2 MHz, 22.11 MHz Chipset(s):XIRLINK, ISSI Connector(s): mini-jack connector to PC Serial Bus Cable(s):Unshielded Serial Power Supply:9V Battery Test Report S/N: B.990722448.KSXFCC Class B Dates of Tests: August 02-03, 1999Certification © 1999 PCTEST LabXIRLINK FCC ID: KSX-X99014 Serial PC Camera (Model: XVP49) 3.1 Description of Tests 3.2 Conducted Emissions The line-conducted facility is located inside a 16'x20'x10' shielded enclosure. It is manufactured by Ray Proof Series 81 (see Figure 2). The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 65-6. A 1m. x 1.5m. wooden table 80cm. high is placed 40cm. away from the vertical wall and 1.5m away from the side wall of the shielded room (see Figure 3). Solar Electronics and EMCO Model 3725/2 (10kHz-30MHz) 50Ω/50μH Line-Impedance Stabilization Networks (…
