KT6SW-2098Wrist Watch Walkie Talkie

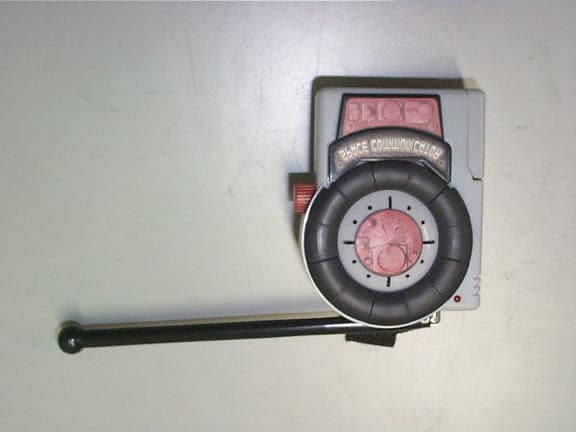

FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management Group EUT MODEL: SW-2098 External Photo-EUT Front View FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management Group EUT MODEL: SW-2098 External Photo-EUT Back View Proposed FCC Label Location

Product Labeling

FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management Group EUT MODEL: SW-2098 EUT Internal Photo FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management Group EUT MODEL: SW-2098 PC Board-Component Side FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management Group EUT MODEL: SW-2098 PC Board-Solder Side

EMC Compliance Management Group 670 National Avenue Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 Competent Body Approval #: 14082 NVLAP Lab code: 200068-0 EMC TEST REPORT On Model: SW-2098 Prepared for Boxer Toys Co., Ltd. According to FCC Part 15 Class B CERTIFICATION REPORT FCC ID#:KT6SW-2098 Prepared by:Tian Wang QC Manager:Michael J. Azar DECLARATION OF CONFORMITY According to FCC Part 15 Responsible Party Name :Boxer Toys Co., Ltd. Address :Unit 10, 4/F., Sun Cheong Industrial Bldg., 1 Cheung Shun St., Cheung Sha Wan, Kowloon, Hong Kong Telephone :(852) 2397-2628 Declares that product :Wrist Watch Walkie Talkie (Receiver Portion) Model Name :SW-2098 Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Test Laboratory: This is the result of tests, that were carried out from the submitted product sample(s) in conformity with the specification of the respective standards. The certification holder has the right to affix the FCC label on the product complying with the inspection sample. 670 National Ave. Mountain View, CA 94043 650-988-0900 650-988-6647(Fax) Accreditation #: 200068-0 Date: ___________________________ Phone: ___________________________ Fax: ___________________________ Signature:___________________________ i Table of Contents DISCLAIMER NOTICE___________________________________1 REPRODUCTION CLAUSE______________________________1 ADMINISTRATIVE DATA_______________________________2 EUT DESCRIPTION_____________________________________2 TEST SUMMARY_______________________________________3 TEST LOCATION_______________________________________4 ACCREDITATION BODIES______________________________4 ANTENNA REQUIREMENT 15.203______________________5 PRODUCT LABELING___________________________________6 TEST SYSTEM JUSTIFICATION_________________________7 EQUIPMENT MODIFICATION___________________________8 TEST SYSTEM DETAILS________________________________9 CONFIGURATION OF TESTED SYSTEM________________10 ATTACHMENT 1 – CFR 15.235 (A) FIELD STRENGTH RESULTS (202-R-01)_______________________________________11 ATTACHMENT 2 – CFR 15.235 (B) & 15.109 HARMONICS MEASUREMENT RESULTS (202-R-02)___________________13-15 FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 1 of 15 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 2 of 15 ADMINISTRATIVE DATA Test Sample: SW-2098 Part Number: N/A Manufacturer: Boxer Toys Co., Ltd. Unit 10, 4/F., Sun Cheong Industrial Bldg., 1 Cheung Shun St., Cheung Sha Wan, Kowloon, Hong Kong Telephone: (852) 2397-2628 Fax: (852) 2393-3246 EUT Description Boxer Toys Co., Ltd., model SW-2098 (referred to as the EUT in this report) is Wrist Watch Walkie Talkie FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 3 of 15 Test Summary The Electromagnetic Compatibility requirements on Model SW- 2098 for this test are stated below. All results listed in this report relate exclusively to this above-mentioned model as the Equipment Under Test. This report confers no approval or endorsement upon any other component, host or subsystem used in the test set-up. Emission Tests SpecificationsTest ResultsTest PointRemark CFR 47 Part 15 Section 15.235 (a) Field StrengthEnclosureAttachment 1 CFR 47 Part 15 Section 15.235 (b) & 15.109 Harmonics Measurement EnclosureAttachment 2 FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 4 of 15 Test Location EMC Compliance Management Group is located at 670 National Ave., Mountain View, CA 94043, USA. Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM and Telecommunications Products. Laboratory Assessment #: 14082, Approved by Assessment Services, A U. K. Competent Body, as meeting the requirements of EN45001and ISO Guide 25. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Registered in accordance with Japanese VCCI Regulations. FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 5 of 15 Antenna Requirement 15.203 The transmitter uses a permanently connected antenna. FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 6 of 15 Product Labeling FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 7 of 15 System Test Justification Handset uni…

Text truncated - open the document above for the full version.

Error! No text of specified style in document.1 ATTACHMENT 1 – CFR 15.235 (a) FUNDAMENTAL MEASUREMENT RESULTS CLIENT:Boxer Toys Co., Ltd.TEST REFERENCE:CFR 47 Part 15 Section 15.235 (a) EUT MODEL:SW-2098PRODUCT:Wrist Watch Walkie Talkie SERIAL NO.:N/AEUT DESIGNATION:Home Use TEMPERATURE: 29°C HUMIDITY:87% ATM PRESSURE:1017 MbarGROUNDING:Battery Powered TESTED BY:Paul F. ChenDATE OF TEST:09/31/99 SETUP METHOD:ANSI C63.4: 1992, CISPR 16-1:1993 TEST PROCEDURE:The EUT is set up according to the guidelines of ANSI C63.4:1992 for radiated emissions. An EMI receiver peak scan is made at the frequency measurement range (pre-scan) in an Anechoic chamber. Signal discrimination is then performed and the significant peaks marked. These peaks are then average in the frequency range of 30 MHz to 1GHz at OATS. The following data lists the significant emission frequencies, measured levels, correction factors (including cable and antenna correction factors), and the corrected readings against the limits. Explanation of the Correction Factor is given as follows: FS= RA + AF + CF - AG Where: FS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Attenuation Factor AG = Amplifier Gain TESTED RANGE:49.85MHz TEST VOLTAGE:9 Volts Battery (before test : 9.13 Volts; after test 9.02 Volts) RESULTS:The EUT meets the requirements of test reference for Fundamental emission measurement on horizontal polarization by 14.7dB at fundamental frequency 49.85MHz. The test results relate only to the equipment under test provided by client. CHANGES OR MODIFICATIONS: There are modifications installed by EMC Compliance Management Group test personnel. Please see attached photo as follows. M. UNCERTAINTY: Freq. ± 2x10 -7 x Center Freq., Amp ± 2.6 dB FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 1 of 4 Frequency [MHz] Antenna Polarization [V/H] AVE Corrected Reading [dBμV/m] Delta, AVE [dB] 3 Meters Limits (10,000μμV/m) [dBμV/m] Correction Factors [dB/m] Set-up/Configuration: The antenna of EUT was setup in vertical position. 49.85V63.2-16.880.012.9 49.85H37.0--43.080.012.9 Set-up/Configuration: The antenna of EUT was setup in horizontal position. 49.85V60.4--19.680.012.9 49.85H65.3-14.780.012.9 Note: According to CFR 15.35. All readings are AVERAGED unless stated otherwise, using an IF bandwidth of 120kHz, with a 30 ms sweep time. A video filter was not used. Test EquipmentManufacturer/ ModelSerial No.Last Cal.Cal. Due Date EMI ReceiverHP 85462A3650A0036305/21/9905/21/00 RF FilterHP 85460A3704A0034905/21/9905/21/00 AntennaCHASE CBL6112A227411/15/9811/15/99 Note: All testing were performed using internationally recognized standards. All test instruments were calibrated and traceable to the National Institute of Standards and Technology (NIST). SIGNED:REVIEWED:  FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 2 of 4 ATTACHMENT 2 – CFR 15.235 (b) HARMONICS MEASUREMENT RESULTS CLIENT:Boxer Toys Co., Ltd.TEST REFERENCE:CFR15.235(b) EUT MODEL:SW-2098PRODUCT:Wrist Watch Walkie Talkie SERIAL NO.:N/AEUT DESIGNATION:Home Use TEMPERATURE: 29°C HUMIDITY:87% ATM PRESSURE:1017 MbarGROUNDING:Battery Powered TESTED BY:Paul F. ChenDATE OF TEST:09/31/99 SETUP METHOD:ANSI C63.4: 1992, CISPR 16-1:1993 TEST PROCEDURE:The EUT is set up according to the guidelines of ANSI C63.4:1992 for radiated emissions. An EMI receiver peak scan is made at the frequency measurement range (pre-scan) in an Anechoic chamber. Signal discrimination is then performed and the significant peaks marked. These peaks are then average in the frequency range of 30 MHz to 1GHz at OATS. The following data lists the significant emission frequencies, measured levels, correction factors (including cable and antenna correction factors), and the corrected readings against the limits. Explanation of the Correction Factor is given as follows: FS= RA + AF + CF - AG Where: FS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Attenuation Factor AG = Amplifier Gain TESTED RANGE:30MHz to 49.84MHz and 49.86 to 1,000MHz according to CFR15.235(b) TEST VOLTAGE:9 Volts Battery (before test : 9.1 Volts; after test 9.02 Volts) RESULTS:The EUT meet the requirements of test reference for Radiated Emissions on horizontal polarization by 9.0 dB at 398.8317MHz. The test results relate only to the equipment under test provided by client. CHANGES OR MODIFICATIONS: There are modifications installed by EMC Compliance Management Group test personnel. Please see attached photo as followed. M. UNCERTAINTY: Freq. ± 2x10 -7 x Center Freq., Amp ± 2.6 dB FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 3 of 4 Frequency [MHz] Antenna Polarization [V/H] Corrected Reading [dBμV/m] Delta, QP [dB] 3 Meters Limits (CFR15.235b) [dBμV/m] Correction Factors [dB/m] Set-up/Configuration: The RX/TX antenna of EUT was tested at both vertical and horizontal polarization. 398.8317H45.0-9.054.019.9 398.8317V44.9-9.154.019.9 797.6561V44.5-9.554.026.5 299.1236V44.5-9.554.016.2 847.3137H43.2-10.854.027.2 847.5000V43.0-11.054.027.2 797.6663H41.1-12.954.026.5 348.9725V37.7-16.354.018.1 299.1182H37.6-16.454.016.2 299.1224H37.4-16.654.016.2 448.6635V36.7-17.354.020.8 648.0861V36.0-18.054.024.3 548.3803V31.7-22.354.022.7 Note: All readings are Quasi-Peaked unless stated otherwise, using an IF bandwidth of 120kHz, with a 30 ms sweep time. A video filter was not used. FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management GroupPage 4 of 4 Test EquipmentManufacturer/ ModelSerial No.Last Cal.Cal. Due Date EMI ReceiverHP 85462A3650A0036305/21/9905/21/00 RF FilterHP 85460A3704A0034905/21/9905/21/00 AntennaCHASE CBL6112A227411/15/9811/15/99 Note: All testing were performed using internationally recognized standards. All test instruments were calibrated and traceable to the National…

Text truncated - open the document above for the full version.

FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management Group EUT MODEL: SW-2098 Maximized Radiated Emission Test Set-up – Vertical Polarization FCC ID #: KT6SW-2098 Prepared for Boxer Toys Co., Ltd. Prepared by EMC Compliance Management Group EUT MODEL: SW-2098 Maximized Radiated Emission Test Set-up – Horizontal Polarization
