KTI1822-1TXToy Car Transmitter

CONTACT INFORMATION FOR BONWIN INDUSTRIES LIMITED FCC ID: KTI1822-1TX APPLICANT: BONWIN INDUSTRIES LTD. RM. 1302 HARBOUR CENTRE, TOWER 1 HOK CHEUNG STREET HUNGHOM, KOWLOON, HONG KONG QUEENIE W.C. SIU, SENIOR MANAGER PHONE: 2766-0322 FAX: 2330 8619

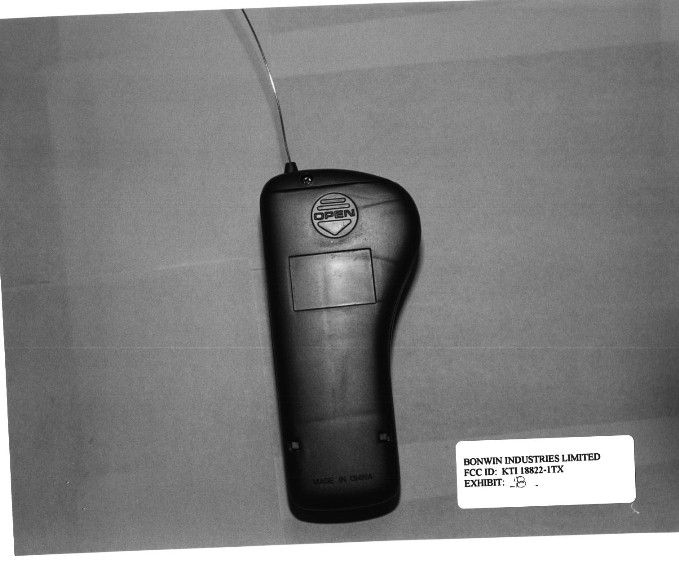

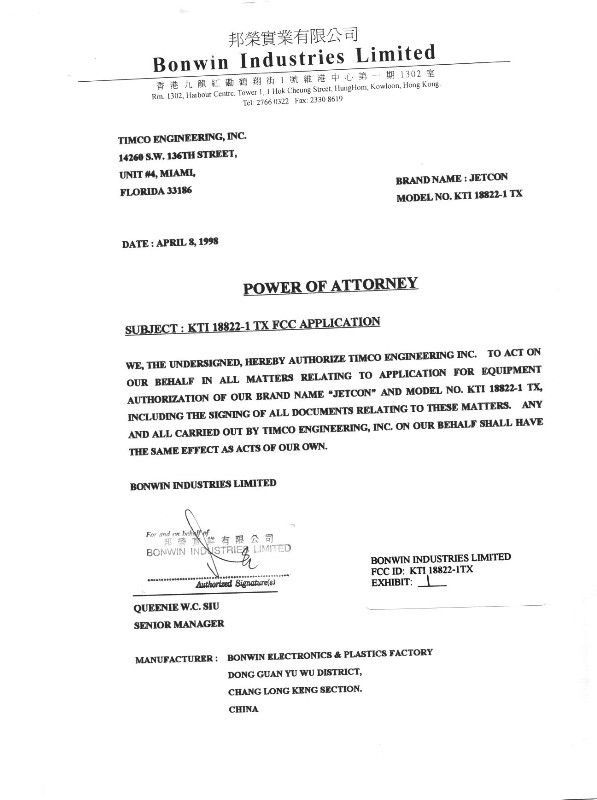

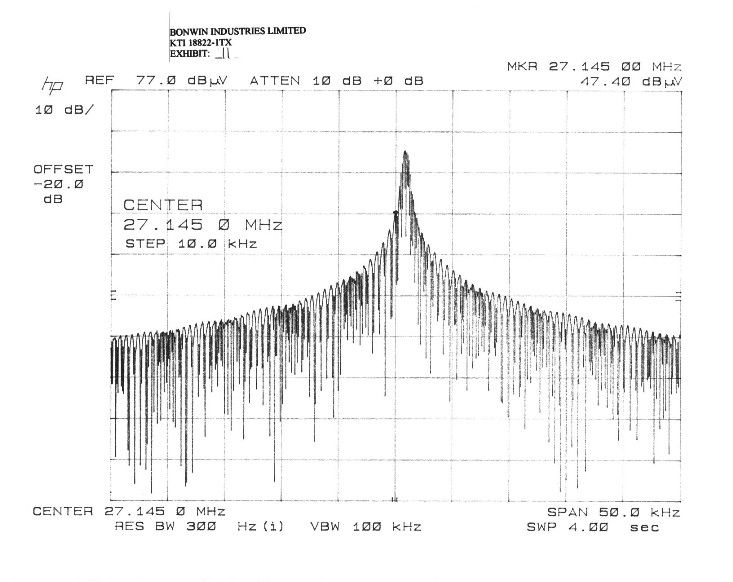

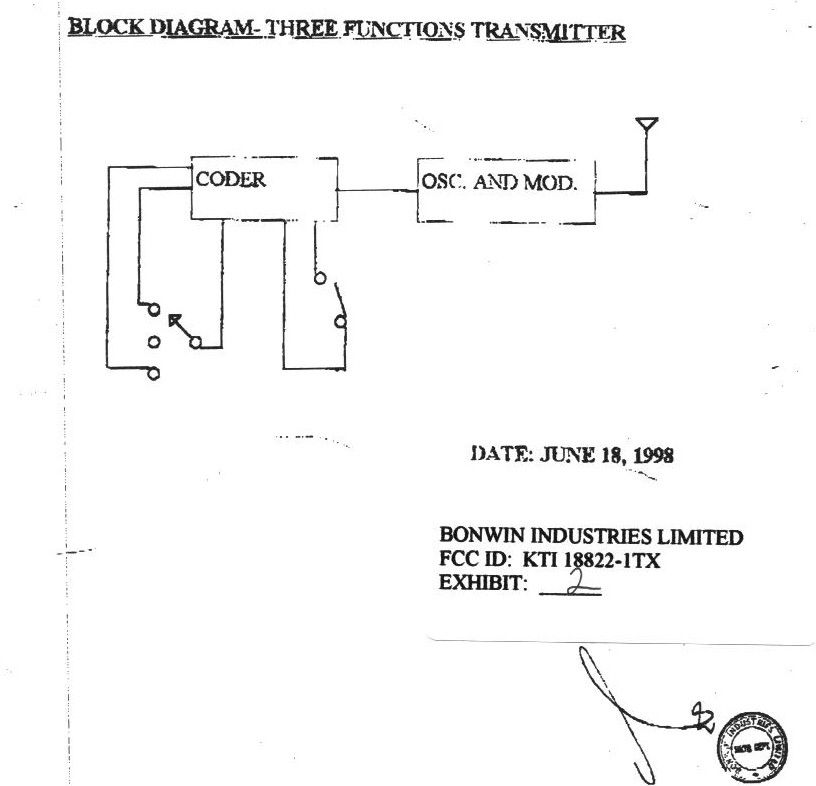

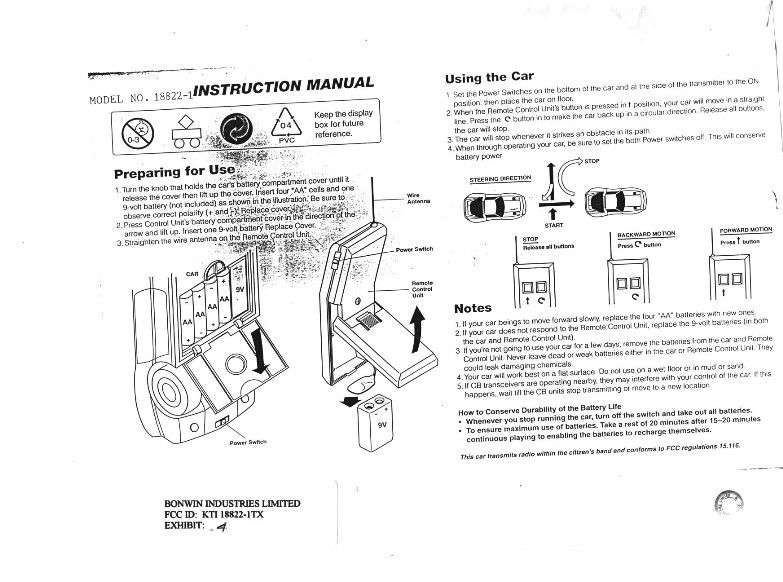

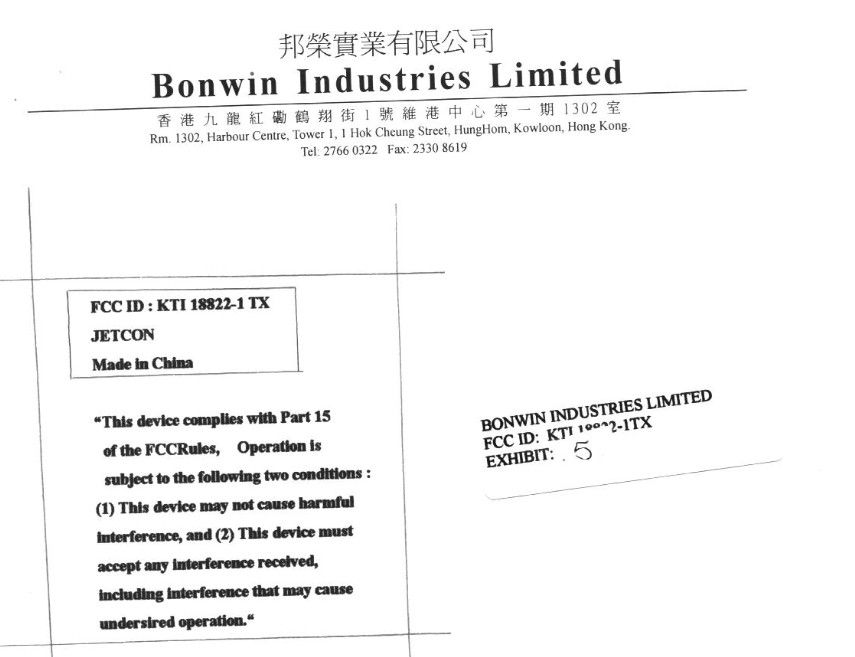

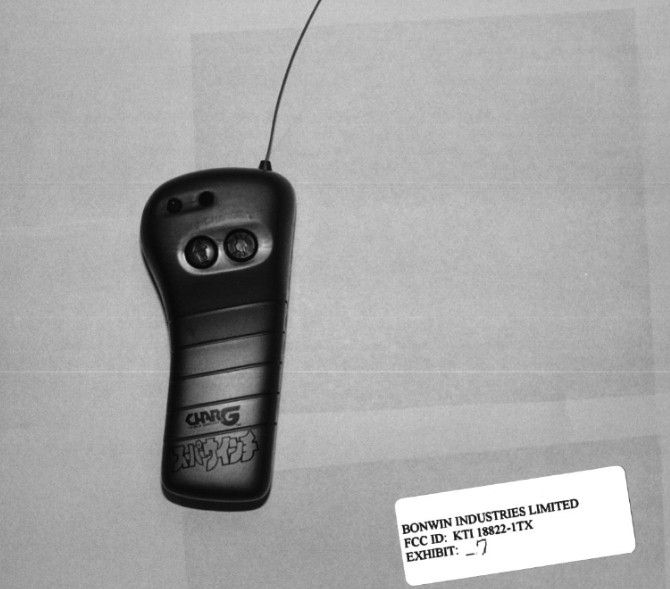

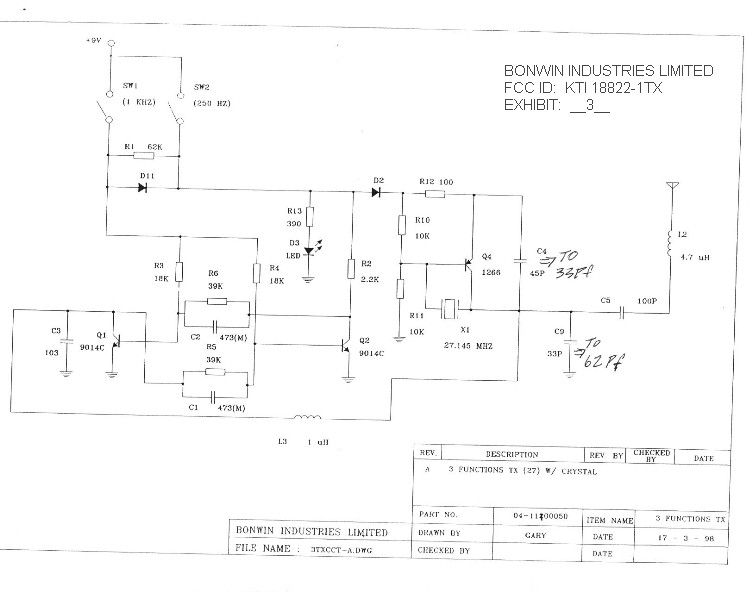

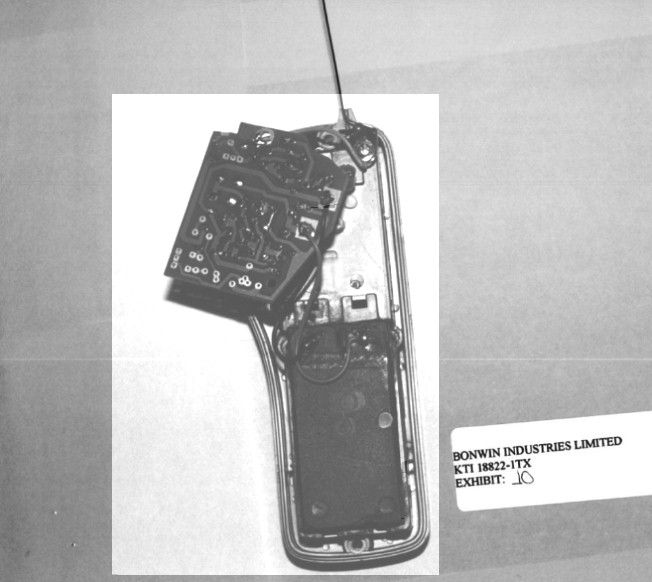

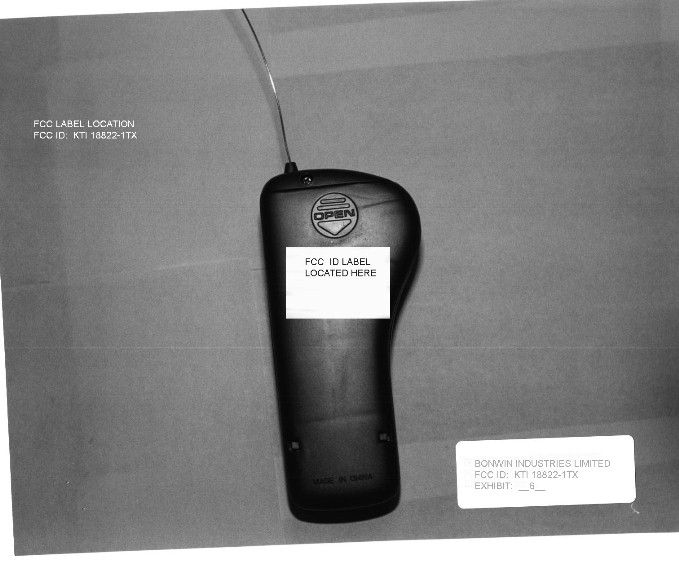

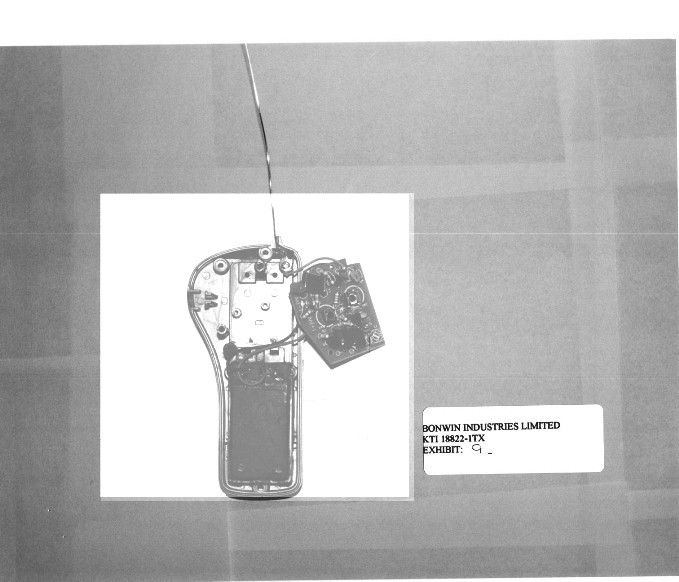

TABLE OF CONTENTS APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX TEST REPORT CONTAINING: PAGE 1-2....TEST PROCEDURE PAGE 3......CIRCUIT DESCRIPTION PAGE 4-5....RADIATION INTERFERENCE TEST DATA PAGE 6......OCCUPIED BANDWIDTH TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............POWER OF ATTORNEY LETTER EXHIBIT 2............BLOCK DIAGRAM EXHIBIT 3............SCHEMATIC EXHIBIT 4............INSTRUCTION MANUAL EXHIBIT 5............SAMPLE OF FCC ID LABEL EXHIBIT 6............LOCATON OF FCC ID LABEL EXHIBIT 7............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 8............EXTERNAL PHOTO - BACK SIDE EXHIBIT 9............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 10...........INTERNAL PHOTO - COPPER SIDE EXHIBIT 11...........OCCUPIED BANDWIDTH PLOT APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX REPORT #: F:\CUS\B\BONWIN\BON117H8.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B, with preselector HP 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B OPT H02 Cal. 9/30/97 2. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 9/17/97 3. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA 25 cal. 5/15/97 4. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 9/24/97 5. Electro-Metric Antennas Model TDS-25-1, TDS-25-2, 9/3/97 6. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. 9/30/97 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. 9/30/97 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 71.5oF with a humidity of 47%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 71.5oF with a humidity of 47%. APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX REPORT #: F:\CUS\B\BONWIN\BON117H8.RPT PAGE #: 1 TEST PROCEDURES CONTINUED APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX REPORT #: F:\CUS\B\BONWIN\BON117H8.RPT PAGE #: 2 APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX CIRCUIT DESCRIPTION: This unit is a low power remote control transmitter consisting of two transistors in the RF circuitry. Q4 is a crystal controlled oscillator. Transistor Q1 is the output stage. The unit operates in the 27 MHz RC band. The remaining transistor forms a multivi- brator to key the transmitter on and off. No voice or tone modulation is provided. ANTENNA AND GROUND CIRCUITRY This unit uses a 5" whip antenna. The antenna is inductively cou- pled. This unit is powered from a 9.0V battery. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX REPORT #: F:\CUS\B\BONWIN\BON117H8.RPT PAGE #: 3 APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI 18822-1TX NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 27.15 43.30 0.20 11.75 55.25 24.75 V 54.29 27.90 0.80 9.61 38.31 1.69 V 81.44 22.00 0.80 12.13 34.93 5.07 V 108.58 5.60 0.80 8.38 14.78 28.72 V 135.73 6.10 0.80 15.32 22.22 21.28 V 162.87 4.70 0.90 17.17 22.77 20.73 V 190.02 6.30 0.90 13.67 20.87 22.63 V 217.16 7.80 1.20 12.42 21.42 24.58 V 244.31 5.30 1.20 13.21 19.71 26.29 V 271.45 10.50 1.40 14.00 25.90 20.10 V 298.60 12.20 1.40 15.61 29.21 16.79 V 325.74 17.60 1.40 14.85 33.85 12.15 V 352.89 17.30 1.40 15.63 34.33 11.67 V 380.03 17.20 1.40 16.42 35.02 10.98 V 407.18 12.30 1.60 17.17 31.07 14.93 V 434.32 13.70 1.60 17.79 33.09 12.91 V 461.47 16.40 1.60 18.41 36.41 9.59 V 488.61 11.70 1.60 19.04 32.34 13.66 V 515.76 5.10 1.60 19.43 26.13 19.87 V 542.90 5.10 1.60 19.64 26.34 19.66 V 570.05 2.50 1.60 19.86 23.96 22.04 V SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. APPLICANT: BONWIN INDUSTR…
