KTI24822TX27 MHz Remote Control Transmitter

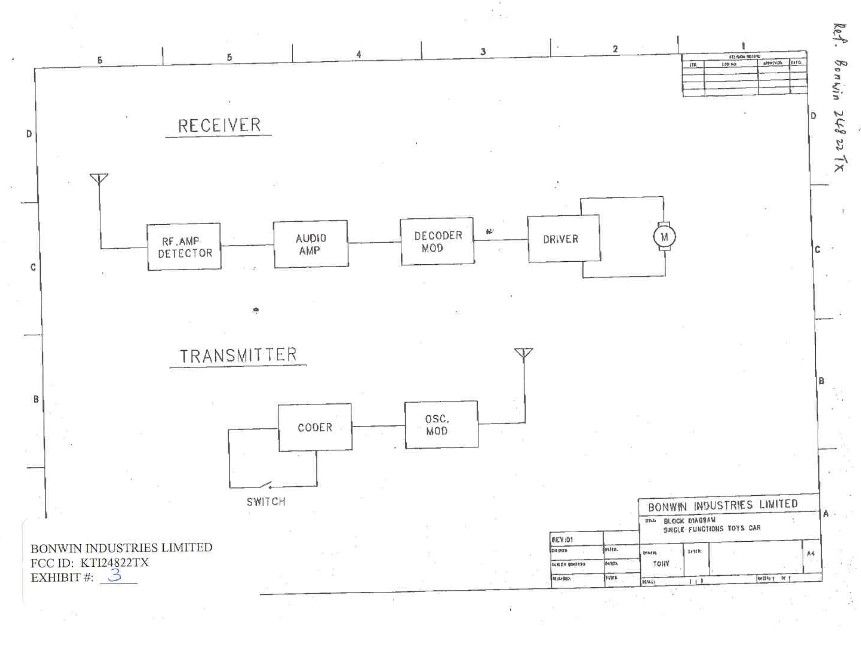

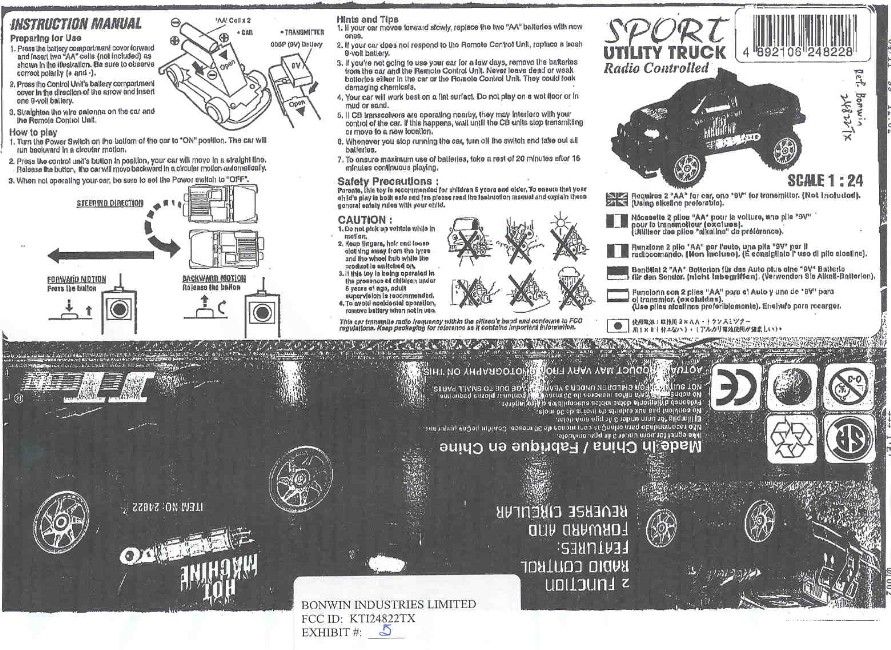

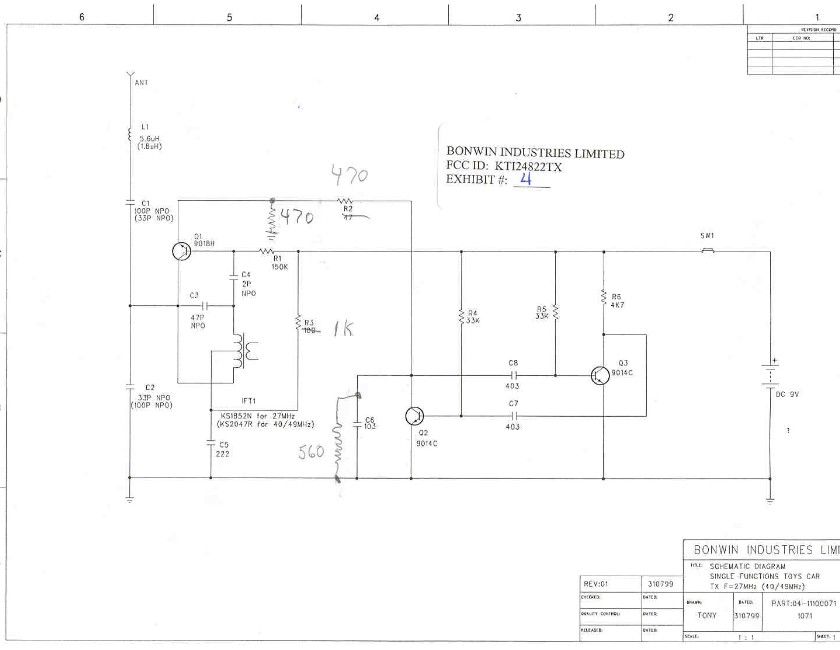

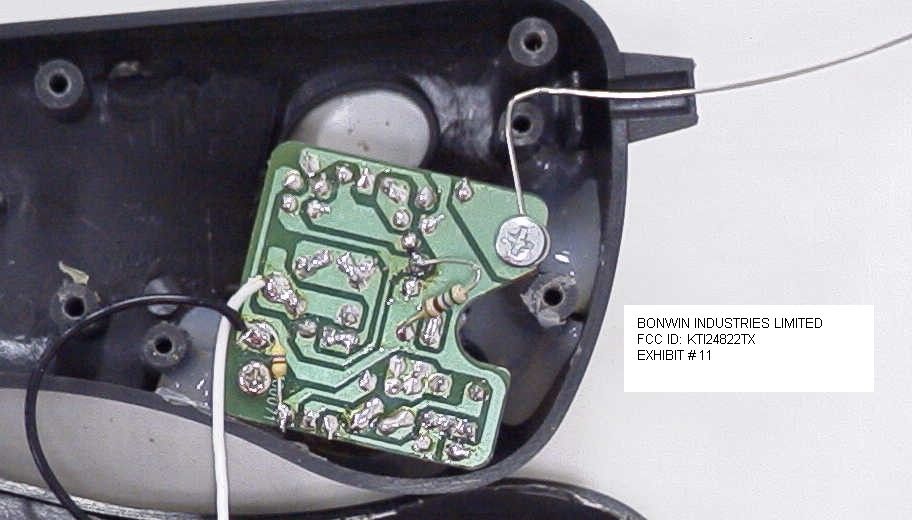

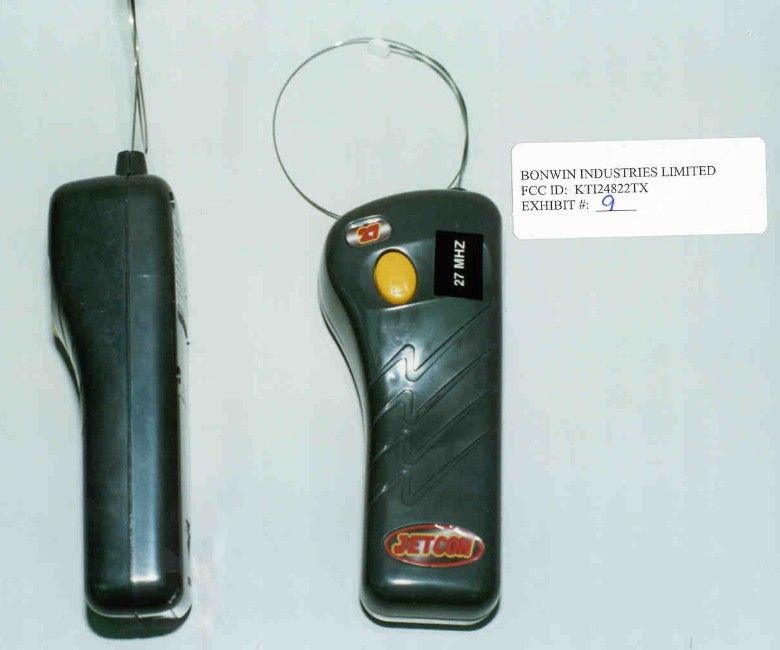

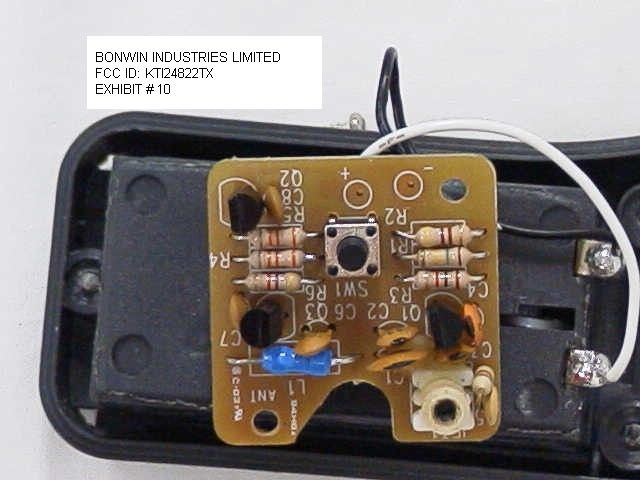

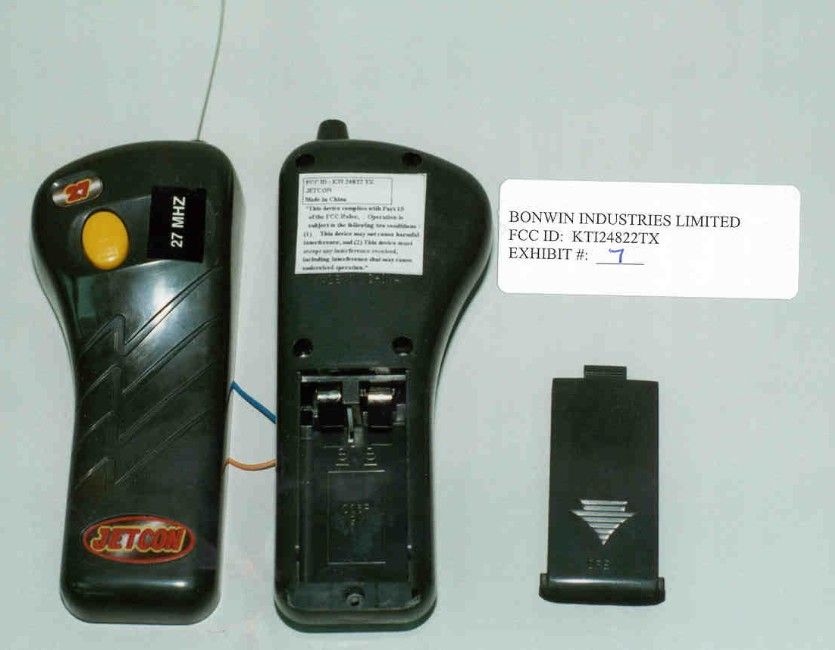

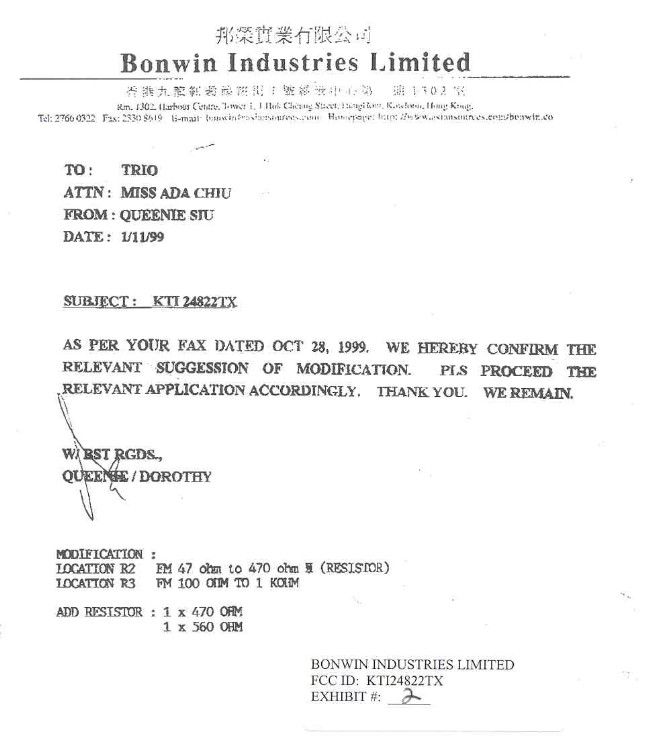

TABLE OF CONTENTS APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI24822TX TEST REPORT CONTAINING: PAGE 1......TEST PROCEDURE PAGE 2......TEST PROCEDURE AND CIRCUIT DESCRIPTION PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............POWER OF ATTORNEY LETTER EXHIBIT 2............LETTER CONFIRMING MODIFICATIONS EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............SCHEMATIC EXHIBIT 5............INSTRUCTION MANUAL EXHIBIT 6............SAMPLE OF FCC ID LABEL EXHIBIT 7............LOCATION OF FCC ID LABEL EXHIBIT 8............EXTERNAL PHOTO - FRONT AND REAR VIEW EXHIBIT 9............EXTERNAL PHOTO - FRONT AND SIDE VIEW EXHIBIT 10...........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 11...........INTERNAL PHOTO - COPPER SIDE EXHIBIT 12...........OCCUPIED BANDWIDTH PLOT - CW APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI24822TX REPORT #: T:\CUS\B\BONWIN\BON384Z9\BON384Z9.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI24822TX TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 10/17/99 2. Signal Generator, Hewlett Packard 8640B, cal. 9/23/99 3. Signal Generator, HP 8614A Serial No.2015A07428 cal. 5/27/99 4. EMCO Model No. 6512 Passive Loop 9KHz to 30MHz 5. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 9/30/99 6. Electro-Metric Log-Periodic Model No. EM-6950 Ser#632 9/18/99 7. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/31/98 8. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 4/27/99 9. Systron Donner Horn 18-26.3GHz Model DBE-520-20 7/14/99 10. Systron Donner Horn 26.5-40.2GHz Model DBD-520-20 7/14/99 11. ATM Horn 40-60GHz Part #19-443-6R 9/15/99 12. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 13. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 14. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 15. Special low loss cable was used above 1 GHz 16. Tenney Temperature Chamber 17. AC Voltmeter, HP 400FL, Serial No 2213A14499. Cal. 9/21/99 18. Digital Multimeter, Fluke 8010A/12A, Serial No. 4810047. Cal 9/21/99 19. Digital Multimeter, Fluke 77, Serial No. 43850817. Cal 9/21/99 20. Oscilloscope, Tektronix 2230, Serial No. 300572. Cal 9/23/99 21. Frequency Counter, HP 5385A, Serial No. 3242A07460. Cal 10/6/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80oF with a humidity of 40%. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m REPORT #: T:\CUS\B\BONWIN\BON384Z9\BON384Z9.RPT PAGE #: 1 TEST PROCEDURES CONTINUED APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI24822TX FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. CIRCUIT_DESCRIPTION: In the transmit mode the momentary switches SW-L, SW-R, SW-B, & SW-F provide input to the encoder intergrated circuit U1. The output of U1 modulated the RF oscillator Q1 by varing the emitter current of that stage. The RF frequency is determined by the crystal Y1. The output of Q1 is coupled through C10 to the base of the RF amplifier Q2. From Q2 the signal is fed into the tuned circuit made up of L3/C5 & then to the low pass filter made up of C7/L2/C8 and is then fed to the antenna. ANTENNA_AND_GROUND_CIRCUITRY This unit makes use of a short, antenna. The antenna is induc- tively coupled. The antenna is self contained, no provision is made for an external antenna. This unit is powered from a 9.0V battery. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI24822TX REPORT #: T:\CUS\B\BONWIN\BON384Z9\BON384Z9.RPT PAGE #: 2 APPLICANT: BONWIN INDUSTRIES LIMITED FCC ID: KTI24822TX NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: PEAK EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 27.04 49.50 0.20 11.80 61.50 18.50 V 54.10 25.40 0.80 9.67 35.87 4.13 V 81.10 24.00 0.80 12.10 36.90 3.10 V 108.10 17.40 0.80 8.37 26.57 16.93 V SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB…
