KVCKS-1515" TFT-LCD Monitor

TFT-LCD Monitor 74-520007-000 TFT-LCD Monitor USER’S MANUAL Specificatiions LCD Display 15” TFT LCD Panel 17” TFT LCD Panel Display Size 304 (H) x228 (V) mm 337.9 (H) x207.3 (V) mm Pixel Pitch 0.297 (H) x 0.297(V) mm 0.264 (H) x 0.264(V) mm Display Mode VGA 720x400 (70 Hz) VGA 640 x 480 (60/72/75 Hz), SVGA 800 x 600 (60/72/75 Hz) XGA 1024 x 768 (60/72/75 Hz) VGA 720x400 (70 Hz) VGA 640 x 480 (60/72/75 Hz),SVGA 800 x 600 (60/72/75 Hz) XGA 1024 x 768 (60/72/75 Hz) SXGA1280 x 1024(60/72/75Hz) Max. Resolution XGA 1024 x 768 SXGA1280 x 1024 Display Color 16M Contrast Rate 450: 1 700: 1 Brightness 250 Cd/ m 2 300 Cd/ m 2 Response 16ms 8ms Viewing Angle ( CR ≥10) +40 ～ -60 °( U/D), +60 ～ -60 °( L/R ) +75 ～ -60 °( U/D), +75 ～ -75 °( L/R ) Video R.G.B.Analog 0.7V Input Signal Sync TTL Positive or Negative Signal Connector DB15 Front Control POWER, MENU, AUTO, UP/+, DOWN/- “ Vo l u m e ” menu ,“Bright-Contrast”menu, “Color”menu, OSD “Image Config”menu, “OSD Menu”, “Language”menu Plug & Play DDC1 / 2B Audio System (optional) 0.7W / Per channel Power Adapter Input AC 100-240V, 50-60Hz, Output DC 12V/4.0A Te m p e r a t u r e 5 °C～ 35°C(41°F～95°F) Operating Conditions Humidity 20% ～ 80% Te m p e r a t u r e -20 °C～ 60°C(-4°F ～ 140°F) Storage Conditions Humidity 10% ～ 90% Dimensions (WxHxD) 370 x 355 x 190mm 385 x 400 x 190mm Weight (Net) 4Kg 5Kg Regulations FCC, CCC, CE z Specifications are subject to change without notice. -12- INDEX Precautions............................................................... 2 Federal Communication Commission Radio Frequency International Statement ............................................... 3 Canadian Department Of Communications Compliance Statement.................................................................. 3 Product Description................................................... 4 Package Contents...................................................... 4 Product Features....................................................... 4 Cleaning.................................................................... 4 Taking a Look............................................................ 5 Front View................................................................. 5 Rear View................................................................. 6 Computer connecting................................................. 6 Controls and Adjustment............................................. 6 OSD Control Options.................................................. 7 Power LED Display & Power Saving............................. 11 Troubleshooting......................................................... 11 Specifications............................................................ 12 -1- Precautions „ Read all of these instructions and save them for later use. „ Follow all warnings and instructions on the product. „ Product - Do not cover or block the vent holes in the case. - Do not insert sharp objects or spill liquid into th e LCD monitor through cabinet slots. They may cause accident fire, electric shock or failure. - Disconnect the power plug from the AC outlet if y ou will not use it foe an indefinite period of time. - Do not attempt to service this product yourself , as opening or removing covers may expose you to dangerous voltage points or other risks. - Do not touch the screen directly with your fingers. You may damage the screen, and oil from you skin is difficult to remove. - Do not apply pressure to the sc reen. The LCD is very delicate. „ Power adapter - Use the type of power adapter, which supplies fr om manufacturer for safety and electronic issue. „ Plugs - Do not remove any of the prongs of the monitor’s three-pronged power plug. - Disconnect the power plug from th e AC outlet under following conditions: ‹ If you will not use it for an indefinite period time. ‹ When the power cord or plug is damaged or frayed. ‹ If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating in structions. Improper adjust ment of other controls may result in damage and will often require extens ive work by a qualified technician to restore the product to normal operation. ‹ If the product has been dropped or the cabinet has been damaged. ‹ If the product exhibits a distinct change in performance, indicating a need for service. „ Power and extension cords - Do not allow anything to rest on the power cord. - Do not locate this product wher e persons will walk on the cord. - Use the proper power cord with correct attachment plug type. If the power source is 120 V AC, use a power cord that has UL and C-UL approvals. If the pow er source is a 240 V AC supply, use the tandem (T blade) type attachment plug with gr ound conductor power cord that meets the respective European country's safety regulations, such as VDE for Germany. - Do not overload wall outlets or power cords. Ensure that the total of all units plugged into the wall outlet does not exceed 10 amperes. - Ensure that the total ampere ratings on all units plugg ed into the extension cord is not above the cord's rating. - If the power supply cord, which came with your monito r, is to be connected to the PC instead of the wall outlet, this equipment is to be used with UL a pproved computers with receptacle rated 240V AC, 4.0A (minimum). - The socket outlet shall be in stalled near the LCD monitor and shall be easily accessible. -2- Power LED Display & Power Saving General Power Saving Mode When the power switch are switch on , this LED lights in green . The LED indicates the different power status wi th altered LED colors when monitor operates in different modes (see following table). Mode Power LED Color Power Consumption H.V. Sync. On Green <40W + / + Standby Red <5W － / + Suspend Red <5W + / － Off Off <5W － / － We recommend to switch off the monitor wh en it is not use for quite a long time. Troubleshooting The monitor does not respond after you t…

Text truncated - open the document above for the full version.

GM2621_LF L 14.3MHZ LVDS signal INVERTER BKLT_ADJ BKLT_EN +12V SM7512 MUTE VOLUME AUDIO input +12V SPEAKER C D P A N E L S M P S +12V +5V 3.3VA_RPLL 3.3V_AVDD 3.3V_DVDD 1.8V_AVDD 1.8V_DVDD R G B HSYN VSYN (PC) KEY BOARD 3 . 3 V A _ R P L L 3 . 3 V _ A V D D 3 . 3 V _ D V D D 1 . 8 V _ D V D D 1 . 8 V _ A V D D SPEAKER Panel VCC (Audio Amp) Serial Flash KSAI LCD Monitor Block Diagram LCD Monitor Controller

Page 6 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Photographs Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT Page 7 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT Label Location Page 8 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 5 General Appearance of the EUT Figure 6 Inside Configuration of the EUT

Page 7 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT Label Location

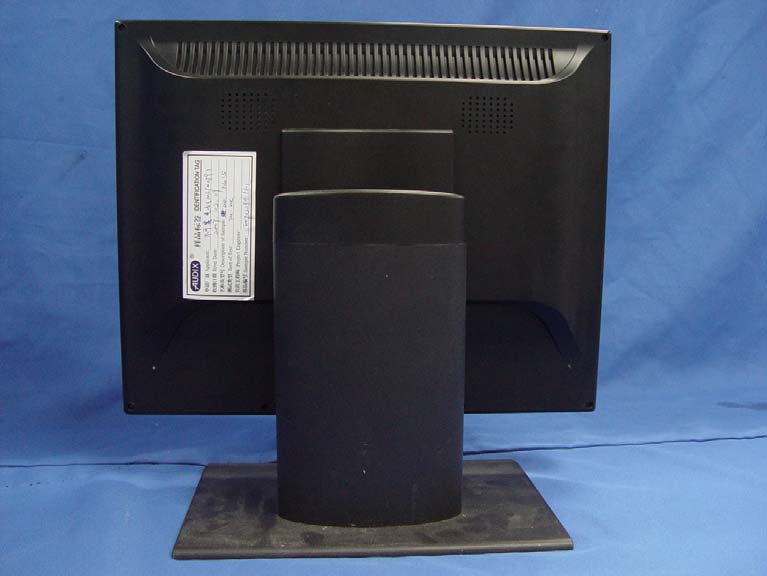

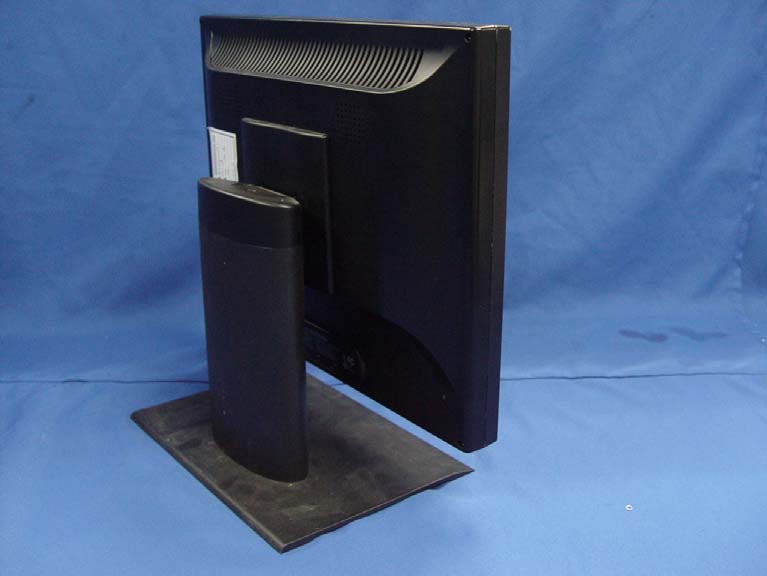

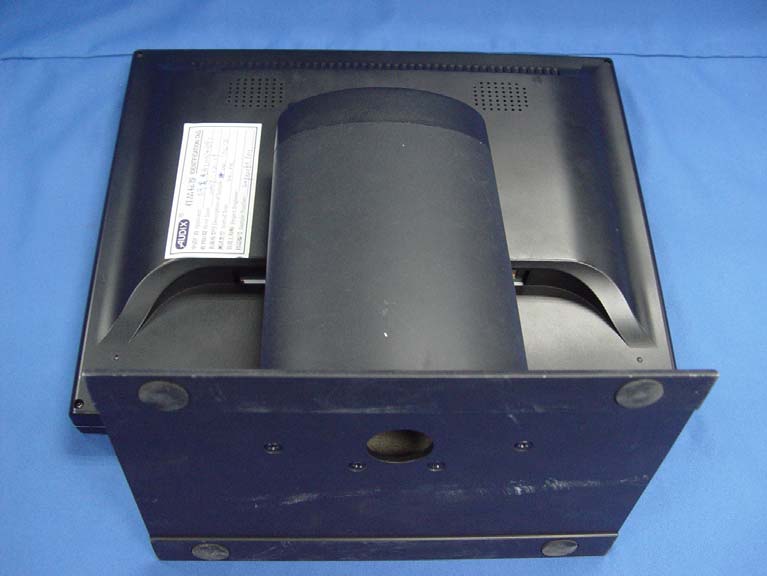

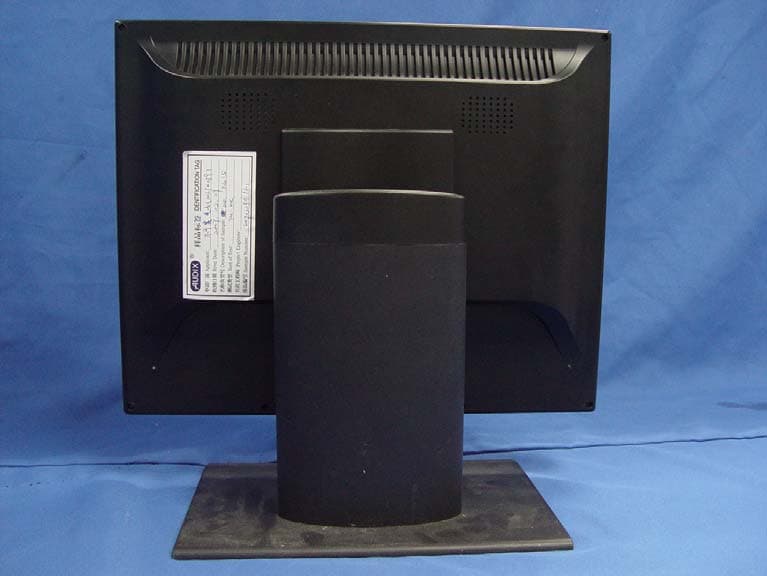

Page 8 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 5 General Appearance of the EUT Figure 6 Inside Configuration of the EUT Page 9 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 7 Inside Configuration of the EUT Figure 8 Frontside of the LCD Panel Page 10 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 9 Backside of the LCD Panel Figure 10 Label of LCD Panel Page 11 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 11 Label of LCD Panel Figure 12 Main Board, Component Side Page 12 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 13 Main Board, Component Side Figure 14 Power Board, Component Side Page 13 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 15 Power Board, Component Side Figure 16 Control Board, Component Side Page 14 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 17 Control Board, Component Side Figure 18 Adaptor Page 15 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 19 Label of the adaptor Figure 20 D-Sub Cable Page 16 SHENZHEN KSAI ELECTRONICS CO.,LTD 15" TFT-LCD Monitor FCC ID:KVCKS-15 Figure 21 Audio Cable Figure 22 Power Cord

1 一. Description of work theory (refer to block diagram and instruction) This LCD monitor is made up of two parts----AD board and inverter board. AD board is used to produce different voltage, control inverter, ADC、and modify circuit parameter while working on each frequency . And it also adjusts panel working state (brightness、contrast、 horizontal amplitude、horizontal phase、vertical amplitude、vertical center) in use and circuit initialized parameter. The inverter board is designed for the backlight of LCD Panel with the Cold Cathode Fluorescent Lamp . When panel data、panel voltage and lamp voltage are added to panel, the screen display picture from computer. 二. Precautions and warning 1. Safety check-out After correcting the original service problem, perform the following safety checks before releasing the set to the customer: 1. Check the area of your repair of unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Check that all control knobs, shield, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators. 4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer. 7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC Leakage. Check leakage as described right. 2 2. The design of the monitor and the circuitry must not be modified. If someone modifies or adds something to the original design, our company's pledge will be invalidation. Thereby, if someone is hurt or his properties are damaged, our company would not answer for it. There are many electric and mechanical parts in the monitor, which are associated with security feature. Eyes can not check out the security feature. Although using the higher rated voltage or higher wattage parts to replace, it is unsure to have the same safety as original parts. The part which has the security feature is point out by using sign on the schematic circuit diagram. When the monitor needs to replace some elements ,if the security feature part type is different from the part type which is preferred on the safe elements table ,it may cause electric shock、catch fire or other danger. 三、Maintenance instruction: Before reparation, please read the manual, the block diagram、circuit schematic diagram、 introduction of operating theory、precautions and the connection chart theoretically carefully. You should be familiar with the monitor's working theory, function and the method of operation first. This will help increase the accuracy of malfunction judgment. There are varieties of malfunctions for a machine that needs reparation. First of all, recheck the machines' malfunctions suggested by customer, including those mistakenly suggested malfunctions because of improper use. For the monitor having no any display, the first step is to check whether the plugs are connected firmly and the power is on. For a machine without picture, check if the signal cord is connected. For a machine with abnormal picture, check if the signal cord is connected securely, the multifunction of picture adjustment is in the proper position and machine is working under standard picture mode as instructed in the manual. Only after the above check could the judgment of the machine be made. Reparation of the malfunctions machine: 3 1. No power: The malfunction is that the indicator light of power does not light, neither green nor red, the display screen does not light. The malfunction of no power can be classified into two kinds. The first kinds is that the power adapter is damaged, which cause AD board is no power . The second kind is that there are some elements inside of AD board damaged and it cause the power adapter stopping working. Repaired method: Check output voltage of power adapter, if its value is not 12V\+-0.5V, which means adapter is damaged, please change adapter. Then check every group power supply output of AD board, if it has short circuit, check the reason of the short , judge that it is load short or the short because of element damaged . If there is not short ,you should check whether the AE1501、LM1117-3.3、LM1117-1.8、D24 is short or whether F1 and L6 are open circuit . Remove malfunction. 2. No display: The malfunction is that the indicator light of power light but the screen does not light. The reasons is: the inverter is damaged, cause lamp of panel is not light. Repaired method: Check whether the fuse of inverter is open, if it is open, change fuse ; otherwise change inverter. 3. No image: The malfunction is that the indicator light of power and the screen light but the screen is not image. The reasons are: the other is no LVDS signal and AD board is damaged. Repaired method: Check whether panel signal lines is connect , otherwise change it. And check whether panel power is right, otherwise change AD board.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA DVI CONNECTOR Near VGA pins ANALOG DDC DIGITAL DDC NC NC NC 1.0 1.Input connector C 15Monday, January 09, 2006 L-121A Title SizeDocument NumberRev Date:Sheetof A-HS A-GREENVGA_SDA VGA_SCL A-BLUE A-RED A-VS RX0+ RX1+ RX1- RX2+ RXC+ RX2- RX0- DDC_SDA_DVI DDC_SCL_DVI RXC- RED- GREEN+ DDC_SCL_VGA HSYNC BLUE+ VSYNC VGA_CAB BLUE- RED+ DDC_SDA_VGA GREEN- DVI_5V GND GND GND GND GND GND GND GND VGA_5V GND GND GND +5V GND +5V +5V GND C140.01uF C130.01uF R510K CN2 DB15 HD 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 S 1 S 2 C110.01uF C2 NC R810.0 1% U14D NC 98 C94 2K2 C150.01uF R15 10K R 2 2 7 5 R910.0 1% R12100 R 2 3 7 5 U14E NC 1110 R 2 5 8 4 . 5 C120.01uF R210.0 1% R7920.0 1% R770R U1 24AA02 4 81 2 3 7 6 5 GND VCCA0 A1 A2 WP SCL SDA R1847.0 1% U14F NC 1312 R1747.0 1% C9 0.1uF R10 10K R310.0 1% R780R R8020.0 1% CN1 DVI-D 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 34 33 RX2- RX2+ GND RX4- RX4+ SCL SDA VS RX1- RX1+ GND RX3- RX3+ 5V GND HP RX0- RX0+ GND RX5- RX5+ GND RXC+ RXC- Shell Shell R 2 4 8 4 . 5 U2 24AA02 4 81 2 3 7 6 5 GND VCCA0 A1 A2 WP SCL SDA R14 10K R2820.0 R110.0 1% R410.0 1% U14A NC 12 R2047.0 1% R 2 1 7 5 R2720.0 1% R610.0 1% C93 2K2 R11 10K C10 0.1uF C160.01uF R19100 U14B NC 34 R13100 R 2 6 8 4 . 5 R16100 R710.0 1% U14C NC 56 5 5 4 4 3 3 2 2 1 1 DD CC BB AA L B A D C _ R E T Close to respective power Pins Close to respective power Pins 1% Close to respective power Pins Close to respective power Pins RXE3+ RXE3- RXE2+ RXE2- RXE1+ RXE1- RXE0+ RXE0- RXEC+ RXEC- RXO3+ RXO3- RXO2+ RXO2- RXO1+ RXO1- RXO0+ RXO0- RXOC+ RXOC- 1.0 2.GM5621 C 25Monday, January 09, 2006 L-121A Title SizeDocument NumberRev Date:Sheetof UART_DO DDC_SCL_VGA PWM1 DDC_SDA_DVI UART_DI TCLK SPI_CLK DDC_SCL_DVI SPI_DI PPWR XTAL SPI_DO PWM0 DDC_SDA_VGA PBIAS SPI_CSn LED1 LV3_E_R2N LV2_E_G0N LV1_E_G1N LV0_E_G2N E_CLKN E_CLKP LV1_E_G1P LV0_E_G2P LV2_E_G0P LV3_E_R2P LV3_O_R2N LV2_O_G0N LV1_O_G1N LV0_O_G2N O_CLKN LV3_O_R2P LV1_O_G1P O_CLKP LV0_O_G2P LV2_O_G0P LBADC_IN LED2 UART_DI RESETn UART_DO RED- RX2+ RED+ RXC+ DDC_SDA_DVI Rx0+ BLUE+ DDC_SDA_VGA DDC_SCL_VGA VSYNC PWM0 RX0- DDC_SCL_DVI BLUE- PBIAS RX2- HSYNC GREEN+ RX1- GREEN- RXC- RX1+ PPWR PWM1 LV3_E_R2N LV2_E_G0N LV1_E_G1N LV0_E_G2N E_CLKN LV1_E_G1P LV0_E_G2P LV3_E_R2P LV2_E_G0P E_CLKP LV3_O_R2N LV2_O_G0N LV1_O_G1N LV0_O_G2N O_CLKN LV0_O_G2P LV1_O_G1P LV2_O_G0P O_CLKP LV3_O_R2P MUTE LED2 LED1 LBADC_IN SPI_3V3 GND GND 1.8V_DVDD GND GND 3.3V_DVDD GND 3.3V_DVDD 3.3V_AVDD GND GND +3.3V_VDD GND GND +5V GND GND 3.3VA_LV 3.3VA_LV GND 3.3V_DVDD 3.3VA_RPLL 1.8V_AVDD 3.3V_AVDD GND GND 3.3VA_RPLL +3.3V_VDD +1.8V_VDD 1.8V_DVDD GND GND 1.8V_AVDD GND GND SPI_3V3 3.3VA_RPLL3.3V_AVDD 3.3V_DVDDSPI_3V3 GND GNDGND +3.3V_VDD CN8 GPROBE TJC3-4A 1 2 3 4 C 5 6 0 . 1 u F C35 22pF Q9 MMBT3906 1 2 3 C43 0.1uF R 3 8 1 0 K C36 47uF/25V R42 10K X1 14.318 MHz C32 0.1uF C27 47uF/25V C29 0.1uF U10 MAX809 3 2 1 VCCGR R 3 4 1 0 K C47 0.1uF C41 0.1uF C45 0.1uF C30 0.1uF C22 47uF/25V L2 FERRITE BEAD C53 0.1uF R290R U3 GM5621 56 49 50 33 34 36 37 38 39 35 29 40 62 60 27 45 41 96 42 119 100 61 10 9 8 5 4 3 24 6 7 94 93 52 127 125 124 123 46 44 43 51 28 32 31 30 13 14 15 16 8 5 19 20 21 22 11 23 99 59 97 1 0 3 1 0 4 105 1 0 6 108 109 1 1 0 111 89 90 65 64 121 120 122 126 1 2 8 57 58 63 66 67 69 72 73 75 76 80 81 83 84 1 0 7 112 113 114 115 12 6 4 8 1 7 5 5 1 1 8 8 7 9 5 9 8 1 0 2 9 1 1 1 6 5 3 1 0 1 9 2 8 2 7 4 22 5 4 7 6 8 7 1 7 7 7 9 8 6 7 8 7 0 1 8 5 4 8 8 1 1 7 12 GPO_1 PBIAS PWM0/GPO_4 O_CLKP_LV O_CLKN_LV O_CH2N_LV O_CH1P_LV O_CH1N_LV O_CH0P_LV O_CH2P_LV RESERVED O_CH0N_LV SPI_DO SPI_CLK RESERVED RESERVED RESERVED GREEN+ RESERVED PWM1/GPO_5 RED- SPI_DI E_CLKN_LV E_CLKP_LV E_CH3N_LV RESERVED RESERVED RESERVED RESERVED RESERVED E_CH3P_LV BLUE- BLUE+ CRVSS PPWR GPIO_13 GPIO_12 GPIO_11 RESERVED RESERVED RESERVED GPO_0 RESERVED O_CH3N_LV O_CH3P_LV RESERVED E_CH1P_LV E_CH1N_LV E_CH0P_LV E_CH0N_LV A V S S _ D V I RESERVED RESERVED RESERVED RESERVED E_CH2P_LV RESERVED RED+ SPI_CSn GREEN- A V S S _ A D C A V D D _ A D C _ 1 8 VBUFC_RPLL V D D _ R P L L _ 1 8 XTAL TCLK A V D D _ R P L L _ 3 3 RESETn HSYNC VSYNC DDC_SDA_VGA DDC_SCL_VGA GPIO_9 GPIO_8 GPIO_10 GPIO_14 A V D D _ B I A S _ 3 3 GPO_2 GPO_3 RVDD_33 DDC_SCL_DVI DDC_SDA_DVI REXT RX2+ RX2- RX1+ RX1- RX0+ RX0- RXC+ RXC- V S S _ R P L L LBADC_VSS LBADC_IN3 LBADC_IN2 LBADC_IN1 A V S S _ B I A S V S S _ O U T V S S _ O U T C V D D _ 1 8 C V D D _ 1 8 C V D D _ 1 8 C V D D _ 1 8 A V S S _ A D C A V S S _ A D C A V S S _ A D C R V D D _ 3 3 L B A D C _ V D D _ 3 3 R V D D _ 3 3 A V D D _ A D C _ 3 3 A V D D _ A D C _ 3 3 A V D D _ D V I _ 3 3 A V D D _ D V I _ 3 3 V D D _ O U T _ 3 3 V D D _ O U T _ 3 3 V D D _ O U T _ 3 3 A V S S _ D V I A V S S _ D V I A V S S _ D V I A V S S _ D V I A V D D _ D V I _ 1 8 A V D D _ D V I _ 1 8 A V D D _ D V I _ 1 8 C R V S S C R V S S C R V S S C R V S S E_CH2N_LV C57 0.1uF C37 0.1uF C33 0.1uF C42 0.1uF C40 47uF/25V C26 0.1uF C34 22pF C44 0.1uF L1 FERRITE BEAD L4 FERRITE BEAD C28 0.1uF C31 0.1uF R53 4K7 C25 0.1uF C51 0.1uF C23 0.1uF L5 FERRITE BEAD C39 0.1uF C49 0.1uF R31250.0 U4 SST25VF010 1 2 3 45 6 7 8 CE# SO WP# VSSSI SCK HOLD# VCC C52 0.1uF C50 0.1uF L3 FERRITE BEAD R54 10K C55 220pF R324K7 C46 0.01uF C24 0.1uF R 4 1 8 2 0 K C38 47uF/25V R43 10K R3310K 5 5 4 4 3 3 2 2 1 1 DD CC BB AA 0.8A-max 3A-max 1.0 3. Output and Power C 35Monday, January 09, 2006 L-121A Title SizeDocument NumberRev Date:Sheetof LED2 LED1 BKLT_ADJ GND +12V +12V BKLT_EN PWM0 PBIAS LED2 LED1 LBADC_IN GND +5V GND +5V GND GNDGND +12V GND GND +5V GNDGNDGND GND GND +1.8V_VDD GND GND GND +3.3V_VDD +5V GND +5V GND GND +3.3V_VDD GND C66 47uF/25V C65 0.1uF C59 0.1uF U5 LM1117MPX-3.3 TO-252 1 32 4 GND VINVOUT TAB R425K6 R57 220R R4315K R36820 C67 0.1uF C61 47uF/25V R82 1K L633uH C62 10uF/16V D22 IN4148 12 R591K Q5 MMBT3904 1 2 3 R56 220R C64 470uF/16V R354K7 C58 47uF/25V C60 0.1uF CN14 POWER Q2 MMBT3904 3 1 2 D24 SK34 2 1 C63 0.1uF C70 470uF/16V R581K U6 LM1117MPX-1.8 TO-252 1 32 4 GND VINVOUT TAB R371K C69 47uF/25V R39…
