L2555005Baby Monitor

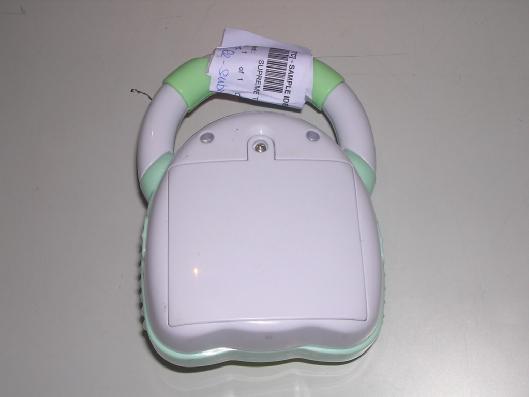

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

Supreme Toys (H.K.) Ltd. Rm 1114-15.,11/F Tower A,New Mandarin Plaza, 14 Science Museum Road , Tsimshatsui East, Kln, H.K. Tel: (852) 2317 5168 Fax: (852) 2317 6607

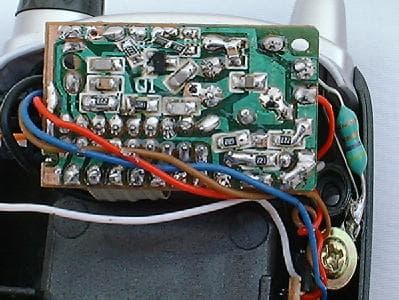

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Application No.: HM154794 Date: 2005-08-30 FCC ID: L2555005 Circuit Description The 49.81 & 49.87 (16.61MHz x 3 & 16.63MHz x 3) MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by Mic. The output of Q2 has the matching network consisting of L4and C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 6 Volt (“AA” size battery x 4) primary battery. Operation Descriptions The transmitter is a Baby monitor operating at 49.81 & 49.87MHz band. The transmitter is powered by a 6Volt battery (AA x 4) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 49.81 & 49.87MHz carrier frequency. Remarks: The transmitter is a 3Button transmitter. The EUT continues to transmit while Trigger is being pressed. It is Voice transmitter, Modulation byMicrophone; and type is Amplitude modulation.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-30 TEST REPORT Page 1 of 20 No. : HM154794 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Supreme Toys (Hong Kong) Ltd. Rm. 1114-1115, 11F, Tower A, New Mandarin Plaza, 14 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Description of Samples: Model name: Baby Monitor Model no.: 55005 Brand name: N/A FCC ID: L2555005 Date Samples Received: 2005-07-20 Date Tested: 2005-08-16 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMD for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-30 TEST REPORT Page 2 of 20 No. : HM154794 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Test Laboratory Page 4 of 20 1.2 Applicant Details Page 4 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 20 Description of EUT operation 1.4 Date of Order Page 5 of 20 1.5 Submitted Samples Page 5 of 20 1.6 Test Duration Page 5 of 20 1.7 Country of Origin Page 5 of 20 2.0 Technical Details 2.1 Investigations Requested Page 6 of 20 2.2 Test Standards and Results Summary Page 6 of 20 3.0 Test Results 3.1 Emission Page 7-14 of 20 3.2 Bandwidth Measurement Page 15-17 of 20 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-30 TEST REPORT Page 3 of 20 No. : HM154794 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 18 of 20 Appendix B Photographs Page 19-20 of 20 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-30 TEST REPORT Page 4 of 20 No. : HM154794 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Supreme Toys (Hong Kong) Ltd. Rm. 1114-1115, 11F, Tower A, New Mandarin Plaza, 14 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong. HKSTC Code Number for Applicant SUT002 Manufacturer Jackpot Plastic & Metal Manufactory Feng Gang, Guan Jing Tou, Shui Ku District, Dongguan, China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-30 TEST REPORT Page 5 of 20 No. : HM154794 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Baby Monitor Manufacturer: Jackpot Plastic & Metal Manufactory Brand Name: N/A Model Number: 55005 Input Voltage: 6Vd.c (“AA” size battery x 4) with jack The AC/DC Adaptor used for the tests was a "Winstar" adaptor: Model Number: NA-12, Input: 100-120/220-240Va.c. Output: 3- 15Vd.c. 1200mA max. 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Supreme Toys (H.K.) Ltd., Baby Monitor. The transmitter is a 3 button transmitter. The EUT continues to transmit while trigger is being pressed. It is voice transmission, modulation by microphone, and type is amplitude modulation. 1.4 Date of Order 2005-07-20 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2005-08-16 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-30 TEST REPORT Page 6 of 20 No. : HM154794 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:200…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
