L2599200Walkie Talkie

# 99200- 4 TRANSISTORS MINIATURE WALKIE TALKIES How to operate your transceiver : 1. Open the battery cover and snap in 4 x AG13 button cell batteries (included) 2. Turn the " On-Off" button to "On" position to get product in a stand-by mode. 3. Press the "Talk" button to transmit 4. Release "Talk" button to receiving 5. When transmitting, speak clearly in a normal voice, holding the set about 3 inches (7.5cm) from your mouth. 6. Best transmission and reception are obtained when the antenna is held in vertical position. WARNING : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Modifications not authorized by the manufacturer may void users authority to operate this device NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. -- When back to voice communication again, use normal "Talk" operation. For product questions Call 1-800-567-1774 Ask for Customer Service Only in the US and Canada Product : 4 TRANSISTORS MINIATURE WALKIE TALKIES Model : 99200 Responsible Party: 602 Edgemoor Drive,Hopkins MN. 55305, USA. Phone : 1-800-567-1774

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

# 99200- 4 TRANSISTORS MINIATURE WALKIE TALKIES Product : 4 TRANSISTORS MINIATURE WALKIE TALKIES Model : 99200 Responsible Party: 602 Edgemoor Drive, Hopkins MN. 55305, USA. Phone : 1-800-567-1774 FCC FCC

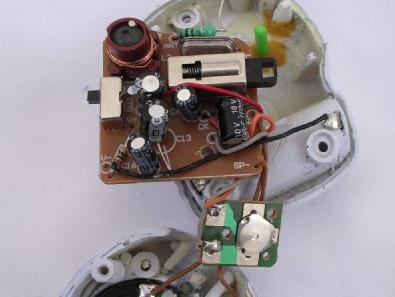

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: L2599200 Circuit Description The 49.86MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Mic. The output of Q1 has the matching network consisting of L1 and C5 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 10cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 6 Volt (“AG13” size battery x 4) primary battery

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-02-01 TEST REPORT Page 1 of 17 No. : HM152831 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Supreme Toys (H.K.) Ltd. Rm 1114-5, 11/F Tower A, New Mandarin Plaza, 14 Science Museum Road, Tsimshatsui East, Kowloon, Hong Kong. Description of Samples: Model name: 4 Transistors Miniature Walkie Talkie Model no.: 99200 Brand name: JACKPOT INDUSTRIAL LIMITED. FCC ID: L2599200 Date Samples Received: 2004-11-08 Date Tested: 2005-11-12 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-02-01 TEST REPORT Page 2 of 17 No. : HM152831 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 1.8 Additional Information of EUT Page 6 of 17 2.0 Technical Details 2.1 Investigations Requested Page 7 of 17 2.2 Test Standards and Results Summary Page 7 of 17 3.0 Test Results 3.1 Emission Page 8-12 of 17 3.2 Bandwidth Measurement Page 13-14 of 17 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-02-01 TEST REPORT Page 3 of 17 No. : HM152831 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 15 of 17 Appendix B Photographs Page 16-17 of 17 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-02-01 TEST REPORT Page 4 of 17 No. : HM152831 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Supreme Toys (H.K.) Ltd. Rm 1114-5, 11/F Tower A, New Mandarin Plaza, 14 Science Museum Road, Tsimshatsui East, Kowloon, Hong Kong. HKSTC Code Number for Applicant SUT002 Manufacturer Jackpot Plastic & Metal Manufactory Feng Gang, Guan Jing Tou, Shur Ku District, Dongguan 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-02-01 TEST REPORT Page 5 of 17 No. : HM152831 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: 4 Transistors Miniature Walkie Talkie Manufacturer: Jackpot Plastic & Metal Manufactory Brand Name: JACKPOT INDUSTRIAL LIMITED. Model Number: 99200 Input Voltage: 6Vd.c (“AG13” size battery x 4) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Supreme Toys (H.K.) Ltd., 4 Transistors Miniature Walkie Talkie. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic and type is frequency modulation. 1.4 Date of Order 2004-11-08 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2004-11-12 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-02-01 TEST REPORT Page 6 of 17 No. : HM152831 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-02-01 TEST REPORT Page 7 of 17 No. : HM152831 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance …

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
