L2BACEKEY80KWireless Keyboard

Notice You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

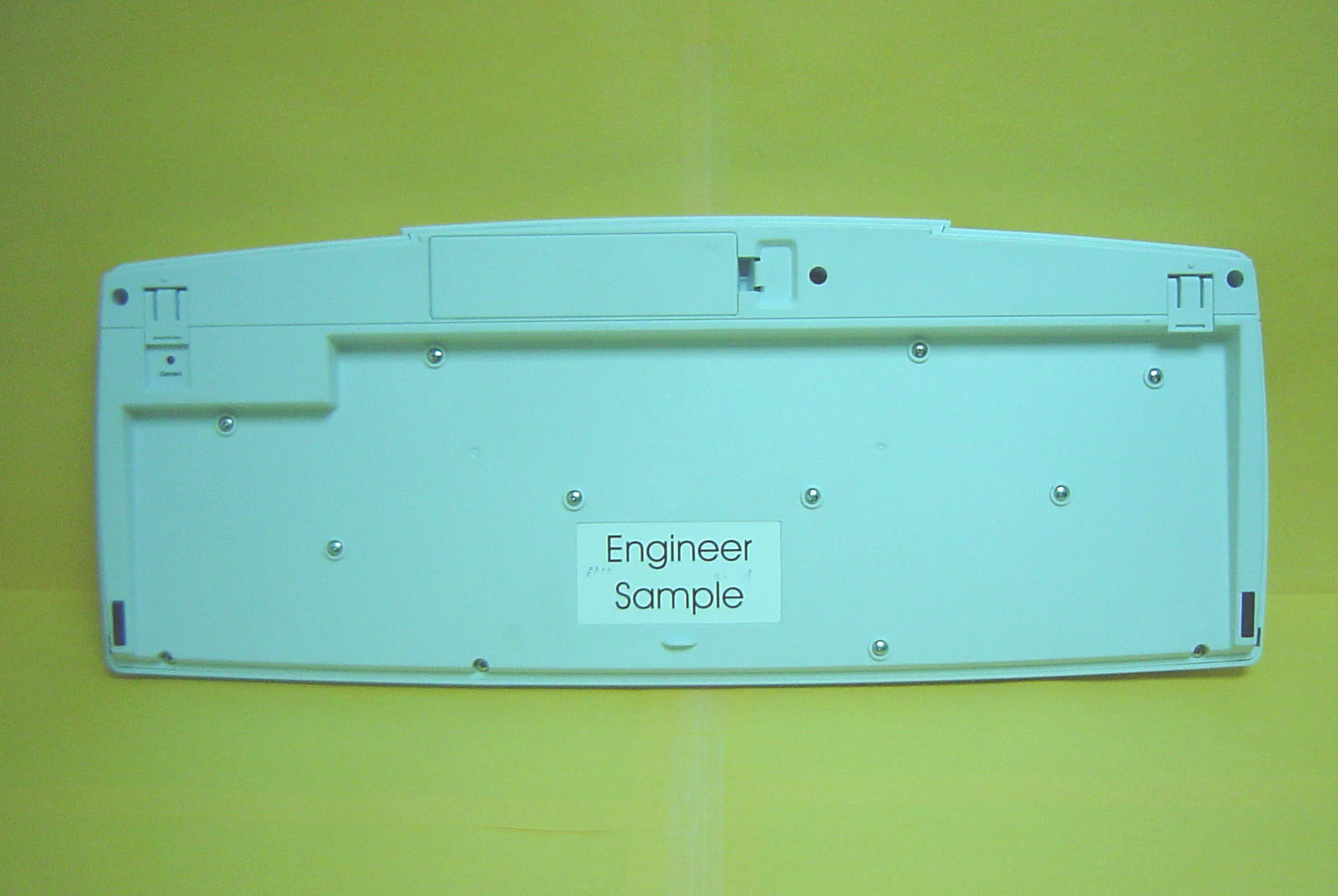

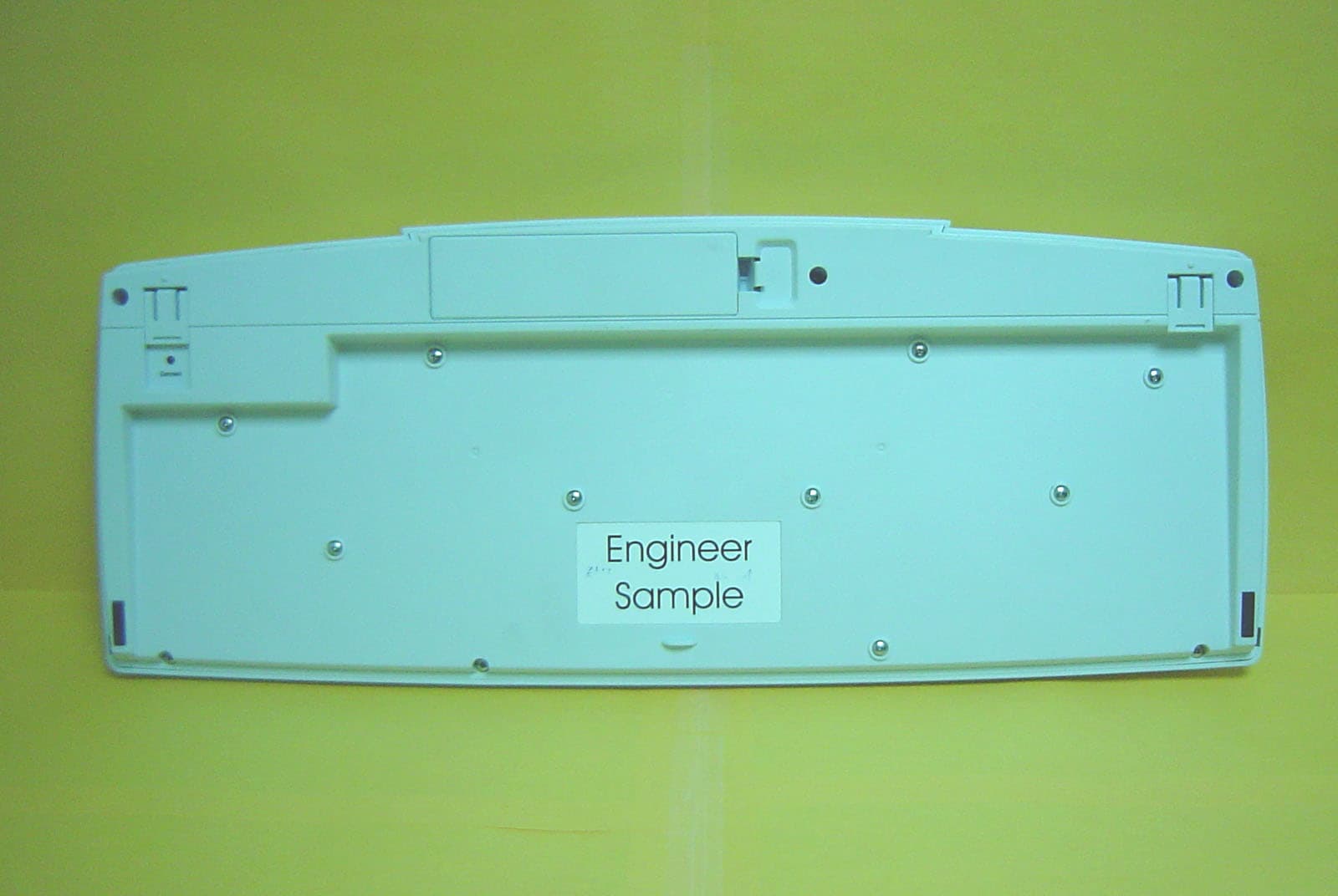

C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 21 Rev. 00 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 22 Rev. 00 Front View of EUT Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Solid Year Co., Ltd. FCC ID: L2BACEKEY80K FCC ID: L2BACEKEY80K This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA NOTE:1.Tolerance=+0.5mm 2.: 3.:150P 4.=2.0Rx4 5.CSA ACK-800MRF FCC 150P ACK-800MRF DWG NO: 1 1 1 1 0.5mm S A4 L013-01 DR:REV REVISIONS DESCRIPTION/ECN No:CHK: ACK-800MRF FCC LABEL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China Input Rating:3V 100mA The Windows logo is a registered trademark of Microsoft Corporation. E162263 C CUS 79.5 mm A802G00040 A802G00040 FCC ID: L2BACEKEY80K Model NO. ACK-800MRF

C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 23 Rev. 00 APPENDIX 3 IXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 24 Rev. 00 Internal of EUT - Open C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 25 Rev. 00 Internal of EUT - Front C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 26 Rev. 00 Internal of EUT - Back

Operation Methodology The U1 CPU encoder generates a pulse code serially transmit (typical designation) inside the U1. This pulse signal mixed with the carrier at modulator(inside U1) stage by way of FSK mode frequency modulation. The modulation depth is designed such as ±5KHz in this application, that means the pulse(may be at high level state or low level state) will trigger the oscillator to generate a frequency at a specified fundamental frequency +5KHz or −5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency +5KHz at high level state, then the alternative carrier frequency will be fundamental frequency −5KHz at low level state. Then the U1 modulator(mixer) will output a modulated signal to the transmit antenna.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA TP1 <Doc>1.0 800MRF KEYBOARD TRANSMITTER B 11Friday, August 23, 2002 Title SizeDocument NumberRev Date:Sheetof COL_17 COL_16 COL_15 COL_14 COL_13 COL_12 COL_11 COL_10 COL_9 COL_8 COL_7 COL_6 COL_5 COL_4 COL_3 COL_2 COL_1 COL_0 ROW_4 ROW_3 ROW_2 ROW_1 ROW_0 ROW_5 ROW_6 ROW_7 0 0 VCCVCC 0 VCC 0 VBAT 0 0 VBAT 000 VCC 0 00 VCC 0 0 C4 0.1UF SW1 Y1 32768 C6 47P C5 47P C14 100PF C12 5.6P R3 4.7M C7 56P U1 MA6121 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17181920212223242526272829303132 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49505152535455565758596061626364 COL[1] COL[0] VDD FBUT BBUT OSC1 OCS2 RBUT MBUT LBUT TXCB ORF1 ORF2 RFOUT RFCTL TXD TESTX1INX2INY1INY2INZ1INZ2INXRESETW1INW2INXIRSVDINVSSROW[7]ROW[6]ROW[5] ROW[4] ROW[3] ROW[2] ROW[1] ROW[0] P2[6] NC NC NC NC NC VSSS VL DCVR COL[19] COL[18] COL[17]COL[16]COL[15]COL[14]COL[13]COL[12]COL[11]COL[10] COL[9]COL[8]COL[7]COL[6]COL[5]COL[4]COL[3]COL[2] C8 ANTS2 ANT-STRIP 1 2 A1 A2 Y2 27.045MHZ BT1 BATTERY 1 2 C11 22P C10 R1 100K R2 240K R4 270 C9 3.3P L1 100UH 1/2W C3 100U/16V R5 1M R6 680K D2 Y C1 470U/16V C2 0.1UF D1 1N5819 L2 0.47UH,0805

C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACEKEY80K DATE: 09/03/2002 Page 1 of 18 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless Keyboard MODEL No.: ACK-800MRF BRAND NAME: Solid Year FCC ID: L2BACEKEY80K REPORT NO: 020045-RF-ID ISSUE DATE: September 03, 2002 Prepared for Soild Year Co., Ltd. 2F-1, No. 94, Bao Chung Rd., Hsin Tien City, Taipei Hsien, Taiwan, R.O.C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 2 Rev. 00 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 PRODUCT DESCRIPTION .................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................ 4 1.3 TEST METHODOLOGY ........................................................................................................ 4 1.4 TEST FACILITY ..................................................................................................................... 4 1.5 SPECIAL ACCESSORIES...................................................................................................... 5 1.6 EQUIPMENT MODIFICATIONS .......................................................................................... 5 2. SYSTEM TEST CONFIGURATION .................................................................................. 6 2.1 EUT CONFIGURATION ........................................................................................................ 6 2.2 EUT EXERCISE...................................................................................................................... 6 2.3 TEST PROCEDURE ............................................................................................................... 6 2.4 LIMITATION .......................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM .......................................................................... 8 3. SUMMARY OF TEST RESULTS ..................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................. 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........ 11 5.1 MEASUREMENT PROCEDURE: ....................................................................................... 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................... 11 5.3 MEASUREMENT EQUIPMENT USED:............................................................................. 11 5.4 MEASUREMENT RESULT: ................................................................................................ 11 5.5 CONDUCTED MEASUREMENT PHOTOS: ...................................................................... 11 6. RADIATED EMISSION TEST .......................................................................................... 12 6.1 MEASUREMENT PROCEDURE ........................................................................................ 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................... 13 6.3 MEASUREMENT EQUIPMENT USED:............................................................................. 14 6.4 FIELD STRENGTH CALCULATION ................................................................................. 14 6.5 MEASUREMENT RESULT ................................................................................................. 15 6.6 MEASUREMENT RESULT ................................................................................................. 16 C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 3 Rev. 00 7. OCCUPIED BANDWIDTH................................................................................................ 17 7.1 MEASUREMENT PROCEDURE ........................................................................................ 17 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................... 17 7.3 MEASUREMENT EQUIPMENT USED:............................................................................. 17 7.4 MEASUREMENT RESULTS: REFER TO ATTACHED DATA CHART....................... 17 C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 4 Rev. 00 1. GENERAL INFORMATION 1.1 Product Description The Solid Year Co., Ltd. Model: ACK-800MRF (referred to as the EUT in this report) The EUT is an short range, lower power, wireless Keyboard designed as an " Input Device. It is designed by way of utilizing the FSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 27.045 MHz, one channel. B). Modulation : Frequency Shifting Key (FSK) Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 3 Vdc by AAA *2 battery. (F) Operation Methodology: The U1 CPU encoder generates a pulse code serially transmit (typical designation) inside the U1. This pulse signal mixed with the carrier at modulator(inside U1) stage by way of FSK mode frequency modulation. The modulation depth is designed such as ± 5KHz in this application, that means the pulse(may be at high level state or low level state) will trigger the oscillator to generate a frequency at a specified fundamental frequency + 5KHz or − 5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency + 5KHz at high level state, then the al…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 19 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 020045-RF-ID FCC ID: L2BACKEY80K DATE: 09/03/2002 Page 20 Rev. 00 Radiated Emission Setup Photos
