Notice You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

External Photos

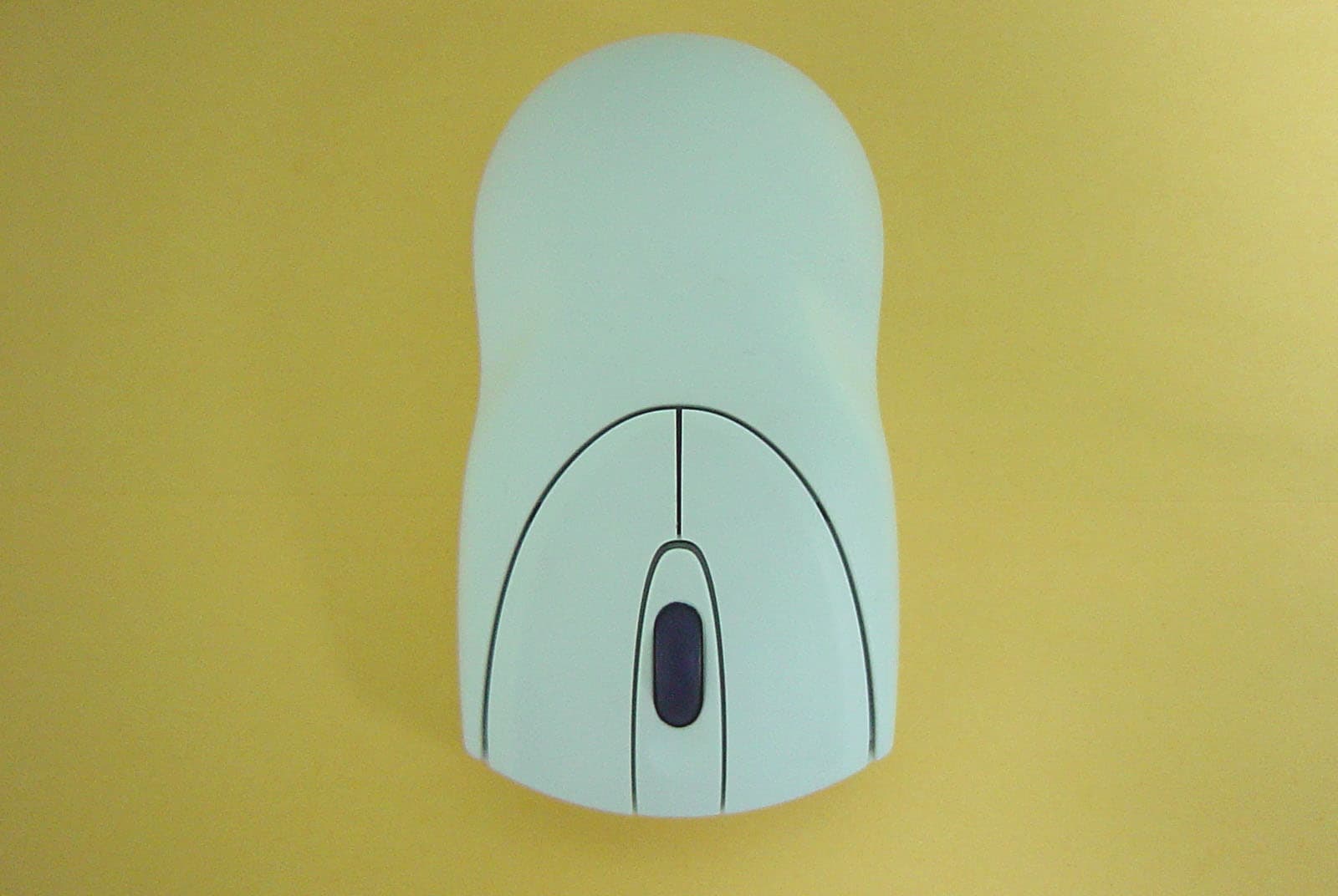

C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Front View of EUT Back View of EUT

Internal Photos

C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 APPENDIX INTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Internal of EUT - Open C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Internal of EUT - Front C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Internal of EUT - Back

Operational Description

Operation Methodology The U1 CPU encoder generates a pulse code serially transmit (typical designation) inside the U1. This pulse signal mixed with the carrier at modulator(inside U1) stage by way of FSK mode frequency modulation. The modulation depth is designed such as ±5KHz in this application, that means the pulse(may be at high level state or low level state) will trigger the oscillator to generate a frequency at a specified fundamental frequency +5KHz or −5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency +5KHz at high level state, then the alternative carrier frequency will be fundamental frequency −5KHz at low level state. Then the U1 modulator(mixer) will output a modulated signal to the transmit antenna.

Schematics

5 5 4 4 3 3 2 2 1 1 DD CC BB AA DC/DC CONVERT COMPARATORDC/DC CONVERT <Doc><RevCode> 800MRF MOUSE TRANSMITTER FUNCTION BLOCK A 11Tuesday, August 20, 2002 Title SizeDocument NumberRev Date:Sheetof 00 VCC VCC 00 VCC VCC VCC 0 VCC 0 VCCVCC ID SW SCROLL SW 1 8 3 DUAL2 DUAL PTR A B ANTS3 ANT-STRIP 1 2 A1 A2 Y2 27.145MHZ BT1 3V 12 DUAL1 DUAL PTR A B U1 MA60H09 1 2 3 4 5 6 7 8 9 10 11 12 13 1415 16 17 18 19 20 21 22 23 24 25 26 27 28 VDD OSC1 OSC2 FBUT BBUT TXD TXCB VSS RFCTL RFOUT ORF1 ORF2 TEST XRESETXIR Z1IN Z2IN X1IN X2IN Y1IN Y2IN RBUT MBUT LBUT ZSO DCVR VL VSS Y1 76.8K L1 100UH MIDDLE BUTTON LEFT BUTTON RIGHT BUTTON IR2 R3 270 IR1 D1 IN5819 R2 220K R1 100K

Test Report

C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Page 1 of 18 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless Mouse MODEL No.: ACK-800MRF BRAND NAME: Solid Year FCC ID: L2BACEKEY80M REPORT NO: 020046-RF-ID ISSUE DATE: September 03, 2002 Prepared for Soild Year Co., Ltd. 2F-1, No. 94, Bao Chung Rd., Hsin Tien City, Taipei Hsien, Taiwan, R.O.C Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Page 2 Rev. 00 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 PRODUCT DESCRIPTION .................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................ 4 1.3 TEST METHODOLOGY ........................................................................................................ 4 1.4 TEST FACILITY ..................................................................................................................... 4 1.5 SPECIAL ACCESSORIES...................................................................................................... 5 1.6 EQUIPMENT MODIFICATIONS .......................................................................................... 5 2. SYSTEM TEST CONFIGURATION .................................................................................. 6 2.1 EUT CONFIGURATION ........................................................................................................ 6 2.2 EUT EXERCISE...................................................................................................................... 6 2.3 TEST PROCEDURE ............................................................................................................... 6 2.4 LIMITATION .......................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM .......................................................................... 8 3. SUMMARY OF TEST RESULTS ..................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................. 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........ 11 5.1 MEASUREMENT PROCEDURE: ....................................................................................... 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................... 11 5.3 MEASUREMENT EQUIPMENT USED:............................................................................. 11 5.4 MEASUREMENT RESULT: ................................................................................................ 11 5.5 CONDUCTED MEASUREMENT PHOTOS: ...................................................................... 11 6. RADIATED EMISSION TEST .......................................................................................... 12 6.1 MEASUREMENT PROCEDURE ........................................................................................ 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................... 13 6.3 MEASUREMENT EQUIPMENT USED:............................................................................. 14 6.4 FIELD STRENGTH CALCULATION ................................................................................. 14 6.5 MEASUREMENT RESULT ................................................................................................. 15 6.6 MEASUREMENT RESULT ................................................................................................. 16 C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Page 3 Rev. 00 7. OCCUPIED BANDWIDTH................................................................................................ 17 7.1 MEASUREMENT PROCEDURE ........................................................................................ 17 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................... 17 7.3 MEASUREMENT EQUIPMENT USED:............................................................................. 17 7.4 MEASUREMENT RESULTS: REFER TO ATTACHED DATA CHART. ..................... 17 C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Page 4 Rev. 00 1. GENERAL INFORMATION 1.1 Product Description The Solid Year Co., Ltd. Model: ACK-800MRF (referred to as the EUT in this report) The EUT is an short range, lower power, wireless Mouse designed as an " Input Device. It is designed by way of utilizing the FSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 27.145 MHz, one channel. B). Modulation : Frequency Shifting Key (FSK) Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 3 Vdc by AAA *2 battery. (F) Operation Methodology: The U1 CPU encoder generates a pulse code serially transmit (typical designation) inside the U1. This pulse signal mixed with the carrier at modulator(inside U1) stage by way of FSK mode frequency modulation. The modulation depth is designed such as ± 5KHz in this application, that means the pulse(may be at high level state or low level state) will trigger the oscillator to generate a frequency at a specified fundamental frequency + 5KHz or − 5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency +5KHz at high level state, then the alterna…

Text truncated - open the document above for the full version.

Test Setup Photos

C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 APPENDIX 1 PHOTOGRAPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 020046-RF-ID FCC ID: L2BACEKEY80M DATE: 09/03/2002 Radiated Emission Set up Photos
