L3M866Pager

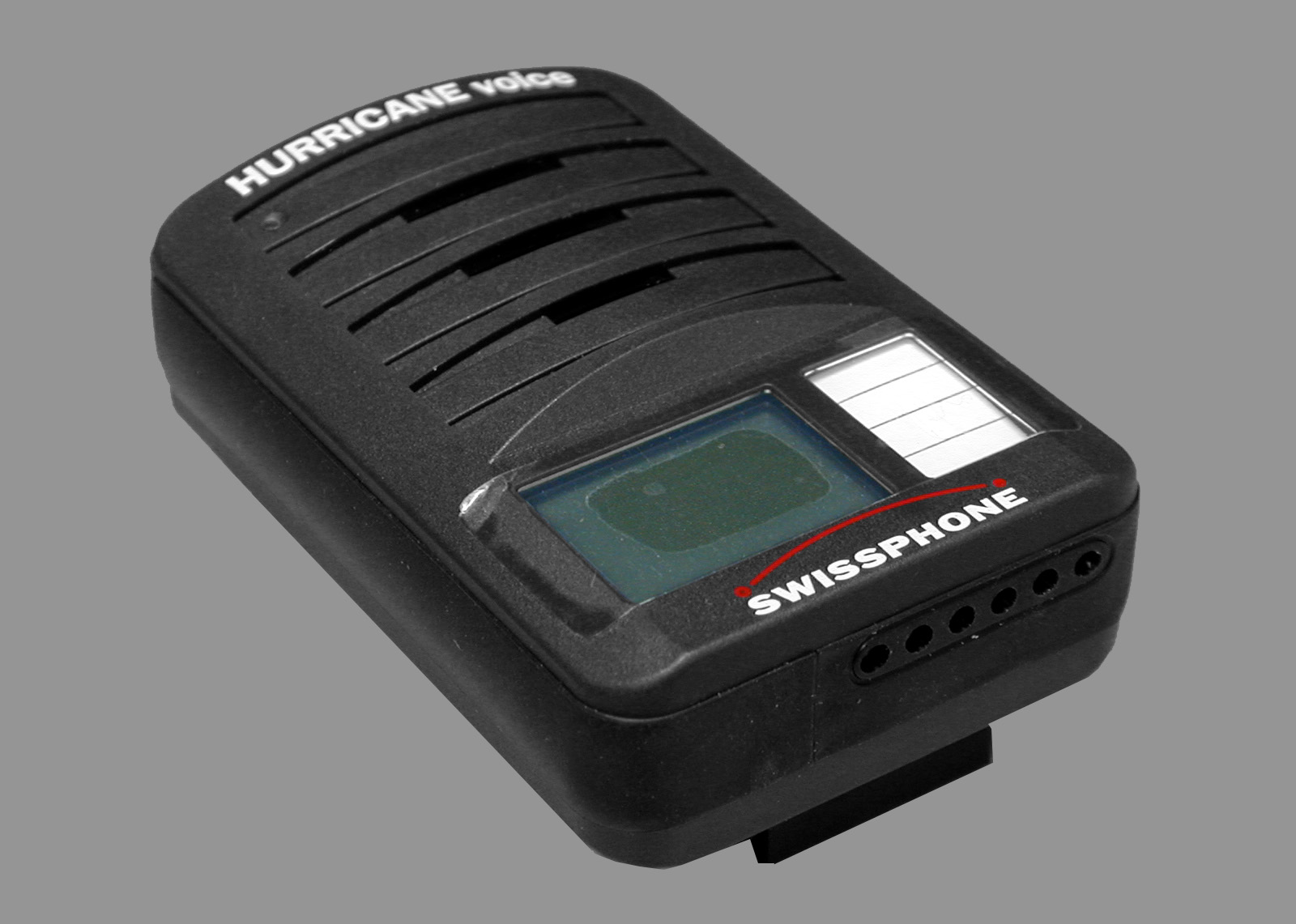

DV500 HURRICANE voice User Instructions Copyrights byEdition, April 2000/zmPage 1/6 SWISSPHONE TelecomSW Art. No 0343186 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 24.10.02 * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in Switzerland WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. DV500 HURRICANE voice User Instructions Copyrights byEdition, April 2000/zmPage 2/6 SWISSPHONE TelecomSW Art. No 0343186 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 24.10.02 DISPLAY / MENU MEMOADDR clock alarm-clock date commands battery condition indicator message memory no. figures contained in message call indication arrow field strength indication alarm-clock clock delete message protect message read message memory alerting modes volume adjustment GENERAL Inserting battery With a small coin the battery cover on the back-side can be removed. By inserting the battery (AA size, Alkaline, NiCd or NMHyd) pay attention to the polarity. To switch on Press SELECT and EXECUTE simultaneously . A peep tone confirms the switch-on procedure and all symbols are shortly being displayed. The pager will automatically switch to normal operation mode. To switch off Press SELECT and EXECUTE simultaneously for approx. 3 seconds when in normal operation mode. The contour of the battery condition indicator is blinking until the pager is switched off. MEM OADDR "SELECT" "EXECUTE" LED KEY KEY All operating functions can be carried out with the two keys located top left and top right of the housing. The key on the left is to select a function. The blinking icon of the display is indicating the selected function. To execute the selected function the key on the right has to be pressed. DV500 HURRICANE voice User Instructions Copyrights byEdition, April 2000/zmPage 3/6 SWISSPHONE TelecomSW Art. No 0343186 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 24.10.02 MENU FUNCTIONS Press SELECT to go from one icon to the next, until the desired icon is blinking. Loud alert Press EXECUTE and the alert mode is set to be done acoustically, optically (LED and call indicating arrow) and by vibration. Alert first silent, followed by loud mode Press EXECUTE and the alert mode is set to be for the first 10 seconds by vibrator only.If the call is not confirmed by pressing any key within 10 seconds the alert is going to continue also acoustically and optically. Silent alert Press EXECUTE and the alert mode is set to be silent, i.e. no acoustical alert, but optical and by vibration. Once an alert mode is set as above, the corresponding icon will be displayed in normal operation mode and after switching on the unit. Volume adjustment By pressing EXECUTE, the volume of the voice messages will change according to the displayed value 1,2,3,4,5,6,7, or 8. To confirm the visible value press SELECT. Execution will be confirmed by "Gong" sound. Field strength indication In case of leaving the area of reception, press EXECUTE to change from ON to OFF or vice versa and confirm by pressing SELECT. ON: acoustical and optical alert, OFF: optical alert only showing the symbol in normal operation mode. DV500 HURRICANE voice User Instructions Copyrights byEdition, April 2000/zmPage 4/6 SWISSPHONE TelecomSW Art. No 0343186 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 24.10.02 Read message file Up to 15 messages can be retrieved, the oldest (if not protected) message will be overwritten when a new message is received. By pressing EXECUTE message number 1 will be played. By pressing EXECUTE again during listening the next following message will be played. Message protection Press EXECUTE once, twice etc. until the message to be protected is chosen, then during listening to this message press SELECT. The display shows "prot". To confirm the protection press EXECUTE within 5 seconds. Delete message Press EXECUTE once, twice etc. until the message to be deleted is chosen, then during listening press SELECT. The display shows "dEL". To confirm deletion press EXECUTE within 5 seconds. Clock and date setting By pressing EXECUTE the first two figures (hours) are blinking and can be changed by pressing SELECT. To set the hours accordingly press EXECUTE. Now the "minutes" are blinking. To change them press SELECT, to confirm accordingly press EXECUTE. Procedures for the following setting of month and day are the same. Alarm clock Setting the time of the alarm-clock is identical to setting the time of the clock (as above). On/off can be set by pressing EXECUTE. To confirm press SELECT. If the alarm clock is activated the alarm clock icon will be visible in normal operation mode. The wake-up call can be stopped by double clicking any key. DV500 HURRICANE voice User Instructions Copyrights byEdition, April 2000/zmPage 5/6 SWISSPHONE TelecomSW Art. No 0343186 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 24.10.02 If a wake up reminder after 10 minutes is desired instead of a double click press any key only once. The above icons represent the full range of options programmable for DV 500 HURRICANE voice. Should any of these Icons not be visible in the display please note that in this case the corresponding option is not available in your DV 500 HURRICANE voice Receipt of a message The pager will alert as defined by the user, either , or . By pressing any key acoustical and/or vibration alert stops, but the LED keeps on blinking and the call indicating arrow will remain switched on to remind on unread messages. To listen to this "unread" messages press EXECUTE. The newest message will be played first followed by all the remaining "unread" messages. To interrupt press EXECUTE to listen to the next following…

Text truncated - open the document above for the full version.

Copyrights byTechnical Functional Description of the DV500 / 500descripte Page 2/6 Swissphone TelecomSW Art. No.0343286 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 02.07.02 1. Schematic Block Diagram

Barry Quinlan From: "Ruby Dulmage" <[email protected]> To: "Curtis-Straus TCB" <[email protected]> Sent: Wednesday, October 30, 2002 11:45 AM Attach: Instr Hurricane II_USA.pdf Sub ject: Reply: Swissphne FCC ID: L3M866 Page 1 of 1 12/5/2002 Hi Barry: Please see answers under your questions and also attachment. I trust this information will enable you to complete this submission. Thanks, Ruby ----- Original Message ----- From: Curtis -Straus TCB To: Ruby Dulmage Sent: Monday, October 14, 2002 7:30 PM Subject: Swissphne FCC ID: L3M866 Hi Ruby, We have identified these issues following our review of the application: 1. The user manual does not contain the 15.21 statement. Please see revised user manual attached containing the statement. 2. Please justify why the C63.4 clause 12.1.1 procedure was not followed in each of the frequency bands. The samples sent were fixed frequencies. Thus customer has stated that all receivers are identical from an RF standpoint accross all bands. Receiver characterization was determined on one same sent to use (no emissions detected at 3m). See notes on page 4 of test report. 3. How was the device stimulated? See C63.4 clause 12.1.1.2. The receiver was cohered using a CW tone as per ANSI C63.4 para 12.1 4. Over what frequency range was the radiated emissions taken. Please supply a data table. The receiver was searched from 30 MHz to the 10tarmonic of the L.O. as per the limit table on page 6 of the test report. Please note that CXX is the correct equipment code. Noted Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB

Barry Quinlan From: "Ruby Dulmage" <[email protected]> To: "Curtis-Straus Certification Dept." <[email protected]> Sent: Monday, December 02, 2002 3:30 PM Attach: 2W06127 Issue 2.PDF Sub ject: Re: Reply: Swissphone FCC ID: L3M866 Page 1 of 2 12/5/2002 Hi Barry: Attached is a revised (Issue 2) test report. Thanks, Ruby ----- Original Message ----- From: Curtis -Straus Certification Dept. To: Ruby Dulmage Sent: Monday, November 04, 2002 1:12 PM Subject: Re: Reply: Swissphone FCC ID: L3M866 Hi Ruby. Issues 1,3 & 4 have been resolved. For issue 2 we do need to see radiated emission results over 3 frequencies in each band as required by 15.31 (m). Barry ----- Original Message ----- From: Ruby Dulmage To: Curtis -Straus TCB Sent: Wednesday, October 30, 2002 8:45 AM Subject: Reply: Swissphne FCC ID: L3M866 Hi Barry: Please see answers under your questions and also attachment. I trust this information will enable you to complete this submission. Thanks, Ruby ----- Original Message ----- From: Curtis -Straus TCB To: Ruby Dulmage Sent: Monday, October 14, 2002 7:30 PM Subject: Swissphne FCC ID: L3M866 Hi Ruby, We have identified these issues following our review of the application: 1. The user manual does not contain the 15.21 statement. Please see revised user manual attached containing the statement. 2. Please justify why the C63.4 clause 12.1.1 procedure was not followed in each of the frequency bands. The samples sent were fixed frequencies. Thus customer has stated that all receivers are identical from an RF standpoint accross all bands. Receiver characterization was determined on one same sent to use (no emissions detected at 3m). See notes on page 4 of test report. 3. How was the device stimulated? See C63.4 clause 12.1.1.2. The receiver was cohered using a CW tone as per ANSI C63.4 para 12.1 4. Over what frequency range was the radiated emissions taken. Please supply a data table. The receiver was searched from 30 MHz to the 10tarmonic of the L.O. as per the limit table on page 6 of the test report. Please note that CXX is the correct equipment code. Noted Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB Page 2 of 2 12/5/2002

Pages:1/1 Date:09.09.02 Author: Urs Aebersold SWISSPHONE Label for DV500

Copyrights byTechnical Functional Description of the DV500 / 500descripte Page 1/6 Swissphone TelecomSW Art. No.0343286 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 02.07.02 Technical Functional Description DV500 1. SCHEMATIC BLOCK DIAGRAM............................................................................... 1 2. HF - PART.................................................................................................................. 3 2.1. General................................................................................................................................................................. 3 2.2. Input Circuits ...................................................................................................................................................... 3 2.3. Oscillator ............................................................................................................................................................. 3 2.4. Mixers .................................................................................................................................................................. 3 2.5. IF, Demodulation ................................................................................................................................................ 3 3. DIGITAL PART .......................................................................................................... 4 3.1. Decoder ................................................................................................................................................................ 4 3.2. μ μμ μC und Peripherals ............................................................................................................................................. 4 4. LF - PART .................................................................................................................. 4 4.1. Beep...................................................................................................................................................................... 4 4.2. LF - Amplifier ..................................................................................................................................................... 4 4.3. LF - Filter ............................................................................................................................................................ 5 4.4. Volume ................................................................................................................................................................. 5 5. VOICE PART ............................................................................................................. 5 5.1. General................................................................................................................................................................. 5 5.2 MSM7630 ............................................................................................................................................................. 5 5.3 ROM MR27V3202E ............................................................................................................................................ 5 5.4 RAM MSM51V18165D ....................................................................................................................................... 5 5.5 Interface to Voice Print ....................................................................................................................................... 5 6. POWER SUPPLY ...................................................................................................... 5 6.1. General................................................................................................................................................................. 5 6.2. DC/DC - Converter ............................................................................................................................................. 6 6.3. HF - Power Supply.............................................................................................................................................. 6 6.4. Voice Print Power Supply .................................................................................................................................. 6 Copyrights byTechnical Functional Description of the DV500 / 500descripte Page 2/6 Swissphone TelecomSW Art. No.0343286 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 02.07.02 1. Schematic Block Diagram Copyrights byTechnical Functional Description of the DV500 / 500descripte Page 3/6 Swissphone TelecomSW Art. No.0343286 Roosstrasse 53 CH-8832 WollerauPMA/D000122Version 1 / 02.07.02 2. HF - Part 2.1. General The HF – receiver stage is constructed with the direct conversion chip UAA2080 (IC1). This chip supplies the demodulated DFSK-POCSAG - signal at the output. 2.2. Input Circuits The aerial is tuned with C3. The aerial signal reaches the RF pre-amplifier through the symmetrical inputs VI1RF und VI2RF. The output circuit of this amplifier is equa- lised to the receiver frequency with L2, L3 and C6. The amplified input signal re- aches the two mixer inputs through the quadrature network C10, C11, L4 and L5. 2.3. Oscillator The oscillator frequency is defined by the quartz Q1 and C16. The output circuit of the oscillator with C15 and L8 is dimensioned to the 2- or 3-times quartz frequency (multiplier 1) in broad-band. This oscillator signal internally reaches a multiplier sta- ge, which is tuned to the 1- or 3-times of its frequency (multiplier 2) with C12, L6 and L7. Therefore the following broad-band multiplications of the quartz frequency result: BandMultiplier 1 Factor m 1 Multiplier 2 Factor m 2 Multiplication Factor n = m 1* m 2 VHF - 4mXX212 VHF - 2mXX313 UHF - G/H236 The symmetrical oscillator signal also reaches the mixers. 2.4. Mixers Present on the chip are two ide…

Text truncated - open the document above for the full version.

Master: PT15-SubB-15109 Date: October 17, 2001 Test Report:2W06127, Issue II Applicant:Swissphone Telecom AG Roosstrasse 53 CH-8832 Wollerau, Switzerland Equipment Under Test:DV500 Hurricane Receiver (EUT)146-174MHz, 450-470MHz Bands FCC ID:L3M866 In Accordance With:FCC Part 15, Subpart B, 15.109 Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date:2 December 2002 Total Number of Pages:9 Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 2 of 9 Table Of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................6 Section 4. Block Diagrams.....................................................................................................8 Section 5. Test Equipment List.............................................................................................9 Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 3 of 9 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________DATE: 2 December 2002 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 4 of 9 Summary Of Test Data Name Of TestPara. No.Results Radiated Emissions15.109Complies Powerline Conducted Emissions15.107N/A Note. (1)All receiver units are identical from an RF standpoint. There are two receive frequency bands: 146-174MHz & 450-470MHz. Test Conditions: IndoorTemperature:22°C Humidity: 40% OutdoorTemperature:24°C Humidity:42% Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 5 of 9 Section 2.General Equipment Specification Manufacturer: Swissphone Telecom AG Model No.: DV500 Serial No.: C200228.05867 (155MHz) C200228.05866 (146MHz) C200229.01421 (470MHz) Date Received In Laboratory: 1 Aug 2002, & 25 Nov 2002 Nemko Identification No.: #8, 11 & 12 Receive Frequency:146.05-174.05MHz & 450.05-470.05MHz Receive L.O.:same as receive frequency Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 6 of 9 Section 3.Radiated Emissions Para. No.: 15.109(a) Test Performed By: Glen WestwellDate of Test: 6 Aug 2002 2 Dec 2002 Minimum Standard: Frequency(MHz)Field Strength (dBμμV/m @ 3m) 30 - 8840.0 88 - 21643.5 216 - 96046.0 Above 96054.0 Test Results:Complies Measurement Data:Top, Mid & Bottom bands were searched. The EUT(s) were searched on three orthogonal axis with a fresh battery. The receivers were cohered using a CW source at the receive frequency. No Emissions were detected. Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 7 of 9 DV500 Receiver(s) Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 8 of 9 Section 4.Block Diagrams Outdoor Test Site For Radiated Emissions 3 METERS EUT NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.: 2W06127 EQUIPMENT: DV500 Hurricane Receiver Page 9 of 9 Section 5.Test Equipment List CAL CYCLE EQUIPMENTMANUFACTURERMODELSERIALLAST CAL.NEXT CAL. 1 Year Spectrum Analyzer-1 Hewlett Packard8566B2311A0223827 Nov 200127 Nov 2002 1 YearSpectrum Analyzer Display-1 Hewlett Packard8566B2314A0475927 Nov 200127 Nov 2002 1 Year Quasi-peak adapter-1 Hewlett-Packard85650A2043A0030227 Nov 200127 Nov 2002 1 YearReceiverRohde & SchwarzESVPFA00087119 Sep 200119 Sep 2002 1 YearLog Periodic Antenna 1EMCOLPA-251141Aug. 28/01Aug. 28/02 1YearDipole Antenna SetEMCO #23121CFA0013496 May 20026 May 2003 1 YearRF AmplifierMiteq100-500MHzFA001494COUCOU
