L3M878RE529 Paging Receiver

Swissphone Telecommunications AG manual RE529.docJuly 14 th 2003 Fälmisstrasse 21 // 8833 Samstagernedition 0.9 SwitzerlandPMA/D000xxxpage 1/7 Operating Manual Quattrino RE529, two tone We congratulate you on your new Pager from the RE429 family. You now have a device which dominates with its performance, equipment and operational safety. Despite the simple handling of the unit, we would recommend that you read through the operating manual thoroughly. We are sure that you will find a true and reliable companion in your Pager. Contents 1Putting Into Operation ............................................................................................................2 1.1Power Supply ............................................................................................................2 1.2Inserting the Battery ..................................................................................................2 1.3Automatic Switch-On.................................................................................................2 1.4Switching Off .............................................................................................................2 1.5Switching On / Keys ..................................................................................................3 1.6Selecting the Operating Status .................................................................................3 2The complete LC Display of your unit ....................................................................................4 2.1Acoustic ON ..............................................................................................................4 2.2Mini-Beep ..................................................................................................................4 2.3Acoustic OFF ............................................................................................................4 2.4Monitor ......................................................................................................................4 2.5Volume ......................................................................................................................5 2.6Field Strength Alarm .................................................................................................5 2.7Address Display ........................................................................................................5 2.8Switching ON and OFF of the Activated Addresses .................................................5 2.9Message....................................................................................................................5 2.10Battery Status Indicator .............................................................................................6 2.11Battery / Accumulator Recognition............................................................................6 2.12New Message ...........................................................................................................6 2.13Call Retrieving ...........................................................................................................6 2.14Call Signalling............................................................................................................6 2.15Acknowledgement / Deletion.....................................................................................7 3General ..................................................................................................................................7 3.1Battery Life - Week Battery .......................................................................................7 3.2Illumination ................................................................................................................7 3.3Accessories...............................................................................................................7 3.4Customer Service .....................................................................................................7 WARNING- Do not operate this product in hazardous atmosphere or explosion risk areas! - Do not open device or remove labels! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. WARNING- Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Made in Switzerland Swissphone Telecommunications AG manual RE529.docJuly 14 th 2003 Fälmisstrasse 21 // 8833 Samstagernedition 0.9 SwitzerlandPMA/D000xxxpage 2/7 Introduction The unit has a large number of operational functions. The delivered unit contains a selection of these as a basic setting. These operating functions are shown in the display, and can be activated by the user. If this selection does not meet your requirements, additional functions can be programmed as required with the programming device. You can find information about the type and scope of functions that can be programmed in the operating manual, or you can contact your supplier or SWISPHONE directly. 1 Putting Into Operation 1.1 Power Supply This family of units is preferably operated using an environmentally friendly, rechargeable power source (batteries). These batteries are available in the AA (Mignon) size as NiCD, 600 mAh (nickel-cadmium from Sanyo) or NiMH 1000 mAh (metal nickel hydride from Varta, Furukuwa), and can be recharged by various types of recharging unit. As an alternative, the unit can be fed from dry batteries. In this case, only high quality dry batteries intended for professional use should be used (e.g., UCAR, Duracell, Varta etc.) 1.2 Inserting the Battery To insert the battery, proceed as follows: 1) Open the battery compartment by pressing down the tongue in the rear panel and pulling …

Text truncated - open the document above for the full version.

455 KHz HF Ae AeAe 1V Visum AKKU HF/NF 21.4 20,945 21,4 Freig. BAT+ BAT+ D-IN D-OUT GND GND/S Datum Ae-Nr.Vis.Vis.Datum Gez.17.07.2003 Datum 1,26V Mso Ae-Nr. Vis. Datum Ae-Nr. RE529 BLOCK SCHEMA 0283.2051.A0

backside labels.doc page 1/1 Date:July 14 th 2003 Author: Dempwolff SWISSPHONE Labels 1. Unique product number: RE529878 2. Labeling of FCC ID and UPN RE529 Maske:T1 Barcode-Typ: 93 0319507 Original size: 52x15mm battery compartment cover with belt clip back side label Inside seal, white RE529, backside SWISSPHONE Quattrino Type: RE529Freq.: IC.: 4404A878 FCC: L3M878 S/N: C ID:

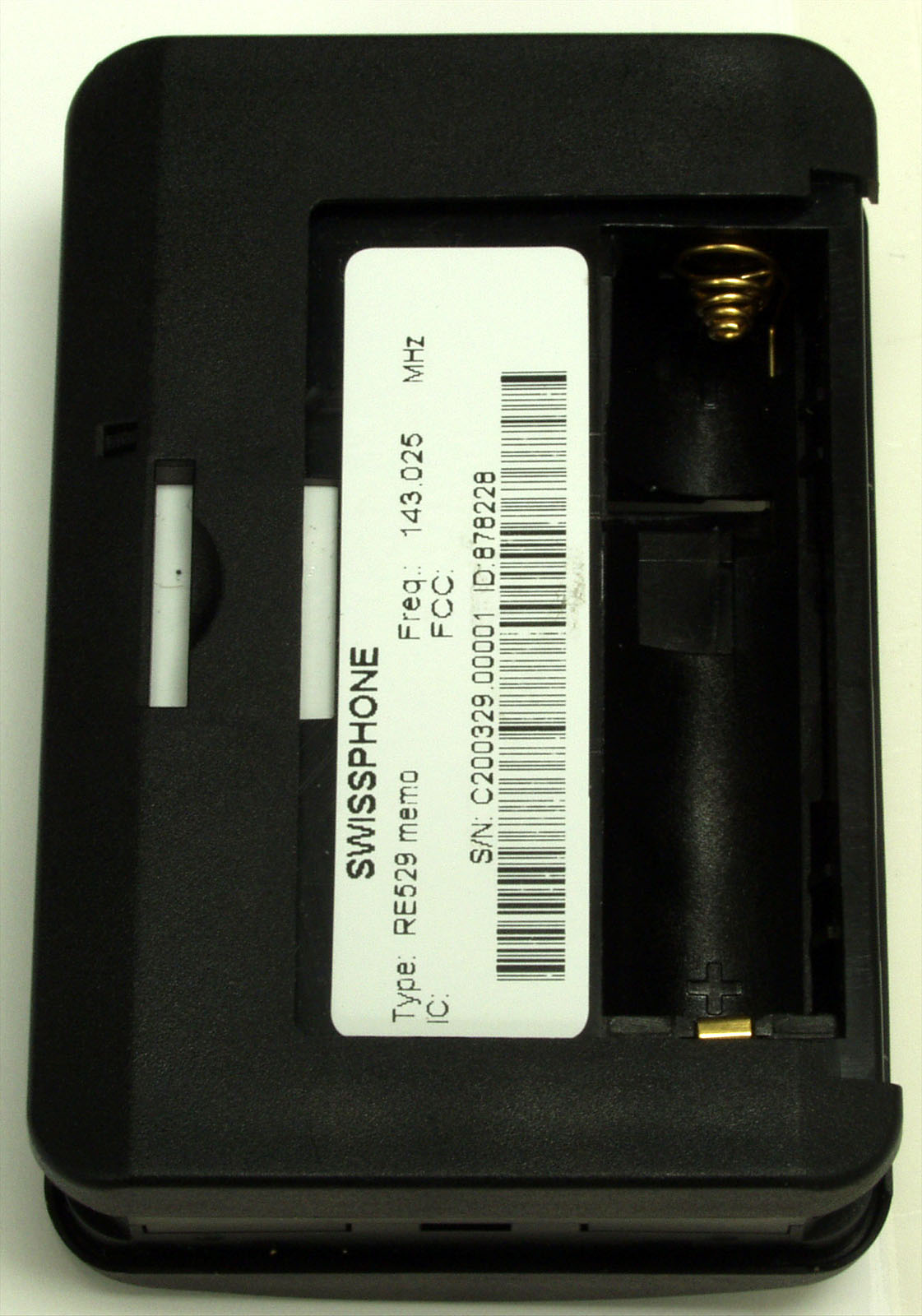

Swissphone Telecom AG www.swissphone.com8832 Wollerau -Switzerland1/1 RE529 Two Tone Pager Back Side View of RE529 Model memo is shown. Diversification due to software options. Battery compartment opened for view onto label. Referee:Dirk Dempwolff Product manager Swissphone Telecom AG Roosstrasse 53 8832 Wollerau Switzerland ++41 1786 7715 [email protected]

copy rights by Description RE529 Swissphone Telecom Operational Desciption RE529.doc Roosstrasse 53 CH-8832 Wollerau edition 1 / 10.07.2003 Technical Description RE 529 VHF 2m The basic functions of the main stages of the RE 529 are described below. The main board together with the sub-board constitute a functional unit. The complete board assembly is combined on a printed circuit board assembly jig and passes along the complete assembly process through to the adjustment and check of the data content. The pair of printed circuit boards are tuned together by means of the common learning process and can be treated as a self-contained functional unit. Contents: Technical Description RE 529 VHF 2m............................................................ 1 1 MAIN BOARD RE529 ...................................................................................2 1.1 Power source and DC supply.............................................................2 1.2 Antenna / Amplifier / Filter..................................................................2 1.3 Crystall oscillator ................................................................................3 1.4 First mixer / Filter ...............................................................................3 1.5 μP Microprocessor / μP-Clock / Reference voltage............................3 1.6 EEPROM ...........................................................................................4 1.7 Tone Decoder ....................................................................................4 1.8 AF-Amplifier .......................................................................................4 1.9 Visual and audio indicators ................................................................4 1.10 LCD Liquid Crystal Display ................................................................5 1.11 Vibrator ..............................................................................................6 1.12 Key functions .....................................................................................6 2 SUBPRINT RE529 .......................................................................................6 2.1 DC-Voltage ........................................................................................7 2.2 DC/DC-Converter...............................................................................7 2.3 ZF- IC.................................................................................................7 2.4 Squelch ..............................................................................................8 2.5 Speech memory .................................................................................8 3 PRINT INTERFACES OF RE529 .................................................................9 3.1 Connection from Main board - Subprint .............................................9 4 CONNECTION FROM RECEIVER TO PERIPHERAL UNIT........................10 copy rights by Description RE529 Swissphone Telecom Operational Desciption RE529.doc Roosstrasse 53 CH-8832 Wollerau edition 1 / 10.07.2003 1 MAIN BOARD RE529 The main board is designed as a 4 layer printed circuit board and is mounted with SMD components. The functional units and stages described below are contained on this board. One important functional group comprises the HF input stage, oscillator and mixer up to the first IF signal processor. Another functional group combines the μP with clock generator, EEPROM, tone decoder, reference voltage and the push-button boards. The AF output amplifier with loudspeaker, indicator LEDs, vibrator and LCD are mounted on the reverse side of the main boad. 1.1 Power source and DC supply The accumulator (nom. voltage= 1.26 V) or a battery serve as the power source. The main board requires the following supply voltages: V BAT = 1.26V /DC for the AF amplifier, vibrator, lamps, voltage monitor and supply of various transistor stages V DD = 3 V/DC for the μP, correlator and EEPROM V+ = 1V/regulated for the HF-transistors. Both the supply voltages V DD =3 V and V+=1V are generated in the receiver using the DC/DC converter and the IF-IC (both on the sub-board). If the accumulator voltage falls below 1.2V the battery alarm is activated via the μP (periodic beeping). From this moment on, the equipment is able to function for approximately five more hours. If the voltage drops below 1V DC for a short period, the equipment switches to the startup condition. NiCd accumulators should be preferably used for the power source. It should be noted that when using a battery, the receiver recognizes it as a battery and therefore it cannot be charged. 1.2 Antenna / Amplifier / Filter The signal is picked up via the ferrite antenna L1. The antenna is tuned to resonance using capacitors C1,C2,C3 and C4. The signal is then amplified by transistor T1 which operates in the common base mode. The desired frequency band is selected using a coupled filter comprising the two shunt resonant circuits L11/ C11/ Y12 and L13/C13/C14. copy rights by Description RE529 Swissphone Telecom Operational Desciption RE529.doc Roosstrasse 53 CH-8832 Wollerau edition 1 / 10.07.2003 1.3 Crystall oscillator The oscillator uses the Colpitts configuration. The coupled bandpass filter with the two inductors L22 and L23 is necessary for selection of the oscillator signal. The crystal frequency is doubled in the collector circuit for operation in the 2 m band. The oscillator output is coupled to the mixer via coupling capacitor C25. The oscillator frequency is 21.4 MHz higher than the received signal the lower and middle 2 m bands (A, B, C bands). For the upper 2 m band (D band), the oscillator frequency is 21.4 MHz lower than the received signal. 1.4 First mixer / Filter The dual gate MOSFET T51 mixes the amplified input signal from the antenna with the local oscillator signal to generate the first IF signal at a frequency of 21.4 MHz. The resonant circuit formed by L51/C51 forms the load…

Text truncated - open the document above for the full version.

Sprintel Communications AG CH 8833 Samstagern STL-Nr. 0550500 KDE-SET RE529 USA Quattrino memo sz/bl 11. Jul. 03 ID-Nr.Pos. EinbauhinweisBezeichnung Layerunabhängig STL-Nr. 0550500 KDE-SET RE529 USA Quattrino memo sz/bl Bedarf 1 Stk. 05392785RE429 Klips kpl. lang schwarz 034318115Bed.Anleitung RE429NT+ E 031913510Abdeckschild 19X15mm VINYL 031906211Bogen Geräteschild DV300 weiss 03018763300/429 Schopomanschette blau 03018392300/429 Gehäuse-UT schwarz 02858289DV300 Lautsprecherdichtung 01841368RE429 Kalotte blau 033003013SpediAkku NiMH 1.2V AA 1600-2000mAh Sanyo, Sunrise 032185512SpediSchaumstoffeinlage 85x55x5MM 03217616SpediDV300 Einlage 03217604SpediDV300 Hülle weiss neutral 031950816T119Typenschild auf Rolle PVC 15x52mm 03195097V103Verpackungsschild auf Rolle 55x25mm STL-Nr. 0528606 DV300 Gehäuse-OT Quattrino schwarz Bedarf 1 Stk. 03018341300/429 Gehäuse-OT schwarz Bearbeiter: AVORAVORSeite 1 von 1

Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878240 RE529 VHF D 166-174MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion Layerunabhängig STL-Nr. 0910475 RE429 Flex-Antenne gebogen 5WDG. Bedarf 1 Stk. 150209023Antennen-Flex 34MM 80-Nutzen, Index B. STL-Nr. 0878240 RE529 VHF D 166-174MHz FM 20/25kHz MEMO Bedarf 1 Stk. 310285654Quarz-Unterlage 3,5X7,6X0,5mm 510237095Vibrator 1.3V FM-112K11-GSTc entstört 410319448RE429 Kleber 210224926Quarz QS26 diverse Frequenzen STL-Nr. 0528146 300/429 Taste Bedarf 2 Stk. 11 PCB0204832RE429 TastenprintA 1 PCB0204832RE429 TastenprintA 21 S10184411SMD Taster EVQ-PQM B55 1 S10184411SMD Taster EVQ-PQM B55 Printlayer 1 STL-Nr. 0550090 PS Testprint RE529 L1 Bedarf 1 Stk. 11 BU2010254851SMD Durchgangsbuchse 2x12pol. SEC203-1202B05 21 ST2010254734SMD Stecker 2x12pol. PEC 208-1254B25 STL-Nr. 0550057 PS RE529 20/25kHz L1 Bedarf 1 Stk. 22 F1010213453KER.-Filter SMD SFPCA455KE4A-R1 2 F1020213453KER.-Filter SMD SFPCA455KE4A-R1 11 R2090033461R SMD 5K6 CHIP-R 0603 +/-1% STL-Nr. 0550051 PS RE529 FM L1 Bedarf 1 Stk. 11 C1360999998'nicht bestückt' 21 R1770043011POT. SMD 5K 3MM gegurtet STL-Nr. 0550041 PS RE529 Subprint MEMO L1 Bedarf 1 Stk. 3910281458RE429 Abschirmung 3712 BU0254611CONTACT 1-Pol. PS-5047-822-TR 11 BU1010254851SMD Durchgangsbuchse 2x12pol. SEC203-1202B05 23 C1040067351C SMD 1N0 X7R 0603 +/-10% 37 C1210065668C SMD 10u/6.3V Y5V 0805 47 C1250067540C SMD 100N X7R 0603 +/-10% 37 C1270065668C SMD 10u/6.3V Y5V 0805 7 C1280065668C SMD 10u/6.3V Y5V 0805 23 C1410067351C SMD 1N0 X7R 0603 +/-10% 3 C1420067351C SMD 1N0 X7R 0603 +/-10% 61 C1440067450C SMD 10N X7R 0603 +/-10% 47 C1450067540C SMD 100N X7R 0603 +/-10% 61 C1460067450C SMD 10N X7R 0603 +/-10% 37 C1600065668C SMD 10u/6.3V Y5V 0805 47 C1610067540C SMD 100N X7R 0603 +/-10% 52 C1620067541C SMD 100nF X7R 0603 +/- 5% 2 C1630067541C SMD 100nF X7R 0603 +/- 5% 74 C1640999998'nicht bestückt' 11. Jul. 03ACCESSSeite 1 von 6 Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878240 RE529 VHF D 166-174MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion 74 C1650999998'nicht bestückt' 4 C1660999998'nicht bestückt' 86 C1670067660C SMD 1UF Y5V 0603+80/-20% 10V 47 C1680067540C SMD 100N X7R 0603 +/-10% 7 C1690067540C SMD 100N X7R 0603 +/-10% 37 C1700065668C SMD 10u/6.3V Y5V 0805 47 C1710067540C SMD 100N X7R 0603 +/-10% 37 C1720065668C SMD 10u/6.3V Y5V 0805 86 C1810067660C SMD 1UF Y5V 0603+80/-20% 10V 91 C1820108251C SMD 100U/4V Tantal 7,3X4,3 86 C1830067660C SMD 1UF Y5V 0603+80/-20% 10V 6 C1840067660C SMD 1UF Y5V 0603+80/-20% 10V 37 C1850065668C SMD 10u/6.3V Y5V 0805 101 C1860108231C SMD 47U/10V Tantal 7,3X4,3 74 C1870999998'nicht bestückt' 86 C1880067660C SMD 1UF Y5V 0603+80/-20% 10V 6 C1890067660C SMD 1UF Y5V 0603+80/-20% 10V 111 C2010067201C SMD 56P NPO 0603 +/- 5% 121 C2020067181C SMD 39P NPO 0603 +/- 5% 47 C2090067540C SMD 100N X7R 0603 +/-10% 131 IC1000147780IC SMD TA31145FN EL SSOP-20 141 IC1400147587IC SMD NJU7015 VSP-8 T+R 151 IC1610148048IC SMD ISD4003-04ME TSOP-28 161 IC1810149080IC SMD TPS60301DGS R 10uMAX 171 IC1820149022IC SMD XC61CN1002NR SSOT-24 183 L1810174801L SMD BLM21PG221SN1D Murata 3 L1820174801L SMD BLM21PG221SN1D Murata 191 L1830999998'nicht bestückt' 183 L1840174801L SMD BLM21PG221SN1D Murata 361 Q2010220025Quarz 20.945 MHz QS 21 381 Q2090213087Ker.Discr. Filter CDBLB455KCAY40-B0 201 R1010033421R SMD 2K7 CHIP-R 0603 +/-1% 211 R1230033691R SMD 470K CHIP-R 0603 +/-1% 223 R1420033581R SMD 56K CHIP-R 0603 +/-1% 235 R1430033531R SMD 22K CHIP-R 0603 +/-1% 5 R1440033531R SMD 22K CHIP-R 0603 +/-1% 223 R1470033581R SMD 56K CHIP-R 0603 +/-1% 241 R1500033611R SMD 100K CHIP-R 0603 +/-1% 235 R1510033531R SMD 22K CHIP-R 0603 +/-1% 251 R1520033541R SMD 27K CHIP-R 0603 +/-1% 261 R1540033371R SMD 1K0 CHIP-R 0603 +/-1% 223 R1550033581R SMD 56K CHIP-R 0603 +/-1% 273 R1600033131R SMD 10E CHIP-R 0603 +/-1% 235 R1620033531R SMD 22K CHIP-R 0603 +/-1% 281 R1630033451R SMD 4K7 CHIP-R 0603 +/-1% 291 R1640999998'nicht bestückt' 302 R1660033000R SMD 0E0 CHIP-R 0603 315 R1670033731R SMD 1M0 CHIP-R 0603 +/-1% 5 R1680033731R SMD 1M0 CHIP-R 0603 +/-1% 5 R1690033731R SMD 1M0 CHIP-R 0603 +/-1% 401 R1700033091R SMD 4E7 CHIP-R 0603 +/-1% 273 R1790033131R SMD 10E CHIP-R 0603 +/-1% 315 R1810033731R SMD 1M0 CHIP-R 0603 +/-1% 5 R1820033731R SMD 1M0 CHIP-R 0603 +/-1% 302 R1830033000R SMD 0E0 CHIP-R 0603 273 R1840033131R SMD 10E CHIP-R 0603 +/-1% 235 R2010033531R SMD 22K CHIP-R 0603 +/-1% 321 R2100033251R SMD 100E CHIP-R 0603 +/-1% 11. Jul. 03ACCESSSeite 2 von 6 Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878240 RE529 VHF D 166-174MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion 331 T1210127701T SMD UNI-PNP S-MINI SOT-323 342 T1300127705T SMD BC859 CW '4C' SOT-323 351 T1410127704T SMD BC849 CW '2C' SOT-323 342 T1710127705T SMD BC859 CW '4C' SOT-323 411 T1720127700T SMD UNI-NPN S-MINI SOT-323 STL-Nr. 0550027 PS RE529 VHF D L1 Bedarf 1 Stk. 11 C20165501SMD-Trimmer 2 - 6P TZB4Z060AB10R00 71 C230067070C SMD 5P6 NPO 0603 +/- 0.25P 51 C240067021C SMD 1P5 NPO 0603 +/- 0.25P 61 C250067231C SMD 100P NPO 0603 +/- 5% 22 L110173250L SMD 150NH +/- 5% 2 L130173250L SMD 150NH +/- 5% 31 L210173340L SMD 820NH +/- 5% 42 L220176220L SMD 82nH +/-10% HK CHIP0805 2 L230176220L SMD 82nH +/-10% HK CHIP0805 STL-Nr. 0550011 PS RE529 USA Bänder L1 Bedarf 1 Stk. 22 C110165501SMD-Trimmer 2 - 6P TZB4Z060AB10R00 2 C130165501SMD-Trimmer 2 - 6P TZB4Z060AB10R00 31 C140999998'nicht bestückt' 41 C200165506SMD-Trimmer 7 - 50P TZB4R500AB10R00 52 C260165505SMD-Trimmer 3 - 10P TZB4S100AB10R00 2 C270165505SMD-Trimmer 3 - 10P TZB4S100AB10R00 11 C40067201C SMD 56P NPO 0603 +/- 5% STL-Nr. 0550001 PS RE529 VHF Basis L1 Bedarf 1 Stk. 4610281445DV300 Abschirmrahmen 4510225061Ferritstab 10,8X6,7X32 mm 39-107-35 4810280809RE429 Akkufeder plus 4910501749RE429 Akkufach kompl. 4710281457RE429 Abschirmblech 23 C1800673…

Text truncated - open the document above for the full version.

Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878232 RE529 VHF B 150-160MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion Layerunabhängig STL-Nr. 0910475 RE429 Flex-Antenne gebogen 5WDG. Bedarf 1 Stk. 150209023Antennen-Flex 34MM 80-Nutzen, Index B. STL-Nr. 0878232 RE529 VHF B 150-160MHz FM 20/25kHz MEMO Bedarf 1 Stk. 310285654Quarz-Unterlage 3,5X7,6X0,5mm 510237095Vibrator 1.3V FM-112K11-GSTc entstört 410319448RE429 Kleber 210224926Quarz QS26 diverse Frequenzen STL-Nr. 0528146 300/429 Taste Bedarf 2 Stk. 11 PCB0204832RE429 TastenprintA 1 PCB0204832RE429 TastenprintA 21 S10184411SMD Taster EVQ-PQM B55 1 S10184411SMD Taster EVQ-PQM B55 Printlayer 1 STL-Nr. 0550090 PS Testprint RE529 L1 Bedarf 1 Stk. 11 BU2010254851SMD Durchgangsbuchse 2x12pol. SEC203-1202B05 21 ST2010254734SMD Stecker 2x12pol. PEC 208-1254B25 STL-Nr. 0550057 PS RE529 20/25kHz L1 Bedarf 1 Stk. 22 F1010213453KER.-Filter SMD SFPCA455KE4A-R1 2 F1020213453KER.-Filter SMD SFPCA455KE4A-R1 11 R2090033461R SMD 5K6 CHIP-R 0603 +/-1% STL-Nr. 0550051 PS RE529 FM L1 Bedarf 1 Stk. 11 C1360999998'nicht bestückt' 21 R1770043011POT. SMD 5K 3MM gegurtet STL-Nr. 0550041 PS RE529 Subprint MEMO L1 Bedarf 1 Stk. 3910281458RE429 Abschirmung 3712 BU0254611CONTACT 1-Pol. PS-5047-822-TR 11 BU1010254851SMD Durchgangsbuchse 2x12pol. SEC203-1202B05 23 C1040067351C SMD 1N0 X7R 0603 +/-10% 37 C1210065668C SMD 10u/6.3V Y5V 0805 47 C1250067540C SMD 100N X7R 0603 +/-10% 37 C1270065668C SMD 10u/6.3V Y5V 0805 7 C1280065668C SMD 10u/6.3V Y5V 0805 23 C1410067351C SMD 1N0 X7R 0603 +/-10% 3 C1420067351C SMD 1N0 X7R 0603 +/-10% 61 C1440067450C SMD 10N X7R 0603 +/-10% 47 C1450067540C SMD 100N X7R 0603 +/-10% 61 C1460067450C SMD 10N X7R 0603 +/-10% 37 C1600065668C SMD 10u/6.3V Y5V 0805 47 C1610067540C SMD 100N X7R 0603 +/-10% 52 C1620067541C SMD 100nF X7R 0603 +/- 5% 2 C1630067541C SMD 100nF X7R 0603 +/- 5% 74 C1640999998'nicht bestückt' 11. Jul. 03ACCESSSeite 1 von 6 Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878232 RE529 VHF B 150-160MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion 74 C1650999998'nicht bestückt' 4 C1660999998'nicht bestückt' 86 C1670067660C SMD 1UF Y5V 0603+80/-20% 10V 47 C1680067540C SMD 100N X7R 0603 +/-10% 7 C1690067540C SMD 100N X7R 0603 +/-10% 37 C1700065668C SMD 10u/6.3V Y5V 0805 47 C1710067540C SMD 100N X7R 0603 +/-10% 37 C1720065668C SMD 10u/6.3V Y5V 0805 86 C1810067660C SMD 1UF Y5V 0603+80/-20% 10V 91 C1820108251C SMD 100U/4V Tantal 7,3X4,3 86 C1830067660C SMD 1UF Y5V 0603+80/-20% 10V 6 C1840067660C SMD 1UF Y5V 0603+80/-20% 10V 37 C1850065668C SMD 10u/6.3V Y5V 0805 101 C1860108231C SMD 47U/10V Tantal 7,3X4,3 74 C1870999998'nicht bestückt' 86 C1880067660C SMD 1UF Y5V 0603+80/-20% 10V 6 C1890067660C SMD 1UF Y5V 0603+80/-20% 10V 111 C2010067201C SMD 56P NPO 0603 +/- 5% 121 C2020067181C SMD 39P NPO 0603 +/- 5% 47 C2090067540C SMD 100N X7R 0603 +/-10% 131 IC1000147780IC SMD TA31145FN EL SSOP-20 141 IC1400147587IC SMD NJU7015 VSP-8 T+R 151 IC1610148048IC SMD ISD4003-04ME TSOP-28 161 IC1810149080IC SMD TPS60301DGS R 10uMAX 171 IC1820149022IC SMD XC61CN1002NR SSOT-24 183 L1810174801L SMD BLM21PG221SN1D Murata 3 L1820174801L SMD BLM21PG221SN1D Murata 191 L1830999998'nicht bestückt' 183 L1840174801L SMD BLM21PG221SN1D Murata 361 Q2010220025Quarz 20.945 MHz QS 21 381 Q2090213087Ker.Discr. Filter CDBLB455KCAY40-B0 201 R1010033421R SMD 2K7 CHIP-R 0603 +/-1% 211 R1230033691R SMD 470K CHIP-R 0603 +/-1% 223 R1420033581R SMD 56K CHIP-R 0603 +/-1% 235 R1430033531R SMD 22K CHIP-R 0603 +/-1% 5 R1440033531R SMD 22K CHIP-R 0603 +/-1% 223 R1470033581R SMD 56K CHIP-R 0603 +/-1% 241 R1500033611R SMD 100K CHIP-R 0603 +/-1% 235 R1510033531R SMD 22K CHIP-R 0603 +/-1% 251 R1520033541R SMD 27K CHIP-R 0603 +/-1% 261 R1540033371R SMD 1K0 CHIP-R 0603 +/-1% 223 R1550033581R SMD 56K CHIP-R 0603 +/-1% 273 R1600033131R SMD 10E CHIP-R 0603 +/-1% 235 R1620033531R SMD 22K CHIP-R 0603 +/-1% 281 R1630033451R SMD 4K7 CHIP-R 0603 +/-1% 291 R1640999998'nicht bestückt' 302 R1660033000R SMD 0E0 CHIP-R 0603 315 R1670033731R SMD 1M0 CHIP-R 0603 +/-1% 5 R1680033731R SMD 1M0 CHIP-R 0603 +/-1% 5 R1690033731R SMD 1M0 CHIP-R 0603 +/-1% 401 R1700033091R SMD 4E7 CHIP-R 0603 +/-1% 273 R1790033131R SMD 10E CHIP-R 0603 +/-1% 315 R1810033731R SMD 1M0 CHIP-R 0603 +/-1% 5 R1820033731R SMD 1M0 CHIP-R 0603 +/-1% 302 R1830033000R SMD 0E0 CHIP-R 0603 273 R1840033131R SMD 10E CHIP-R 0603 +/-1% 235 R2010033531R SMD 22K CHIP-R 0603 +/-1% 321 R2100033251R SMD 100E CHIP-R 0603 +/-1% 11. Jul. 03ACCESSSeite 2 von 6 Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878232 RE529 VHF B 150-160MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion 331 T1210127701T SMD UNI-PNP S-MINI SOT-323 342 T1300127705T SMD BC859 CW '4C' SOT-323 351 T1410127704T SMD BC849 CW '2C' SOT-323 342 T1710127705T SMD BC859 CW '4C' SOT-323 411 T1720127700T SMD UNI-NPN S-MINI SOT-323 STL-Nr. 0550023 PS RE529 VHF B L1 Bedarf 1 Stk. 11 C20165505SMD-Trimmer 3 - 10P TZB4S100AB10R00 51 C230067065C SMD 5P1 NPO 0603 +/- 0.25P 61 C240067011C SMD 1P0 NPO 0603 +/- 0.25P 71 C250067151C SMD 22P NPO 0603 +/- 5% 22 L110173260L SMD 180NH +/- 5% 2 L130173260L SMD 180NH +/- 5% 31 L210173330L SMD 680NH +/- 5% 42 L220176210L SMD 68nH +/-10% HK CHIP0805 2 L230176210L SMD 68nH +/-10% HK CHIP0805 STL-Nr. 0550011 PS RE529 USA Bänder L1 Bedarf 1 Stk. 22 C110165501SMD-Trimmer 2 - 6P TZB4Z060AB10R00 2 C130165501SMD-Trimmer 2 - 6P TZB4Z060AB10R00 31 C140999998'nicht bestückt' 41 C200165506SMD-Trimmer 7 - 50P TZB4R500AB10R00 52 C260165505SMD-Trimmer 3 - 10P TZB4S100AB10R00 2 C270165505SMD-Trimmer 3 - 10P TZB4S100AB10R00 11 C40067201C SMD 56P NPO 0603 +/- 5% STL-Nr. 0550001 PS RE529 VHF Basis L1 Bedarf 1 Stk. 4610281445DV300 Abschirmrahmen 4510225061Ferritstab 10,8X6,7X32 mm 39-107-35 4810280809RE429 Akkufeder plus 4910501749RE429 Akkufach kompl. 4710281457RE429 Abschirmblech 23 C1800673…

Text truncated - open the document above for the full version.

Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878228 RE529 VHF A 143-151MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion Layerunabhängig STL-Nr. 0910475 RE429 Flex-Antenne gebogen 5WDG. Bedarf 1 Stk. 150209023Antennen-Flex 34MM 80-Nutzen, Index B. STL-Nr. 0878228 RE529 VHF A 143-151MHz FM 20/25kHz MEMO Bedarf 1 Stk. 310285654Quarz-Unterlage 3,5X7,6X0,5mm 510237095Vibrator 1.3V FM-112K11-GSTc entstört 410319448RE429 Kleber 210224926Quarz QS26 diverse Frequenzen STL-Nr. 0528146 300/429 Taste Bedarf 2 Stk. 11 PCB0204832RE429 TastenprintA 1 PCB0204832RE429 TastenprintA 21 S10184411SMD Taster EVQ-PQM B55 1 S10184411SMD Taster EVQ-PQM B55 Printlayer 1 STL-Nr. 0550090 PS Testprint RE529 L1 Bedarf 1 Stk. 11 BU2010254851SMD Durchgangsbuchse 2x12pol. SEC203-1202B05 21 ST2010254734SMD Stecker 2x12pol. PEC 208-1254B25 STL-Nr. 0550057 PS RE529 20/25kHz L1 Bedarf 1 Stk. 22 F1010213453KER.-Filter SMD SFPCA455KE4A-R1 2 F1020213453KER.-Filter SMD SFPCA455KE4A-R1 11 R2090033461R SMD 5K6 CHIP-R 0603 +/-1% STL-Nr. 0550051 PS RE529 FM L1 Bedarf 1 Stk. 11 C1360999998'nicht bestückt' 21 R1770043011POT. SMD 5K 3MM gegurtet STL-Nr. 0550041 PS RE529 Subprint MEMO L1 Bedarf 1 Stk. 3910281458RE429 Abschirmung 3712 BU0254611CONTACT 1-Pol. PS-5047-822-TR 11 BU1010254851SMD Durchgangsbuchse 2x12pol. SEC203-1202B05 23 C1040067351C SMD 1N0 X7R 0603 +/-10% 37 C1210065668C SMD 10u/6.3V Y5V 0805 47 C1250067540C SMD 100N X7R 0603 +/-10% 37 C1270065668C SMD 10u/6.3V Y5V 0805 7 C1280065668C SMD 10u/6.3V Y5V 0805 23 C1410067351C SMD 1N0 X7R 0603 +/-10% 3 C1420067351C SMD 1N0 X7R 0603 +/-10% 61 C1440067450C SMD 10N X7R 0603 +/-10% 47 C1450067540C SMD 100N X7R 0603 +/-10% 61 C1460067450C SMD 10N X7R 0603 +/-10% 37 C1600065668C SMD 10u/6.3V Y5V 0805 47 C1610067540C SMD 100N X7R 0603 +/-10% 52 C1620067541C SMD 100nF X7R 0603 +/- 5% 2 C1630067541C SMD 100nF X7R 0603 +/- 5% 74 C1640999998'nicht bestückt' 11. Jul. 03ACCESSSeite 1 von 6 Sprintel Communications AG Strukturstückliste / Produktestamm CH 8833 Samstagern STL-Nr. 0878228 RE529 VHF A 143-151MHz FM 20/25kHz MEMO Pos.Stk. EinbauhinweisID-Nr.BezeichnungVersion 74 C1650999998'nicht bestückt' 4 C1660999998'nicht bestückt' 86 C1670067660C SMD 1UF Y5V 0603+80/-20% 10V 47 C1680067540C SMD 100N X7R 0603 +/-10% 7 C1690067540C SMD 100N X7R 0603 +/-10% 37 C1700065668C SMD 10u/6.3V Y5V 0805 47 C1710067540C SMD 100N X7R 0603 +/-10% 37 C1720065668C SMD 10u/6.3V Y5V 0805 86 C1810067660C SMD 1UF Y5V 0603+80/-20% 10V 91 C1820108251C SMD 100U/4V Tantal 7,3X4,3 86 C1830067660C SMD 1UF Y5V 0603+80/-20% 10V 6 C1840067660C SMD 1UF Y5V 0603+80/-20% 10V 37 C1850065668C SMD 10u/6.3V Y5V 0805 101 C1860108231C SMD 47U/10V Tantal 7,3X4,3 74 C1870999998'nicht bestückt' 86 C1880067660C SMD 1UF Y5V 0603+80/-20% 10V 6 C1890067660C SMD 1UF Y5V 0603+80/-20% 10V 111 C2010067201C SMD 56P NPO 0603 +/- 5% 121 C2020067181C SMD 39P NPO 0603 +/- 5% 47 C2090067540C SMD 100N X7R 0603 +/-10% 131 IC1000147780IC SMD TA31145FN EL SSOP-20 141 IC1400147587IC SMD NJU7015 VSP-8 T+R 151 IC1610148048IC SMD ISD4003-04ME TSOP-28 161 IC1810149080IC SMD TPS60301DGS R 10uMAX 171 IC1820149022IC SMD XC61CN1002NR SSOT-24 183 L1810174801L SMD BLM21PG221SN1D Murata 3 L1820174801L SMD BLM21PG221SN1D Murata 191 L1830999998'nicht bestückt' 183 L1840174801L SMD BLM21PG221SN1D Murata 361 Q2010220025Quarz 20.945 MHz QS 21 381 Q2090213087Ker.Discr. Filter CDBLB455KCAY40-B0 201 R1010033421R SMD 2K7 CHIP-R 0603 +/-1% 211 R1230033691R SMD 470K CHIP-R 0603 +/-1% 223 R1420033581R SMD 56K CHIP-R 0603 +/-1% 235 R1430033531R SMD 22K CHIP-R 0603 +/-1% 5 R1440033531R SMD 22K CHIP-R 0603 +/-1% 223 R1470033581R SMD 56K CHIP-R 0603 +/-1% 241 R1500033611R SMD 100K CHIP-R 0603 +/-1% 235 R1510033531R SMD 22K CHIP-R 0603 +/-1% 251 R1520033541R SMD 27K CHIP-R 0603 +/-1% 261 R1540033371R SMD 1K0 CHIP-R 0603 +/-1% 223 R1550033581R SMD 56K CHIP-R 0603 +/-1% 273 R1600033131R SMD 10E CHIP-R 0603 +/-1% 235 R1620033531R SMD 22K CHIP-R 0603 +/-1% 281 R1630033451R SMD 4K7 CHIP-R 0603 +/-1% 291 R1640999998'nicht bestückt' 302 R1660033000R SMD 0E0 CHIP-R 0603 315 R1670033731R…

Text truncated - open the document above for the full version.
