L4OR430W

EXHIBIT C User Manual

EXHIBIT C User Manual

EXHIBIT E Block Diagram

EXHIBIT E Block Diagram

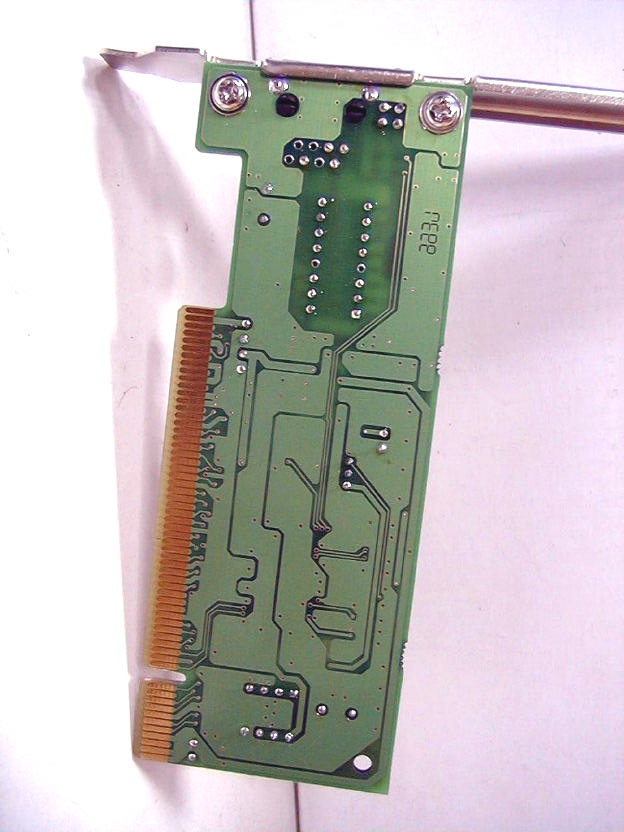

EXHIBIT F Photographs of EUT

EXHIBIT F Photographs of EUT

EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID : WS-R430/W Model No.: L40R430W LABEL Size : 2510 mm LABEL Position:

EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID : WS-R430/W Model No.: L40R430W LABEL Size : 2510 mm LABEL Position:

EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:WS-R430/W FCC ID:L40R430W LABEL Size : 25×10 mm LABEL Position:

EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No. : WS-R430/W FCC ID : L40R430W LABEL Size : 2510 mm LABEL Position:

EXHIBIT D Circuit Diagram

EXHIBIT D Circuit Diagram

EXHIBIT B Test Report Test Report------------------------------------------------------------------------------------------------------------ Report No.: C0915792, 10/100BAST-TX Fast Ethernet Card, FCC Part 15.109(g), Class B Test date: 10/02/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 2/14 Contents Chapter 1Introduction Description of EUT........................................................................................................................3 Configuration of Test Setup............................................................................................................4 List of Support Equipment..............................................................................................................5 Chapter 2Conducted Emission Test Test Condition and Setup...............................................................................................................7 Conducted Test Placement.............................................................................................................8 Chapter 3Radiated Emission Test Test Condition and Setup...............................................................................................................9 Radiated Test Placement...............................................................................................................10 Appendix A : Conducted test result.....................................................................................................................11 Appendix B : Radiated test result........................................................................................................................13 Test Report------------------------------------------------------------------------------------------------------------ Report No.: C0915792, 10/100BAST-TX Fast Ethernet Card, FCC Part 15.109(g), Class B Test date: 10/02/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3/14 Chapter 1 Introduction Description of EUT: The 10/100 BASE-TX Fast Ethernet Card for PCI is a data transmission / receiver facility. It is designed to install in the PC or compatible computer and makes your data equipment available to transmit / receive data via the EUT. During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to insure that maximum emission levels were attained. Connections of EUT: (1)Put the EUT into a personal computer’s PCI bus and screw it. (2)The UTP port of EUT is connected with another LAN card installed in another PC via a Hub located remotely. Test method: During the measurement, there are two modes tested: “ 1010Mbps “ mode and “ 100 100Mbps “ mode. Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During testing, the EUT was operated at “transmitting” mode. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report------------------------------------------------------------------------------------------------------------ Report No.: C0915792, 10/100BAST-TX Fast Ethernet Card, FCC Part 15.109(g), Class B Test date: 10/02/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 4/14 Configuration of test setup To HUB Located Remotely Power RS-232 Cable Modem Monitor Printer PC USB Joystick Keyboard Mouse USB Joystick Connections: PC : *Serial A port --- via a 76cm shielded RS-232 cable connected to an external modem *Serial B port --- connected with a 76cm shielded RS-232 cable left unterminated *Printer port --- a printer with 1.8m length data cable *Keyboard port --- a keyboard with 1.5m length data cable *Mouse port --- a mouse with 1.5m length data cable *Monitor port --- a monitor with 1.8m long of data cable *USB port A --- a joystick with 1.5m long, shielded and no ferrite bead data cable *USB port B --- a joystick with 1.5m long, shielded and no ferrite bead data cable (Each port on PC is connected with suitable device) EUT: * UTP port--- a 20m long, non-shielded, no ferrite bead, RJ-45 cable to the Hub located remotely. EUT Test Report------------------------------------------------------------------------------------------------------------ Report No.: C0915792, 10/100BAST-TX Fast Ethernet Card, FCC Part 15.109(g), Class B Test date: 10/02/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 5/14 List of support equipment Conducted (Radiated) test: PC : ACER Model : M11E/H71-X35I19X Serial No. : TM12535 FCC ID : DOC Approval Power type : AC 100~120V, 50 ~60Hz, 5A / 200~240 VAC, 50 ~60Hz, 3A, Switching Power cord : Non-Shielded, 1.7m long, Plastic, no ferrite core Monitor : HP 15’ Color Monitor Model No. : D2827A Serial No. : KR91161719, KR91161717 FCC ID : C5F7NFCMC1518X : 3872B039 Power type : 110 ~ 240 VAC / 50 ~ 60 Hz, Switching Power cord : Shielded, 1.83m long, No ferrite core Data cable : Shielded, 1.46m long, with two ferrite cores Keyboard : HP Model No. : SK-2501K Serial No. : MR80700789, M990308909 FCC ID : GYUR38SK : 3862A621 Power type : By PC Data cable : Shielded, 1.73m long, with ferrite core Mouse : HP Model No. : M-S34 Serial No. : LZB90714106, LZB90714122 FCC ID : DZL211029 : 4862A011 Power type : By PC Power cord : Non-shielded, 1.88m long, No ferrite core Test Report------------------------------------------------------------------------------------------------------------ Report No.: C0915792, 10/100BAST-TX Fast Ethernet Card, FCC Part 15.109(g), Class B Test date: 10/02/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 6/14 Modem : ACEEX Model No. : XDM-9624 FCC ID : IFAXDM-9624 Power type : 220VAC, 50Hz / 9VAC, 1A Power cord : N…
