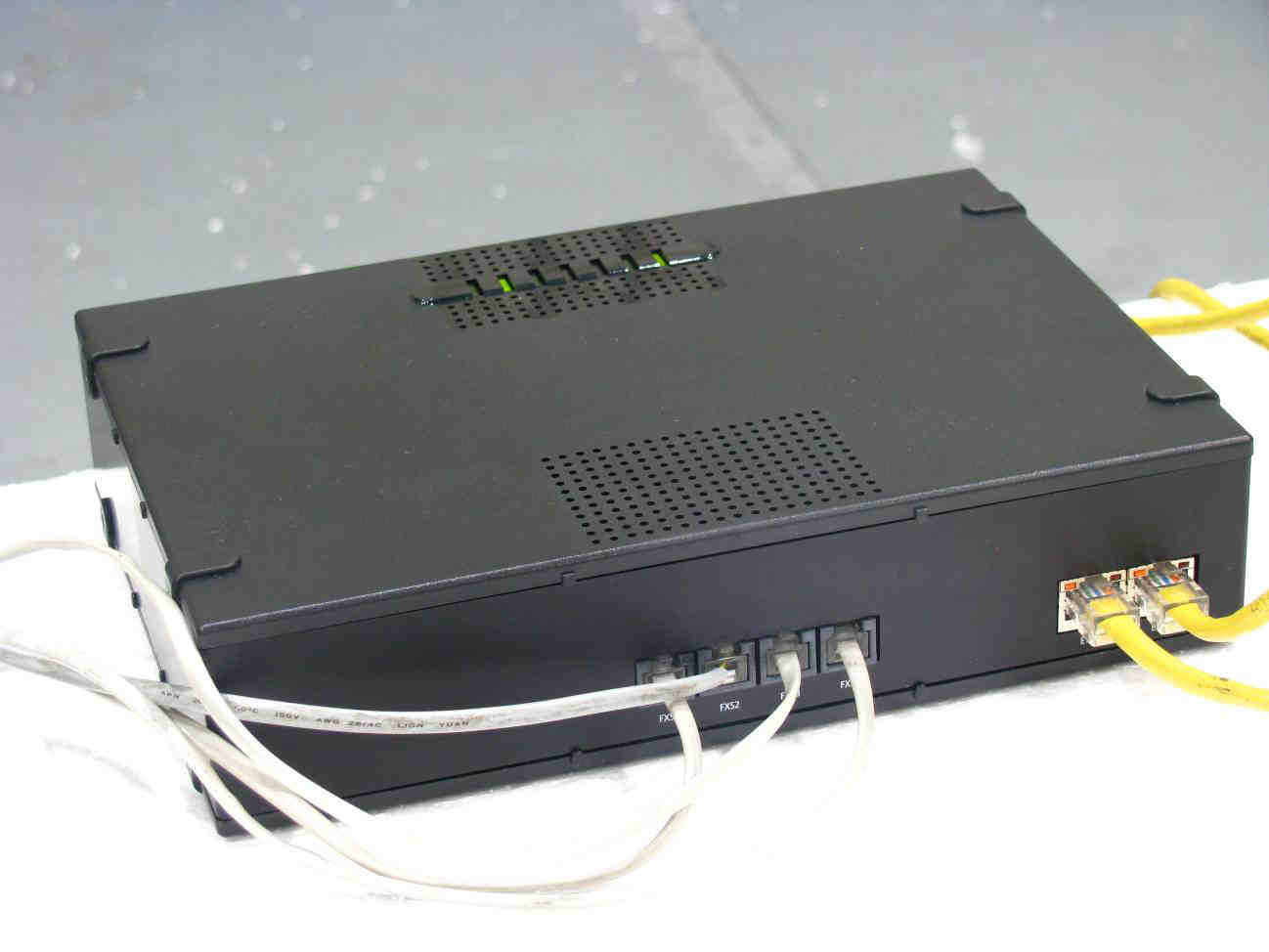

L4Q-GSM04VOIPUSMobile Gateway

CELLX Box Systems Manual Software version 17.1 © Copyright 2014 TELES AG Informationstechnologien. All rights reserved. CELLX ® , TELES ® , IntraSTAR ® , Intra* ® , iGATE ® , and iSWITCH ® are registered trademarks of TELES AG Informationstechnologien. All other trademarks used are the property of their respective owners. The supplied hardware/software systems are protected by copyright and can be used solely by their lawful owners. All text and figures in this publication have been compiled with great attention to detail. Nonetheless, inaccuracies and typographical errors cannot be entirely avoided. TELES AG Informationstechnologien provides this document 'as is' without warranty of any kind, expressed or implied. TELES AG Informationstechnologien reserves the right to make changes in product design or specifications without notice. Systems Manual CELLX Box CELLX Box 17.1 TELES COMMUNICATIONS CORP. 2400 Skyfarm Drive, Hillsborough, CA 94010 United States Phone: +1 646-225 65 98 E-Mail: [email protected] Internet: http://www.teles.com/cellx/index.html Revised: 20 March 2014002Software version: 17.1 Table of Contents Page 3 CELLX box 17.1/002 Preface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1.1Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 1.2Implementation scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 1.2.1CELLX Box last mile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 1.2.2CELLX Box failover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 1.2.3CELLX Box cost saving model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 2 System security and hardware overview . . . . . . . . . . . . . . . . 12 2.1Safety and security precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 2.2System security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 2.2.1Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 2.2.2Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 2.2.3Connecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 2.2.4Antenna Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 2.2.5Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 2.2.6Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 2.2.7Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 2.2.8Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 2.2.9Potentially explosive atmospheres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 2.2.10Radio wave exposure information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 2.2.11Personal medical devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 2.2.12Environmental considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 2.2.13Protecting the operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 2.2.14CDR files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 2.2.15Network security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 2.3Physical description of the CELLX Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 3 CELLX Box installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.1Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 3.2Unpacking the shipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 3.3Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 3.3.1Analog wiring (optional for FXS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 3.3.2Ethernet wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 3.3.3Antenna cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 3.3.4Power cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 3.4LED functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 4 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 4.1Configuration tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 4.2Skills needed for a configuration setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 4.3Assigning an IP address to the CELLX Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 4.4…

Text truncated - open the document above for the full version.

Front Back

Label Sample: Label Position:

TECHNICAL MANUAL Telit GC864-QUAD V2 Quad Band GPRS Data Terminal System Pag.11 of 17 Rev. 0 4 PHOTOS AND ASSEMBLIES 4.1 Photos Telit GC864-QUAD V2 Module Final assembly TECHNICAL MANUAL Telit GC864-QUAD V2 Quad Band GPRS Data Terminal System Pag.12 of 17 Rev. 0 4.2 Photos of CS1394a PCB primary layer TECHNICAL MANUAL Telit GC864-QUAD V2 Quad Band GPRS Data Terminal System Pag.13 of 17 Rev. 0 4.3 Photos of CS1394a PCB secondary layer without SIM Holder version TECHNICAL MANUAL Telit GC864-QUAD V2 Quad Band GPRS Data Terminal System Pag.14 of 17 Rev. 0 4.4 Photos of CS1394a PCB secondary layer with SIM Holder version

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com MPE Calculation § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) 1.1 Test Procedure An MPE evaluation for was performed in order to show that the device was compliant with §2.1091. The maximum power density was calculated for each transmitter at a separation distance of 20cm. For each transmitter the maximum RF exposure at a 20 cm distance using the formula: 10/)( 10 dBmowerConductedP mW PowerConducted= 2 )20(4 . cm mW GainAntPowerConducted tyPowerDensi × × = π 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com 1.2 Results: The device contains four GSM transmitters which can transmit simultaneously (through one single shared antenna). The following calculations show that the total power density from the product at 20cm is less than the limit for general population / un-controlled exposure with all four transmitters operating at the same time. GSM 850 Band Transmitter: Frequency 824.2 MHz Limit 0.549 mW/cm^2 Distance 20 cm Maximum Scaled Power 33.9 dBm TX Ant Gain 0 dBi EIRP 33.9 2454.709 mW Source Based Duty Cycle (2/8 Timeslots) 0.25 Source Based Output Power 613.677229 mW Power Density 0.1221 mW/cm^2 at 20cm GSM 1900 Band Transmitter: Frequency 1850.2 MHz Limit 1.000 mW/cm^2 Distance 20 cm Maximum Scaled Power 30.28 dBm TX Ant Gain 0 dBi EIRP 30.28 1066.596 mW Source Based Duty Cycle (2/8 Timeslots) 0.25 Source Based Output Power 266.64903 mW Power Density 0.0530 mW/cm^2 at 20cm

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for TELES AG on the CELLX 4 Page 1 of 35 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 101417400LEX-002 Project Number: G101417400 Report Issue Date: 4/24/2014 Product Name: CELLX 4 Model Number: CELLX 4 FCCID: L4Q-GSM04VOIPUS ICID: 8763A-GSM04VOIPUS FCC Standards: FCC Part 22 Subpart H FCC Part 24 Subpart E Industry Canada Standards: RSS-132 Issue 3 RSS-133 Issue 6 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 TELES AG Ernst-Reuter-Platz 8 10587 Berlin, Germany Report prepared by Report reviewed by Bryan Taylor, Team Leader Jason Centers, Senior Project Engineer Intertek Report Number: 101417400LEX-002 Issued: 4/24/2014 EMC Report for TELES AG on the CELLX 4 FCCID:L4Q-GSM04VOIPUS Page 2 of 35 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Conducted Output Power.................................................................................................................... 7 5 Results: ................................................................................................................................................. 9 6 Occupied Bandwidth ......................................................................................................................... 12 7 Conducted Spurious Emissions at Antenna Terminals ................................................................. 14 8 Radiated Output Power ..................................................................................................................... 26 9 Radiated Spurious Emissions (Transmitter) ................................................................................... 27 10 Frequency Stability ........................................................................................................................ 31 11 Measurement Uncertainty.............................................................................................................. 34 12 Revision History ............................................................................................................................. 35 Intertek Report Number: 101417400LEX-002 Issued: 4/24/2014 EMC Report for TELES AG on the CELLX 4 FCCID:L4Q-GSM04VOIPUS Page 3 of 35 1 Introduction and Conclusion The tests indicated in Section 2 were performed on the product constructed as described in Section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington laboratory is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under Registration Number 485103. The test site is listed with Industry Canada under OATS site number 2042M-1 2 Test Summary Page Test full name FCC Reference Industry Canada Result 7 Conducted Output Power §2.1046 §24.232(d) RSS-132 (4.4), RSS-133 (4.1), RSS-133 (6.4) Pass 12 Occupied Bandwidth §2.1049, §22.917(b)(d), and §24.238(a) RSS-GEN (4.6.1), RSS-133 (2.3) Pass 14 Conducted Spurious Emissions §2.1049, §2.1051, §22.917(a)(b), and § 24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5.1) Pass 24 Radiated Output Power § 22.913(a) and § 24.232(c) RSS-132 (4.4), RSS-133 (6.4) Pass 27 Radiated Spurious Emissions (Transmitter) §2.1053, §22.917(a)(b), and §24.238(a)(b) RSS-132 (4.5), RSS-133 (6.5) Pass 31 Frequency Stability §2.1055, §22.355, and §24.235 RSS-132 (4.3), RSS-133 (6.3) Pass Intertek Report Number: 101417400LEX-002 Issued: 4/24/2014 EMC Report for TELES AG on the CELLX 4 FCCID:L4Q-GSM04VOIPUS Page 4 of 35 3 Description of Equipment Under Test Equipment Under Test Manufacturer TELES AG Model Number CELLX 4 Serial Number 97803460700314 FCC Identifier L4Q-GSM04VOIPUS IC Identifier 8763A-GSM04VOIPUS Receive Date 1/1/2014 Test Start Date 2/…
