L5C0581TXRemote Control Transmitter

FCC ID: L5C0581TX SECTION 6 USER'S MANUAL FCC ID: L5C0581TX FCC ID: L5C0581TX FCC ID: L5C0581TX

FCC ID: L5C0581TX SECTION 6 USER'S MANUAL FCC ID: L5C0581TX FCC ID: L5C0581TX FCC ID: L5C0581TX

FCC ID: NYM-PLB-01 9069

FCC ID: NYM-PLB-01 SECTION 3 LABELING INFORMATION FCC ID: NYM-PLB-01

FCC ID: NYM-PLB-01 SECTION 3 LABELING INFORMATION FCC ID: NYM-PLB-01

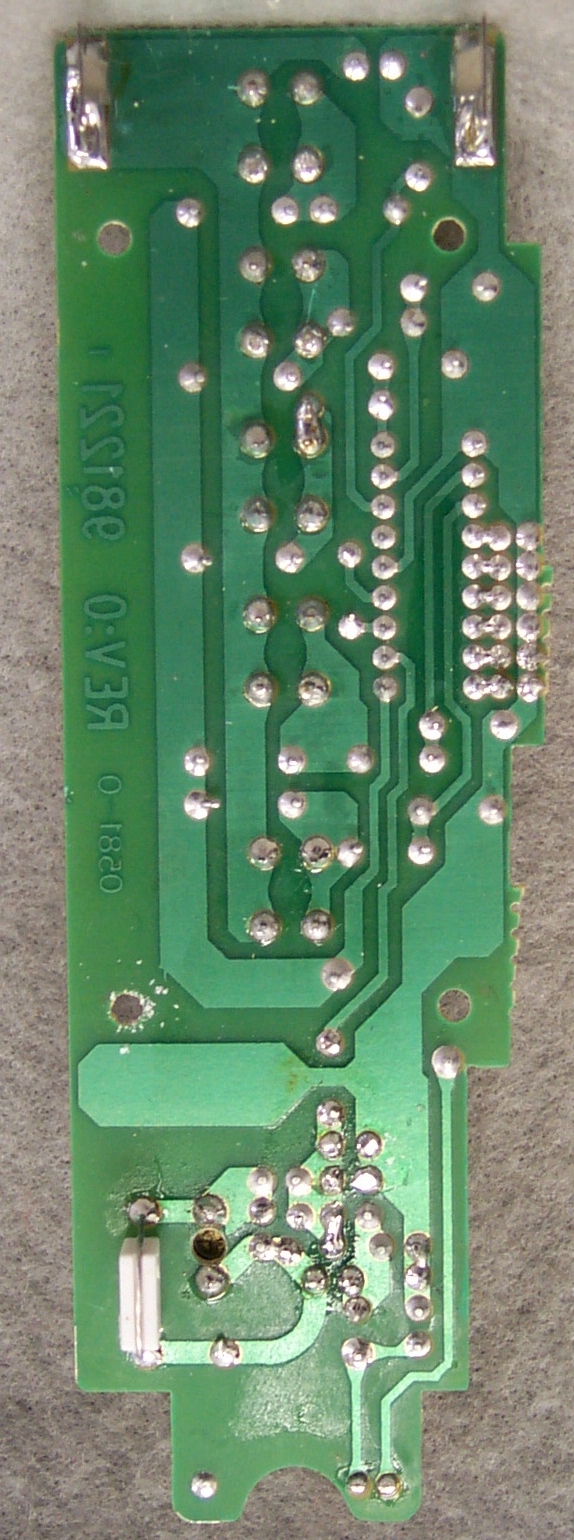

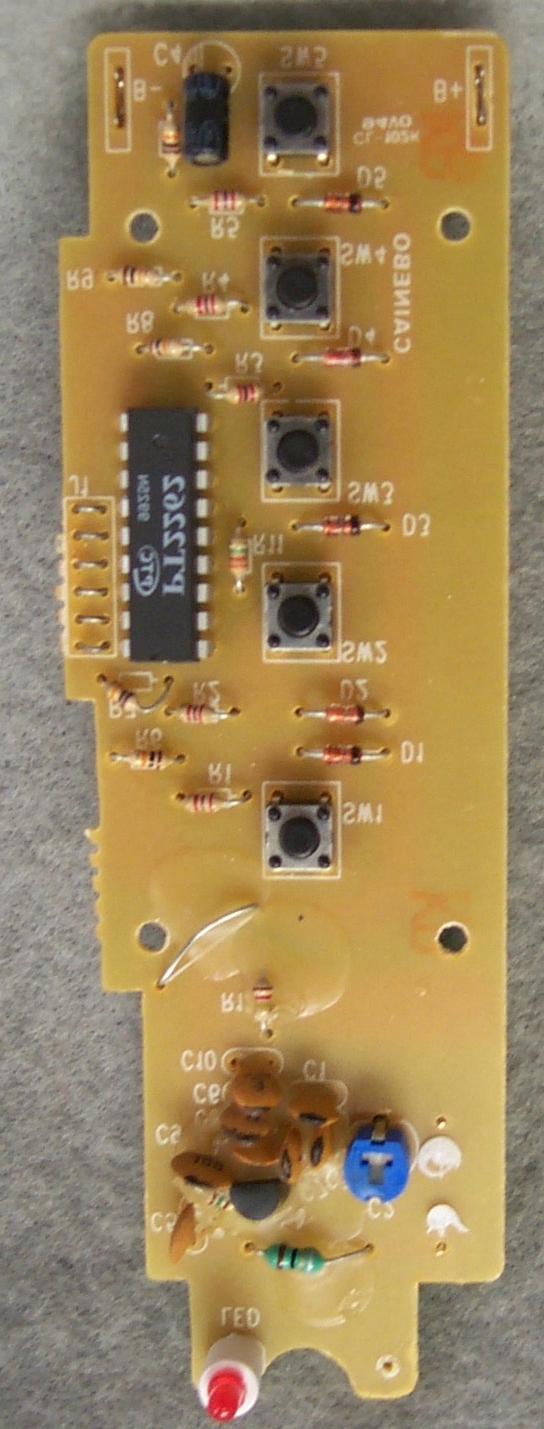

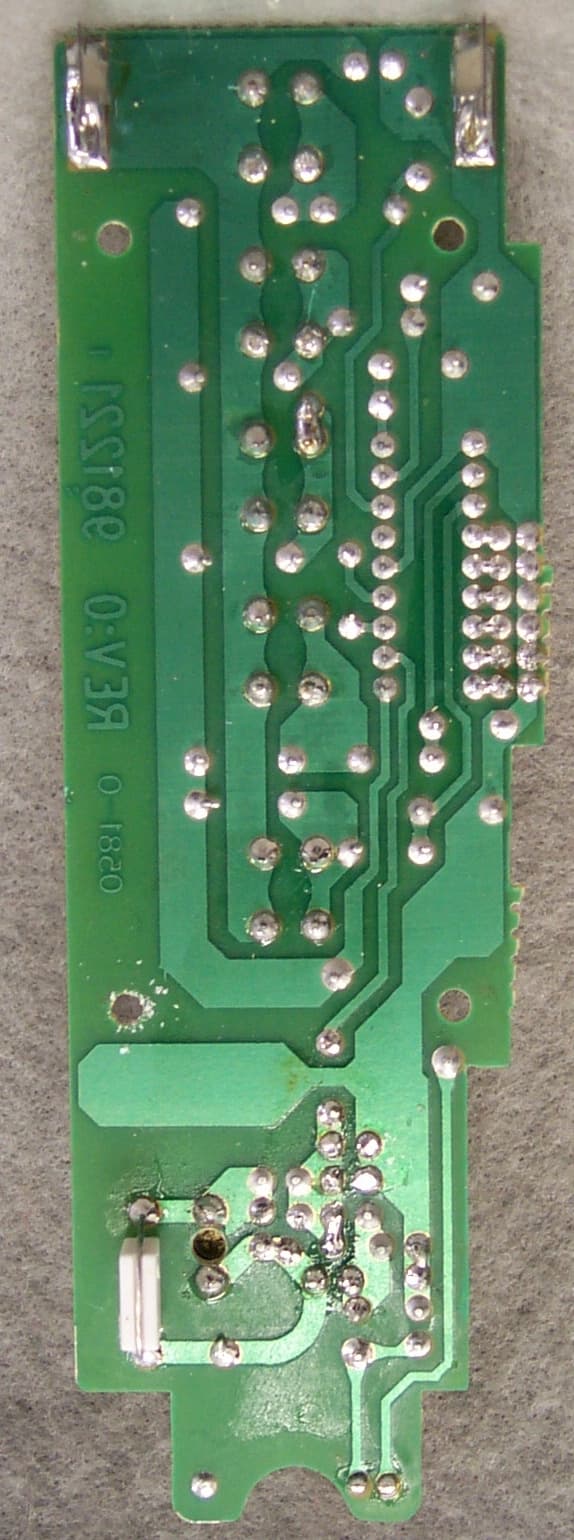

FCC ID: NYM-PLB-01 SECTION 5 PHOTOGRAPHS FCC ID: NYM-PLB-01 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1. EUT, Front View Photo 2. EUT, Rear View Photo 3. EUT, Cover Opened Photo 4. Internal View, Top Side Photo 5. Internal View, Bottom Side FCC ID: NYM-PLB-01 Photo 1. EUT, Front View FCC ID: NYM-PLB-01 Photo 2. EUT, Rear View FCC ID: NYM-PLB-01 Photo 3. EUT, Cover Opened FCC ID: NYM-PLB-01 Photo 4. Internal View, Top Side FCC ID: NYM-PLB-01 Photo 5. Internal View, Bottom Side

FCC ID: NYM-PLB-01 SECTION 4 BLOCK DIAGRAM(S)/SCHEMATICS FCC ID: NYM-PLB-01 FCC ID: NYM-PLB-01

Ansen Electronic Company FCC Part 15, Certification Application Model 0581 April 9, 2001 FCC ID: L5C0581TX MEASUREMENT/TECHNICAL REPORT COMPANY NAME:Ansen Electronic Company MODEL:0581 FCC ID:L5C0581TX DATE:April 9, 2001 This report concerns (check one): Original grant X Class II change_____ Equipment type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: L5C0581TX TABLE OF CONTENTS AGENCY AGREEMENT SECTION 1 GENERAL INFORMATION Product Description SECTION 2 TESTS AND MEASUREMENTS Configuration of Tested Test Facility Test Equipment Modifications Periodic Operation Field Strength of Fundamental Emission Field Strength of Spurious Emissions 20 dB Bandwidth of Fundamental Emission Frequency Tolerance of Carrier Signal Radiated Digital Device Emissions Power Line Conducted Emissions SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/SCHEMATICS SECTION 5 PHOTOGRAPHS SECTION 6 USER'S MANUAL FCC ID: L5C0581TX LIST OF FIGURES AND TABLES FIGURES Test Configuration Photograph(s) for Spurious and Fundamental Emissions Field Strength of Fundamental Emission Field Strength of Spurious Emissions Bandwidth of Fundamental Emission TABLES EUT and Peripherals Test Instruments Field Strength of Fundamental Emission Field Strength of Spurious Emissions Bandwidth of Fundamental Emission Radiated Emissions Power Line Conducted Emissions FCC ID: L5C0581TX SECTION 1 GENERAL INFORMATION FCC ID: L5C0581TX GENERAL INFORMATION Product Description The Equipment Under Test (EUT) is a Ansen Electronic Company, 0581. The EUT is part of the Wireless Remote Control Switch system that comes with a “Santa Claus” remote control handset, a “FIREPLACE” remote plug station and two “SOCK” remote plug stations. The “Santa Claus” remote control handset communicates with the remote plug stations using radio signals. Each “SOCK” plug station controls one piece of home appliance and the “FIREPLACE” plug station control three pieces of home appliance. The EUT incorporates an internal antenna. Related Submittal(s)/Grant(s) The EUT will be used with two different receivers which were approved using FCC DoC authorizations. FCC ID: L5C0581TX SECTION 2 TESTS AND MEASUREMENTS FCC ID: L5C0581TX TESTS AND MEASUREMENTS Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2. Since the EUT is a hand held device, it was placed into a continuous mode of transmit and rotated about all 3 axis to obtain worse case results. Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. Modifications No modifications were made to bring the EUT into compliance with FCC Part 15, Class B Requirements. Test Equipment Table 2 describes test equipment used to evaluate this product. FCC ID: L5C0581TX FIGURE 1 TEST CONFIGURATION EUT FCC ID: L5C0581TX FIGURE 2a Photograph(s) for Spurious and Fundamental Emissions FCC ID: L5C0581TX FIGURE 2b Photograph(s) for Spurious and Fundamental Emissions FCC ID: L5C0581TX TABLE 1 EUT and Peripherals PERIPHERAL MANUFACTURER MODEL NUMBER SERIAL NUMBER FCC ID:CABLES P/D Transmitter Ansen Electronic Company (EUT) 0581NoneL5C0581TX (Pending) None FCC ID: L5C0581TX TABLE 2 TEST INSTRUMENTS TYPEMANUFACTURERMODELSN. SPECTRUM ANALYZERHEWLETT-PACKARD8593E3205A00124 SPECTRUM ANALYZERHEWLETT-PACKARD8558B2332A09900 S A DISPLAYHEWLETT-PACKARD853A2404A02387 COMB GENERATORHEWLETT-PACKARD8406A1632A01519 RF PREAMPHEWLETT-PACKARD8447D1937A03355 RF PREAMPHEWLETT-PACKARD8449B3008A00480 HORN ANTENNAEMCO31153723 BICONICAL ANTENNAEMCO31109307-1431 LOG PERIODIC ANTENNA EMCO31469110-3600 LISNSOLAR ELE.8028910495 & 910494 THERMOMETERFLUKE525215250 MULTIMETERFLUKE8553710469 PLOTTERHEWLETT-PACKARD7475A2325A65394 BILOGCHASECBL6112A2238 FCC ID: L5C0581TX Periodic Operation (47 CFR 15.231(a1)) A transmitter manually activated must automatically deactivate within not more than 5 seconds of being released. The transmitter is a 5 button transmitter. The EUT continues to transmit while each button is being pressed. The EUT ceases transmission almost immediately upon being released and appears to finish the current packet being transmitted. Therefore the longest period of time the transmitter should take to deactivate is a packet length, or 31.5 msec as shown in Figure 3. FCC ID: L5C0581TX FIGURE 3 Periodic Operation 15.231(a)(c1) FCC ID: L5C0581TX Field Strength of Fundamental Emission (47 CFR 15.231b) Measurements were made using a peak detector. Field strength of the peak fundamental emission is shown in Table 3 and Figure 4. Duty Cycle Correction During 100 msec: Each function key sends a different series of characters, but each packet period (41.05 msec) never exceeds a series of 25 pulses. Assuming any combination of sh…
