L5CR088G2Stereo Diamond Bluetooth Speaker/Stereo Powerball

Bluetooth Stereo Speaker (Powerball x 2) User Manual Play from a Bluetooth device Note: The effective operation range between the speaker and your Bluetooth device is approximately 10 meters (33 feet) line of sight maximum - Pull out the front cover from the speakers - Connect two speakers with the provided cable below: micro USB plug Ù master unit 3.5mm audio plug Ù slave unit - Slide the Power [ON/OFF] switch to “ON” to turn on the master speaker - The blue LED indicator will flash - Activate the Bluetooth function in your Bluetooth device - Select “ PowerBall X2” on your Bluetooth device for pairing - When connected, the blue LED indicator stays steadily on - Start music play on your Bluetooth device - Adjust volume on your Bluetooth device or press the [+] or [-] button on the speaker - To next song/ To Previous song, please press [>>l] / [l<<] for 2 seconds - Press [Play/Pause] button on the speaker to play or pause music - Slide the Power [ON/OFF] switch to “OFF” when the speaker is not in use for power saving Play from an external device - Pull out the front cover from the speaker - Connect two speakers with the provided cable below: micro USB plug Ù master unit 3.5mm audio plug Ù slave unit - Slide the Power [ON/OFF] switch to “ON” to turn on the master speaker - Connect your master speaker with an external device through a 3.5mm cable (not supplied) - Start music play on your device - Slide the Power [ON/OFF] switch to “OFF” when the speaker is not in use for power saving Power Supply The speaker operates on built-in rechargeable battery To recharge the built-in battery, connect micro USB socket with PC through supplied USB cable Charging: Red LED indicator turns on Fully Charged: The red LED turns green when it is fully charged (Low battery: Red LED indicator flashes) Specification Rated output power: 1.6W RMS DC Power input: USB: 5V, 500mA Bluetooth specification: V3.0 + EDR Supported Bluetooth Profiles: AVRCP, A2DP Range: maximum 10 meters (33 feet) line of sight Working temperature: 0C – 50C Troubleshooting No power: - Recharge your speaker No Sound: - Adjust volume on your Bluetooth device or the speaker - Make sure that your Bluetooth device is connected with the speaker and they are within the effective operation range Cautions: 1) Due to the used enclosure material, the device shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited 2) Caution Risk of explosion if battery is replaced by an incorrect type. 3) Dispose of used batteries according to the instructions 4) Do not expose the device to an extremely high electromagnetic filed, this may impair the correct functioning of the device. 5) The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in order location. FCC Statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct The interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user’s authority to operate this equipment.

022311 – 6 Authority to Act as Agent Date: _ Jan 07,2014 ____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Shenzhen Huatongwei International Inspection Co., Ltd is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 31th_day of __Dec_, 2014_ By: Alvin Luo (Signature 1 ) (Print name) Title: ____ QE Manager________ On behalf of: Ansen Electronics Company (Company Name) Telephone: (852)-2795-9473 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

022311 – 6 Request for Confidentiality Date: _ Jan 07,2014____ Subject: Confidentiality Request for: L5CR088G2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Ansen Electronics Company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Alvin Luo (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Declaration FCC ID: L5CR088G2 Date: Jan 07 ,2014 Our Ansen Electronics Company declares that our product Bluetooth Candle Light Speaker’s USB port was only used as charging , can not used as data transmission. Sincerely, Alvin Luo/ QE Manager Ansen Electronics Company Tel: (852)‐2795‐9473 Fax: (852)2751‐6577 Web site:www.ansen.com.hk E‐mail: [email protected]

Product Similarity Declaration To Whom It May Concern, We , Ansen Electronics Company hereby declare that our ( Stereo Diamond Bluetooth Speaker/ Stereo Powerball ) Model Number: 09368-PG; 09369-PG; 09370-PG ; 09371-PG; 09372-PG; 09373-PG is same R088G2 (Circuit digram,PCB,Schemartic,Hardware erc), R088G2 and 09368-PG; 09369-PG; 09370-PG ; 09371-PG; 09372-PG; 09373-PG are named differently due to marketing purposes and outlook/color Please contact me if you have any question. Sincerely, Alvin Luo/ QE Manager Ansen Electronics Company Tel: (852)-2795-9473 Fax: (852)2751-6577 Web site:www.ansen.com.hk E-mail: [email protected]

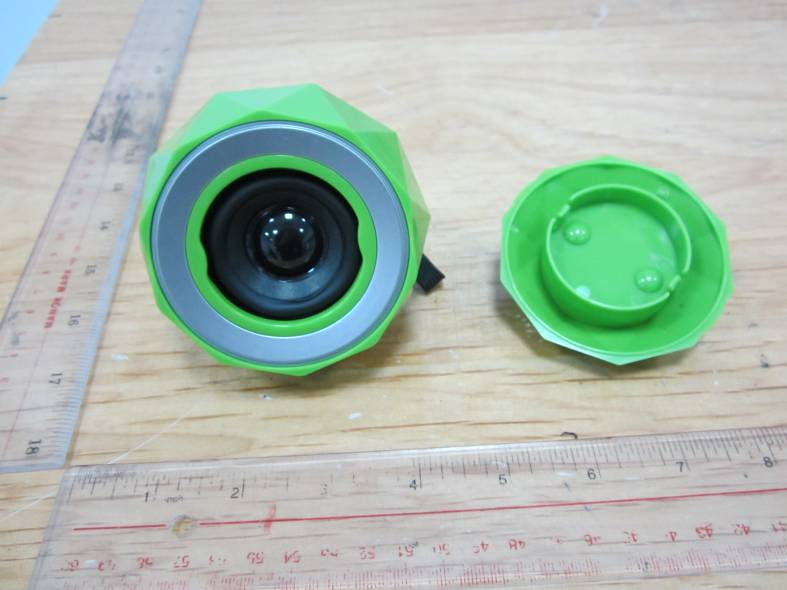

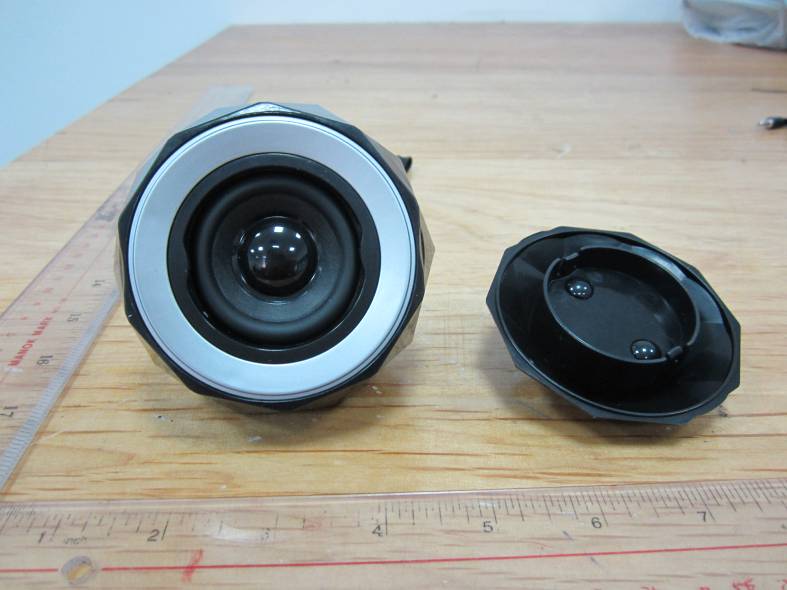

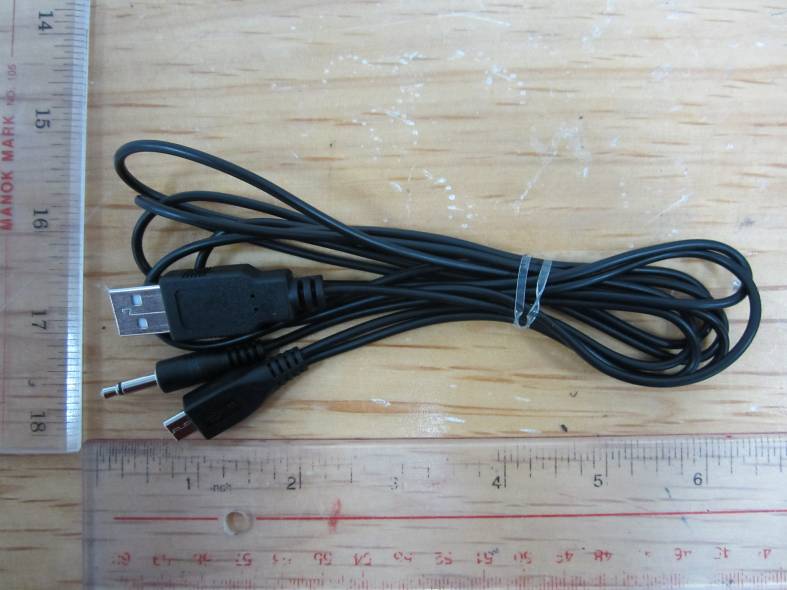

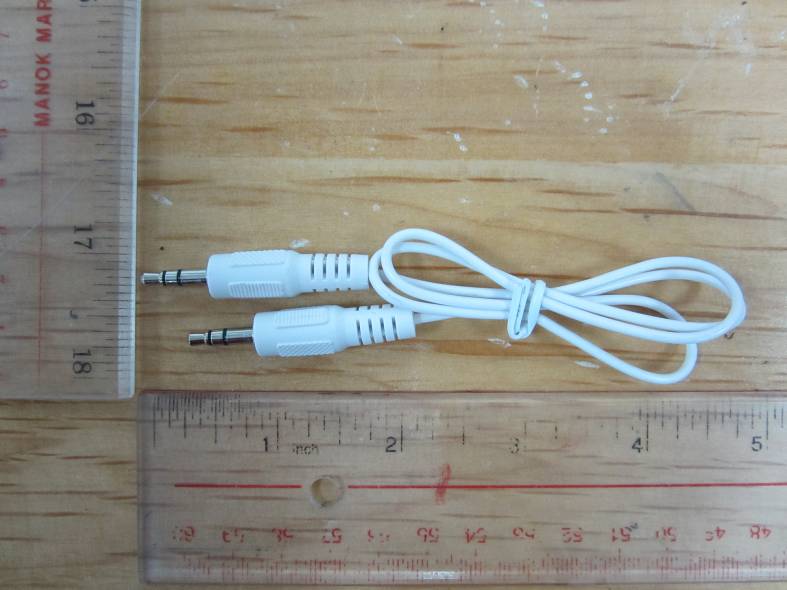

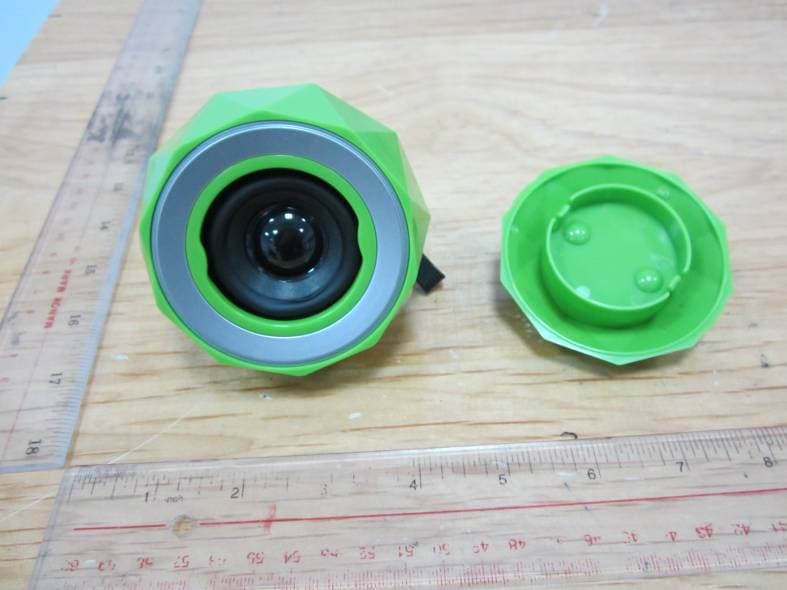

External photos of the EUT

Internal photos of the EUT

RF EXPOSURE REPORT FCC Per 47 CFR 2.1093(d) Report Reference No. ..................... : FCC ID. ............................................ : TRE1312013002 R/C: 36719 L5CR088G2 Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Jan 07, 2014 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Ansen Electronics Company Address ............................................. : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Test specification .......................... : Standard ........................................... : FCC Per 47 CFR 2.1093(d) TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Stereo Diamond Bluetooth Speaker/ Stereo Powerball Trade Mark ....................................... : / Manufacturer .................................. : Ansen Electronics Company ! Model/Type reference ....................... : R088G2 Listed Models .................................. : 09368-PG; 09369-PG; 09370-PG ; 09371-PG; 09372-PG; 09373-PG Operation Frequency ........................ : From 2402MHz to 2480MHz Modulation Type ............................... : GFSK,8DPSK,π/4DQPSK Rating ............................................... : DC 5.0V from USB Result ................................................ : Positive Report No.: TRE1312013002 Page 2 of 7 Issued:2014-01-07 RF EXPOSURE REPORT Test Report No. : TRE1312013002 Jan 07, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Stereo Diamond Bluetooth Speaker/ Stereo Powerball Model /Type : R088G2 Listed Models : 09368-PG; 09369-PG; 09370-PG ; 09371-PG; 09372-PG; 09373-PG Applicant : Ansen Electronics Company Address : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Manufacturer : Ansen Electronics Company !! Address : Chen Tung Industrial Zone,Ning Tau Administrative District,Qiao Tau Zhen,Dongguan,Guangdong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1312013002 Page 3 of 7 Issued:2014-01-07 Contents 1. SUMMARY 4 1.1. EUT configuration 4 1.2. NOTE 4 2. TEST ENVIRONMENT 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT 5 3.1. Applicable Standard 5 3.2. Limit 6 3.3. RF Exposure 6 4. CONCLUSION 7 Report No.: TRE1312013002 Page 4 of 7 Issued:2014-01-07 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. NOTE 1. The EUT is a Bluetooth Diamond Speaker with Bluetooth function,The functions of the EUT listed as below: Test Standards Reference Report Bluetooth FCC Part 15 Subpart C TRE1312013001 RF Exposure FCC Per 47 CFR 2.1093(d) TRE1312013002 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 EUT √ － － － Report No.: TRE1312013002 Page 5 of 7 Issued:2014-01-07 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to TR-100028-01” Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 1” and TR-100028-02 “Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 2 “ and is documented in the Shenzhen Huatongwei International Inspection Co., Ltd quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Hereafter the best measurement capability for S…

Text truncated - open the document above for the full version.

FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : TRE1312013001 R/C: 36719 L5CR088G2 Compiled by ( position+printed name+signature) . : File administrators Jerome Luo Supervised by ( position+printed name+signature) . : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) . : Manager Wenliang Li Date of issue .................................... : Jan 07, 2014 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Ansen Electronics Company Address ............................................ : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Test specification ........................... : Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400- 2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ...................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Stereo Diamond Bluetooth Speaker/ Stereo Powerball Trade Mark ....................................... : / Model/Type reference ...................... : R088G2 Listed Models .................................. : 09368-PG; 09369-PG; 09370-PG ; 09371-PG; 09372-PG; 09373-PG Manufacturer .................................. : Ansen Electronics Company Modulation Type ............................... : GFSK,8DPSK,π/4DQPSK Operation Frequency ........................ : From 2402MHz to 2480MHz Rating ............................................... : DC 5.0V from USB Result ............................................... : Positive Report No.: TRE1312013001 Page 2 of 103 Issued:2014-01-07 T E S T R E P O R T Test Report No. : TRE1312013001 Jan 07, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Stereo Diamond Bluetooth Speaker/ Stereo Powerball Model /Type : R088G2 Listed Models : 09368-PG; 09369-PG; 09370-PG ; 09371-PG; 09372-PG; 09373-PG Applicant : Ansen Electronics Company Address : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Manufacturer : Ansen Electronics Company Address : Chen Tung Industrial Zone,Ning Tau Administrative District,Qiao Tau Zhen,Dongguan,Guangdong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1312013001 Page 3 of 103 Issued:2014-01-07 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Block Diagram of Test Setup 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. NOTE 6 3. TEST ENVIRONMENT ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Test Description 8 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. AC Power Conducted Emission 10 4.2. Radiated Emission 12 4.3. Maximum Peak Output Power 16 4.4. 20dB Bandwidth 22 4.5. Band Edge 28 4.6. Frequency Separation 49 4.7. Number of hopping frequency 56 4.8. Time Of Occupancy(Dwell Time) 59 4.9. Pseudorandom Frequency Hopping Sequence 75 4.10. Antenna Requirement 92 5. TEST SETUP PHOTOS OF THE EUT .......................................... 93 Report No.: TRE1312013001 Page 4 of 103 Issued:2014-01-07 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009 : American National Standard for Testing Unlicensed Wireless Devices Report No.: TRE1312013001 Page 5 of 103 Issued:2014-01-07 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Dec 25, 2013 Testing commenced on : Dec 26, 2013 Testing concluded on : Jan 07, 2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 5.0V from USB 2.3. Short description of the Equipment under Test (EUT) 2.4GHz (Stereo Diamond Bluetooth Speaker/ Stereo Powerball (M/N: R088G2)) For more details, refer to the user’s manual of the EUT. 2.4. EUT operation mode The EUT has been tested under typical operating condition. There are EDR (Enhanced Data Rate) and BDR (Basic Data Rate)mode.The Applicant provides communication tools software to control the EUT for staying in continous transmitting and receiving mode for testing. There are 79 channels of EUT, and the test carried out at the lowest channel, middle channel and highest …

Text truncated - open the document above for the full version.

Test setup photos of the EUT
