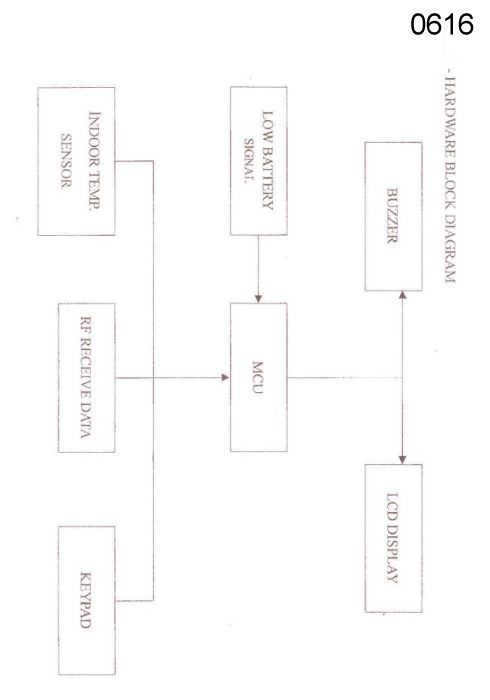

L5C0616Wireless Thermometer Transmitter

2. PRODUCT LABELING FCC ID:L5C0616 This device complies with Part 15 of the FCC Rules. Operat ion i s subject to t he following two conditoins: (1) This device may not cause harmf ul interference, and (2) This device must accept any interf erence received, incl uding interference that may cause undesired operat ion. Figure 2.1 FCC ID Label FCC ID Figure 2.2 Location of label on the Rear of EUT

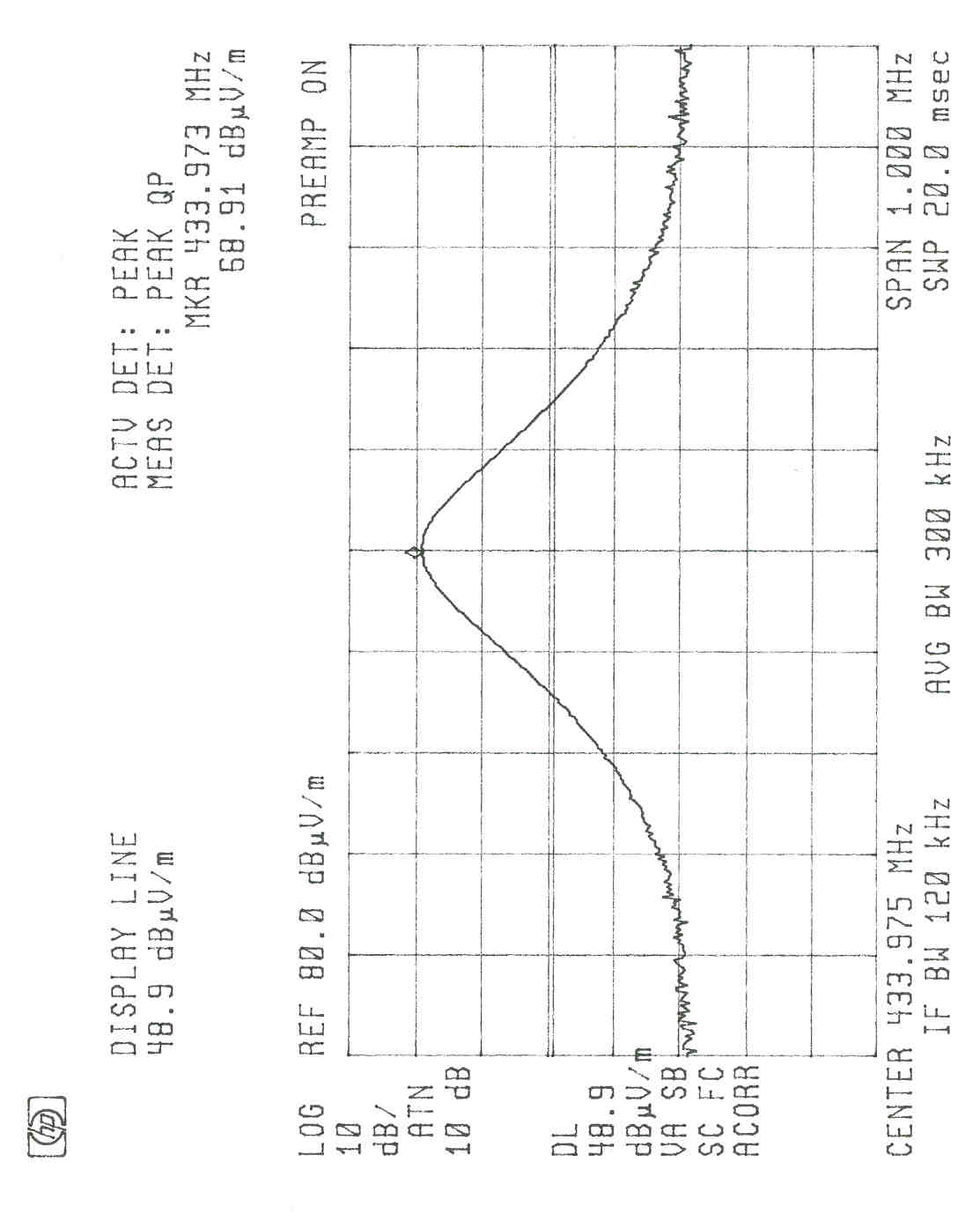

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of RF DESKTOP IN/OUTDOOR THERMOMETER MODEL: 0616 FCC ID: L5C0616 NOVEMBER 21, 2000 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: ANSEN ELECTRONICS COMPANY Report prepared by:Advanced Compliance Lab Report number:0048-2K1004-01 The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: L5C0616 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures............................................................................................................................ 3 1. GENERAL INFORMATION...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology ........................................................................................6 1.5 Test Facility..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION.......................................................................9 3.1 Justification..................................................................................................9 3.2 Special Accessories......................................................................................9 3.3 Configuration of Tested System..................................................................9 4. SYSTEM SCHEMATICS .........................................................................................13 5. RADIATED EMISSION DATA...............................................................................14 5.1 Field Strength Calculation .........................................................................14 5.2 Test Methods and Conditions .....................................................................14 5.3 Test Data.......................................................................................................15 5.4 Occupied Bandwidth...............................................................16 6. PHOTOS OF TESTED EUT ....................................................................................17 FCC ID: L5C0616 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label ..............................................................................................8 Figure 2.2 Location of Label on Back of the EUT......................................................8 Figure 3.1 Radiated Test Setup, X Axis.......................................................................10 Figure 3.2 Radiated Test Setup, Y Axis.......................................................................11 Figure 3.3 Radiated Test Setup, Z Axis .......................................................................12 Figure 4.1 EUT Schematics ..........................................................................................13 Figure 6.1 Occupied Bandwidth ..................................................................................18 Figure 6.2 Front View...................................................................................................19 Figure 6.3 Rear View ....................................................................................................20 Figure 6.4 Inside View ..................................................................................................21 Figure 6.5 Component Side ..........................................................................................22 Figure 6.6 Foil Side .......................................................................................................23 Figure 6.7 Pulse Train Timing Plot .............................................................................24 Figure 6.8 Block Diagram.............................................................................................25 Figure 6.9 Schematic (Main Board) ............................................................................26 Figure 6.10 Schematic (Daughter Board) ...................................................................27 FCC ID: L5C0616 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT:RF DESKTOP IN/OUTDOOR THERMOMETER Model:0616 Alterna…

Text truncated - open the document above for the full version.

BIT ‘0’BIT ‘1’DATA BIT SEQUENCE IS - SYN+ 0000-0000-0101-0000-0000-0000 +STOP SYN BIT 488.3 μ s t = 488.3x16=7.8125ms 3t STOP BIT

FCC ID: L5C0616 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 11 Figure 3.1 Radiated Test Setup, X Axis FCC ID: L5C0616 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 12 Figure 3.2 Radiated Test Setup, Y Axis FCC ID: L5C0616 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 13 Figure 3.3 Radiated Test Setup, Z Axis
