L5C0639Wireless BBQ Thermometer

FCC ID: L5C0639 Remark: User can not modify this product. Remark: User can not modify this product.

FCC ID: L5C0639 Remark: User can not modify this product. Remark: User can not modify this product.

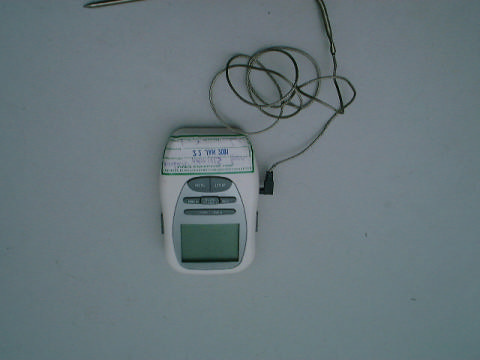

FCC ID: L5C0639 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: L5C0639 PHOTOGRAPH OF THE PRODUCT BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

FCC ID: L5C0639 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: L5C0639 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: L5C0639 Circuit Description The 433MHz IC oscillator drives the base of U1 the final/buffer amplifier. The modulation provided by U1. The output of U2 has the matching network consisting of L1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna, There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9Volt (“6F22” size battery x 1) primary storage cell.

Date: 2001-02-08 TEST REPORT Page 1 of 8 No.: HM103865 Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE : ANE001) ANSEN ELECTRONICS COMPANY Room 78, 2/F., Sino Industrial Plaza, 9 Kai Cheung Road, Kowloon Bay, Kowloon, HK. DATE OF SAMPLE(S) RECEIVED: 2000-12-23 SUBMITTED SAMPLE(S): 5 sample per model DATE OF TESTING: 2001-02-02 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:WIRELESS BBQ THERMOMETER Manufacturer:ANSEN ELECTRONICS COMPANY Model Number:0639 Brand Name:N/A Rating:9Vd.c. (“6F22” size battery x 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK: Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.231e for the Transmitter Section of Federal Communications Commission Rules. Clause 15.231 (1),(2) & (3). TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2001-02-08 TEST REPORT Page 2 of 8 No.: HM103865 T E S T S U M M A R Y (1)Measurement of Emission of RF energy on the carrier frequency...........Satisfactory (2)Measurement of the out-of band emission including harmonics..............Satisfactory (3)Measurement of Emission Within Band Edges........................................Satisfactory (4)Measurement of Radiated Emissions........................................................Satisfactory (5)Measurement of Line-Conducted Voltage onto AC Power Line..............Not applicable (6)FCC rule clause 15.231 (1),(2) and (3) subpart C-Intentional-radiator....Satisfactory T E S T D A T A Please refer to the attached result sheets. Date: 2001-02-08 TEST REPORT Page 3 of 8 No.: HM103865 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231e (433.88MHz) TEST CONDITION:Normal TEST DATE:2001-02-02 Emission of RF energy on the carrier frequency -- 433.88 MHz (PEAK VALUE) ====================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m 433.969.4H+22.291.638018.993.043980.1 ====================================================================== Emission of RF energy on the carrier frequency -- 433.88 MHz (AVERAGE VALUE) ====================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m 433.930.3H+22.252.5421.773.04398.0 ====================================================================== * Adjusted by duty cycle =20 log (0.104) =-19.7dB. ... to be continued Date: 2001-02-08 TEST REPORT Page 4 of 8 No.: HM103865 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231e (433.88MHz) TEST CONDITION:Normal TEST DATE:2001-02-02 Field strength of spurious emissions (PEAK VALUE) ======================================================================= EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m #867.823.4H+34.557.9785.273.04398.0 *1301.6<1.0+32.8<33.8<49.073.05000.0 1735.5<1.0+28.3<29.3<29.273.04398.0 2169.4<1.0+32.1<33.1<45.273.04398.0 2603.3<1.0+26.2<27.2<22.973.04398.0 3037.2<1.0+28.0<29.0<28.273.04398.0 3471.0<1.0+28.5<29.5<29.973.04398.0 *3904.9<1.0+30.6<31.6<38.073.05000.0 *4338.8<1.0+32.0<33.0<44.773.05000.0 *4772.7<2.0+33.0<35.0<56.273.05000.0 ====================================================================== Remark : * - Denotes restricted band of operation. Measurement were made using a peak detector. Any emission less than 1000 MHz and falling within the restricted bands of FCC Rules Part 15 Section 15.205 were not adjusted for averaging and the limit of FCC Rules Part 15 Section 15.209 were applied ===============SUMMARY================ data is within limits ===================================== Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- Horizontal V -- Vertical ===================================== Date: 2001-02-08 TEST REPORT Page 5 of 8 No.: HM103865 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.231e (433.893MHz) TEST CONDITION:Normal TEST DATE:2001-02-02 Field strength of spurious emissions (AVERAGE VALUE) ======================================================================= EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mdB(μV/m)μV/m #867.8<1.0+34.7<35.7<61.053.0439.8 *1301.6<1.0+32.8<33.8<49.053.0500.0 1735.5<1.0+28.3<29.3<29.253.0439.8 2169.4<1.0+32.1<33.1<45.253.0439.8 2603.3<1.0+26.2<27.2<22.953.0439.8 3037.2<1.0+28.0<29.0<28.253.0439.8 3471.0<1.0+28.5<29.5<29.953.0439.8 *3904.9<1.0+30.6<31.6<38.053.0500.0 *4338.8<1.0+32.0<33.0<44.753.0500.0 *4772.7<2.0+33.0<35.0<56.253.0500.0 ============================================================================== Remark : * - Denotes restricted band of operation. Measurement were made using a peak detector. Any emission less than 1000 MHz and falling within the restricted bands of FCC Rules Part 15 Section 15.205 were not adjusted for averaging and the limit of FCC Rules Part 15 Section 15.209 were applied ===============SUMMARY================ data is within limits ===================================== Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- Horizontal V -- Vertical ===================================== Date: 2001-02-08 TEST REPORT Page 6 of 8 No.: HM103865 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges. TEST REFERENCE:F…

Text truncated - open the document above for the full version.

FCC ID: L5C0639 TEST SET UP PHOTOGRAPH OF THE PRODUCT Measurement of Radiated Emission Test Set up
