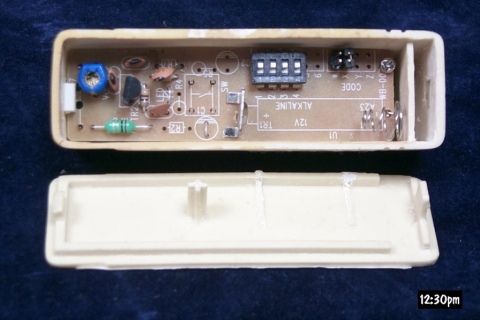

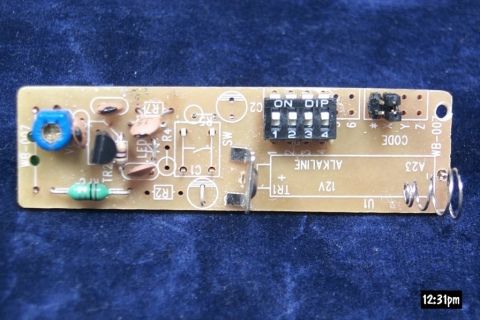

0713+0714 Manual Setting the Switches The chime’s adjustable channel switch helps prevent other transmitters or radio devices from sounding the chime. Before initial operation take care to ensure that the channel switches on the transmitter and the receiver are in the same position. 1. Set the switch on the back side of the receiver: Dip switch no. 1 – 4 must be the same as that on the transmitter 2. Remove the transmitter back cover, and set the switch in the transmitter to the same position as the switch in the receiver. 3. Pin-Header in the transmitter can be set to two different positions. As a result, the receiver will give off two different chime sounds (big bang or ding-dong ding- dong). Installing the Batteries After you have set the channel switch, install the batteries. The chime’s receiver requires three C-size batteries. To install the receiver’s batteries, remove the compartment cover and then install the receiver’s batteries. Be sure that to observe correct polarity (+ and -) as marked inside the battery compartment. The chime’s transmitter requires a 12V battery. To install the transmitter’s battery, open the back cover of the transmitter and insert the battery. Mounting the transmitter 1. Use the back cover of the transmitter as a template to mark two screw holes. 2. Drill two holes in the marketed locations. 3. Secure the cover to the mounting location by two supplied mounting screws. 4. Put transmitter unit onto the cover. Specifications Transmission Range:150ft (open area) Transmission frequency: 310MHz Receiver:3 x 1.5V battery Transmitter:1 x 12V 23A battery

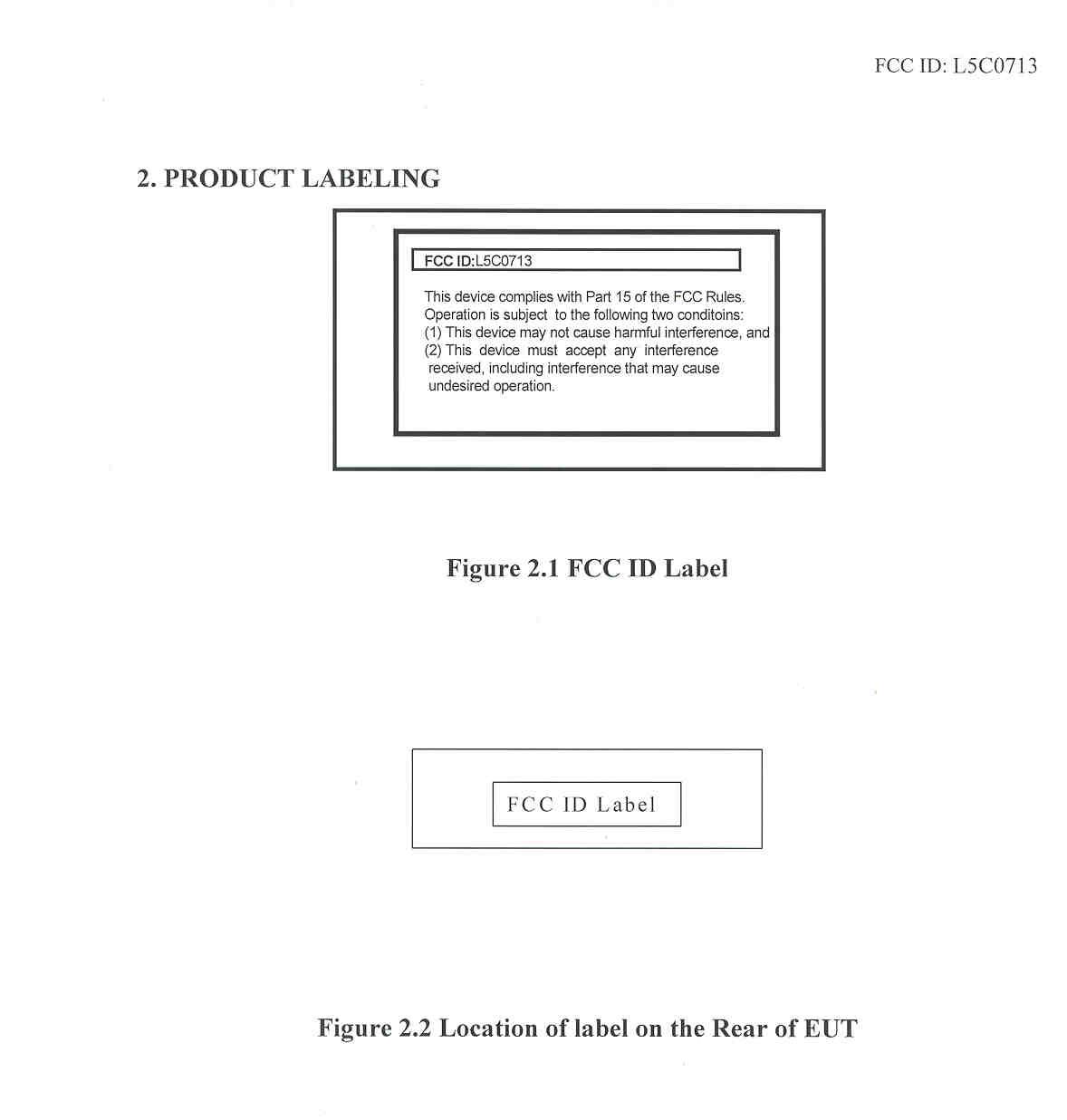

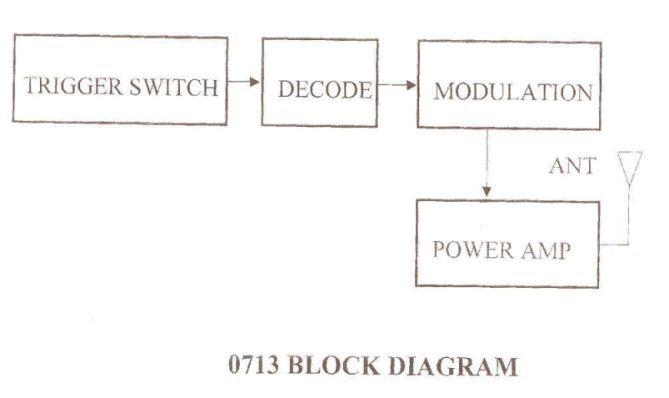

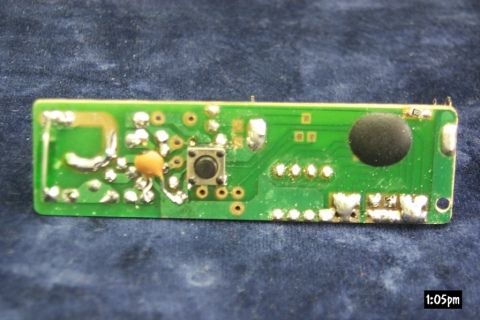

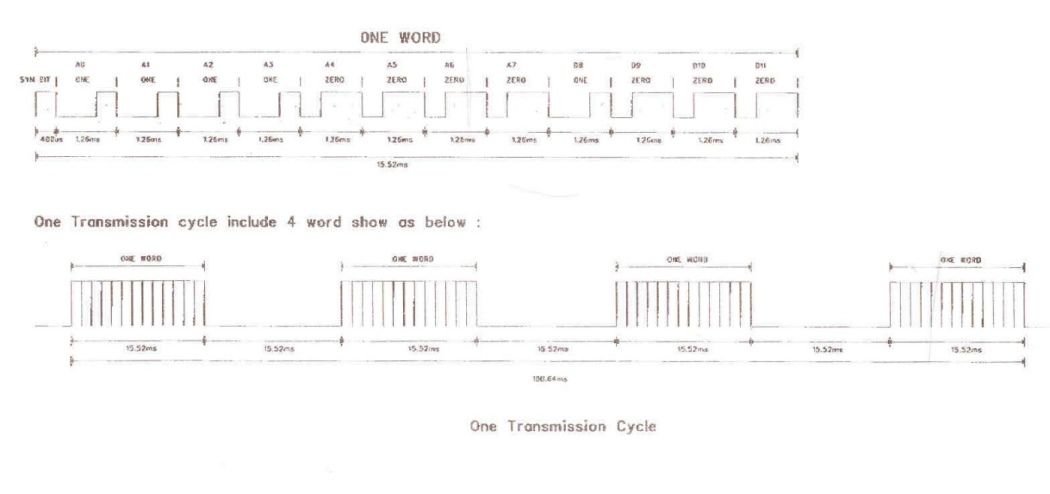

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of DOOR CHIME TRANSMITTER MODEL: 0713 FCC ID: L5C0713 OCTOBER 17, 2000 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: ANSEN ELECTRONICS COMPANY Report prepared by: Advanced Compliance Lab Report number:0048-2K0920-02(Tx) The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: L5C0713 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures............................................................................................................................ 3 1. GENERAL INFORMATION...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology ........................................................................................6 1.5 Test Facility..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION.......................................................................9 3.1 Justification..................................................................................................9 3.2 Special Accessories......................................................................................9 3.3 Configuration of Tested System..................................................................9 4. SYSTEM SCHEMATICS .........................................................................................13 5. RADIATED EMISSION DATA...............................................................................14 5.1 Field Strength Calculation .........................................................................14 5.2 Test Methods and Conditions .....................................................................14 5.3 Test Data.......................................................................................................14 5.4 Occupied Bandwidth...................................................................................16 6. PHOTOS OF TESTED EUT ....................................................................................17 FCC ID: L5C0713 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label ..............................................................................................8 Figure 2.2 Location of Label on Back of the EUT......................................................8 Figure 3.1 Radiated Test Setup, X Axis.......................................................................10 Figure 3.2 Radiated Test Setup, Y Axis.......................................................................11 Figure 3.3 Radiated Test Setup, Z Axis .......................................................................12 Figure 4.1 EUT Schematics ..........................................................................................13 Figure 6.1 Occupied Bandwidth ..................................................................................18 Figure 6.2 Front View...................................................................................................19 Figure 6.3 Rear View ....................................................................................................20 Figure 6.4 Inside View ..................................................................................................21 Figure 6.5 Component Side ..........................................................................................22 Figure 6.6 Foil Side .......................................................................................................23 Figure 6.7 Pulse Train Timing Plot .............................................................................24 Figure 6.8 Block Diagram.............................................................................................25 FCC ID: L5C0713 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT:DOOR CHIME TRANSMITTER Model:0713 Applicant:ANSEN ELECTRONICS COMPANY Test Type:FCC Part 15C CERTIFICATION Result:PASS Tested by:ADVANCED COMPLIANCE LABORATORY Test Date:OCTOBER 09, 2000 Report Number:0048-2K0920-02(Tx) The above equipment was tested by Advance…
