L5C0790TXPIR Transmitter

Driveway Patrol Congratulation on purchasing the Driveway Patrol. Your set comes with a Chime unit and a PIR sensor which are both battery operated. You can opt to use a DC adaptor for the Chime unit. This Patrol system is simple to install and it requires no wiring. Installing the Batteries After you have set the switches, install the batteries. 1. The chime unit requires three C-size batteries. To install the chime unit's batteries remove the compartment cover and then install the receiver's batteries. Be sure that to observe correct polarity (+ and -) as marked inside the battery compartment. 2. The PIR sensor requires a 9V battery. To install the push button's battery, unscrew the back cover of the sensor and insert the battery. Be sure that to observe correct polarity (+ and -) as marked inside the battery compartment. Operation 1. Set the Hi-Lo-Off switch on the side of the Chime unit to Hi or Lo. 2. Place the PIR sensor near the front gate or rear door. Any movement nearby will trigger the chime unit to sound. 3. Please ensure to place the PIR sensor at least 4 feet high to have proper function. Specifications Transmission Range:400 feet (open area) Transmission frequency:434MHz Receiver:3 x 1.5V battery, not included Transmitter:1 x 9V battery, not included Remark Modifications not authorized by the manufacturer may void users authority to operate this device. NOTE This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, these is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

7;%/2&.',$*5$0 3,5 6(1625 &203$5$725 ú  = W Ü ̆ 5)7; (1&2'(5 32:(5 $03 /('

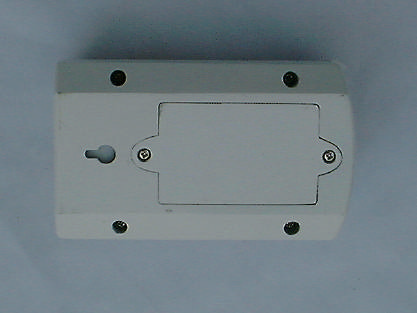

FCC ID: L5C0790TX PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: L5C0790TX LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

FCC ID: L5C0790TX PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: L5C0790TX Circuit Description The 434MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC (U1PT2260). The output of Q2 has the matching network consisting of that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

Date: 2001-12-31 TEST REPORT Page 1 of 22 No.: HM106599 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM106599 Equipment Under Test [EUT]:Driveway Patrol Model Number:0790 Applicant:Ansen Electronics Company FCC ID :L5C0790TX Date: 2001-12-31 TEST REPORT Page 2 of 22 No.: HM106599 CONTENT: Cover Page 1 of 22 Content Page 2-3 of 22 Conclusion Page 4 of 22 1.0General Details 1.1Test Laboratory Page 5 of 22 1.2Applicant Details Page 5 of 22 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 22 Description of EUT operation 1.4Date of Order Page 6 of 22 1.5Submitted Sample Page 6 of 22 1.6Test Duration Page 6 of 22 1.7Country of Origin Page 6 of 22 1.8 Additional Information of EUT Page 7 of 22 2.0Technical Details 2.1Investigations Requested Page 8 of 22 2.2Test Standards and Results Summary Page 8 of 24 3.0Test Results 3.1Emission Page 9-14 of 22 3.2Bandwidth Measurement Page 15-16 of 22 Date: 2001-12-31 TEST REPORT Page 3 of 22 No.: HM106599 Appendix A List of Measurement Equipment Page 17 of 22 Appendix B Duty Cycle Correction During 100 msec Page 18-19 of 22 Appendix C Periodic Operation Page 20 of 22 Appendix D Photographs Page 21-22 of 22 Date: 2001-12-31 TEST REPORT Page 4 of 22 No.: HM106599 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2001-12-31 TEST REPORT Page 5 of 22 No.: HM106599 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant ANSEN ELECTRONICS COMPANY Room 73-78, 2/F., Sino Industrial Plaza, 9 Kai Cheung Road, Kowloon Bay, Kowloon, Hong Kong Telephone:852 2795 9473 Fax:852 2751 6577 HKSTC Code Number for ApplicantANE001 Manufacturer ANSEN ELECTRONICS COMPANY Chen Tung Industrial Zone, Ning Tau Administrative District, Qiao Tau Zhen, Dongguan, Guangdong, China Telephone:86 769 334 1405 Fax:86 769 334 1142 Date: 2001-12-31 TEST REPORT Page 6 of 22 No.: HM106599 1.3Equipment Under Test [EUT] Description of Sample Product:Driveway Patrol Manufacturer:Ansen Electronics Company Brand Name:N/A Model Number:0790 Input Voltage:9Vd.c. (“6F22” size battery x 1) 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is an Ansen Electronics Company, 433.8MHz RF wireless remote control. The EUT is to transmit RF signal while each button is be pressed Modulation by Data Code. Tape is pulses modulation. 1.4Date of Order 2001-12-22 1.5Submitted Sample(s): 1 Sample per model 1.6Test Duration 2001-12-26 1.7Country of Origin China Date: 2001-12-31 TEST REPORT Page 7 of 22 No.: HM106599 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Rating Label Block diagram FCC ID Label Date: 2001-12-31 TEST REPORT Page 8 of 22 No.: HM106599 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:1992 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231aANSI C63.4:1992N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:1992Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:1992Class B Note: N/A - Not Applicable Date: 2001-12-31 TEST REPORT Page 9 of 22 No.: HM106599 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.231a Test Method:ANSI C63.4:1992 Test Date:2001-12-26 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Computer Turn-table Ground Plane Date: 2001-12-31 TEST REPORT Page 10 of 22 No.: HM106599 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.231a]: Frequency Range of Fundamental Field Strength of Fundamental Emissions Field Strength of Spurious Emissions [MHz][μV/m][μV/m] 40.66-40.701,000100 70-13050050 130-174500 to 1,500 *50 to 150 * 174-2601,500150 260-4701,500 to 5,000 *150 to 500 * Above 4705,000500 ** Linear interpolations Where F is the frequency in MHz, the formula for calculating the maximum permitted fundamental field strengths are as follows: for the band 130-174 MHz, μV/m at meters=56.81818(F)-6136.3636; for the band 260-470 MHz, μV/m at 3 meters =41.6667(F)-7083.3333. The maximum permissible unwanted emission level is 20dB below the maximum fundamental level. Results: Field Strength of Fundamental Emissions Peak Value FrequencyLevel @3mCorrection Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHzdBμVdB/mdBμV/mμV/mμV/m 433.863.422.285.619,054.643,966.8Horizontal Field Strength of Spurious Emissions Peak Value FrequencyLevel @3m Correction Factor Field Strength Field Strength Limit @3m Antenna Pola…

Text truncated - open the document above for the full version.

FCC ID: L5C0790TX TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
