L5C960040TXWireless PC transmitter

Ansen Electronics Co

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Jan 29, 2008
Application Purpose: Original Equipment
Date of Application: Jan 29, 2008
Equipment Note: Wireless PC transmitter
Frequency Range: 433.86000000 - 433.86000000
Company: Ansen Electronics Co
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

INTERNET BASED 4-DAY FORECAST WEATHER STATION Owner’s Manual W194-X/W194-1/W194-0, W196 Thank you for purchasing the new generation of our Internet based 4-day forecast weather station. Designed and engineered with the state-of-art technology and components, this instrument will provide accurate and reliable readings of 4-day regional forecast & local weather information. Read this manual carefully to fully explore the features and functions of the new product. Overview REGIONAL FORECAST When your PC is online, 4-day regional forecast data will be updated from the Internet automatically and send to the main unit wirelessly via the PC transmitter Forecast includes: - Weather Forecast - High & low temperature - Average humidity - Chance of precipitation - Maximum UV index - Average wind speed & direction City list: - Europe: Over 9,200 cities selection - North America: Over 10,900 cities selection - Asia Pacific: Over 300 cities selection in Japan & Australia LOCAL WEATHER INFORMATION Local weather information includes: - Current indoor temperature - Current outdoor temperature sent from the remote thermo sensor wirelessly - Barometric pressure readings - Local weather forecast Outdoor Temp Main Unit (Receiver) Remote Sensor 4-Day Regional Forecast Internet > 20,000 Cities Selection PC Transmitter (4-Day Regional Forecast) Quick start guide for basic setup 1) Connect 6.0V adapter to the main unit and insert 6 pieces of AA batteries 2) Install 2 pieces of AAA batteries in the remote sensor 3) Set the pressure unit, sea level pressure reading & current local weather condition icon using [UP] or [DOWN] button on the main unit. Use [BARO] button to confirm each setting. (See “Local Weather Forecast & Pressure Setting” section for more details) 4) Hold [CHANNEL / SEARCH] button for 3 seconds on the main unit to search for RF signal from remote sensor 5) Press [Tx] button inside the battery compartment of the remote sensor to transmit RF signal. The respective outdoor channel will appear on the upper left of the main unit when RF connection is established 6) Install 3 pieces of AAA batteries in the PC transmitter. 7) Connect the PC transmitter to your PC via USB cable 8) Ensure that your PC is connected to the Internet. Run the INSTALL.EXE (or NIS01_INSTALL.EXE) program in the CD to start installation 9) After the installation is completed, enter your home city location & other setting on the PC program. 4-day forecast will be updated on your PC program automatically via the Internet 10) Press [PC SEARCH] button repeatedly on the main unit until the RF antenna bar icon flashes. The main unit will start searching for RF signal from PC transmitter 11) Press [TRANSMIT] button on your PC Transmitter to enforce transmitting RF weather data to the main unit 12) Once the RF connection is established between the main unit & PC transmitter, RF icon with full strength & “LAST UPDATE: TODAY” will appear. It may take 10 minutes to 1 hour to receive & display all regional forecast information on the main unit Name and Functions of Buttons on Main Unit: Top Key [MODE/SNOOZE/LIGHT] - Toggle the next 3 days’ forecast between - Hi/Lo temperature - Average wind direction / average wind speed / chance of precipitation - Maximum UV Index / average humidity - Auto-scroll “ ” display function - Extend backlight if adapter is not connected to your main unit - Trigger snooze alarm Back Keys Press Functions Hold 3 seconds [PC SEARCH] Receive RF signal from PC transmitter [CLOCK] Read time, day-of-week & sunrise/set time 12/24 Hour & day/month format setting [ALARM] Read alarm time; enable/disable alarm Alarm time setting [WIND / ▲] Select wind speed’s unit 1 step forward in setting Fast advance in setting [C/F / ▼] Select degree C/F 1 step backward in setting Fast backward in setting [CHANNEL/ Select Channel 1,2,3, auto scroll Search for remote sensor SEARCH] (for W194-X/W194-1) [BARO] Toggle current & past 12 hour pressure Pressure unit, sea level pressure & local (for W194-X/W194-1) weather forecast setting Name and Functions of Buttons on PC Transmitter: Top Keys Press Functions Hold 3 seconds [TRANSMIT] Transmit regional forecast data & synchronize Turn on/off blue light bar with main unit Name and Functions of Buttons on Remote Sensor: Top Keys Press Functions [Tx] Transmit outdoor temperature data to main unit [CH 1/2/3] Select remote channel 1, 2 or 3 INSTALLATION SETTING UP THE MAIN UNIT (RECEIVER) BATTERY & ADAPTER INSTALLATION: Main Power Source: Plug in the 6.0V adapter into the adapter socket at the back for basic operation and continuous backlight Battery installation: Lift off the battery cover, install 6 pieces of AA batteries according to the polarity indicated and close the battery cover. LOCAL WEATHER FORECAST & PRESSURE SETTING (For W194-X/W194-1) A pressure sensor is built in the main unit to provide local weather forecast & pressure reading. After battery installation, the main unit will enter pressure setting mode in the following sequence. Pressure unit (mb / hPa or inHg) > Current sea level pressure > Current local weather condition > Exit The corresponding icon will flash. Press [▲] or [▼] to select, press [BARO] to confirm each setting. NOTE: - Please check the current sea level pressure reading of your location from weather web site - Please select current weather condition of your location between sunny, partly cloudy, cloudy, rainy or stormy Sunny Partly Sunny Cloudy Rainy Stormy - You may also enter the local weather forecast & pressure setting any time by holding the [BARO] button for 3 seconds. (Details also refer to the “BAROMETRIC PRESSURE & LOCAL WEATHER FORECAST” section) SETTING UP THE REMOTE THERMO SENSOR BATTERY INSTALLATION Loosen the screws on the battery door with a small screw driver, insert 2 pieces of AAA batteries according to the polarity indicated. (Replace the cover and tighten the screws after the RF setting below) ESTABLISH RF CONNECTION WITH MAIN UINIT - Place the main…

Text truncated - open the document above for the full version.

Users Manual

W194, W196 quick install guide 1. unzip the file NIS01_INSTALL.ZIP . 2. run the file NIS01_INSTALL.EXE . 3. Click ‘Next >’ in Welcome to the 4-Day Forecast Setup Wizard screen. 4. Click ‘Browse’ to select the folder to install, then click ‘Next >’ to continue. 5. Click ‘Next >’ in Confirm Installation screen to start install. 6. Please wait until install procedure is completed. 7. Click ‘Close’ to exit install in Installation Complete - Insert 3pcs AAA battery into W196. - Connect W196 to PC via USB - In desktop, click 4-day Forecast icon to run 4-day forecast PC software - Click ‘Setting’ button to enter HOME city setting menu, - - Click ‘Set location’ to select a city. - Click ‘Save’ to exit Select Location menu - Click ‘Save’ to exit Home Location menu, - Insert battery into W194 Rx - Click ‘Send to receiver’ to download to W196 - Wait 5sec for transmitting data to W196 The W196 will then transmit Internet clock and all weather data to W194 Rx for about 10mins (39sec interval period).

Block Diagram

W196-0/960040 Transmitter Block Diagram MCU EM78P468N 32.768kHz Crystal Oscillator LED indicator Tx key 433MHz RF Tx Board Tx Data (P64) (P60) (P55) PA1, PB0, PB1 USB IC MTP1002M USB socket DP/D+, DM/D- VDD, GND 6MHz Crystal Oscillator

External Photos

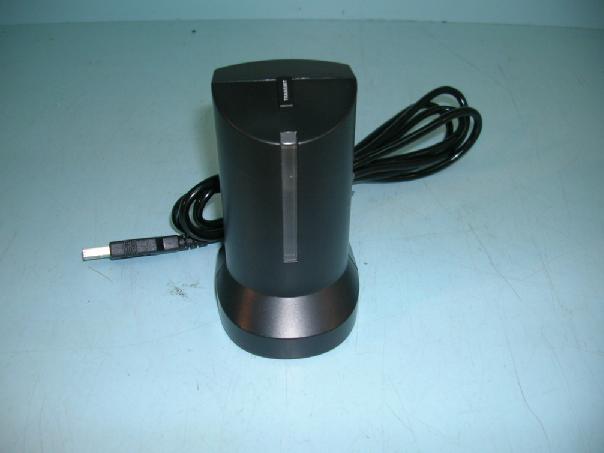

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

ID Label/Location Info

FCC ID : This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. L5C960040TX Made in China W196-0 LAB_BUSHNELL_22JAN08 4.5V SIZE AAA X 3 5.0V USB INPUT Bushnell Model No. : 960040 Transmitter

Internal Photos

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Operational Description

W196-0 Circuit Description MCU EM78P458N It is the main control unit which communicates with USB IC to get weather data and transfer the weather data to the RF unit for 433Mhz RF transmission. USB IC MTP1002M USB IC communicates with PC software by USB protocol thru USB socket and transfer data to MCU. PC software gets the Internet weather data from Internet and then send to USB IC thru USB port. LED indicator When MCU transmit 433MHz weather data thru RF board, LED indicator will turn on during transmission. Tx key When Tx key pressed, weather data stored in MCU will transmit once thru RF Tx board. RF Tx board After MCU received the weather data from PC thru USB IC, it will transmit the data to RF Tx board. Then the data will transmit to receiver unit thru 433MHz RF by it.

Parts List/Tune Up Info

頁 / 1 2 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 Ansen Electronics Company物料清單日期：6/11/200716:11:32用戶：ENGG 13報表編碼： PRERNS 層次物料編號名稱單位最終用量App. No最後ECN編號:摘要成品編號：W196G000000MKT0PC TransmitterPC 建記錄人：ZHENG修改人：ZHENG W196-G0-MKT0#W196G0 Tx FINISHED GOODSPC 1.0000 IC MTP-1002ANS USB CPU QTP 'TENX' #W196-0 BONDING RoHS PC 1.0000 W196-0-BOND0F#W196G0 CONTROL PCB BONDINGPC 1.0000 2166/HHHJ0115U2 09-47846-800IC EM78P468N MCU OTP ' EMC ' #W121-0 BONDING "RoHS" PC 1.0000 1135/FFU1 09-41002-001 PC 4.0000 W196-0-SMD0F#W196G0 CONTROL PCB SMDPC 1.0000 MAX-579D1.D2.D3.D4 01-A0520-230SCHOTTKY DIODE RECTIFIERS SS0520 SOD- 123 SMD 'DC' RoHS PC 1.0000 1592/GGD8 01-54148-238ADIODE MINI-MELF LL4148 SMD'STEMTECH' ALT:01-54148-238 'RoHS' Q2.Q3.Q6 05-57093-000WIDEBAND TRANSISTOR 6GHZ MAR93A'2D'NPN SOT23'HUIYEE'RoHS' PC 2.0000 0718/GGQ4.Q5 05-01162-300TRANSISTOR 2SC1623L (SMD) NPN FAIRCHILD "RoHS" PC IC EEPROM AT24C128N-10SU-1.8 SOIC-8 'ATMEL' RoHS PC 1.0000 3595 3.0000 1.0000 1983/HHU4 09-23002-000I.C. XC62FP3002PR 3V SOT-89 SMD "RoHS"PC 1.0000 3012U3 09-02412-801 2238/EEU5 11-8A000-720CHIP RES 0 ohm 1/16W ±5% 0603 'YAGEO RC0603JR-070R' RoHS PC 1.0000 R5 09-24502-000I.C XC62FP4502PR 4.5V SOT-89 SMD "RoHS"PC R17 11-8A068-720ACHIP RES 68 ohm 1/16W ±5% 0603 RoHSPC 1.0000 R11 11-8A027-720CHIP RES 27 ohm 1/16W ±5% 0603 RoHSPC 1.0000 R30 11-8A182-720ACHIP RES 820 ohm 1/16W ±5% 0603 RoHSPC 1.0000 R13 11-8A122-720CHIP RES 220 ohm 1/16W±5% 0603 RoHSPC 1.0000 R22 11-8A268-720CHIP RES 6.8K ohm 1/16W ±5% 0603 RoHSPC 1.0000 R16 11-8A215-720CHIP RES 1.5K ohm 1/16W ±5% 0603 RoHSPC 1.0000 R19.R23.R29.R31 11-8A327-720CHIP RES 27K ohm 1/16W±5% 0603 RoHSPC 1.0000 R2 11-8A310-720CHIP RES 10K ohm 1/16W ±5% 0603 RoHSPC 4.0000 R14.R21 11-8A351-720CHIP RES 51K ohm 1/16W ±5% 0603PC 2.0000 R1.R20 11-8A333-720CHIP RES 33K ohm 1/16W ±5%0603 RoHSPC 2.0000 R27.R28 11-8A410-720CHIP RES 100K ohm 1/16W ±5% 0603 RoHSPC 4.0000 R9.R15.R24.R26 11-8A410-700BCHIP RES 100K ohm 1/16W ±1% 0603 RoHSPC 2.0000 R12 11-8A433-720CHIP RES 330K ohm 1/16W ±5% 0603 RoHSPC 1.0000 R8 11-8A418-720CHIP RES 180K ohm 1/16W±5%0603 RoHSPC 1.0000 R4 11-8A510-720CHIP RES 1M ohm 1/16W ±5% 0603 RoHSPC 1.0000 R18 11-8A447-720CHIP RES 470K ohm 1/16W ±5% 0603 RoHSPC 1.0000 R7 21-00027-194C.CAP 0.5PF 50V NPO ±0.25PF0603 'SAMSUNG' "RoHS" PC 1.0000 C19 11-8A522-720CHIP RES 2.2M ohm 1/16W ±5%0603 RoHSPC 1.0000 C15.C23 21-00527-194AC.CAP 5PF 50V NPO ±0.25pF 0603 SAMSUNG " RoHS" PC 3.0000 C11.C20.C22 21-00127-194C.CAP 1PF 50V NPO ±0.25pF 0603(CL10C010CB) "RoHS" PC 2.0000 C13 21-01527-194C.CAP 15PF 50V NPO ±5% 0603 (CL10C150JB) "RoHS" PC 1.0000 C12 21-00627-194C.CAP 6.8pF 50V NPO ±0.5pF 0603'SAMSUNG' RoHS PC 1.0000 C7.C8.C31.C33 成品編號：W196G000000MKT0PC TransmitterPC 21-02027-194C.CAP 20pF 50V NPO ±5% 0603(CL10C200JB) RoHS PC 4.0000 PC 3.0000 建記錄人：ZHENG修改人：ZHENG 2220/EEC10.C16.C1721-21028-194C.CAP 0.001uF 50V ±10% X7R 0603 CL10B102KB "RoHS" 4 4 4 2 3 3 3 3 3 3 3 3 3 3 3 3 3 2 3 3 3 3 3 4 5 6 3 4 5 6 3 4 5 6 3 10.0000 21-31028-194C. CAP 0.01uF 50V ±10% X7R0603 (CL10B103KB) RoHS PC 3.0000 C6.C14.C18 CL10B102KB "RoHS" C1- C4.C9.C24.C25.C34.C35. C38 55-1W196-400PCB(#W196-0 Tx-C.B)REV.04 FR4 1.0mm DOUBLE SIDE-BONDING RoHS PC 1.0000 W2150/HHTX-C.B 21-41014-194C.CAP 0.1uF 25V ±20% X7R 0603 "RoHS"PC W196-0-PCBF0#W196G0 CONTROL PCB ASS'YPC 1.0000 01-61901-316LED 1.3x3.5mm BLUE (WATER CLEAR) 1A3B4SC14 'C.C' RoHS PC 1.0000 26-50161-501MINI E.CAP. 1uF 50V ±20% (4x7) "RoHS"PC 1.0000 PC 2.0000 1764/HHD7(BLUE-LED) 0819/GGC27 0655/GGC28.C29 26-64731-501MINI E.CAP 47uF 16V ±20% (5x7mm) RoHSPC 2.0000 0678/GGC26.C37 26-61021-501MINI E.CAP 10uF 16V ±20% 4x7mm "RoHS" 28-02005-005TRIMMER CAP (MURATA) TZ03Z050FR169 (5PF) TOP TYPE 'RoHS' PC 1.0000 32-06550-002FSPRING COIL 5T Φ0.4xΦ2.5±0.1mm#0655-3 TX "ROHS" PC 1.0000 PC 1.0000 1946C21 3218/GGL2 3219/GGL1 32-W0440-000SPRING COIL 10T Φ0.4XΦ1.7XΦ2.5±0.14mm #W044-D/F RoHS PC 1.0000 0216/HHL3 32-07060-001FSPRING COIL 3T Φ0.4xΦ2.5±0.1mm#0706-2 TX "ROHS" ANT 39-01230-001CRYSTAL 6 MHZ ±30PPM 20PFΦ3x8mm '38AF6.000000D2080CF' RoHS PC 1.0000 1830/HHX3 32-W1960-000ANTENNA COIL Φ1.2mm MAGNET WIRE 'LQ- K0012112' #W196-0 RoHS PC CRYSTAL 32.768KHZ ±20PPMCFS206 'CITIZEN CRYSTAL' 'RoHS' PC 1.0000 2140/HH 1.0000 1.0000 1966/BBX1 39-05600-003SAW RESONATOR 433.92MHZ ONE-PORT(F- 11 TYPE NO:HR433C) 'RoHS' PC 1.0000 0412/BBX2 39-01700-003 1.0000 0456/CCK1 W196-0-MECF0#W196G0 Tx MEC ASS'YPC 1.0000 42-09078-500TACT SWITCH (VERTICAL TYPE)(NO:TC- 00304(A) H3.85)RoHS PC 2165/HHJ2(USB-CONNECTOR) 60-32033-080T 2.3 x 8 PA NI RoHSPC 2.0000 1668/HH 43-09W19-600CABLE UL2725 #28x4C+S 1.6M BLK(AM USB- A CONNECTOR+3S)RoHS PC 0617/HH 67-06270-101BATTERY PLATE (+)T=0.4MM BRASSNI #0627-0 "RoHS" PC 1.0000 1561/EE 60-82031-050SCREW T1.7x5 PB NI RoHSPC 4.0000 0956/BB 69-07470-101BATTERY PLATE (-) T=0.4mm W/SPRING STEEL&BRASS NI #0747"RoHS PC 1.0000 0956/BB 67-07470-101BATTERY PLATE (-) T=0.4mm W/SPRING STEEL&BRASS NI #0747"RoHS PC 1.0000 XX67-07470-101REMARK : Part No To VendorPC 1.0000 0955/BB 67-07470-201BATTERY PLATE (+.-) T=0.4mm W/SPRING STEEL&BRASS NI "RoHS" PC 1.0000 1954/FF 61-04550-546BATTERY SPRING(-)Φ0.5xΦ4.5xΦ5.5xL4.6mm STEEL NI RoHS PC 1.0000 1954/FF XX67-07470-201REMARK : Part No To VendorPC 1.0000 69-07470-201BATTERY PLATE (+.-) T=0.4mm W/SPRING STEEL&BRASS NI "RoHS" PC 1.0000 成品編號：W196G000000MKT0PC TransmitterPC 建記錄人：ZHENG修改人：ZHENG 0955/BB 67-W1590-101BATTERY PLATE(-.+)T=0.4mmW/SPRING STEEL&BRASS NI#W159-1 RoHS PC 1.0000 1350/GG 61-04550-546BATTERY SPRING(-)Φ0.5xΦ4.5xΦ5.5xL4.6mm STEEL NI RoHS PC 1.0000 1350/GG XX67-W1590-101REMARK : Part No To VendorPC 1.0000 69-W1590-101BATTERY PLATE(-.+)T=0.4mmW/SPRING STEEL&BRASS NI#W159-1 RoHS PC 1.0000 0955/BB 70-W1960-0UJFRONT CABINET ABS PA757 BLACK #15989 #W196-0 RoHS PC 1.0000 2247/HH 61-04550-546BATTERY SPRING(-)Φ0.5xΦ4.5xΦ5.5xL4.6mm STEEL NI RoHS PC 1.0000 3 3 3 3 3 3 3 3 3 1 2248/HH 70-W1960-2UJBASE ABS PA757 BLACK #15989 #W196-0 RoHS PC 1.0000 2249/HH 70-W1960-1UJBACK CABINET ABS PA757 BLACK #15989 #W196-0 RoHS PC…

Text truncated - open the document above for the full version.

RF Exposure Info

FCC ID: L5C960040TX Antenna, Ground and Power Source There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 4.5 Volt power supply.

Schematics

Test Report

STC Test Report Date : 2008-01-24 Page 1 of 24 No. : HM161015 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (ANE001): Ansen Electronics Company Room 73-78, 2/F., Sino Industrial Plaza, 9 Kai Cheung Road, Kowloon Bay, Kowloon, Hong Kong. Description of Samples: Model Name: Wireless PC transmitter Brand Name: Ansen Model Number: W196-0 FCC ID: L5C960040TX Date Samples Received: 2008-01-15 Date Tested: 2008-01-16 to 2008-01-18 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: For additional models details, see page 5. Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2008-01-24 Page 2 of 24 No. : HM161015 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 24 Content Page 2-3 of 24 1.0 General Details 1.1 Test Laboratory Page 4 of 24 1.2 Applicant Details Page 4 of 24 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 24 Description of EUT operation 1.4 Date of Order Page 5 of 24 1.5 Submitted Samples Page 5 of 24 1.6 Test Duration Page 5 of 24 1.7 Country of Origin Page 5 of 24 2.0 Technical Details 2.1 Investigations Requested Page 6 of 24 2.2 Test Standards and Results Summary Page 6 of 24 3.0 Test Results 3.1 Emission Page 7-13 of 24 3.2 Bandwidth Measurement Page 14-15 of 24 STC Test Report Date : 2008-01-24 Page 3 of 24 No. : HM161015 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 16 of 24 Appendix B Duty Cycle Correction During 100 msec Page 17-19 of 24 Appendix C Periodic Operation Page 20-21 of 24 Appendix D Photographs Page 22-24 of 24 STC Test Report Date : 2008-01-24 Page 4 of 24 No. : HM161015 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Ansen Electronics Company Room 73-78, 2/F., Sino Industrial Plaza, 9 Kai Cheung Road, Kowloon Bay, Kowloon, Hong Kong. HKSTC Code Number for Applicant Manufacturer Ansen Electronics Company Chen Tung Industrial Zone, Ning Tau Administrative District, Dongguan, Guangdong, China STC Test Report Date : 2008-01-24 Page 5 of 24 No. : HM161015 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: Wireless PC transmitter Manufacturer: Ansen Electronics Company Brand Name: ANSEN Model Number: W196-0 Additional Model Number: 960040 Transmitter Rating: 4.5Vd.c (“AAA” size battery x 3) with USB 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Ansen Electronics Company, Wireless PC transmitter. The transmitter is an automatic transmitter. The EUT is to transmit RF signal while temperature measurement is changed. The EUT is for data transmission, Modulation by Data Code. Type is pulses modulation. 1.4 Date of Order 2008-01-15 1.5 Submitted Sample(s): 2 Samples 1.6 Test Duration 2008-01-16 to 2008-01-18 1.7 Country of Origin China STC Test Report Date : 2008-01-24 Page 6 of 24 No. : HM161015 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSI…

Text truncated - open the document above for the full version.

Test Setup Photos

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
