L5CR081GTWaterproof Bluetooth Speaker

Bluetooth Water Resistant Speaker Power The speaker operates on built-in rechargeable battery To recharge the built-in battery, open the rubber cap on the back casing and connect micro USB socket with PC through supplied USB cable Charging: Red LED indicator turns on Fully Charged: The red LED turns green when it is fully charged Close the rubber cap firmly after charging. Play from a Bluetooth device Note: The effective operation range between the speaker and your Bluetooth device is approximately 10 meters (33 feet) line of sight maximum - Press [ON/OFF] button on back casing to turn on the speaker - The blue LED indicator will flash - Activate the Bluetooth function in your Bluetooth device - Select “BT Speaker” on your Bluetooth device for pairing - When connected, the blue LED indicator stays steadily on - Start music play on your Bluetooth device - Adjust volume on your Bluetooth device or press the [+] or [-] button on the speaker - Press [Play/Pause] button on the speaker to play or pause music - Press [Forward] or [Backward] on the speaker to select your music - Press the [ON/OFF] button again to switch off the unit when it is not in use for power saving. Blue LED indicator will turn off Play from an external device - Press the [ON/OFF] button to turn on the speaker - Open the rubber cap on the back casing and connect your speaker with an external device through a 3.5mm line-in cable - Start music play on your device - Press the [ON/OFF] button again to switch off the unit when it is not in use for power saving - Close the rubber cap firmly after use Note: The speaker is not water resistant while playing music through a 3.5mm line-in cable since the rubber cap needs to be open. Specification Rated output power: 1.6W RMS DC Power input: USB: 5V, 500mA Built-in rechargeable battery: 500 mAh Bluetooth specification: V3.0 + EDR Supported Bluetooth Profiles: AVRCP, A2DP Range: maximum 10 meters (33 feet) line of sight Water resistance level: IPX4 (protected against splashing water) Working temperature: 0C – 50C Troubleshooting No power: - Recharge your speaker No Sound: - Adjust volume on your Bluetooth device or the speaker - Make sure that your Bluetooth device is connected with the speaker and they are within the effective operation range Care & Maintenance: - Clean the unit with a damp (never wet) cloth. Solvents or detergents should never be used - NEVER IMMERSE IN WATER This product is not designed to be immersed in water or to come in continuous contact with water since permanent damage to the electrical and mechanical parts will result - Always wipe the outside of the cabinet thoroughly if it becomes wet with moisture or water splashes. This will help to prevent the internal parts of the unit from entry of water and possible moisture damage - Always close the rubber cap on back casing firmly to protect the unit against water splashes - If sand gets inside the speaker grill, open the small rubber cap on the side of the back casing and pour out the sand Cautions: 1) Due to the used enclosure material, the device shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited 2) Caution Risk of explosion if battery is replaced by an incorrect type. 3) Dispose of used batteries according to the instructions 4) Do not expose the device to an extremely high electromagnetic filed, this may impair the correct functioning of the device. 5) The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in order location. FCC Statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct The interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user’s authority to operate this equipment.

Declaration FCC ID: L5CR081GT Date: Aug 30 2013 Our Ansen Electronics Company declares that our product Waterproof Bluetooth Speaker’s USB port was only used as charging , can not used as data transmission. Sincerely, Alvin Luo/ QE Manager Ansen Electronics Company Tel: (852)‐2795‐9473 Fax: (852)2751‐6577 Web site:www.ansen.com.hk E‐mail: [email protected]

Product Similarity Declaration To Whom It May Concern, We , Ansen Electronics Company hereby declare that our ( Waterproof Bluetooth Speaker) Model Number:06-ROQOUT is same R081GT (PCB,Schemartic,Hardware erc), R081GT and06-ROQOUT are named differently due to marketing purposes. Please contact me if you have any question. Sincerely, Alvin Luo/ QE Manager Ansen Electronics Company Tel: (852)-2795-9473 Fax: (852)2751-6577 Web site:www.ansen.com.hk E-mail: [email protected]

Ansen Electronics Company FCC ID: L5CR081GT Date: Aug 30, 2013 To whom it may concern: We the undersigned, hereby authorize Shenzhen Huatongwei International Inspection Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen Huatongwei International Inspection Co., Ltd on our behalf shall have the same affect as acts of our own. This authorization shall expire 6 months from orignal data. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, Alvin Luo/ QE Manager Ansen Electronics Company Tel: (852)-2795-9473 Fax: (852)2751-6577 Web site:www.ansen.com.hk E-mail: [email protected]

Ansen Electronics Company Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Ansen Electronics Company would like the following documents regarding this submission for FCC ID: L5CR081GT to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Alvin Luo/ QE Manager Ansen Electronics Company Tel: (852)-2795-9473 Fax: (852)2751-6577 Web site:www.ansen.com.hk E-mail: [email protected]

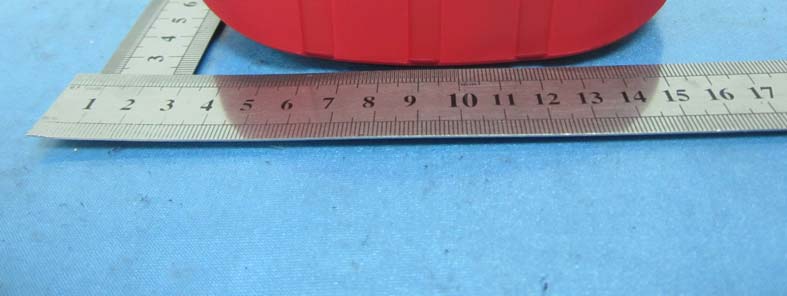

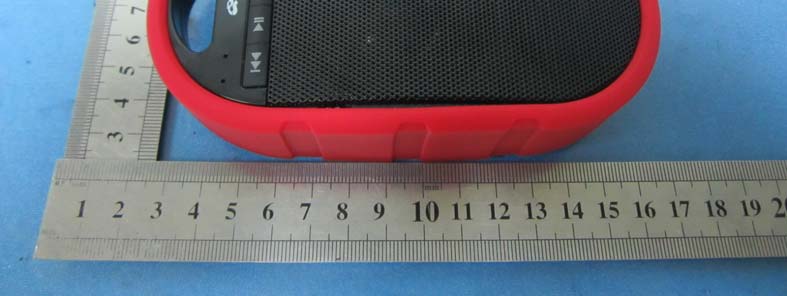

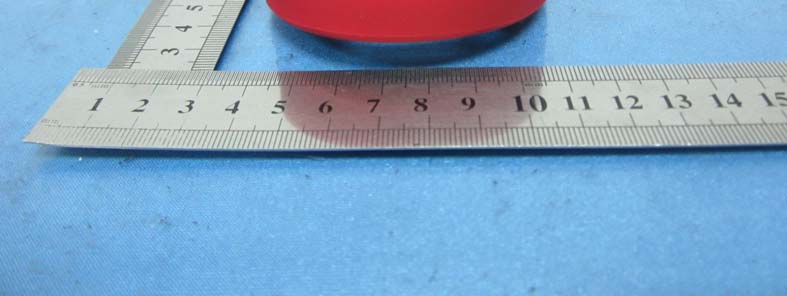

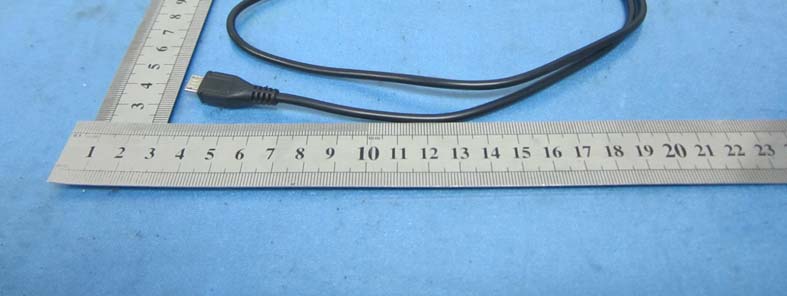

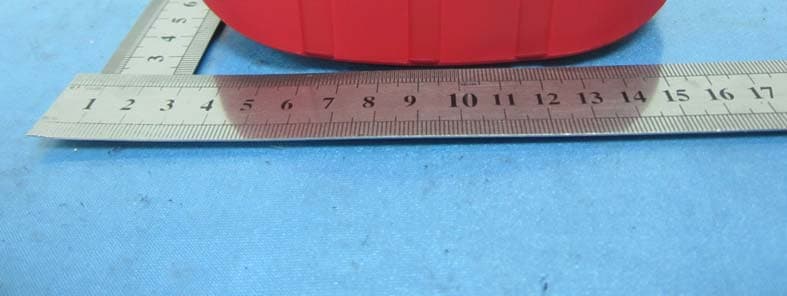

External photos of the EUT

Internal photos of the EUT

RF EXPOSURE REPORT FCC Per 47 CFR 2.1093(d) Report Reference No. ..................... : FCC ID. ............................................ : TRE1308006702 R/C: 50066 L5CR081GT Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Aug 26, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Ansen Electronics Company Address ............................................. : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Test specification: Standard ........................................... : FCC Per 47 CFR 2.1093(d) TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Waterproof Bluetooth Speaker Trade Mark ....................................... : / Manufacturer .................................. : Ansen Electronics Company Model/Type reference ....................... : R081GT Listed Models .................................. : 06-ROQOUT Operation Frequency ........................ : From 2402MHz to 2480MHz Modulation Type ............................... : GFSK,π/4 DQPSK,8DPSK Rating ............................................... : DC 5.0V from USB Result ................................................ : Positive Report No.: TRE1308006702 Page 2 of 7 Issued:2013-08-26 RF EXPOSURE REPORT Test Report No. : TRE1308006702 Aug 26, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Waterproof Bluetooth Speaker Model /Type : R081GT Listed Models : 06-ROQOUT Applicant : Ansen Electronics Company Address : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Manufacturer : Ansen Electronics Company Address : Chen Tung Industrial Zone,Ning Tau Administrative District,Qiao Tau Zhen,Dongguan,Guangdong The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1308006702 Page 3 of 7 Issued:2013-08-26 Contents 1. SUMMARY 4 1.1. EUT configuration 4 1.2. NOTE 4 2. TEST ENVIRONMENT 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT 5 3.1. Applicable Standard 5 3.2. Limit 6 3.3. RF Exposure 6 4. CONCLUSION 7 Report No.: TRE1308006702 Page 4 of 7 Issued:2013-08-26 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. NOTE 1. The EUT is a Bluetooth Speaker with Bluetooth function,The functions of the EUT listed as below: Test Standards Reference Report Bluetooth FCC Part 15 Subpart C TRE1308006701 RF Exposure FCC Per 47 CFR 2.1093(d) TRE1308006702 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 EUT √ － － － Report No.: TRE1308006702 Page 5 of 7 Issued:2013-08-26 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to TR-100028-01” Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 1” and TR-100028-02 “Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 2 “ and is documented in the Shenzhen Huatongwei International Inspection Co., Ltd quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Hereafter the best measurement capability for Shenzhen Huatongwei laboratory is reported: Test Items Measurement Uncertainty Notes Transmitter power conducted 0.57 dB (1) (1) This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a cov…

Text truncated - open the document above for the full version.

FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : TRE1308006701 R/C: 50066 L5CR081GT Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Aug 26, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Ansen Electronics Company Address ............................................ : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Test specification: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Waterproof Bluetooth Speaker Trade Mark ....................................... : / Model/Type reference....................... : R081GT Listed Models .................................. : 06-ROQOUT Manufacturer .................................. : Ansen Electronics Company Modulation Type ............................... : GFSK,8DPSK,π/4DQPSK Operation Frequency ........................ : From 2402MHz to 2480MHz Rating ............................................... : DC 5.0V from USB Result................................................ : Positive Report No.: TRE1308006701 Page 2 of 92 Issued:2013-08-26 T E S T R E P O R T Test Report No. : TRE1308006701 Aug 26, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Waterproof Bluetooth Speaker Model /Type : R081GT Listed Models : 06-ROQOUT Applicant : Ansen Electronics Company Address : Unit 1401B-1405A Telecom Tower,Wharf T&T Square, 123 Hoi Bun Road, Kwun Tong,Kowloon,Hong Kong Manufacturer : Ansen Electronics Company Address : Chen Tung Industrial Zone,Ning Tau Administrative District,Qiao Tau Zhen,Dongguan,Guangdong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1308006701 Page 3 of 92 Issued:2013-08-26 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Block Diagram of Test Setup 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. NOTE 6 3. TEST ENVIRONMENT ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Test Description 8 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. AC Power Conducted Emission 10 4.2. Radiated Emission 13 4.3. Maximum Peak Output Power 18 4.4. 20dB Bandwidth 24 4.5. Band Edge 30 4.6. Frequency Separation 51 4.7. Number of hopping frequency 58 4.8. Time Of Occupancy(Dwell Time) 61 4.9. Pseudorandom Frequency Hopping Sequence 82 4.10. Antenna Requirement 83 5. TEST SETUP PHOTOS OF THE EUT .......................................... 84 Report No.: TRE1308006701 Page 4 of 92 Issued:2013-08-26 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009 : American National Standard for Testing Unlicensed Wireless Devices Report No.: TRE1308006701 Page 5 of 92 Issued:2013-08-26 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug 16, 2013 Testing commenced on : Aug 17, 2013 Testing concluded on : Aug 26, 2013 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 5.0V from USB 2.3. Short description of the Equipment under Test (EUT) 2.4GHz (Waterproof Bluetooth Speaker (M/N:R081GT)) For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. There are EDR (Enhanced Data Rate) and BDR (Basic Data Rate)mode.The Applicant provides communication tools software to control the EUT for staying in continous transmitting and receiving mode for testing. There are 79 channels of EUT, and the test carried out at the lowest channel, middle channel and highest channel . Channel Frequency(MHz) Channel Frequency(MHz) 0 2402 40 2442 1 2403 41 2443 2 2404 42 2444 3 2405 43 2445 4 2406 44 2446 5 2407 45 2447 6 2408 46 2448 7 2409 47 …

Text truncated - open the document above for the full version.

Test setup photos of the EUT
