Personal Weather Station with Wireless Remote Sensor Model # 47005 Thank you for purchasing this Celestron personal weather station. Please read the instructions prior to using it and we hope you will have many years of pleasure with it. Set Up Power for the Receiver Open the battery compartment door on the rear of the Receiver. Then insert two AA batteries (user supplied) with polarity as indicated in the battery compartment. After installation, put the battery compartment door back on. If battery power is low, a low battery icon will be shown on the LCD display alerting you to change the batteries. For optimum performance, please place the Receiver away from metal and other sources of interference such as mobile phones, TVs, computers, appliances, etc. If the Receiver stops showing the display or dims, replace the batteries. The Receiver can be put on a table, desk, or other flat surface or it can (by using a hanger cut out on the rear of the Receiver) be hung on a wall or other location. For using on a flat surface the small base piece is to be inserted at the bottom of the Receiver by pushing the two protruded pieces into the open slots on the bottom of the Receiver until secure. The correct position of the base is shown in the image to the right. Set Up the Power & Make Settings for the Wireless Remote Sensor Remove the four small screws (center right image) from the rear door of the sensor with a small screwdriver (remove the bracket first). Insert two AAA batteries (user supplied) as indicated in the sensor (see right image). Set the switch to “1” (for Channel 1), push/toggle the button so readings will be shown in “C” (Centigrade) or “F” (Fahrenheit). Then push the button “TX” and hold it a couple of seconds which will transmit the RF signal from the Sensor to the Receiver. The Sensor itself will display the outside temperature and humidity (see left image). Replace the rear door of the sensor by installing the four small screws to hold it in place. The Sensor can be mounted up to 100 feet (30 meters) in an open area from the Receiver to communicate with it. The Sensor has a place on the rear of the unit to mount/hang it securely (hanger part on left of center image) to any surface that is secure or it can stand by itself (if in an area without wind, etc. by using the included stand bracket (center left image). ENGLISH 2 If the battery power becomes low on the Sensor, a “low battery icon” will appear on the LCD display and change batteries to ensure a strong signal is being sent to the Receiver. Settings and Operation of the Receiver yIndoor & Outdoor Temperature & Humidity – the indoor temperature and humidity is shown on the LCD display as is the outdoor temperature and humidity. The outdoor temperature and humidity trends will be displayed with a small icon to the right of each display. yData displayed in “C” or “F” – push the “- c/f” button (rear of Receiver) when in a normal mode to change from “C” (Centigrade) or “F” (Fahrenheit). yClock & Calendar – Press the “set” button and hold down for a couple of seconds to enter the setup mode. Use the “+” or “-” buttons to make changes. Press “set” after each setting is correct. The settings in sequence will be: year / month / date / hour / minute /12-24hr format / time zone / exit. The day of the week is indicated near the time. yTime Zone – You can set an alternate time zone (during setup) for ± 12 hours. Once set you can access the alternate time by pressing for a few seconds “- zone” button and doing the same to return to your home time. yMoon Phase – will automatically be seen on the display and will be correct if the calendar is set to the actual. yMax/Min Memory – in normal mode, press the button “min/max” to see the maximum temperature and humidity both indoors and out, press the button again to see the minimum temperature and humidity both indoors and out, press the button again to return to the normal mode. The memory is cleared once per day. yBarometer & Weather Forecast – the weather station has a built-in barometer to measure atmospheric pressure and forecasts the weather with icons for Sunny/Partly Cloudy/Cloudy/Rainy/Stormy. The unit predicts the weather conditions for the next 12 to 24 hours based on the atmospheric pressure change and is about 70% correct. The company accepts no liability for any incorrect forecast. In normal mode press and hold down the “baro/down” button on the back of the Receiver for a few seconds so you can set how you want to view the atmospheric pressure readings – “in/Hg” or “mb/hPa” (hold the button down again for a few seconds to change the setting). For the barometer to be as accurate as possible the altitude must be set for your location and you can find out your altitude from various local sources. Press and hold the “baro/up” button down to select and then toggle between feet and meters. To confirm feet or meters press the “hist” button. Then, press the “baro/up” or “baro/down” buttons to set the altitude for your location. The pressure tendency is shown in a small icon above the forecast – rising/steady/falling. The pressure history bar displays the moving atmospheric pressure history of the past 12 hours which allows for forecasting. To view air pressure history for the past 12 hours, press the “hist” button to select and view how many hours (repeatedly press the “hist” button). The respective values can only be available after the barometer recorded the pressure date in the past 12 hours. The spectrum bar chart indicates pressure changes of the past 1, 2, 3, 6, and 12 hours and is shown for a range of -0.24 to +0.24 in/Hg and -8 to +8 mb/hPa. yTemperature & Humidity Alert – press the “alert” button on the rear of the Receiver to turn the alert on or off. Press and hold the “alert” button to enter the setup mode. The indoor and outdoor temperature and humidity upper and lower limits can be set by using the “+” and “-” buttons and pressing “alert” to confirm each setting. When either …
Text truncated - open the document above for the full version.
AGENCY AUTHORIZATION LETTER FCC ID: L5CW044TX-0 Date: Mar 19, 2010 To whom it may concern: We, the undersigned, hereby authorize SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD of China to act on our behalf, as our agent in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification, Any act carried out by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us.
Federal Communications Commission Authorization and Evaluation Division Date: 2010-3-19 FCC ID: L5CW044TX-0 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Print Name: Alice Title: Executive Secretary Company Name: Ansen Electronics Co Tel: (852) 2795-9473 Fax: (852) 2751-6577 Web site: www.ansen.com.hk E-mail: [email protected]

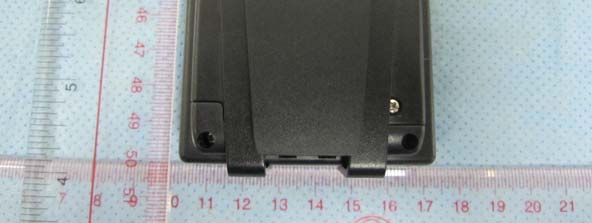

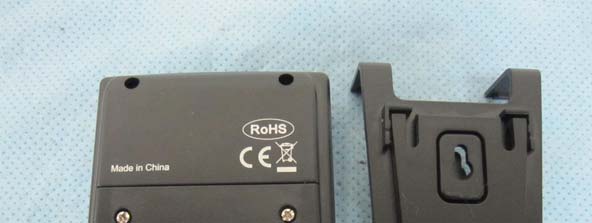

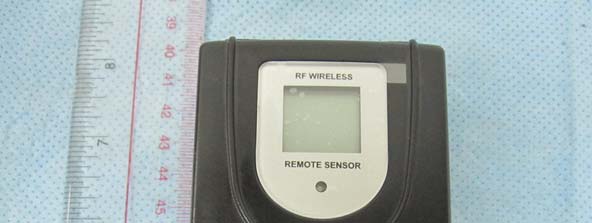

V1.0 Page 26 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd External Photos
V1.0 Page 27 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd Internal Photos V1.0 Page 28 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd
TEST REPORT & FCC Part 15 Subpart C FCC ID .............................................: L5CW044TX-0 Report Reference No......................: WE10030012 Compiled by ( position+printed name+signature)..: File administrators Wenliang Li Supervised by ( position+printed name+signature)..: Test Engineer Cary Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Mar 25, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address.............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Ansen Electronics Co Address.............................................: Rm 78,2/F,Sino Industrial Plaza,9 Kai Cheung Rd,Kowloon Bay Kowloon,Hong Kong Manufacturer’s name.....................: Ansen Electronics Company Address.............................................: Chen Tung Industrial Zone,Ning Tau Administrative District,Qiao Tau Zhen,Dongguan,Guangdong Test specification: Standard ...........................................: FCC Part Subpart 15C 2008 – Intentional Radiators ANSI C63.4 - 2003 TRF Originator ..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its placement and context. Equipment Under Test .................. : Digital Thermo Hygro Sensor Trade Mark .......................................: / Model/Type reference.......................: W044-0 Listed Models ..................................: / Result...............................................: Complied V1.0 Page 2 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd T E S T R E P O R T Test Report No. : WE10030012 Mar 25, 2010 Date of issue Equipment under Test : Digital Thermo Hygro Sensor Model /Type : W044-0 Listed Models : / Applicant : Ansen Electronics Co Address : Rm 78,2/F,Sino Industrial Plaza,9 Kai Cheung Rd,Kowloon Bay Kowloon,Hong Kong Manufacturer : Ansen Electronics Company Address : Chen Tung Industrial Zone,Ning Tau Administrative District,Qiao Tau Zhen,Dongguan,Guangdong Test Result Complied The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS AND RESULT SUMMARY ................................ 4 2. EUT SUMMARY....................................................................... 5 2.1. General Remarks 5 2.2. Equipment Under Test Power Supply 5 2.3. Short description of the Equipment under Test 5 2.4. EUT operation mode 5 2.5. Configuration of Tested System 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Statement of the measurement uncertainty 9 3.6. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. Radiated Emission 10 4.2. Deactivation Time 17 4.3. 20dB Bandwidth 21 4.4. Antenna Requirement 24 5. TEST SETUP PHOTOS OF THE EUT .......................................... 25 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 26 V1.0 Page 4 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS AND RESULT SUMMARY The tests were performed according to following standards: FCC Rules Part 15 Subpart C (2008) - Intentional Radiators ANSI C63.4 (2003) – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz SUMMARY OF STANDARDS AND RUSELT No. Test Item Test Standards and Procedure Result 1 Radiated Emission FCC Subpart 15C§15.231(e) ANSI C63.4-2003 section 13.1.4 PASS 2 Deactivation Time FCC Subpart 15C§15.231(e) PASS 3 20dB Bandwidth FCC Subpart 15C§15.231(c) ANSI C63.4-2003 section 13.1.7 PASS 4 Antenna Requirement FCC Subpart 15C§15.203 PASS NOTE: 1), The detailed test rusult please see section 4. 2), The test report merely corresponds to the test sample. 3), It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 5 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd 2. EUT SUMMARY 2.1. General Remarks Date of receipt of test sample : Mar 19, 2010 Testing commenced on : Mar 22, 2010 Testing concluded on : Mar 25, 2010 2.2. Equipment Under Test Power Supply Power supply voltage : 120V / 60 Hz 115V / 60Hz 12 V DC 24 V DC Other (specified in blank below) DC 3V (2x1.5V AAA Battery) 2.3. Short description of the Equipment under Test Product Name : Digital Thermo Hygro Sensor Model Number : W044-0 Operation Frequency : 433.92MHz Modulation Technology : ASK Transmitter Type : Periodic Transmitter Sample Type : Prototype Channel Number : 3 (use the same TX frequency 433.92MHz) Channel 1 : Transmit periodic time is 31s Channel 2 : Transmit periodic time is 33s Channel 3 : Transmit periodic time is 35s For more details, refer to the user’s manual. 2…
Text truncated - open the document above for the full version.
V1.0 Page 25 of 28 Report No.: WE10030012 FCC ID: L5CW044TX-0 Shenzhen Huatongwei International Inspection Co., Ltd Test Setup Photos of the EUT Y-axis
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231(e) | 433.92 MHz - 433.92 MHz | - |
