L5CW070TXBBQ Wireless Thermometer (Tx)

Note: Modifications not authorized by the manufacturer may void users authority to operate this device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 5

MET TCB SERVICE AGREEMENT DOCJ-TCB002 11/24/04 Page 1 of 3 THIS AGREEMENT is made at Baltimore, Maryland this day of , 20 , by and between MET LABORATORIES, INC. (hereinafter referred to as MET) and the following: Applicant: Ansen Electronics Company (Hereinafter referred to as the "Responsible Party") Address: Room 73-78, 2/F., Sino Industrial Plaza, 9 Kai Cheng Road, Kowloon Bay, Kowloon, Hong Kong. Manufacturer: Ansen Electronics Company (required for Part 68 only - (Hereinafter referred to as the "Manufacturer") Address: Chen Tung Industrial Zone, Ning Tau Administrative District, Qiao Tau Zhen, Dongguan, Guangdong, China Only the product(s) designed and engineered by the Applicant/Responsible Party and manufactured by the Manufacturer at the Manufacturer's facility at the above address, which have been certified by MET are covered by this service Agreement. NOW, THEREFORE, in consideration of the premises set forth in this agreement, the above mentioned parties agree that; Upon successful evaluation, MET will issue the Applicant/Responsible Party a Grant of Equipment Authorization Certificate, granting the Applicant/Responsible Party permission to market the certified product(s). At a minimum the product's identification plate or label will include the FCC ID Number or the Registration/Certification Number as well as any other information as might be required bystatute. The FCC requires that MET perform random post-certification surveillance. Surveillance for continued certification compliance can be accomplished by the Applicant/Responsible Party providing production models of the product to MET at MET’s request or to other locations as approved by MET for the purpose of compliance testing. The Manufacturer agrees to allow free and unrestricted access to the Manufacturer's facility during normal working hours for the purpose of permitting supervision. The Applicant/Responsible Party or Manufacturer agrees to provide and deliver to MET or locations approved by MET models of the certified product at MET’s request. All costs associated with testing of the device will be borne by the Applicant/Responsible Party or the Manufacturer and paid within 30 days of notice. If required the Applicant/Responsible Party agrees to provide to MET for MET review certain identified technical documents or quality documents that provide for a review of product update and compliance. Acceptable Markings are found in 47 CFR 2.925, 2.926, 15.19, and part 68.300. Only products visually bearing the appropriate FCC identification label and identified as to model and type will be acknowledged as being an authorized product. The Applicant/Responsible Party is responsible for applying the label to the product in accordance with current FCC requirements. An Applicant/Responsible Party is required to submit to MET a sample of the label or plate showing the FCC ID Number or the Registration/Certification Number for approval prior to applying to the product. The Applicant/Responsible Party is required to submit to MET a label location drawing or photograph showing the location of the mark on the product. Any reference to MET certification shall not be permitted on any non-eligible product(s), packaging, or literature. If the Applicant/Responsible Party or the Manufacturer applies the FCC identification label to unauthorized products, then the Applicant/Responsible Party and the Manufacturer shall save, indemnify, and hold harmless MET LABORATORIES, INC. from any and all claims which may arise out of said unauthorized action. The label and/or references to MET are permitted on promotional, advertising, and packaging of Certified Product(s) provided that misrepresentation of results of the marking process and/or this agreement do not occur. Final judgment in the suitability of use of the label or the MET Laboratories name is reserved by MET. (continued, next page) MET TCB SERVICE AGREEMENT DOCJ-TCB002 11/24/04 Page 2 of 3 The Applicant/Responsible Party shall maintain or require the manufacturer to maintain a record of all complaints made known to them relating to the product's compliance with the requirements of the relevant standard and agrees to make these records available to MET when requested. The Aplicant/Responsible Party agrees to take appropriate action, or have the manufacturer take appropriate action with respect of such complaints and/or any deficiencies found in products or services that affect compliance with the requirements for certification. Compliance with all requirements and stipulations of the Certification Program and this agreement between MET and the Applicant/Responsible Party is required for program compliance. Non-compliance with all or part of this agreement may result in termination of the agreement and the notification to the FCC to withdraw certification of the product. The Applicant/Responsible Party assumes responsibility for complying with the requirements of the product's certification and this agreement regarding the application of the FCC identification label. The Applicant/Responsible Party understands that any violation of the requirements of this agreement can immediately, at MET's discretion, terminate this agreement. Upon notification by MET, the Applicant/Responsible Party shall immediately take action to correct non-conformance that may have been found during surveillance or during modification to the product by the Applicant/Responsible Party. The Applicant/Responsible Party understands that corrective actions must be immediate. The Applicant/Responsible Party also understands that MET is required to report to the FCC any noted non-compliance. MET will also report corrective actions taken and the status of corrective action. The FCC will determine if any certificate or grants will be withdrawn. Upon termination of this agreement, the Applicant/Responsible Party agrees to remove any references to MET Laboratories from all literature, stationary, packaging, or other promotio…

Text truncated - open the document above for the full version.

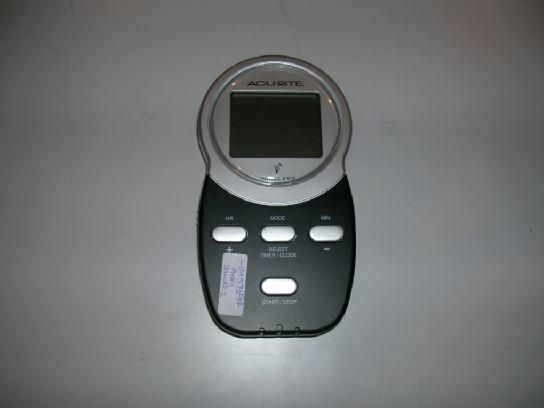

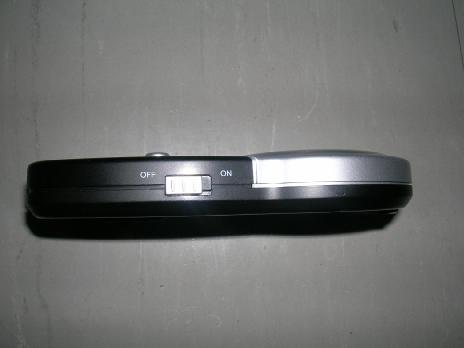

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Application No.: HM157894 Date: 2006-12-21 FCC ID: L5CW070TX Circuit Description The 434 MHz crystal oscillator drives the base of Q5 the final/buffer amplifier. The modulation provided by IC. The output of Q5 has the matching network consisting of C19, C20, C23 and L4 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna is an internal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AAA” size battery x 2) primary battery. Operation Descriptions The transmitter is a wireless thermometer operating at 434MHz band. The transmitter is powered by a 3V battery (“AAA” size battery x 2) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 434MHz carrier frequency. Remarks: The transmitter is a periodic transmitter. It is Pulse transmitter, Modulation by IC; and type is Pulse modulation.

Ansen Electronics Company ItemW070TxBBQ WIRELESS THEREMOMETER LevelItem No.Descriptionunit End Item Qty Per Remarks (Location) 1W070-0-CIC0#W070-0 TX FINISHED GOODSPC1.0000 2W070-0-BOND2#W070-0 TX CONTROL PCB BONDINGPC1.0000 309-48726-008IC TM8726-344 NEW SOFTWARE MASK TENX #W040 TX BONDING "RoHS"PC1.0000U1 3W070-0-SMD2#W070-0 TX CONTROL PCB SMDPC1.0000 401-54148-238CHIP DIODE LL4148-GS08 SMD'VISHAY'PC1.0000D1 501-54148-238ADIODE MINI-MELF LL4148 SMD'STEMTECH' ALT:01-54148-238 'RoHS'PC1.0000 405-01162-300TRANSISTOR 2SC1623L (SMD) NPN FAIRCHILD "RoHS"PC2.0000Q1.Q3 405-01383-800TRANSISTOR 2SC3838KT146P (SMD)(NPN)PC2.0000Q5.Q7 505-01383-801TRANSISTOR NM3DG3838 (SMD) NPN HFE 120-160 "RoHS"PC2.0000 405-23390-601TRANSISTOR MMBT-3906 PNP SMD "RoHS"PC1.0000Q4 411-8A027-720CHIP RES 27 ohm 1/16W ±5% 0603 RoHSPC1.0000R17 411-8A068-720ACHIP RES 68 ohm 1/16W ±5% 0603 RoHSPC1.0000R15 411-8A133-700ACHIP RES 330 ohm 1/16W ±1% 0603 RoHSPC1.0000R5 411-8A168-700CHIP RES 680 ohm 1/16W ±1% 0603 RoHSPC1.0000R6 411-8A182-720ACHIP RES 820 ohm 1/16W ±5% 0603 RoHSPC1.0000R10 411-8A268-720CHIP RES 6.8K ohm 1/16W ±5% 0603 RoHSPC1.0000R16 411-8A347-720CHIP RES 47K ohm 1/16W±5% 0603 RoHSPC1.0000R12 411-8A310-720CHIP RES 10K ohm 1/16W ±5% 0603 RoHSPC1.0000R1 411-8A410-700BCHIP RES 100K ohm 1/16W ±1% 0603 RoHSPC1.0000R4 411-8A410-720CHIP RES 100K ohm 1/16W ±5% 0603 RoHSPC1.0000R21 411-8A422-720CHIP RES 220K ohm 1/16W ±5% 0603 RoHSPC1.0000R7 411-8A433-720CHIP RES 330K ohm 1/16W ±5% 0603 RoHSPC1.0000R11 411-8A510-720CHIP RES 1M ohm 1/16W ±5% 0603 RoHSPC2.0000R18.R19 411-8A522-720CHIP RES 2.2M ohm 1/16W ±5%0603 RoHSPC1.0000R9 411-8A568-720CHIP RES 6.8M ohm 1/16W ±5% 0603 RoHSPC1.0000R8 421-00127-194C.CAP 1PF 50V NPO ±0.25pF 0603(CL10C010CB) "RoHS"PC2.0000C19.C23 421-00221-194C.CAP 2pF 50V NPO ±0.25pF 0603 SAMSUNG "RoHS"PC1.0000C15 421-00527-194AC.CAP 5PF 50V NPO ±0.25pF 0603 SAMSUNG " RoHS"PC2.0000C11.C22 421-00627-194C.CAP 6.8pF 50V NPO ±0.5pF 0603'SAMSUNG' RoHSPC1.0000C13 421-00827-194C.CAP 8PF 50V NPO ±0.5pF 0603 (CL10C080DB) "RoHS"PC1.0000C12 421-01027-194C.CAP 10PF 50V NPO ±5% 0603'SAMSUNG' RoHSPC1.0000C20 421-02027-194C.CAP 20pF 50V NPO ±5% 0603(CL10C200JB) RoHSPC2.0000C1.C2 421-21028-194C.CAP 0.001uF 50V ±10% X7R 0603 CL10B102KB "RoHS"PC3.0000C7.C16.C17 421-31024-194C.CAP 0.01uF 50V ±20% X7R 0603 SAMSUNG "RoHS"PC2.0000C14.C18 421-41014-194C.CAP 0.1uF 25V ±20% X7R 0603 "RoHS"PC8.0000 C3-C6.C8.C26- C28 455-1W070-410PCB (#W070-0 TX-C.B) REV.02 FR4 1.0mm DOUBLE SIDE-BON RoHSPC1.0000TX-C.B 2W070-0-PCBB0#W070-0 CONTROL PCB ASS'YPC1.0000 320-03053-301INDUCTOR 30mH ±10% (RL0608-303K-LF) "RoHS"PC1.0000L1 321-51038-090TANTALUM CAP 1uF 16V ±10% NO:CA42105K016AB "RoHS"PC1.0000C9 326-54761-501MINI E.CAP. 4.7uF 50V ±20%(4 x 7mm) RoHSPC1.0000C10 328-02005-005TRIMMER CAP (MURATA) TZ03Z050FR169 (5PF) TOP TYPE 'RoHS'PC1.0000C21 332-06550-002 SPRING COIL 5T Φ0.4xΦ2.5±0.1mm#0655-3 TX PC1.0000L3 432-06550-002F SPRING COIL 5T Φ0.4xΦ2.5±0.1mm#0655-3 TX "ROHS" PC1.0000 332-07060-001 SPRING COIL 3T Φ0.4xΦ2.5±0.1mm#0706-2 TX PC1.0000L2 432-07060-001F SPRING COIL 3T Φ0.4xΦ2.5±0.1mm#0706-2 TX "ROHS" PC1.0000 332-W0640-000 SPRING COIL 7T Φ0.4xΦ2.3xΦ3.1 ±0.15mm #W064-0 T PC1.0000L4 432-W0640-000F SPRING COIL 7T Φ0.4xΦ2.3xΦ3.1 ±0.15mm #W064-0 TX RoHS PC1.0000 332-W0700-000 ANTENNA COIL Φ1.2mm MAGNET WIRE #W070 TX (08-0270120-120) PC1.0000ANT 339-01700-001 MINI CRYSTAL OSCILLATOR 32.768KHZ (Φ2x6mm) (NO:KBS2F) PC1.0000X1 439-01700-003CRYSTAL 32.768KHZ ±20PPMCFS206 'CITIZEN CRYSTAL' 'RoHS'PC1.0000 339-05600-003SAW RESONATOR 433.92MHZ ONE-PORT(F-11 TYPE NO:HR433C) 'RoHS'PC1.0000X2 2W070-0-PCBB1#W070-0 TX FRONT KEY PCB ASS'YPC1.0000 342-00212-031SLIDE SWITCH 1P2T SK-12D02(L=3mm) RoHSPC2.0000 ALARM( ON OFF) POWER(ON OFF) 355-2W070-110PCB (#W070-0 F-K.B) REV.01 94V0 1.0mm RoHSPC1.0000F-K.B 379-01312-021SOFT FLAT CABLE GREY PVC #30 12PINx21mm (3+3mm TIN)RoHSPC1.0000 2W070-0-PCBB2#W070-0 TX SWITCH PCB ASS'YPC1.0000 Ansen Electronics Company ItemW070TxBBQ WIRELESS THEREMOMETER LevelItem No.Descriptionunit End Item Qty Per Remarks (Location) 342-00821-010DIP SWITCH 2 POST PIANO TYPEBLK (NO:CTS-2) RoHSPC1.0000 SW1(SW2 ID1.ID2) 355-5W070-120PCB (#W070-0 SW.B) REV.01 94V0 1.0mm RoHSPC1.0000SW.B 379-12703-220PVC WIRE #30 30mm BLK 3+3mmBOTH ENDS W/TWI&TIN RoHSPC1.0000 379-12703-222PVC WIRE #30 30mm RED 3+3mmBOTH ENDS W/TWI&TIN RoHSPC1.0000 379-12703-224PVC WIRE #30 30mm YELLOW 3+3mmBOTH ENDS W/TWI&TINRoHSPC1.0000 379-12703-226PVC WIRE #30 30mm BLUE 3+3mmBOTH ENDS W/TWI&TIN RoHSPC1.0000 2W070-0-PCBB3#W070-0 TX JACK PCB ASS'YPC1.0000 343-03W07-100 Φ2.5mm MONO JACK NO:TC28-223-02 BLACK RoHS PC1.0000 JACK(OUT TEMP) 355-0W070-400PCB(#W070-0 JACK .B)(F) R2 FR4 1.0mm DOUBLE SIDE RoHSPC1.0000JACK.B 379-12708-222PVC WIRE #30 80mm RED3+3mm BOTH ENDS W/TWI&TIN RoHSPC1.0000 379-12708-270PVC WIRE #30 80mm BLACK 3+3mmBOTH ENDS W/TWI&TINRoHSPC1.0000 2W070-0-MECA2#W070-0 TX MEC ASS'YPC1.0000 308-223W0-401LCD FOR #W040 TX (53x44x2.85mm) 'YEEBO 11867TR' "RoHS"PC1.0000LCD1 337-07W07-000SOFT MAGNET 38.9x12.8x1.5mm W/3M ONE ADH.SIDE BLK #W070-WPC1.0000 337-07W07-001SOFT MAGNET 47.6x21.1x1.5mm W/3M ONE ADH.SIDE BLK #W070-WPC1.0000 340-8W023-008KEY PAD SILICONERUBBER GREY (NO:U-100A) RoHSPC4.0000 345-55120-002BUZZER 20MM 7KHZPC1.0000BZ 445-55120-002FBUZZER 20MM 7KHZ "RoHS"PC1.0000 360-22031-040SCREW T1.7 x 4 PB NI RoHSPC15.0000 360-82032-060T 2 x 6 PB NI RoHSPC6.0000 367-06270-101BATTERY PLATE (+)T=0.4MM BRASSNI #0627-0 "RoHS"PC1.0000 367-06390-401BATTERY PLATE (-) T=0.4mm W/SPRING STEEL&BRASS NI"RoHS"PC1.0000 4XX67-06390-401REMARK : Part No To VendorPC1.0000 561-04450-642 CONTACT SPRING (-) Φ0.6xΦ4.5x Φ5.4xL4.2mm STEEL NI "RoHS" PC1.0000 367-06390-501BATTERY PLATE (+.-) T=0.4mm W/SPRING STEEL&BRASS Ni "RoHS"PC1.0000 4XX67-06390-501REMARK : Part No To VendorPC1.0000 561-04450-642 CONTACT SPRING (-) Φ0.6xΦ4.5x Φ5.4xL4.2mm STEEL NI "RoHS" PC1.0000 370-W0700-0BM0TOP COVER ABS BLACK (MATT BLACK&877C SILVER) #W070 TXPC1.0000 370-W0700-1BM0BOTTOM COVER ABS BLACK (SPRAY MATT BLACK) #W070 TX…

Text truncated - open the document above for the full version.

STC Test Report Date : 2006-12-21 Page 1 of 20 No. : HM157894 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: ANSEN ELECTRONICS COMPANY ROOM 73-78, 2/F, SINO INDUSTRIAL PLAZA, 9 KAI CHENG ROAD, KOWLOON BAY, KOWLOON, HONG KONG. Description of Samples: Model name: BBQ Wireless Thermometer (Tx) Model no.: W070Tx Brand name: ACURITE FCC ID: L5CW070TX Date Samples Received: 2006-12-12 Date Tested: 2006-12-19 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- TSANG Chi Ho, Steven, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-12-21 Page 2 of 20 No. : HM157894 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Test Laboratory Page 4 of 20 1.2 Applicant Details Page 4 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 20 Description of EUT operation 1.4 Date of Order Page 5 of 20 1.5 Submitted Sample Page 5 of 20 1.6 Test Duration Page 5 of 20 1.7 Country of Origin Page 5 of 20 2.0 Technical Details 2.1 Investigations Requested Page 6 of 20 2.2 Test Standards and Results Summary Page 6 of 20 3.0 Test Results 3.1 Emission Page 7-11 of 20 3.2 Bandwidth Measurement Page 12-13 of 20 STC Test Report Date : 2006-12-21 Page 3 of 20 No. : HM157894 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 20 Appendix B Duty Cycle Correction During 100 msec Page 15-16 of 20 Appendix C Periodic Operation Page 17-18 of 20 Appendix D Photographs Page 19-20 of 20 STC Test Report Date : 2006-12-21 Page 4 of 20 No. : HM157894 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant ANSEN ELECTRONICS COMPANY ROOM 73-78, 2/F, SINO INDUSTRIAL PLAZA, 9 KAI CHENG ROAD, KOWLOON BAY, KOWLOON, HONG KONG. Manufacturer ANSEN ELECTRONICS COMPANY CHEN TUNG INDUSTRIAL ZONE, NING TAU ADMINISTRATIVE DISTRICT, QIAO TAU ZHEN, DONGGUAN, GUANGDONG, CHINA STC Test Report Date : 2006-12-21 Page 5 of 20 No. : HM157894 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: BBQ Wireless Thermometer (Tx) Manufacturer: ANSEN ELECTRONICS COMPANY Brand Name: ACURITE Model Number: W070Tx Rating: 3Vd.c. (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an ANSEN ELECTRONICS COMPANY., BBQ Wireless Thermometer (Tx). The transmitter is a periodic transmitter. It is Pulse transmitter, Modulation by IC; and type is pulse modulation. 1.4 Date of Order 2006-12-12 1.5 Submitted Sample(s): 2 Samples 1.6 Test Duration 2006-12-19 1.7 Country of Origin China STC Test Report Date : 2006-12-21 Page 6 of 20 No. : HM157894 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231e ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
