L6ARBS20CW

BlackBerry Limited

Handheld Blackberry with CDMA, Bluetooth and aGPS

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 24, 2007
Application Purpose: Original Equipment
Date of Application: Oct 24, 2007
Equipment Note: Handheld Blackberry with CDMA, Bluetooth and aGPS
Frequency Range: 824.00000000 - 849.00000000
Company: BlackBerry Limited
Country: Canada

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

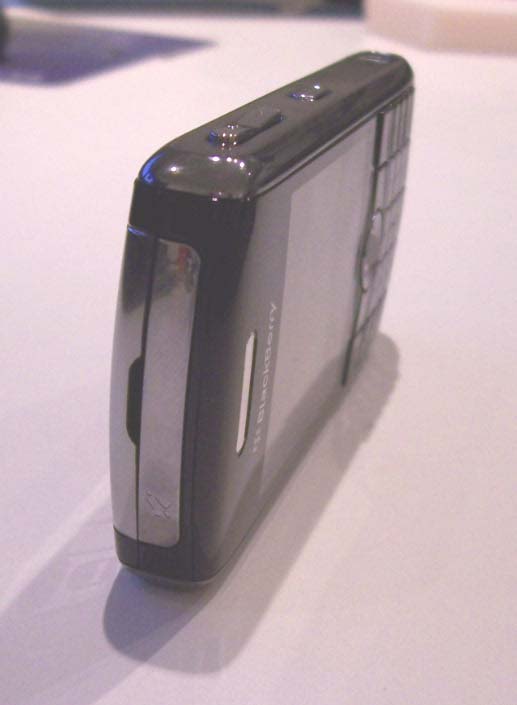

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Jason W Jantzi(Team Lead, RF Design)

[email protected]519-498-7925Fax: 519-888-1234

Technical Contact

Research In Motion LimitedMasud Attayi

[email protected](519) 888-7465

305 Phillip Street · Waterloo, Ontario · Canada

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824 MHz - 849 MHz	152.00 mW	1M30F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power is EIRP/ERP. The highest reported Head SAR was 1.48 W/kg. The highest reported Body SAR was 1.25 W/kg. The highest reported Body SAR using the 2.5 cms separation was 0.49 W/kg. SAR compliance was evaluated with the integral Bluetooth active. HAC Rating is M3T3. This device and its antenna(s) must not be co-located or operated in conjunction with any antenna or transmitter not described under this FCC id. SAR compliance for body worn operating configurations must be restricted to belt-clips and holsters described in this filing, or which maintain a minimum separation distance of 2.5 cms and which contain no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance.
