L6AREW70UW

BlackBerry Limited

Handheld Blackberry� with GSM/EDGE 850/900/1800/1900, WCDMA/HSDPA Bands FDD I, IV, VIII, Bluetooth and 802.11 b/g/n

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Apr 16, 2012
Application Purpose: Original Equipment
Date of Application: Apr 16, 2012
Equipment Note: Handheld Blackberry� with GSM/EDGE 850/900/1800/1900, WCDMA/HSDPA Bands FDD I, IV, VIII, Bluetooth and 802.11 b/g/n
Frequency Range: 1712.40000000 - 1752.60000000
Company: BlackBerry Limited
Country: Canada

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

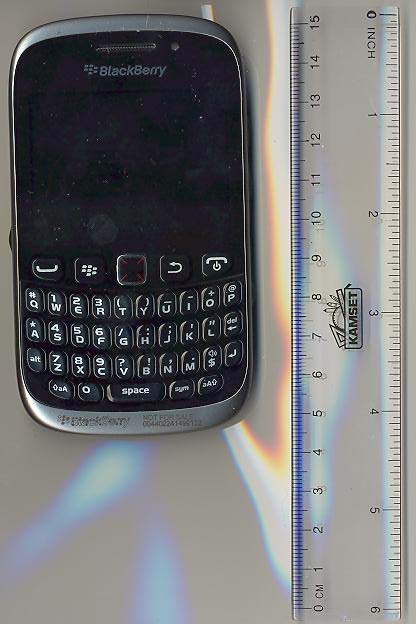

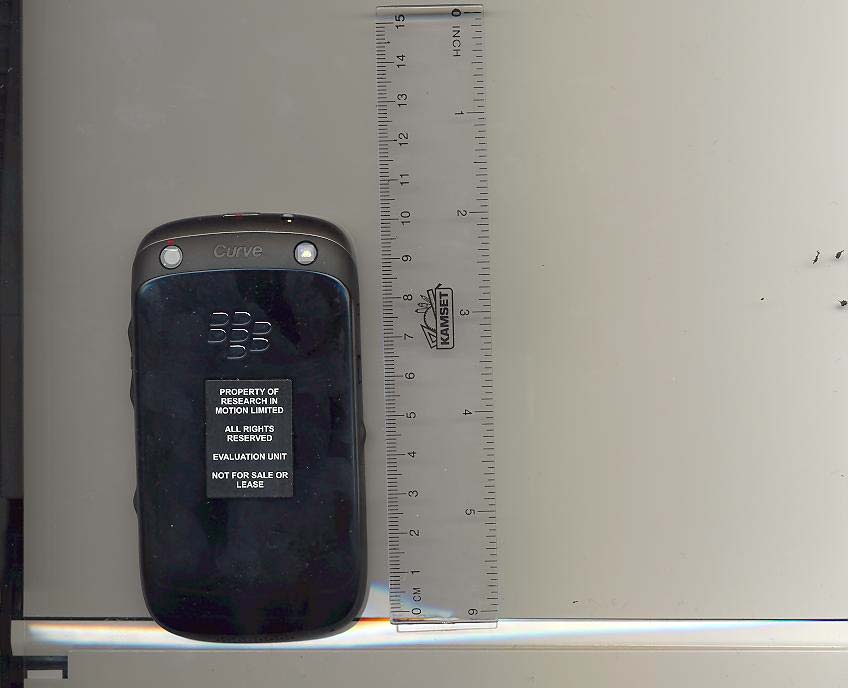

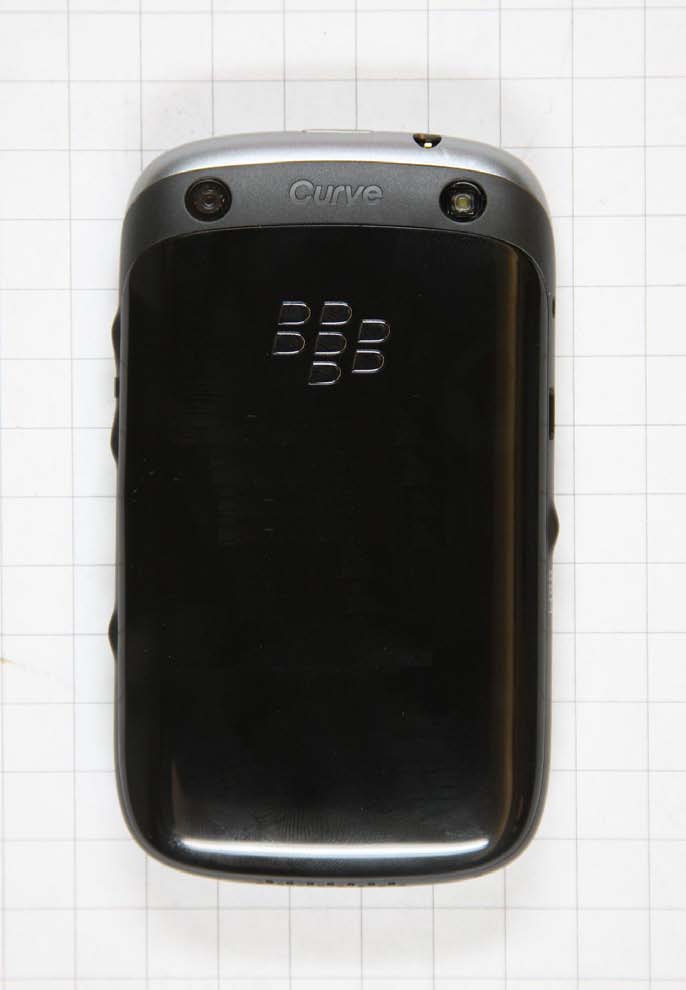

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
5	27	1.71 GHz - 1.75 GHz	430.00 mW	4M04F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power is ERP/EIRP. This device and its antenna(s) must not be co-located or operated in conjunction with any antenna or transmitter except in accordance with FCC multi-transmitter RF exposure procedures. SAR compliance for body worn operating configurations must be restricted to belt-clips and holsters described in this filing, or which maintain a minimum separation distance of 1.5 cm and which contain no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, hotspot (wireless router) and simultaneous transmission use conditions are 1.15 W/kg, 0.75 W/kg, 1.08 W/kg and 1.44 W/kg, respectively. This device contains GSM functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
