L6ARFF90LW

BlackBerry Limited

Handheld Blackberry with GSM/EDGE 850/900/1800/1900, WCMDA/HSDPA Bands (FDD I, II, V, VI), LTE (Bands 2, 4, 5, 17), 802.11a/b/g/n, Bluetooth, NFC and GPS

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 29, 2012
Application Purpose: Original Equipment
Date of Application: Dec 29, 2012
Equipment Note: Handheld Blackberry with GSM/EDGE 850/900/1800/1900, WCMDA/HSDPA Bands (FDD I, II, V, VI), LTE (Bands 2, 4, 5, 17), 802.11a/b/g/n, Bluetooth, NFC and GPS
Frequency Range: 2402.00000000 - 2480.00000000
Company: BlackBerry Limited
Country: Canada

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

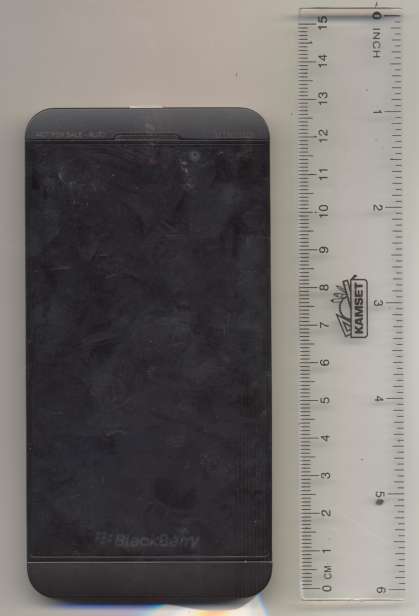

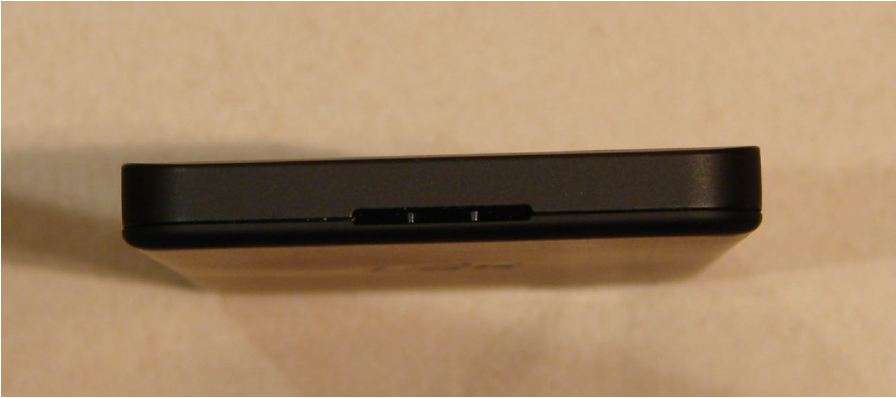

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.40 GHz - 2.48 GHz	6.00 mW

Confidentiality

Long Term

Grant Notes

Output power is conducted. This device and its antenna(s) must not be co-located or operated in conjunction with any antenna or transmitter except in accordance with FCC multi-transmitter RF exposure procedures. SAR compliance for body worn operating configurations must be restricted to belt-clips and holsters described in this filing, or which maintain a minimum separation distance of 1.5 cm and which contain no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, personal wireless router (hotspot mode) and simultaneous transmission use conditions are 0.32 W/kg, 0.21 W/kg, 0.82 W/kg and 1.6, respectively.
