L6ARFK120LW

BlackBerry Limited

Handheld Blackberry with GSM/EDGE 850/900/1800/1900, WCMDA/HSDPA Bands (FDD I, II, IV, V, VI), LTE (Bands 2, 4, 5, 17), 802.11a/b/g/n, Bluetooth, NFC and GPS

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Dec 29, 2012
Application Purpose: Original Equipment
Date of Application: Dec 29, 2012
Equipment Note: Handheld Blackberry with GSM/EDGE 850/900/1800/1900, WCMDA/HSDPA Bands (FDD I, II, IV, V, VI), LTE (Bands 2, 4, 5, 17), 802.11a/b/g/n, Bluetooth, NFC and GPS
Frequency Range: 706.50000000 - 713.40000000
Company: BlackBerry Limited
Country: Canada

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

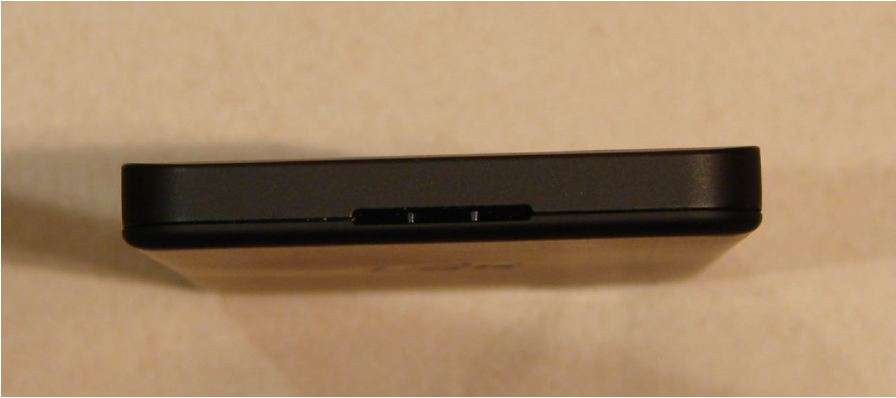

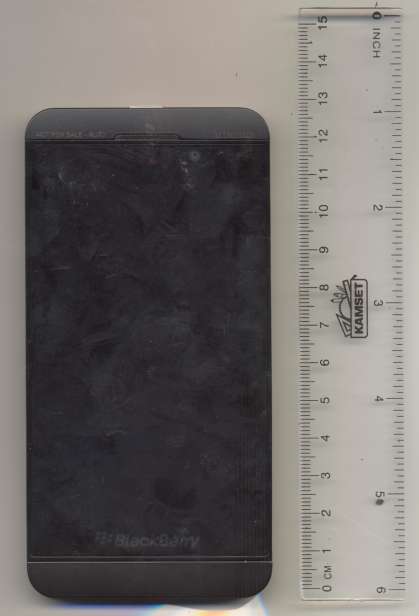

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
11	27	706.5 MHz - 713.4 MHz	370.00 mW	17M9G7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power is ERP for Part 22H and EIRP for Part 24E and Part 27. This device and its antenna(s) must not be co-located or operated in conjunction with any antenna or transmitter except in accordance with FCC multi-transmitter RF exposure procedures. SAR compliance for body worn operating configurations must be restricted to belt-clips and holsters described in this filing, or which maintain a minimum separation distance of 1.5 cm and which contain no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, personal wireless router (hotspot mode) and simultaneous transmission use conditions are 0.97 W/kg, 0.96 W/kg, 1.50 W/kg and 1.6 W/kg, respectively. HAC Rating is M3T4-2007 This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
