L6ARFP120LW

BlackBerry Limited

GSM/EDGE 850/1900, WCDMA/HSDPA Bands (FDD II, V), LTE Bands (FDD 2, 4, 5, 17), BT, 802.11 a/b/g/n, NFC, GPS Wireless Handheld

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: May 02, 2013
Application Purpose: Original Equipment
Date of Application: May 02, 2013
Equipment Note: GSM/EDGE 850/1900, WCDMA/HSDPA Bands (FDD II, V), LTE Bands (FDD 2, 4, 5, 17), BT, 802.11 a/b/g/n, NFC, GPS Wireless Handheld
Frequency Range: 709.00000000 - 711.00000000
Company: BlackBerry Limited
Country: Canada

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

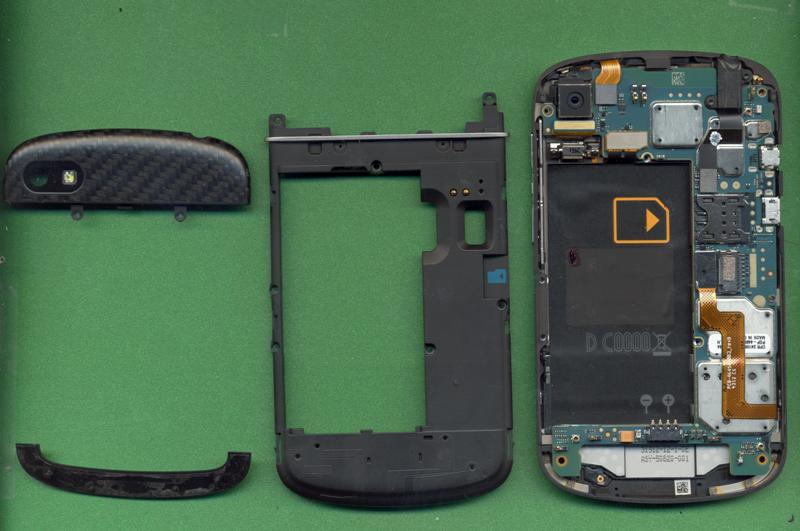

External Photos

ID Label/Location Info

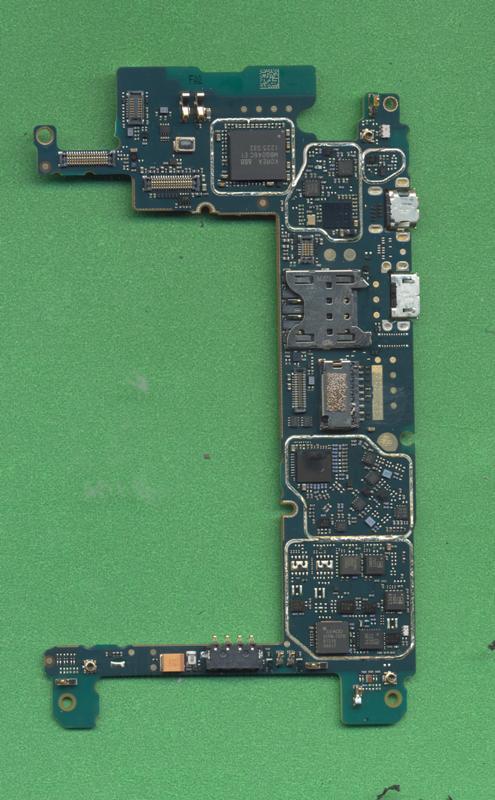

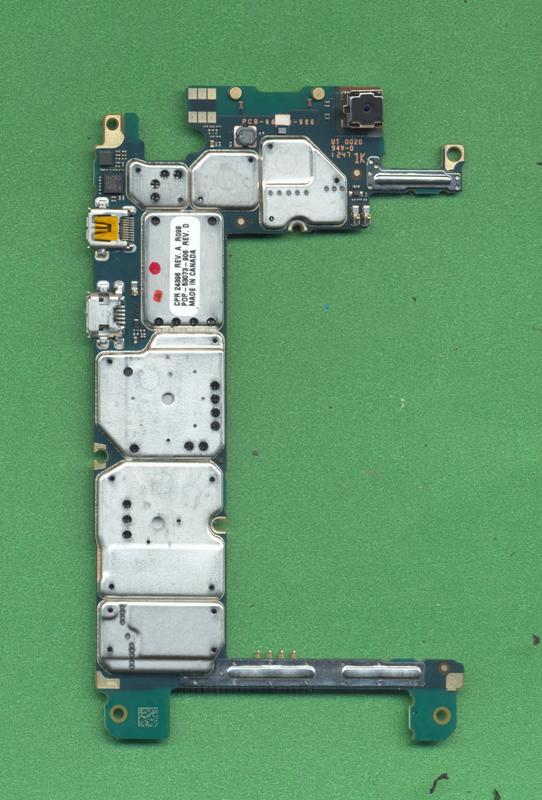

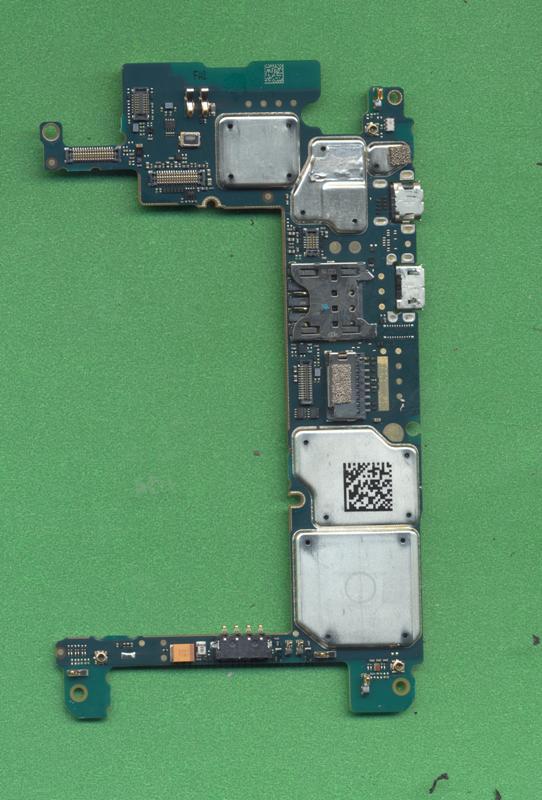

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
42	27	709 MHz - 711 MHz	230.00 mW	8M94D7W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power is ERP for Part 22H, EIRP for Part 24E and conducted for Part 27. This device and its antenna(s) must not be co-located or operated in conjunction with any antenna or transmitter except in accordance with FCC multi-transmitter RF exposure procedures. SAR compliance for body worn operating configurations must be restricted to belt-clips and holsters described in this filing, or which maintain a minimum separation distance of 1.5 cm and which contain no metallic component in the assembly. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, personal wireless router (hotspot mode) and simultaneous transmission use conditions are 1.16 W/kg, 0.75 W/kg, 1.36 W/kg and 1.38 W/kg, respectively. HAC Rating is M3T4-2007. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
