L82-BIRD2.4 GHz DECT Cordless Telephone System

II Congratulations Congratulations on your purchase of the Siemens Gigaset 4210 telephone system! This phone ́s 2.4 GHz frequency and high-speed digital voice encoding provide re- ception and voice clarity that is superior to other cordless phones. And, its digital spread spectrum technology will provide you with secure, private conversations. Please read the following important information. For Siemens Customer Care, product operation information, or for problem resolution, call toll-free 1-888-777-0211 7 a.m. to 10 p.m. Central Standard Time EVERY DAY s www.icm.siemens.com DO NOT RETURN THIS PRODUCT TO THE STORE! III General Gigaset 4015 Comfort , USA , A310 08-G4015-U102-1-6019 umschl_v.fm 24.09.0 Quick Reference Handset Turning on/off the handset (see page 5) hold down   Turning keypad protection on/ off (see page 6) hold down  B Turning tones on/off (see page 68) hold down  C Making an external call (see page 9) ) ! Redialing a number (see page 16) /  if necessary  select entry ! Saving a called number in the directory (see page 22) / 0(18   Dialing from the directory (see page 23)  ) [Name] if necessary  ! or ! Dialing from the call log (see page 37)     if necessary  entry ! Setting the handset volume (see page 68) 0(18       or    6DYH Making an Internal call to a spe- cific handset   and  to select internal user  ! Making an Internal call to a all handsets (see page 9)   and  ! Transferring a call to another handset   and to select internal user     Making a consultation call   and  to select internal user   ; end: (QG Setting the date and time (see page 7) 0(18   Set date and time   6DYH Setting the alarm clock (see page 18) 0(18   Enter settings   6DYH Answering machine Playing back messages (see page 45)     or hold down  Skipping to the next message: (see page 46) Repeating the message   or   or  Deleting messages (see page 47) 0(18     or press  'HOHWH Skipping to the previous mes- sage (see page 46) 2 x  Send to Dir Call Log Sound Settings Handset Volume Intercom Call Appoint./ClockDate/Time Appoint./ClockAlarm Clock Ans Msg.: Delete Old Msg. IV Gigaset 4015 Comfort , USA , A310 08-G4015-U102-1-6019 umschl_v.fm 24.09.0 Handset Diagram Using the Navi Key and Soft Keys 1 2 3 ABC DEF INT 4 5 6 JKL MNOGHI 7 8 9 TUV WXYZPQRS 00 TALK OPER MEM END Open directory End call and On/ Off key Ta l k k e y Memory key Accesses speed dial numbers –end call –cancel function –back one menu level (press briefly) –return to idle state (hold down) –on/off in idle status (hold down) Speakerphone key S" Annabella 07.19.0113:13 0 0(18 –Accept call –Dial number Star key (*) Hold down to turn on and off the ringer Charging status  empty " 1/3  full   2/ 3 Signal strength (strong, medium, weak) Navi key Status LED (light) Soft keys The soft keys give you access to the function shown in the dis- play. Lights up during a call; Flashes for: –Incoming calls –New messages –Alarm calls, appoint- ments, anniversaries Key 1 (Programmable) Hold down to select Answ. machine/telco voice mailbox Microphone Pound key Hold down to turn on and off the keypad protection INT With the right soft keys you can carry out functions that can also be partly controlled with the navi key . The side of the navi key which you must press is indi- cated in the operating instruc- tions by arrows:  /  (left/right)  /  (top/bottom) Navi key Soft keys Switch from handset to speakerphone. V General Gigaset 4015 Comfort , USA , A310 08-G4015-U102-1-6019 umschl_v.fm 24.09.0 Functions of the Navi Key The navi key has different functions in specific operating situations. Displays The following symbols appear in the display, depending on the operating situation: Example for Menu Operation: Setting the Volume for the Speakerphone Navi keyWhen the tele- phone is idle In lists and menusIn an entry field  UpwardCursor one line up Open directoryDownwardCursor one line down  Open menuSelect entry (OK)Cursor to the right  Open the list of inter- nal users One menu level back (cancel) Cursor to the left Soft keys Meaning 0(18 Menu button: Activate the general menu when telephone is idle.  Confirm menu function and select. End and save the setting.  Delete key (Backspace): Delete entries from right to left. 0 Automatic redial key: Open the list of the last 5 numbers dialed.  Displays if answering machine, telco voice mail or call log is active P One menu level back, cancel 1. 0(18 Press  or the right soft key K . 2. Scroll to Sound Settings . 3.  Select Sound Settings . 4.  Select Handset Volume . 5.  or  Select the required volume for speakerphone. 6. 6DYH Store the required volume for speakerphone. VI Gigaset 4015 Comfort , USA , A310 08-G4015-U102-1-6019 umschl_v.fm 24.09.0 1 Gigaset 4015 Comfort, USA, A31008-G4015-U102-1-60194015coivz.fm24.09.01 Contents Setting Up the Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Enhanced Telephone Features . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Operating the Answering Machine . . . . . . . . . . . . . . . . . . . . . . . 40 Customizing the Answering Machine Settings . . . . . . . . . . . . . 52 Handset Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Customizing Handset Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Base Station Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Customer Care Warranty for Cordless Products . . . . . . . . . . . 80 Safety Precautions . . . . .…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 04, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Siemens AG requests confidentiality for the following products: FCC ID Number Product Title/Model L82-BIRD BIRD For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational Description submitted as Equipment Authorization Electronic Filing attachment: "operational description". The above exhibits contain Siemens AG trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name Uwe Alt Address Frankenstr. 2 / 46395 Bocholt / Germany Phone 02871 / 912857 Fax 02871 / 9162857 Email [email protected]

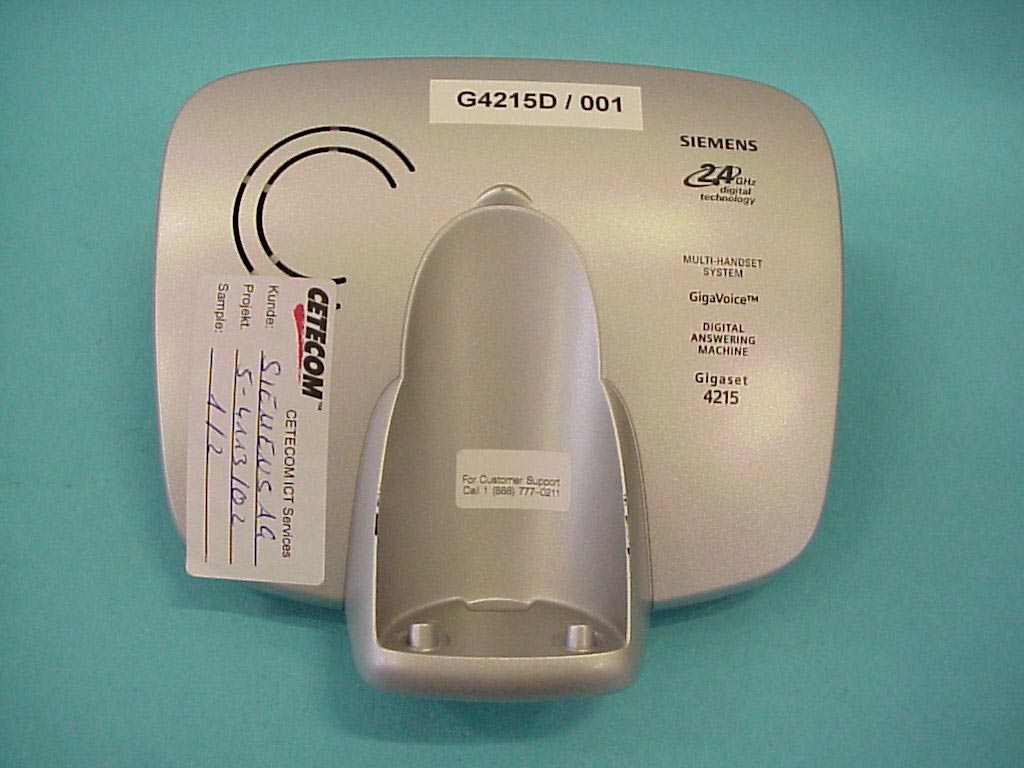

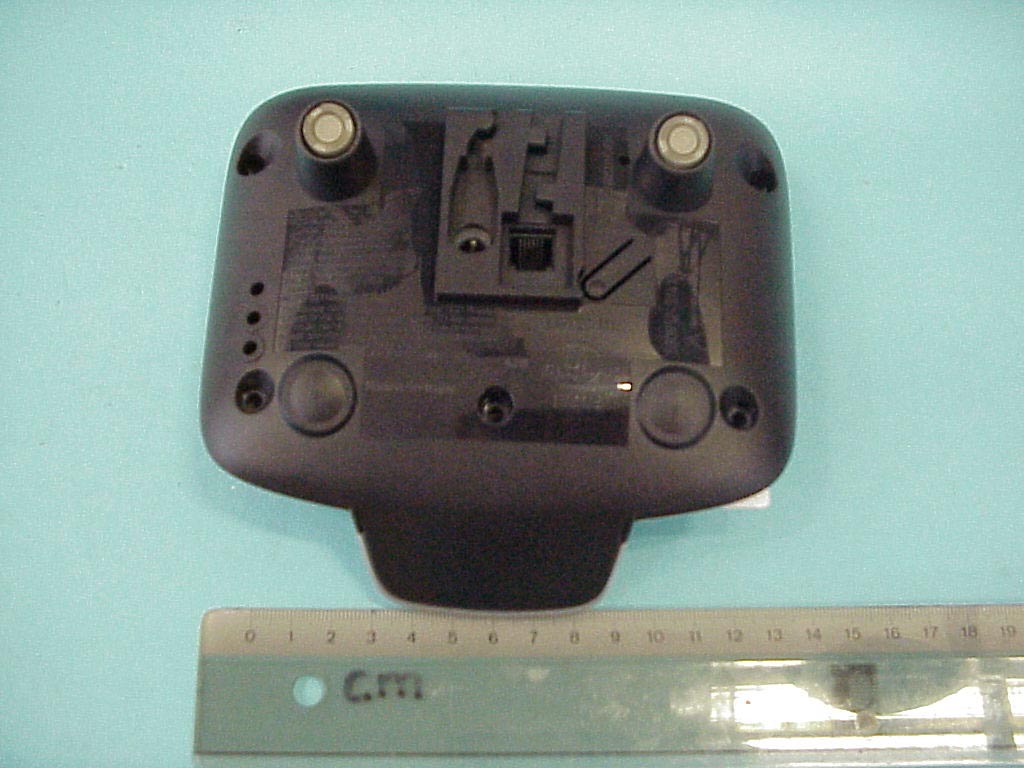

CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 73 (78) Base station Photographs of the equipment CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 74 (78) Photographs of the equipment CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 78 (78) Photographs of the equipment

CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 57 (62) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 58 (62) Photographs of the equipment

FCC ID:L82-BIRD HAC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BIRD MADE IN GERMANY S30852-S1418-R327-2 C39280-Z4-C477 Only use power supply CT/N8 P A G E / R E G I S T R A T I O N

Platz für Laserbeschriftung place for laser data MADE IN GERMANY S30852-S1415-R357-4 FCC:L82-BIRD Use approved batteries only CT/PN

CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 75 (78) Photographs of the equipment CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 76 (78) Photographs of the equipment CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 77 (78) Photographs of the equipment

CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 59 (62) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 60 (62) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 61 (62) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 62 (62) Photographs of the equipment

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of October 9, 2002Page 1 of 40 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Test report no. : 5-4113/02-1-3 Type identification: BIRD (G4200D/001) Test specification : Draft IEEE Std 1528-200X FCC-ID: L82-BIRD Test specification : CETECOM ICT Services GmbH Test report no.: 5-4113/02-1-3 As of October 9, 2002Page 2 of 40 Table of Contents 1General Information.......................................................................................................................................................3 1.1Notes......................................................................................................................................................................3 1.1.1Statement of Compliance.................................................................................................................................3 1.2Testing laboratory...................................................................................................................................................4 1.3Details of applicant.................................................................................................................................................4 1.4Application details..................................................................................................................................................4 1.5Test item................................................................................................................................................................5 1.5.1Test specification(s)........................................................................................................................................6 1.5.2RF exposure limits..........................................................................................................................................6 2Technical test.................................................................................................................................................................7 2.1Summary of test results...........................................................................................................................................7 2.2Test environment....................................................................................................................................................7 2.3Measurement and test set-up...................................................................................................................................7 2.4Measurement system...............................................................................................................................................8 2.4.1System Description.........................................................................................................................................8 2.4.2Test environment............................................................................................................................................9 2.4.3Probe description............................................................................................................................................9 2.4.4Phantom description.......................................................................................................................................10 2.4.5Device holder description...............................................................................................................................10 2.4.6Scanning procedure........................................................................................................................................11 2.4.7Spatial Peak SAR Evaluation..........................................................................................................................12 2.4.8Data Storage and Evaluation...........................................................................................................................13 2.4.9Test equipment utilized..................................................................................................................................15 2.4.10Tissue dielectric properties.............................................................................................................................16 2.4.11Tissue parameters...........................................................................................................................................16 2.4.12Measurement uncertainties.............................................................................................................................17 2.4.13System validation...........................................................................................................................................18 2.4.14Validation procedure......................................................................................................................................18 2.5Test results (Body SAR)........................................................................................................................................19 2.5.1Description of test positions during SAR evaluation........................................................................................19 2.6Test results (power measurement)..........................................................................................................................19 Annex 1System performance verification........................................................................................................................20 Annex 2Measurement results (printout from DASY TM )..................................................................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of October 9, 2002Page 1 of 27 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Calibration Data and Phantom Information for test report 5-4113-1-3/02 Test specification : CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 2 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 3 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 4 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 5 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 6 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 7 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 8 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 9 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 10 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 11 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 12 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 13 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 14 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 15 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 16 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 17 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 18 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 19 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 20 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 21 of 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 5-4113-1-3/02 As of October 9, 2002Page 22 of 27 Application Note Validation and system Check Purpose of validation The Validation and system check verify that the system operates within ist specifications. System and operator errors can be detected and corrected. It is recommended that the validation be performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the resultdepends on the proper functioning of many components and the correct settings of manyparameters. Faulty results due to drift, failures or incorrect parameters might not berecognized, since they often look similar in distribution to the correct ones. The DosimetricAssessment System DASY3 incorporates a validation procedure to test the properfunctioning of the system. The system validation uses normal SAR measurements in asimplified setup (the flat phantom section of the Generic Twin Phantom) with a wellcharacterized source (a matched dipole of a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g. probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g. positioning uncertainty of the device holder). The validation does not replace the calibration of the components. The accuracy of the validation is not sufficient for calibration purposes. It is possible to calculate the field quite accurately in this simple setup; however, due to the open field situation some factors (e.g. laboratory reflections) cannot be accounted for. Calibrations in the flat phantom are possible with transfer calibration methods, using either temperature probes or calibrated E-field probes. The validation also does not test the system performance for arbitrary field situations encountered during real measurements of mobile phones. These checks are performed at SPEAG by testing the components under various conditions (e.g. spherical isotropy measurements in liquid, linearity measurements, temperature variations, etc.), the results of which are used for an error estimation of the system. The validation will indicate situations where the system uncertainty is exceeded due to drift or failure. Validation procedure Preparation The conductivity should be measured before the validation and the measured liquid parameters must be entered in the software. If the measured values differ from targeted values in the dipole document, the liquid composition should be adjusted. If the validation is performed with slightly different (measured) liquid parameters, the expected SAR will also be different. See the application note about SAR sensitivities for an estimate of possible SAR deviations. Note that the liquid parameters are temperature dependent with approximately – 0.5% decrease in permitiv…

Text truncated - open the document above for the full version.

F:\DATEN\ZULASSG\ARCHIV\Zulassungsdok\USA\Bird\Allgemeines\SAR_Declaration_Body W orn.doc Information and Communication Mobile Declaration regarding SAR ( body-worn configuration ) We, Siemens AG – ICM CP -, declare, that the Portable Part „Bird“ USA Version - has no headset output. - will be sold without any belt clip. - is not designed to have provisions for body – worn use. Siemens AG Information and Communication Mobile Cordless Products ICM CP Frankenstrasse 2 46395 Bocholt Germany Bocholt, 22 November 2002 ....................................... ............................................... Place and Date Mr. Alt Approvals Manager Tel.: +49-2871-91-2857 Fax: +49-2871-91-62857

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephone: +49 (0)681 598-0Telefax: -9075 RSC11issue test report consist of78 PagesPage 1 (78) Accredited Bluetooth Test Facility (BQTF) Test report no.: 5-4113-01-02-A/02 FCC Part15.247/CANADA RSS-210 SIEMENS BIRD FCC ID: L82-BIRD BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Accredited testing-laboratory DAR registration number: TTI-P-G-166/98 TTI-P-G166/98 CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date: 2002-10-14Page 2 (78) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 3 (78) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2002-11-04RSC8414Ames H. DateSectionNameSignature Technical Responsibility for Area of Testing: 2002-11-04RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 4 (78) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de (details of accreditation status, where relevant) State of accreditation: The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 1.3Details of applicant Name :SIEMENS AG Street :Frankenstrasse 2 City :D-46395 Bocholt Country :Germany Telephone:+49 2871 91 0 Telefax :+49 2871 91 2495 Contact :Mr. Uwe Alt Telephone:+49 2871 91 2948 1.3 Application details Date of receipt of application : 2002-09-20 Date of receipt of test item : 2002-09-20 Date of test : 2002-09-20 - 2002-10-09 CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 5 (78) 1.4 Test item Type of equipment : DECT-Phone in 2.4 GHz range Type designation: Model : BIRD Basestation Manufacturer:- applicant - Street: City: Country: Serial number: Additional information : Frequency:2400 – 2483.5 MHz (2407 – 2469 MHz) Type of modulation:1M00GXW (TDMA) Ch.Sep. : 7 MHz Number of channels :10 Antenna:Build-in patch antenna Power supply:9.5V AC via Adapter Output power rad. max:24.44 dBm / 277.97 mW Type of equipment:Class B Temperature range :0°C - +35°C FCC IDL82-BIRD 1.6Test specifications: FCC Part 15 §15.247 / CANADA RSS-210 CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 6 (78) 2 Technical test 2.1 Summary of test results The radiated measurements were performed vertical and horizontal over the whole frequency range. We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual re-measurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. 9 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 1 MHz, waveguide horn The antenna gain measurement was performed by the difference between conducted and radiated output measurement. All measurement settings are according to FCC 15.35, 15.205, 15.209 and 15.247. The product fulfills also the requirements for CANADA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS Remark: The product is a variation of a DECT phone (TDMA) in the 2.4 GHz ISM band. The protocol and timing behavior is equal to the 1800 MHz DECT system. (Timing description later in the report) low channel: 2407.104 MHz mid channel: 2441.664 MHz high channel: 2469.312 MHz CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 7 (78) 2.2Test report TEST REPORT Test report no. : 5-4113-01-02-A/02 CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date:2002-10-14Page 8 (78) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters § 15.247Antenna gain 9 § 15.247 (a)(2)Spectrum bandwidth of a DSSS System10 § 15.247 (b)(1) Maximum peak output power14 § 15.247 (b) (4) RF Exposure calculation23 § 15.247 (d)Power spectral density24 §15.205/247Band edge compliance (conducted and radiated)28 § 15.247 (c)(1)Emission limitations (§15.209 )31 § 15.207Conducted emissions63 Receiver parameters § 15.209Spurious radiation - Radiated64 Test equipment listing68 Photographs of the equipment70 CETECOM ICT Services GmbH Test Report No.: 5-4113-01-02-A/02Issue date: 2002-10-14Page 9 (78) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 – 24, 64 Antenna GainSUBCLAUSE § 15.247 The antenna gain of the complete system is calculated by the difference of conducted power of the module and the radiated power in EIRP. low channelmid channelhigh channel Conducted power21.44 dBm2…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-0Telefax: -9075 RSC11issue test report consist of62 PagesPage 1 (62) Accredited Bluetooth Test Facility (BQTF) Test report no.: 5-4113-01-02-B/02 FCC Part15.247/CANADA RSS-210 SIEMENS BIRD FCC ID: L82-BIRD BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Accredited testing-laboratory DAR registration number: TTI-P-G-166/98 TTI-P-G166/98 CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date: 2002-10-14Page 2 (62) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 3 (62) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2002-11-04RSC8414Ames H. DateSectionNameSignature Technical Responsibility for Area of Testing: 2002-11-04RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.:5-4113-01-02-B/02Issue date:2002-10-14Page 4 (62) 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 …

Text truncated - open the document above for the full version.
