TRP/Cetecom bvba December 7, 2001 Federal Communications Commission 7435 Oakland Mills Rd Columbia, MD 21036 Re: Pending application for a cordless telephone handset to be marketed as a separate item FCC ID:L82-HOME-RF-4000 Gentlemen: The application submitted herewith on behalf of Siemens is for cordless handsets to be marketed independently marketed for use with a multi-line capable base unit. There are two versions of this handset that are essentially identical except one unit can remotely access up to two independent phone lines and the other unit can remotely access up to four independent phone lines. All handset access is via a RF link to the base unit. These new models of handsets (4820 and 4840) are basically identical to the handsets certified as part of a cordless telephone system (4000 series consisting of approximately 8 models) under FCCID:L82-1408 on May 29, 2001 and subsequent Class II permissive changes. However, new software has been implemented to provide multi-line functional capability, added features and integration with a new keypad. To accomplish the implementation of the software, minor variations in printed circuit board layout design was required. A later version of the Infineon RF transceiver was incorporated that uses the same basic random frequency hop selection algorithms as the previous approved models in the 4000 series of cordless phones. Basic technical description, frequency hop selection, rf transceiver sections for these handsets are unchanged from the handsets submitted and accepted for the previously approved system under FCC ID:L82-2408. In support of this application, a new measurement report, new SAR data, updated photographs and schematics have been provided as well as other pertinent information. Sincerely, Phillip Inglis Consultant 14085 Howard Rd Dayton, MD 21036

December 7, 2001 CONFIDENTIALITY REQUEST Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re:Siemens, application for Spread Spectrum Transmitter FCC ID: L82-HOME-RF-4000 Gentlemen: Siemens herein submits an Application for Equipment Authorization and submission of the FCC fee in the amount of $1130.00 along with Form 159 for certification of a spread spectrum cordless telephone system transmitter under FCC Rules Part 15 as required by the FCC Rules. Siemens requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: 1. Circuit diagrams submitted as Equipment Authorization Electronic Filing attachment: schematics, 2. Parts list submitted as attachment "parts list", 3. Technical description submitted as attachment "technical description". 4. Block diagram submitted as attachment "block diagram". Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that Siemens does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned by phone at 410-531-3439, by fax at 410-531-0807, by email at [email protected], or by correspondence at the address below if there are any further questions or additional information needed concerning this filing. Regards, (signed) Phillip Inglis, TRP/Cetecom bvba 14085 Howard Rd. Dayton, MD. 21036

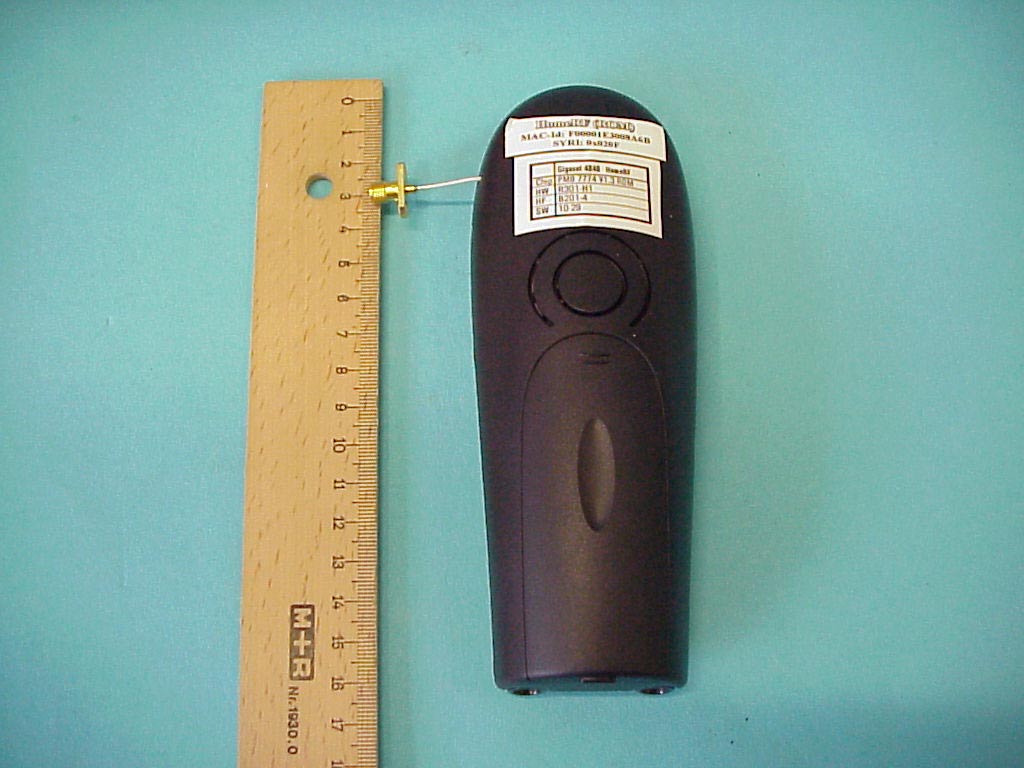

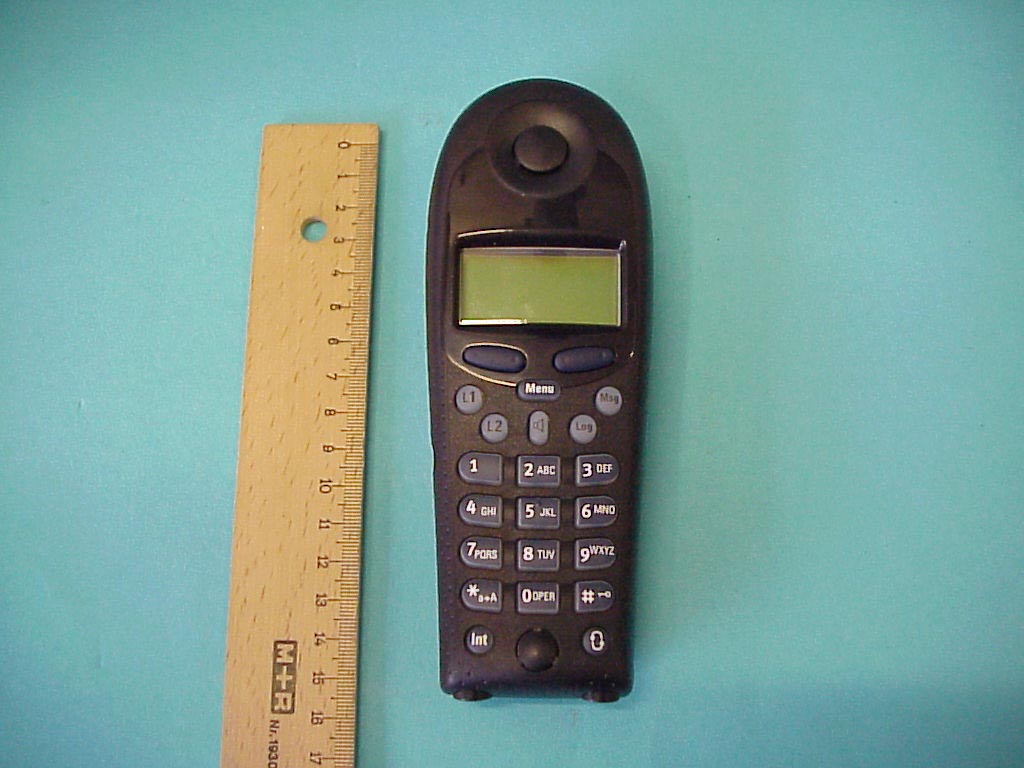

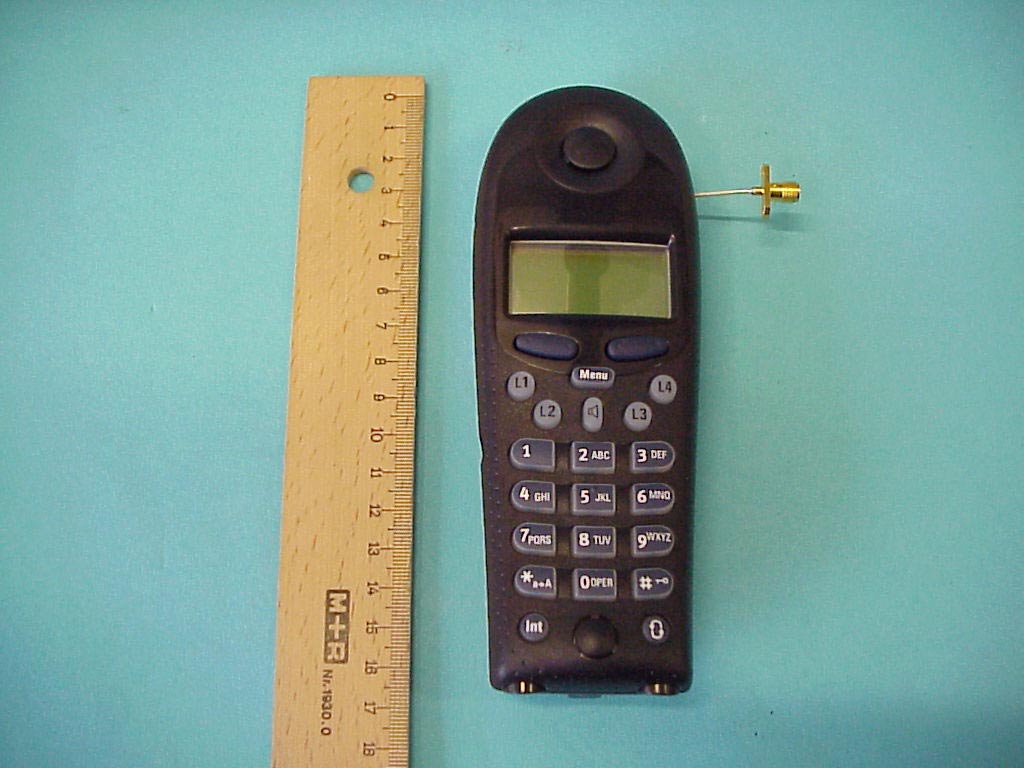

CETECOM ICT Services GmbH Test report nr..: 5-3781-01-05/01Issue Date: 12.11.2001Page 76 (82) Photographs of the equipment (GIGASET 4820) Photograph no.: 1 CETECOM ICT Services GmbH Test report nr..: 5-3781-01-05/01Issue Date: 12.11.2001Page 77 (82) Photographs of the equipment (GIGASET 4820) Photograph no.: 2 CETECOM ICT Services GmbH Test report nr..: 5-3781-01-05/01Issue Date: 12.11.2001Page 78 (82) Photographs of the equipment (GIGASET 4840), here with temporary RF-connector Photograph no.: 3 CETECOM ICT Services GmbH Test report nr..: 5-3781-01-05/01Issue Date: 12.11.2001Page 79 (82) Photographs of the equipment (GIGASET 4840) Photograph no.: 4

Below are the proposed FCC ID labels. The label will be located in the battery compartment as indicated in the attached drawing. Choice of labels is dependent on application to the 2 line or 4 line phone. S30883-S4000-R307-5 FCC ID:L82-HOME-RF-4000 IC (R):XXXXXXXXXXXXXX MADE IN GERMANYCT/N6 Use approved batteries only S30883-S4000-R327-4 FCC ID:L82-HOME-RF-4000 IC (R):XXXXXXXXXXXXXX MADE IN GERMANYCT/N6 Use approved batteries only

S30883-S4000-R301-*-7422 Seggert-G. 19.11.2001 Issue Memorandum Date Name Page 1of 1 DateName TR 1234 AB C D ABC 5 12 678 DE EF 34 CAD drawnalter on sreen only ICM CP SCM FB ED Sachnummer,Zulassungsnr.,Zustand und Herstelldatumnur Beispiel !part number with issueproductionplace and -date ( only example )Laserbeschriftunglaser data Leserichtung reading direction MADE I NGERMA NY S30883-S4000-R307-5 FCC:L82-HOME-RF-4000 Use approved batteries only CT/N6 equipment manufactoring document for Home RF handset 2-Line and 4-Line Platz für Laserbeschriftung place for laser data 1 Nxxx/D01/100 23. 11.01 D01 C39363-A327-C40 MADE I NGERMA NY S30883-S4000-R327-4 FCC:L82-HOME-RF-4000 Use approved batteries only CT/N6 IC (R): XXXXXXXXXX IC (R): XXXXXXXXXX

CETECOM ICT Services GmbH Test report nr..: 5-3781-01-05/01Issue Date: 12.11.2001Page 80 (82) Photographs of the equipmen (PCB is the same for both samples. They differ in the keypad only) Photograph no.: 5 CETECOM ICT Services GmbH Test report nr..: 5-3781-01-05/01Issue Date: 12.11.2001Page 81 (82) Photographs of the equipment Photograph no.: 6 CETECOM ICT Services GmbH Test report nr..: 5-3781-01-05/01Issue Date: 12.11.2001Page 82 (82) Photographs of the equipment Photograph no.: 7
