L9UUSR-1900PCS Repeater

ACE Technology USR-1900 Installation and Operations Manual 04/2001 ACE TECHNOLOGY ACETechnology, Inc. 21010 Superior Street Chatsworth, California Tel: (818) 718 1534 Fax: (818) 718 2842 Email: [email protected] Web: www.aceteq.com ACE Technology 2 Table of Contents 1. General Information 1.1 Introduction 1.2 Specifications 1.3 Description 2 Installation 2.1 Introduction 2.2 Unpacking and Inspection 2.3 Preparation for Use 2.4 Before Installation 2.5 Antenna Installation 2.6 Repeater Installation 2.7 Connectors 2.8 Installation Example 3 Operation 3.1 Introduction 3.2 Operating Instructions 4 Trouble Shooting 5 Drawings ACE Technology 3 1. General Information 1.1 Introduction This manual provides information pertaining to the installation and operation of ACE Technology’s USR-1900A/B “Ultra Slim” repeaters. Both units are for CDMA modulation in the PCS frequencies as shown in Table 1-1. <Table 1-1: USR-1900 Repeater Models> Model Number Down Link* Frequencies Up Link** Frequencies Modulation USR-1900A1930 ~ 1945 MHz1850 ~ 1865 MHzCDMA USR-1900B1950 ~ 1965 MHz1870 ~1885 MHzCDMA *: Down Link is from base station to mobile **: Up Link is from mobile to base station ACE Technology 4 1.2 Specifications <Table 1-2: USR-1900 Specifications> Down Link 1930 ~ 1945 MHz (PCS A Band), 1950~1965 MHz (B Band) Frequency Band Up Link 1850 ~ 1865 MHz (PCS A Band), 1870~1885 MHz (B Band) Bandwidth 15 MHz Maximum Output Power + 25 mW (+ 14 dBm) CDMA (3FA Composite) Noise Figure Less Than 8 dB Gain Range 55 dB to 85 dB POWER O/P 1dB C.P. 21 dBm Attenuation Co ntrol Range 30 dB Attenuation Co ntrol Steps 2 dB Gain Variation by Temperature ( - 10 ºC ~ + 45 ºC) ± 2 dB V.S.W.R 2 : 1 Max. Signal Delay Less than 5 μsec Spurio us 45 dBc @ fo ± 885 kHz ( RBW 30kHz) 55 dBc @ fo ± 1.98MHz ( RBW 30kHz) Impedance 50 Ω Alarm & Status LED Power On: Green Down Link Overpower, Up Link Overpower Down Link PLL, Up Link PLL Power Supply 110 VAC, 50 ~ 60Hz, 16W Operating –10 ° C to 45 ° C Temperature Storage – 40 ° C to 85 ° C Dimension ( W x H x D , inch) 8.07" x 2.44" x 6.00" Weight (Pound) 3.5 lb. RF Connectors Type N Female 1.3 Description This product is designed for offices, hotel rooms, small parking lots, garages or small buildings, helping to improve PCS communications signal and coverage by extending the coverage of a base station. Outdoor antenna receives from a PCS base station, then USR1900 repeater amplifies the signal. After amplification, the signal is passed through to the indoor antennas. Conversely, signals from handsets are amplified and retransmitted to the base station. ACE Technology 5 2. Installation 2.1 Introduction This section provides information for the installation and setup of the USR-1900 repeater. The information consists of procedures for unpacking, inspection and preparation for the installation, as well as the actual installation and the setup. 2.2 Unpacking and Inspection Examine the shipping carton for damage before unpacking the unit. If the shipping carton is damaged, try to have the carrier’s agent present when the equipment is unpacked. If visual inspection reveals physical damage(s) to the equipment, you should send it back for replacement. Verify that the equipment is complete, as listed under packing slip. Contact ACE Technology with any missing component. 2.3 Preparation for Use 2.3.1 Power Requirements The power supply of the USR-1900 accepts 110 VAC, at 50 ~ 60 Hz. Power consumption of the USR-1900 is approximately 16 Watts. 2.3.2 Operating Environment The USR-1900 is intended for indoor use only. Do not install it where it might be exposed to the outside elements as this could result in destruction of the unit and other hazards. For normal operations, the environmental conditions should be as follow: Temperature range: –10 ° C to 45 ° C, Maximu m Hu midity: 95 % Professional Installation Only Although the installation of the repeater unit is simple and straightforward, the transmission lines for both external and internal antennas require professional installation by a licensed communication technician. In addition, the installation must conform to all applicable federal, state and local government regulations. ACE Technology 6 2.4 Before Installation You will need to determine the following before beginning the USR-1900 installation: a. Base station location b. Location where the outdoor antenna is to be installed c. Location where the indoor antenna is to be installed d. Location where the USR-1900 is to be installed e. Length and type of coaxial cable needed to connect from the outdoor antenna to the repeater unit f. Length and type of coaxial cable needed to connect from the repeater unit to the indoor antenna 2.5 Antenna Installation 2.5.1 Outdoor Antenna Select a site for your outdoor antenna, making sure you have enough signal strength at that location. Using coax cable, connect the antenna to the repeater. If you are using a directional antenna such as a Yagi type, the antenna should be installed so that it is in line of sight of the base station. Then, align the directional antenna toward that direction, and secure the antenna using provided mounting hardware. Use of a lightning arrester is highly recommended. By installing a lightning arrester between the outside antenna and the repeater, you can protect the repeater unit from electrical surge from lightning. CAUTION: In order to comply with FCC rules for RF exposure, the following must be observed: The antenna must be installed such that a minimum separation distance of 20 cm is maintained between the antenna and any persons . ACE Technology 7 2.5.2 Indoor Antenna Install the indoor antenna at a convenient location. It should be free of metallic obstruction in order to have an effective coverage. Depending on the circumstance of the installation, either one or a combination of following antennas can be used: Ceiling mount patch antenna, Wall mount patch antenna, Corner reflector 2.6 Repeater Installation USR-1900 is a…

Text truncated - open the document above for the full version.

TCB RF Exposure Review Procedure Statement FCC ID:L9UUSR-1900 Transmitter Category Device Type Product Category Approval and Review Procedures Used Specific Procedures: VII Indoor repeater with outdoorantenna All OtherCategoricallyExcludedMobileTransmitters Section P SP(1), SP(3), SP(5), SP(7), SP(8) and SP(9) Grant Condition: Professional installation required. The installation and operating configurations of this transmitter, including antenna gain and cable loss, must satisfy MPE categorical Exclusion Requirements of§2.1091. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least20 cm from all persons and must not be co-located or operating in conjunction with any other antenna ortransmitter. Installers and end-users must be provided with antenna installation instructions and transmitteroperating conditions for satisfying RF exposure compliance. SP1 Max. allowable output power is 14dBm. Device is equipped with overdrive power alarm asindicated in the page 2 of technical description. No source based average factor isconsidered. SP3 Device and Antenna installation instruction as indicated in the user manual provided enoughinformation to caution the installer. SP5 Operating in single PCS band SP7 Device requires to have professional installation as indicated in the user manual. SP8 Tune-up and antenna installation procedures have been properly described in the usermanual. SP9 TCB has reviewed the Grant conditions and has determined the Grant conditions areapplicable to the device. Reviewed by Mike KuoCompliance Certification ServicesJuly 11, 2001

This request for technical information is addition to the e-mail dated 6/27/2001. Question #4: Please provide MPE calculation per 2.1091 requirements. Dear Mike, In regarding to the output power control of this repeater, It work as follow, A build-in micro controller U29 ( please refer to drawing 4 of 4) is continuously monitoring the output power of the unit. If for any reason that the output power swim up beyond the 14 dBm, the micro controller will turn off the Q1 which will consequently shut down the +5V DC power supply to the Tx module. The shut down of the +5V DC power to the Tx will bring the output power to zero. Regards, Steve From: Mike Kuo Sent:Wednesday, June 27, 2001 8:43 PM To:Steve Cheng Cc:Charles Ma Subject:ACE Antenna , FCC ID:L9UUSR-1900 AN01T1348 Question #1: The emission designator described in Technical document for CDMA modulation is G7W. It is FCC policy to use F9W for CDMA modulation. The emission designator for this application will be listed as F9W . Please confirm. Question #2:The user manual does not contain any information about RF exposure warning statement. Suggest wordings "" CAUTION: In order to comply with FCC rules for rf exposure, the following must be observed: The antenna must be installed such that a minimum separation distance of 20 cm. is maintained between the antenna and any persons." Question #3: Is this device required professional installation ? If it does, a proper wording has to be included in the user manual.

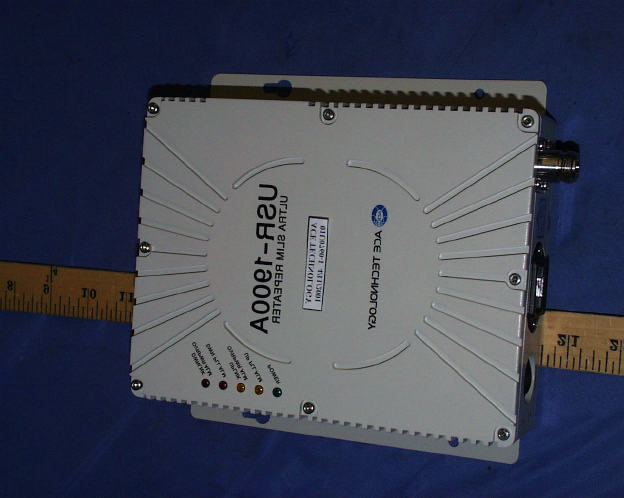

REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 25 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.2. EUT PHOTOGRAPHS REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 26 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 27 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 28 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 29 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

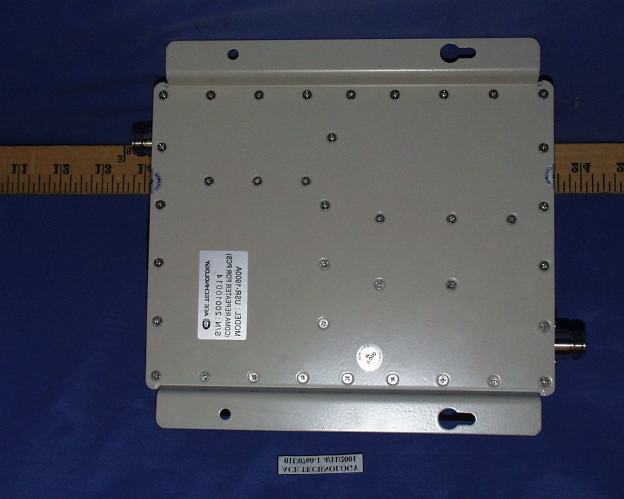

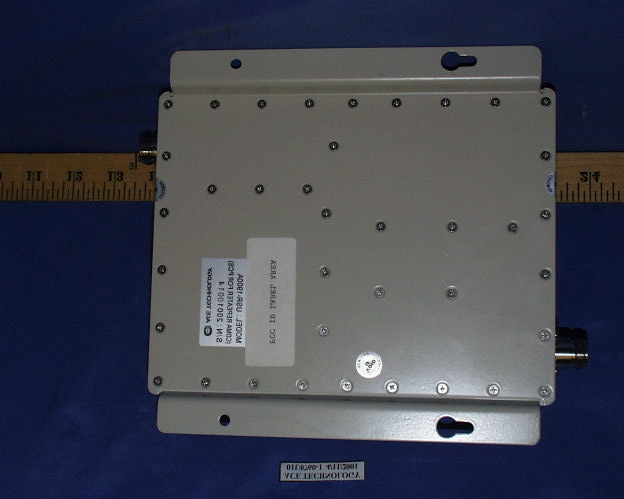

PROPOSED FCC ID LABEL AND LOCATION ACE ANTENNA, INC. FCC ID: L9UUSR-1900 FCC ID LABEL LOCATION

REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 30 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 31 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 32 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 33 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 34 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 35 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 36 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 37 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

1 USR-1900A/B Ultra Slim Repeater Technical Description ACE Technology April-6-2001 FCC Part 2.983(d) Technical Description (d)(1) Type or types of emission : G7W (d)(2) Frequency Range 1) PCS CDMA : A Block Forward: 1930 - 1945 MHz Reverse : 1850 - 1865 MHz , 2) PCS CDMA : B Block Forward: 1950 - 1965 MHz Reverse : 1870 - 1885 MHz (d)(3) Range of Operating Power Levels, and description of any means provided for variation of operating power : -45dBm to +14dBm (Gain : 55 to 85 dB) (d)(4) Maximum power rating as defined in the applicable parts of the FCC rules : 24.232(a) ; Maximum Peak output power for base station transmitters should not exceed 100 Watts. 24.232(b) ; Mobile/Portable stations are limited to 2 Watts EIRP peak power. The maximum output power is 14dBm (d)(5) The dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range : 5.0 VDC at 105 mA on U17 and U17A for USR-1900A 5.0 VDC at 105 mA on U17 and U17A for USR-1900B (d) (6) Function of each electron tube or semiconductor or other active circuit device 2 :Refer to Attachment : Schematics and Parts list. (d)(7) Complete circuit diagram : Refer to Attachment : Schematics and Parts list. (d)(8) Instruction books or installation manual Refer to Attachment : Installation and Operations manual (d) (9) Tune-up procedure over the power range, or at specific operating power levels Refer to Attachment : Installation and Operations manual (d)(10) A description of all circuitry and devices provided for determining and stabilizing frequency 1) USR-1900A U21,U21A : 10 MHz Reference for L.O PLL U20,U20A 2) USR-1900B U21,U21A : 10 MHz Reference for L.O PLL U20,U20A (d)(11) A description of any circuits or devices employed for suppression of spurious radiation 1) USR-1900A Duplexer : U1, U1A, Band pass Filters : U4,U4A,U13,U13A, U16,U16A, U18,U18A,U19,U19A SAW Filters U7,U7A 2) USR-1900B Duplexer : U1, U1A, Band pass Filters : U4,U4A,U13,U13A, U16,U16A, U18,U18A,U19,U19A SAW Filters U7,U7A (d)(11) A description of any circuits or devices employed for limiting modulation : N/A (d)(11) A description of any circuits or devices employed for limiting power Micro controller that limits the output to the specified output power level. If the unit detects that the output power exceeds the specified limit, the unit is put to stand-by mode with no output. If the condition persists for third iteration, power to the unit is cut off. 3 (d)(12) For equipment employing digital modulation techniques, a detailed description of the modulation of the modulation system to be used, including the response characteristics ( Frequency, phase, and amplitude) of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. : N/A

MPE calculation for the ACE 01u0760 RF Hazard Distance Calculation mW/cm2 from Table1:1.00 Max RF PowerTX AntennaMPE P, dBmG, dBiSafe Distance, cm 14.00.01.41 14.01.01.6 14.02.01.8 14.04.02.2 14.08.03.6 14.012.05.6 14.016.08.9 14.020.014.1 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10)

FCC CFR47 PART 24 E CERTIFICATION TEST REPORT FOR ULTRA SLIM CDMA REPEATER (BLOCK A) MODEL: USR-1900A FCC ID: L9UUSR-1900 REPORT NUMBER: 01U0760-1 ISSUE DATE: April 25, 2001 Prepared for ACE ANTENNA, INC. 21010 SUPERIOR STREET CHATSWORTH, CA 91311 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 1 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION------------------------------------------------------------------------2 2. EUT DESCRIPTION-----------------------------------------------------------------------------------------3 3. TEST METHODOLOGY------------------------------------------------------------------------------------3 4. TEST FACILITY----------------------------------------------------------------------------------------------3 5. ACCREDITATION AND LISTING-----------------------------------------------------------------------3 6. MEASURING INSTRUMENT CALIBRATION--------------------------------------------------------3 7. APPLICABLE RULES AND BRIEF TEST RESULT-------------------------------------------------4 8. TEST SETUP, PROCEDURE AND RESULT-----------------------------------------------------------7 8.1. SECTION 2.1046: RF POWER OUTPUT-----------------------------------------------------------------7 8.2. SECTION 2.1047: MODULATION CHARACTERISTICS-------------------------------------------8 8.3. SECTION 2.1049: OCCUPIED BANDWIDTH-------------------------------------------------------8 8.4. SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL----------------------------9 8.5. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION---------------------------10 8.6. SECTION 2.1055: FREQUENCY STABILITY-------------------------------------------------------13 8.7. RADIATED EMISSION: part 15.209-----------------------------------------------------------------16 9. ATTACHMENT---------------------------------------------------------------------------------------------18 9.1. EUT SETUP PHOTOS---------------------------------------------------------------------------------18 9.2. EUT PHOTOGRAPHS---------------------------------------------------------------------------------25 9.3. INSTALLATION AND SERVICE MANUAL---------------------------------------------------------38 9.4. SCHEMATIC, PART LISTS AND BLOCK DIAGRAM---------------------------------------------39 9.5. PROPOSED FCC ID LABEL FORMAT-------------------------------------------------------------40 9.6. MEASUREMENT RESULT PLOTS-------------------------------------------------------------------41 REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 2 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: ACE ANTENNA, INC. 21010 SUPERIOR STREET CHATSWORTH, CA 91311, XUSA CONTACT PERSON: DANIEL CHUN / APPLICATIONS ENGINEER TELPHONE NO: (818) 718-1534 EUT DESCRIPTION: ULTRA SLIM CDMA REPEATER (BLOCK A) MODEM NAME: USR-1900A DATE TESTED: APRIL 24, 2001 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 1850-1865 MHz paired with 1930-1945 MHz REPEATER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 24 Subpart E Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 24 Subpart E-Broadband PCS. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Released For CCS By: Test By: STEVE CHENG KERWIN CORPUZ EMC DEPARTMENT MANAGER EMC ASSOCIATE ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK A) Page 3 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION This product is designed for offices, hotel rooms, small parking lots, garages or small buildings, helping to improve PCS communications signal and coverage by extending the coverage of a base station. Outdoor antenna receives from a PCS base station, then USR1900 repeater amplifies the signal. After amplification, the signal is passed through to the indoor antennas. Conversely, signals from handsets are amplified and retransmitt…

Text truncated - open the document above for the full version.

FCC CFR47 PART 24 E CERTIFICATION TEST REPORT FOR ULTRA SLIM CDMA REPEATER (BLOCK B) MODEL: USR-1900B FCC ID: L9UUSR-1900 REPORT NUMBER: 01U0760-1 ISSUE DATE: April 25, 2001 Prepared for ACE ANTENNA, INC. 21010 SUPERIOR STREET CHATSWORTH, CA 91311 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK B) Page 1 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION------------------------------------------------------------------------2 2. EUT DESCRIPTION-----------------------------------------------------------------------------------------3 3. TEST METHODOLOGY------------------------------------------------------------------------------------3 4. TEST FACILITY----------------------------------------------------------------------------------------------3 5. ACCREDITATION AND LISTING-----------------------------------------------------------------------3 6. MEASURING INSTRUMENT CALIBRATION--------------------------------------------------------3 7. APPLICABLE RULES AND BRIEF TEST RESULT-------------------------------------------------4 8. TEST SETUP, PROCEDURE AND RESULT-----------------------------------------------------------7 8.1. SECTION 2.1046: RF POWER OUTPUT-----------------------------------------------------------------7 8.2. SECTION 2.1047: MODULATION CHARACTERISTICS-------------------------------------------8 8.3. SECTION 2.1049: OCCUPIED BANDWIDTH-------------------------------------------------------8 8.4. SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL----------------------------9 8.5. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION---------------------------10 8.6. SECTION 2.1055: FREQUENCY STABILITY-------------------------------------------------------13 8.7. RADIATED EMISSION: part 15.209-----------------------------------------------------------------16 9. ATTACHMENT---------------------------------------------------------------------------------------------18 9.1. EUT SETUP PHOTOS---------------------------------------------------------------------------------18 9.2. EUT PHOTOGRAPHS---------------------------------------------------------------------------------25 9.3. INSTALLATION AND SERVICE MANUAL---------------------------------------------------------38 9.4. SCHEMATIC, PART LISTS AND BLOCK DIAGRAM---------------------------------------------39 9.5. PROPOSED FCC ID LABEL FORMAT-------------------------------------------------------------40 9.6. MEASUREMENT RESULT PLOTS-------------------------------------------------------------------41 REPORT NO: 01U0760-1 DATE: APRIL 25, 2001 FCC ID: L9UUSR-1900 EUT: ULTRA SLIM CDMA REPEATER (BLOCK B) Page 2 of 56 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: ACE ANTENNA, INC. 21010 SUPERIOR STREET CHATSWORTH, CA 91311, USA CONTACT PERSON: DANIEL CHUN / APPLICATIONS ENGINEER TELPHONE NO: (818) 718-1534 EUT DESCRIPTION: ULTRA SLIM CDMA REPEATER (BLOCK B) MODEM NAME: USR-1900B DATE TESTED: APRIL 24, 2001 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 1870-1885 MHz paired with 1950-1965 MHz REPEATER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 24 Subpart E Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 24 Subpart E-Broadband PCS. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Released For CCS By: Test By: STEVE CHENG KERWIN CORPUZ EMC DEPARTMENT MANAGER EMC ASSOCIATE ENGINE…

Text truncated - open the document above for the full version.
