LDK-CLX300CISCO SMALL BUSINESS TELEPRESENCE

English Cisco Small Business TelePresence CLX300 Cisco TelePresence CLX300 pour petites entreprises Quick Start Guide Guide de démarrage 1 English To use your Cisco Small Business TelePresence CLX300, you need a Callway small business subscription. Your channel partner sold this subscription when you or your company’s system administrator bought your hardware product. Either you or your system administrator received an email containing the video number and activation code for your CLX300. The subject line for this email is Cisco Callway - Next steps to getting started. Write down your video number and activation code here for reference. 1 Confirm your Callway subscription NOTE: If the message you or your system administrator received from the Callway team doesn’t contain your video address and activation code, this means that your subscription sign-up is not complete. Click the links in the email to accept the Terms & Conditions and complete the subscription sign-up. Video number Activation code 2 English If anything is missing, please contact the Cisco customer service hotline at (877) 533-4246 (US, toll-free) or (408) 902-2214 (outside the US). 2 What’s in the box Camera Microphones (6) Speaker Incoming video call indicator Missed video call indicator Active video call indicator Device (includes camera) Power cable jack Power button HDMI output Ethernet cable jack Service Back Front HDMI cable TV bracket Power cable Remote/batteries 3 English Follow these instructions to mount your CLX300 on top of your display. 3 Mount your CLX300 You can place your device on a flat surface instead of mounting it. a. Snap the device onto the bracket. b. Position the bracket on top of your display. 4 English c. Pan and tilt the camera as needed until it is pointing in the direction you want. To tilt the camera, bend the bracket. NOTE: After you complete setup, you can use the remote to pan and tilt the camera digitally. English 5 English Connect these cables to the back of the device: • HDMI cable • Power cable • Ethernet cable (sold separately) if you are using Ethernet to connect to your network 4 Connect the cables NOTE: You do not need an Ethernet cable if you will connect to your network wirelessly using the internal Wi-Fi radio. 66 a. Insert the HDMI cable into any available HDMI port on your TV. 5 Connect the cables to your other devices Be sure to connect the cables in the order described here. b. If you are using Ethernet, insert the Ethernet cable into any available port on your router or Internet connection jack. c. Plug the power cable into a working outlet. LAN 1 LAN 2 LAN 3 LAN 4 WAN ON/OFF 12VDC 1A RESET POWER SWITCH English English 7 English a. When the Welcome screen appears, you’re ready to begin onscreen setup. Use the CLX300 remote to make selections and enter text. Be sure you inserted the batteries into the remote. Here is a quick reference guide to remote buttons and keys: 6 Set up your CLX300 on your TV or monitor Be sure to point the remote at your CLX300, not at your TV or monitor. Arrow buttons Zoom camera Self-view Home (displays the main menu) Center (selects the highlighted item) Make/answer video call End video call 8 b. Follow the onscreen instructions to complete these setup steps. Some steps are optional. • Select your language. • Set up your Ethernet or wireless network connection. • Select your region. • Enter your video number and code. • Check your network connection. • Adjust the camera so that it captures the part of the room you want others to see when you are on a video call. • Take a profile picture that others will see when you call. c. After setup is complete, your system checks to see if a system software update is available. If an update is available, the system reboots to install the update. During the reboot process, the startup screen appears one or more times. This process may take up to 15 minutes. English English 9 English Use your CLX300 The Home screen Contacts Call history Dial pad More (select to access settings and adjust the camera ) Make your first video call You can call anyone in your Company directory right away. 1. Select > . 2. Use the arrow keys to navigate to the contact to highlight it. 3. Press Center to call the contact. You can also add a contact to My contacts. Select > > New. Use the onscreen keyboard to enter the contact information, and select Done. 10 English Create a favorite You can assign any contact from your Company directory or your My contacts list as a favorite. 1. Select . 2. Select or . 3. Use the arrow keys to navigate to the contact to highlight it. 4. Select > . The contact now appears as a favorite. Access your favorites by selecting > . You can also assign a contact as a favorite from any entry in your call history list. Use your personal group calling bridge As part of your Callway subscription, you can invite up to 6 participants to join a conference using your personal bridge. Your My Group Calling Bridge entry appears under > . You received your group calling bridge video address in your welcome email. This is the address other users call to join the bridge. English English 11 Français English Pour pouvoir utiliser votre Cisco TelePresence CLX300 pour petites entreprises, il vous faut un abonnement Callway pour petites entreprises. Votre partenaire de distribution vous a vendu cet abonnement lorsque vous ou l’administrateur système de votre société avez acheté le matériel. Vous ou votre administrateur système avez reçu un courriel contenant le numéro et le code d’activation vidéo de votre appareil. L’objet de ce courriel est Cisco Callway - Next steps to getting started (Cisco Callway : démarches nécessaires pour le démarrage). Notez le numéro et le code d’activation vidéo ici à titre de référence. 1 Confirmation de votre abonnement Callway REMARQUE : si le message que vous ou votre administrateur système avez reçu de l’équipe Callway ne contient ni votre adresse ni votre code d’activation vidéo, cela signifi…

Text truncated - open the document above for the full version.

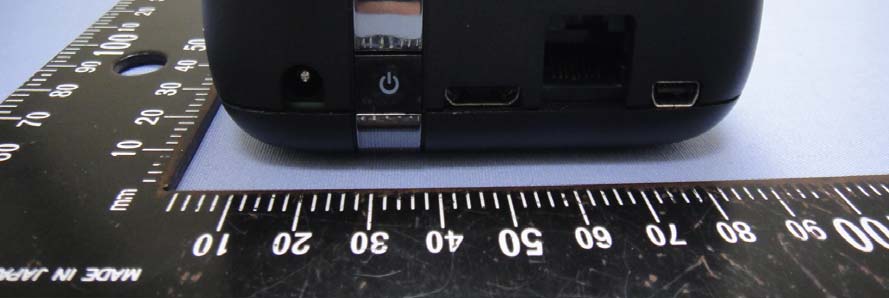

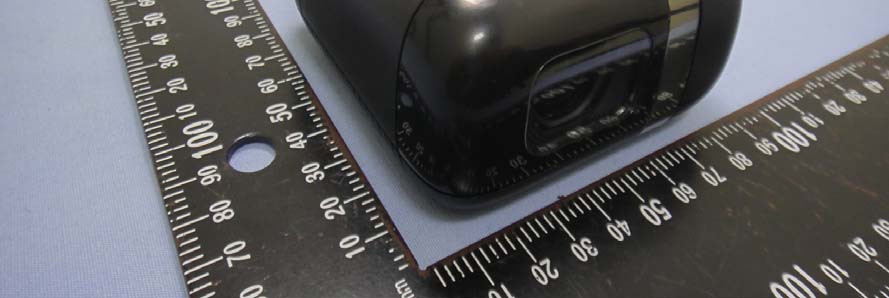

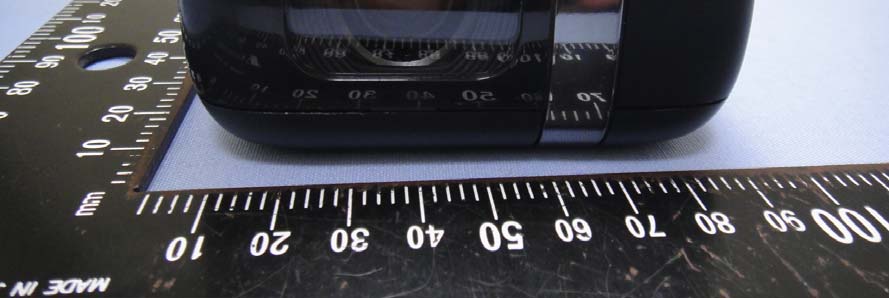

Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 1 / 17 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 2 / 17 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 3 / 17 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 5 Rev. 00 For 72-4989-01(A096A1005) For EH9HDM0001A Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 9 Rev. 00

Made in China Fabriqué en Chine FCCID:LDK-CLX300 IC:2461B-CLX300 PN:74-10111-01 01 7081020BDF4E MAC:7081020BDF4E IAC1548M01D SN:IAC1548M01D KCC-REM-TNY-CLX300 Model: CLX300

Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 10 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 15 Rev. 00 Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 16 Rev. 00 Antenna PIFA Antenna Compliance Certification Services Inc. Report No.: T120201G02 Date of Issue: February 17, 2012 A1 - 17 Rev. 00 Module

Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 149 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.407(f), U-NII devices are subject to the radio frequency radiation exposure requirements specified in §§ 1.1307(b), 2.1091 and 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a "general population/uncontrolled" environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. EUT Specification EUT Cisco Small Business Telepresence Frequency band (Operating) WLAN: 2412 MHz ~ 2462 MHz WLAN: 5150 MHz ~ 5350 MHz WLAN: 5500 MHz ~ 5700 MHz WLAN: 5725 MHz ~ 5850 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others: ___________________ Exposure classification General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power Mode Frequency Range (MHz) Output Power (dBm) Output Power (mw) IEEE 802.11a 5180 – 5240 10.04 10.0925 UNII Band I IEEE 802.11n HT 20 MHz 5180 – 5240 9.84 9.6383 IEEE 802.11a 5260 - 5320 9.82 9.5940 UNII Band II IEEE 802.11n HT 20 MHz 5260 - 5320 10.33 10.7895 IEEE 802.11a 5500 - 5700 11.14 13.0017 UNII Band III IEEE 802.11n HT 20 MHz 5500 – 5700 10.45 11.0917 Antenna gain (Max) Antenna Gain: IEEE 802.11a: 4.61 dBi (Numeric gain: 2.89) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 11.14dBm (13.0017mW) at 5500MHz (with 2.89 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 150 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 151 Rev. 00 UNII Band I IEEE 802.11a mode: EUT output power = 10.0925 mW Numeric Antenna gain = 2.89 Æ Power density = 0.005804 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power = 9.6383 mW Numeric Antenna gain = 2.89 Æ Power density = 0.005543 mW / cm2 UNII Band II IEEE 802.11a mode: EUT output power = 9.5940 mW Numeric Antenna gain = 2.89 Æ Power density = 0.005518 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power = 10.7895 mW Numeric Antenna gain = 2.89 Æ Power density = 0.006205 mW / cm2 UNII Band III IEEE 802.11a mode: EUT output power = 13.0017 mW Numeric Antenna gain = 3.43 Æ Power density = 0.007477 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power = 11.0917 mW Numeric Antenna gain = 6.87 Æ Power density = 0.006379 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 156 Rev. 00 FCC 47 CFR PART 15 SUBPART E TEST REPORT For Cisco Small Business Telepresence Model: CLX300 Trade Name: CISCO Issued to Cisco Systems Inc. 170 West Tasman Drive, San Jose, CA 95134,United States Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: March 8, 2012 Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 8, 2012 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 7 3.1 EUT CONFIGURATION.............................................................................................................. 7 3.2 EUT EXERCISE......................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES.................................................................................................. 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 8 3.5 DESCRIPTION OF TEST MODES................................................................................................. 9 4. INSTRUMENT CALIBRATION............................................................................................... 10 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................... 10 4.2 MEASUREMENT EQUIPMENT USED ............................................................................ 10 4.3 MEASUREMENT UNCERTAINTY .................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ................................................................................. 12 5.1 FACILITIES............................................................................................................................ 12 5.2 EQUIPMENT........................................................................................................................... 12 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................... 12 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 13 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 14 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 14 6.2 SUPPORT EQUIPMENT............................................................................................................ 14 7. FCC PART 15 REQUIREMENTS............................................................................................. 15 7.1 D UTY CYCLE......................................................................................................................... 15 7.2 26 DB EMISSION BANDWIDTH............................................................................................... 17 7.3 MAXIMUM CONDUCTED OUTPUT POWER.............................................................................. 28 7.4 BAND EDGES MEASUREMENT...................................................................................... 42 7.5 PEAK POWER SPECTRAL DENSITY......................................................................................... 52 7.6 PEAK EXCURSION.................................................................................................................. 64 7.7 RADIATED UNDESIRABLE EMISSION...................................................................................... 75 7.8 CONDUCTED UNDESIRABLE EMISSION.................................................................................. 98 7.9 POWERLINE CONDUCTED EMISSIONS.................................................................................. 108 7.10 FREQUENCY STABILITY....................................................................................................... 111 7.11 DYNAMIC FREQUENCY SELECTION.......................................................................... 124 APPENDIX I RADIO FREQUENCY EXPOSURE ..................................................................... 149 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP..................................................................... 152 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Cisco Systems Inc. 170 West Tasman Drive, San Jose, CA 95134,United States Manufacturer: Cisco Systems Inc. 170 West Tasman Drive, San Jose, CA 95134,United States Equipment Under Test: Cisco Small Business Telepresence Tr a d e N a m e : CISCO Model: CLX300 Date of Test: November 30, 2011 ~ March 8, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart E No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 152 Rev. 00 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP Conducted Emission Set Up Photo Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 153 Rev. 00 Radiated Emission Set up Photos Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 154 Rev. 00 Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 155 Rev. 00 Powerline Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: LDK-CLX300 Report No.: T120201G02-RP2 Page 156 Rev. 00 Dynamic Frequency Selection Set Up Photo
